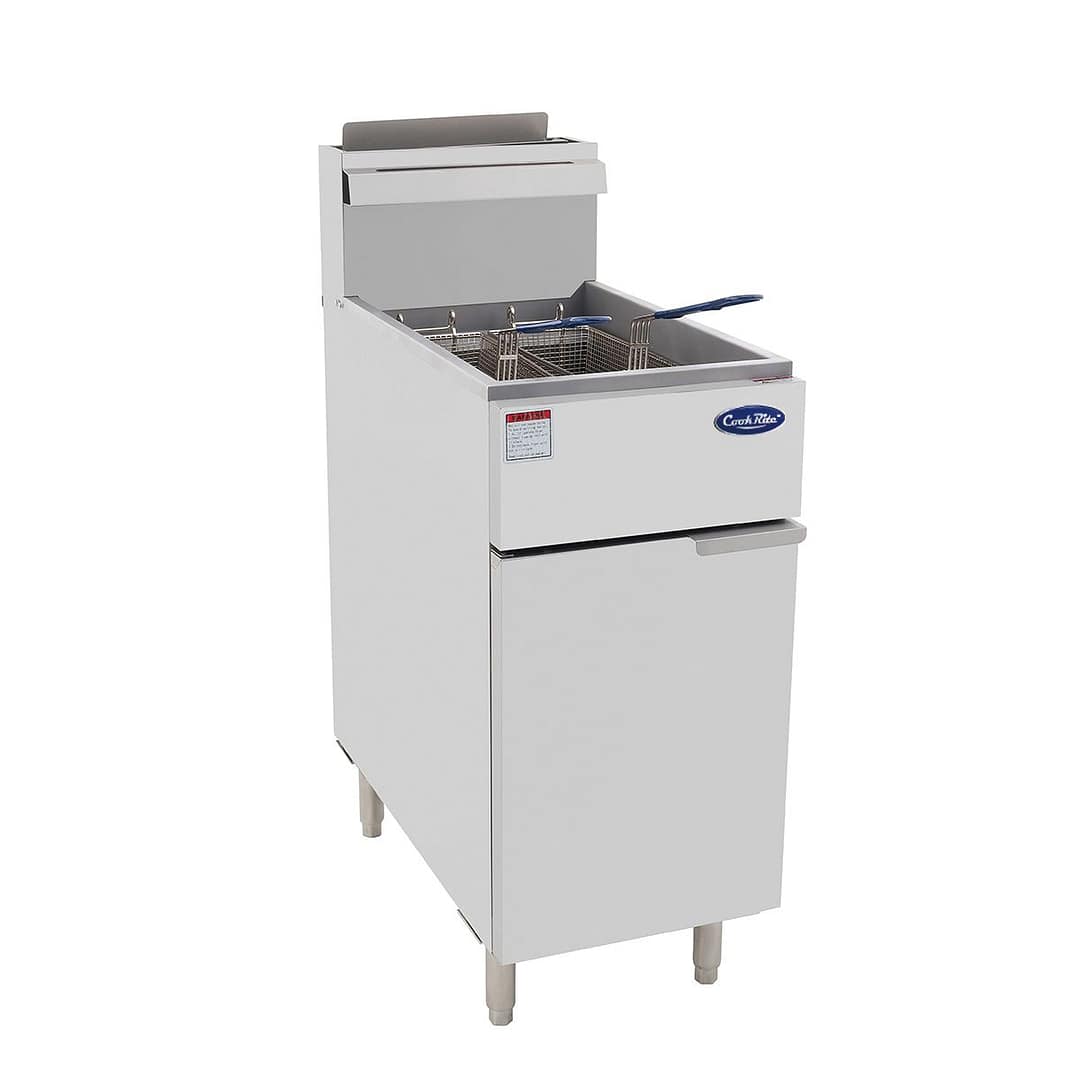

CookRite ATFS-40 3-Tube Commercial Gas Deep Fryer – NG / LPG
Updated:
At KW Commercial Kitchen, the CookRite ATFS-40 is a 3-tube gas deep fryer purpose-built for high-efficiency frying in commercial kitchens. With a 26.4L oil capacity, thermostatic temperature control, and durable stainless construction, it ensures consistent performance and safety for cafés, restaurants, and takeaway shops. Available for Natural Gas (NG) or LPG installations.
Built for Australian restaurants & takeaway outlets
The ATFS-40 combines three 28 MJ/h tube burners, automatic temperature control, and flame failure protection for fast recovery and reliable performance under high-volume conditions.
Key features & specifications
- Fuel Type: Natural Gas (NG) or LPG (factory convertible)

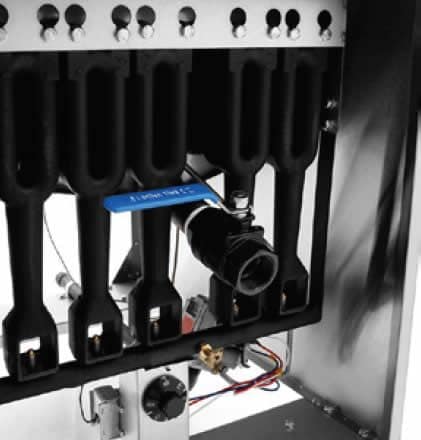

- Burners: 3 × 28 MJ/h (total 84 MJ/h)
- Oil Capacity: 26.4 L stainless steel tank

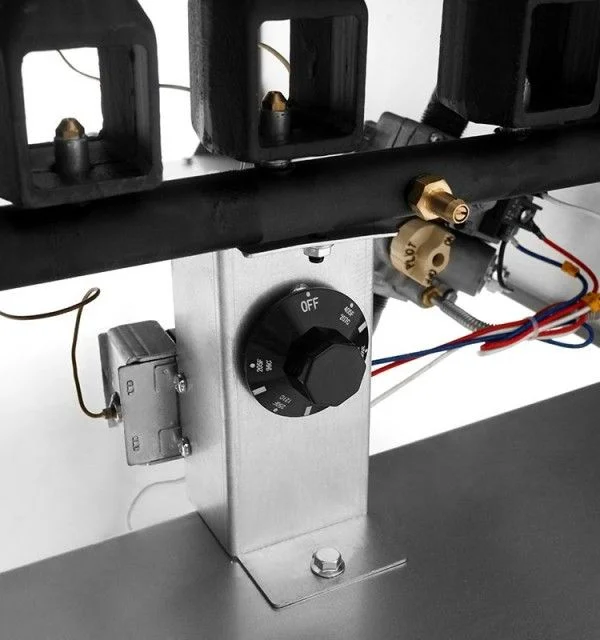

- Temperature Range: 0°C – 240°C thermostatic control
- Construction: Heavy-duty 304 stainless steel body and fry pot
- Safety: Flame failure device and automatic safety shut-off valve

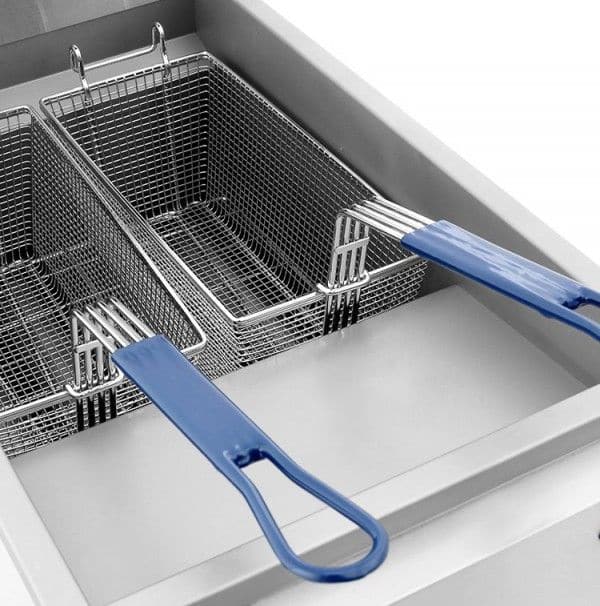

- Convenience: Nickel-plated baskets, stainless splashback, manual ignition
- Mobility: Rear castors for easy positioning and cleaning

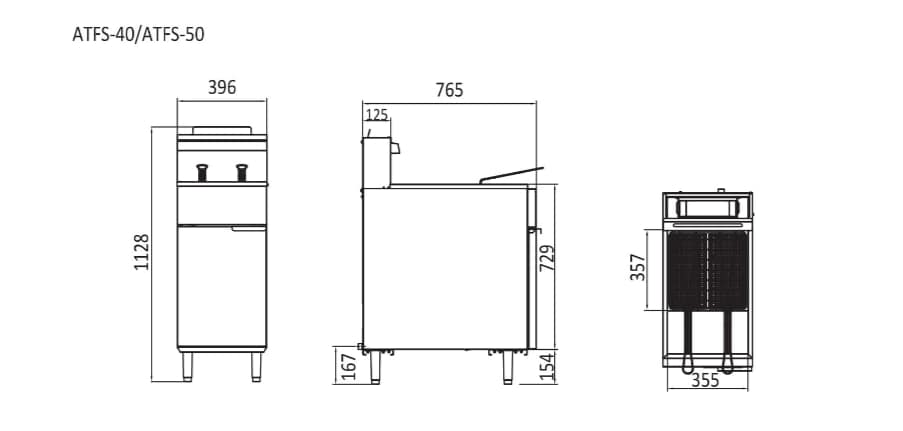

- Dimensions (W×D×H): 395 × 765 × 1128 mm
- Weight: 59.5 kg
- Gas Connection: ¾″ BSP inlet
- Warranty: 2 years parts & labour + 2 years parts (registration required)
Compliance & safety (AU)
- Gas: Must be installed by a licensed gas fitter per AS/NZS 5601.1; ensure ventilation and clearance to walls.
- Electrical: Not applicable (manual ignition & controls).
- Food safety: FSANZ-compliant design; includes oil-cooling zone to extend oil life.
Convenience & usage advice
- Daily cleaning: Filter oil daily; wipe surfaces with mild detergent; avoid steel scourers and chlorine cleaners.
- Maintenance: Check burner flames and thermostat weekly; schedule annual service for compliance testing.
Ideal applications
- Restaurants & cafés
- Fast-food and takeaway kitchens
- Food trucks and catering services
At a glance
- 26.4L oil capacity
- 84 MJ/h total gas output
- 304 stainless steel construction
- 4-year parts coverage (with registration)
Frequently Asked Questions
1) How do I clean it daily without harming finishes?
Allow oil to cool, drain via valve, clean tank and baskets with neutral detergent; avoid abrasives or high-pressure jets.
2) What routine maintenance keeps performance stable?
Filter oil after each shift; clean burners and pilot assembly weekly; perform annual safety inspection by gas fitter.
3) What are the gas requirements and typical energy use?
Requires NG or LPG ¾″ BSP connection; consumes 84 MJ/h under full load; cost varies by duty cycle and menu volume.
4) What about installation and Australian compliance?
Install to AS/NZS 5601.1 standard; ensure ventilation and clearances; suitable for indoor commercial kitchen use.
5) Are spare parts and accessories available?
Yes – baskets, burners, and thermostats available. Provide model and serial number for correct match.
Specs source: CookRite ATFS-40 manufacturer data and supplier documentation.
Running Cost (estimate)
