Explore Efficient Cooking with Zanussi Magistar Gas Combi Oven

Product Description:

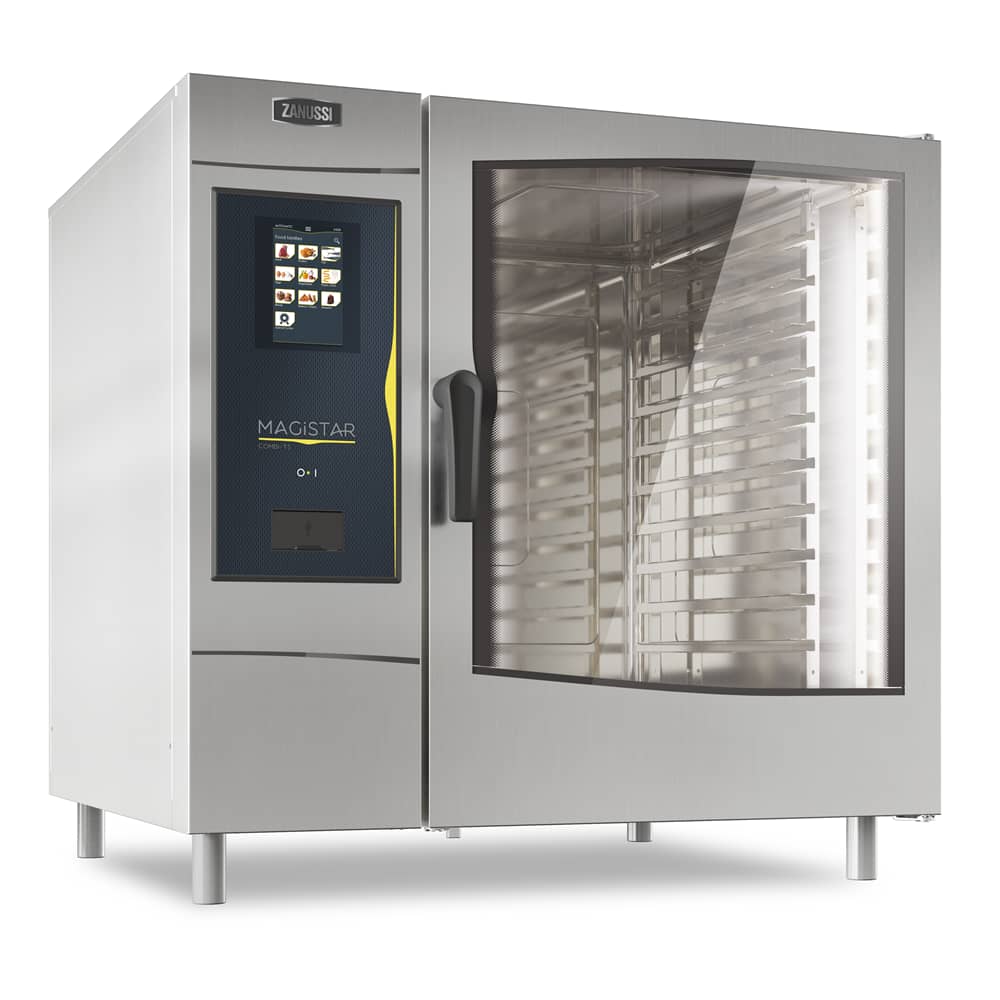

Transform your commercial kitchen with the Zanussi Magistar DigitalPro 10 x GN 2/1 or 20 x GN 1/1  Natural Gas Combi Oven, a groundbreaking solution for diverse cooking needs. From fine dining to high-volume catering, this 10-tray oven ( 20 tray Oven) is a powerhouse of performance and convenience.

Key Benefits:

1. Efficient Cooking: Real humidity control and multiple cooking cycles for precise results.
2. Smart Connectivity: Optional real-time remote monitoring and HACCP data download.
3. User-Friendly: High-resolution, color-blind friendly touch screen with customizable settings.
4. Ease of Maintenance: Integrated grease collector and self-cleaning options for hassle-free operation.
5. 100% made in Italy

Digital Mastery:

Navigate effortlessly through its digital interface with LED-backlit buttons. The oven offers boilerless steaming and a dry hot convection cycle, each with fine-tuned settings to ensure consistent, high-quality results.

Culinary Versatility:

With its EcoDelta cooking and built-in steam generator, this oven adapts to your recipes. Pre-installed cooking variants for meat, poultry, fish, and more make it easier to achieve your desired cooking outcomes.

Smart & Safe Operations:

The oven’s MultiTimer function lets you manage 20 different cooking cycles simultaneously. Integrated safety features like automatic cool-down, grease collection, and self-diagnosis modes protect both the user and the appliance.

Technical Specifications:

• Power: 37.4 kW (Max 39 kW), 400-430V/3N ph/50-60 Hz
• Dimensions: W 1090 mm x D 971 mm x H 1058 mm
• Weight: 189.5 kg

INSTALLATION:

• Clearance: Clearance: 5 cm rear and right hand sides.
• Suggested clearance for service access: 50 cm left hand side.

WATER:

• Water inlet “FCW” connection: 3/4″
• Pressure, bar min/max: 1-6 bar
• Drain “D”: 50mm
• Max inlet water supply temperature: 30 °C
• Chlorides: <17 ppm
• Conductivity: >50 µS/cm

CAPACITY:

• GN: 10 – 2/1 Gastronorm
• Max load capacity: 100 kg

Frequently Asked Questions

How do I install the Zanussi Magistar DigitalPro Combi Oven?

Installation should be performed by a qualified technician. Ensure the gas supply matches the oven’s requirements, connect to a power source, and set up the SmartSync connectivity following the manual.

Is the Zanussi Magistar oven compatible with other kitchen setups?

Yes, this oven can integrate with various kitchen layouts. It requires standard 10 x GN2/1 or 20 x GN 1/1 sizing for installation. Confirm dimensions and utilities placement beforehand.

What routine maintenance does the DigitalPro oven require?

Regularly clean the oven’s interior and exterior, check and clean the gas injectors, and ensure the software for SmartSync is updated. Annual professional check-ups are recommended.
