Waldorf FN8120GE Gas Fryer – 20L Oil, 31kg/hr, Digital Control
Updated:

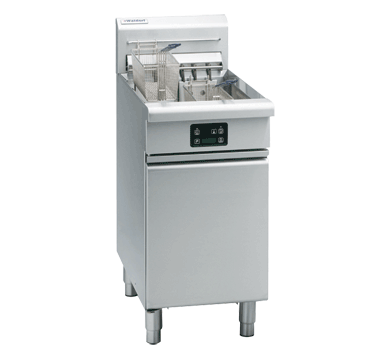

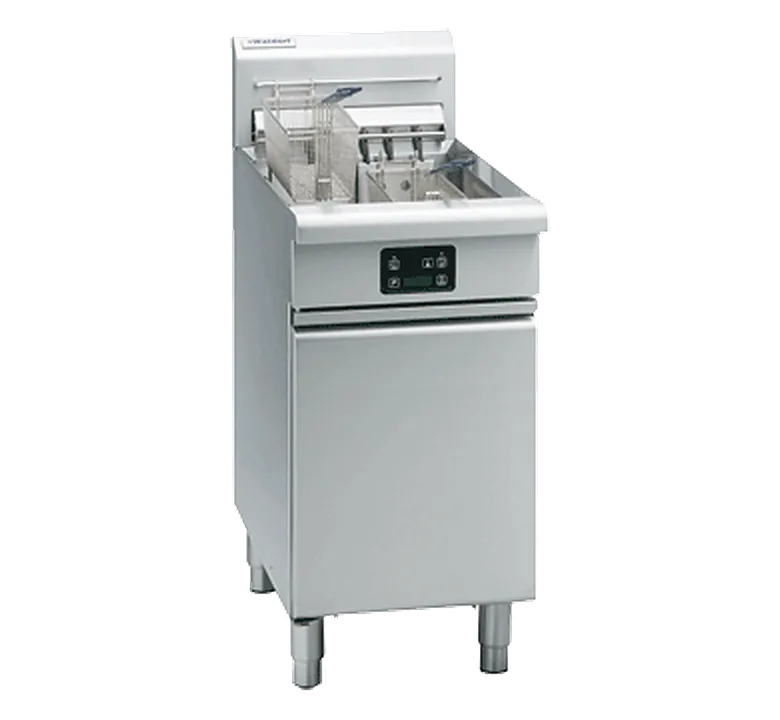

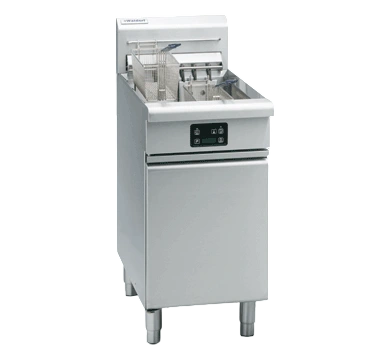

At KW Commercial Kitchen, we supply the Waldorf FN8120GE, a high-performance 450mm gas fryer with 20L oil, 31kg/hr output, and 2 × 45MJ/hr patented infra-red burners. With digital temperature control and programmable basket timers, it delivers precise, repeatable frying and fast ROI for busy kitchens.
Built for Australian restaurants, QSRs & catering kitchens
The FN8120GE combines a digital electronic thermostat (88–195 °C), programmable melt cycle, and a large cool zone with a robust stainless build and 32mm drain for simple oil management.
Key features & specifications
- Oil capacity: 20 L
- Production rate: 31 kg/hr
- Burners: 2 × 45MJ/hr infra-red (total 90MJ / 25kW)
- Controls: Digital thermostat (88–195 °C), 2 basket timers, melt cycle
- Drain: 32mm front drain valve
- Baskets: Supplied with 2 large or 3 standard baskets
- Gas connection: R 3/4” BSP male; NG/ULPG regulators included
- Electrical: 230–240V, 10A plug (for digital controls)
- Dimensions (W×D×H): 450 × 805 × 1130 mm
- Weight: 81kg net / 122kg packed
- Warranty: 12 months parts & labour + 10-year pan warranty
Compliance & safety (AU)
- Gas: Install by licensed gas fitter per AS/NZS 5601.1.
- Electrical: RCM compliant digital controls (10A plug).
- Food safety: FSANZ-aligned; stainless open pan with cool zone.
Convenience & usage advice
- Easy ignition: Piezo to standing pilot, quick and reliable.
- Gas-efficient: Infra-red burners save gas, fast recovery = quicker ROI.
Ideal applications
- Restaurants & cafés
- Takeaway & QSR chicken/fish kitchens
- Hotels, pubs & catering kitchens
Frequently Asked Questions
1) How do I clean it daily?
Drain via 32mm valve, wipe with neutral detergent, rinse and dry. Avoid abrasives/chlorine.
2) What routine maintenance is needed?
Clean baskets daily, check burner pilots weekly, service thermostat quarterly.
3) What are the gas & power requirements?
90MJ/h gas, 3/4” BSP inlet, plus 230–240V / 10A for controls.
4) What about installation & compliance?
Gas fitter required per AS/NZS 5601.1; RCM electrical compliance.
5) Are accessories available?
Yes – Filtamax filtration, extra baskets, fish plates, side guards, castors.
