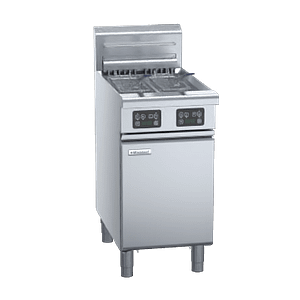

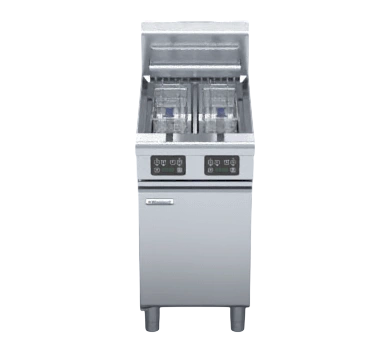

Waldorf FN8224EE Twin Pan Electric Fryer – 12L + 12L Oil, Digital Control

Updated: 29 Aug 2025

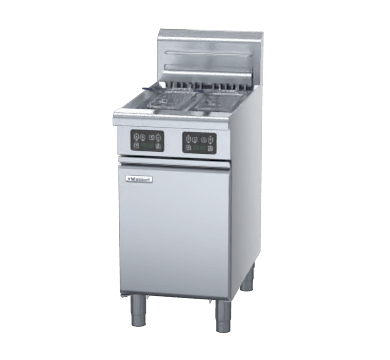

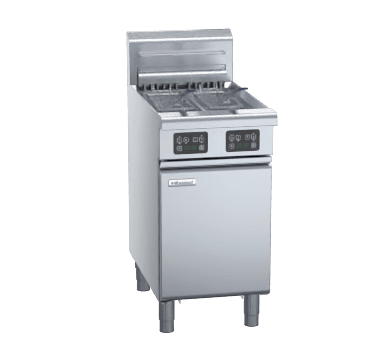

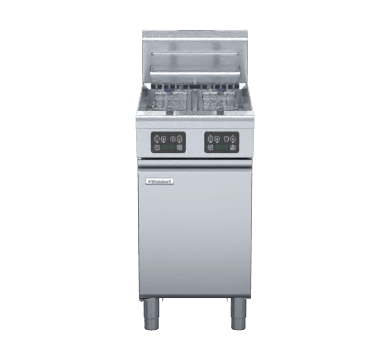

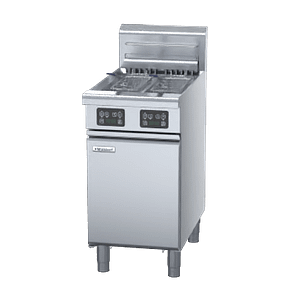

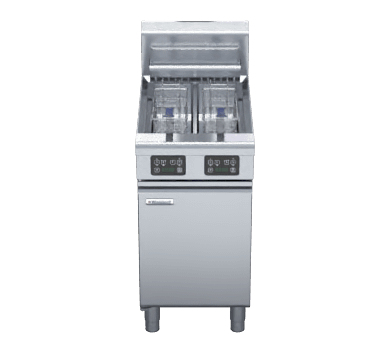

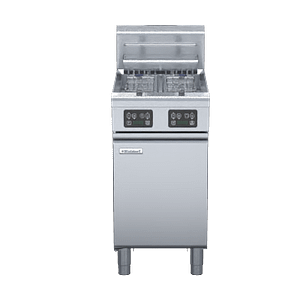

At KW Commercial Kitchen, we supply the Waldorf FN8224EE – a 450mm twin pan electric fryer with 12L oil capacity per pan and a combined 31kg/hr production rate. Fitted with digital thermostat controls and programmable basket timers, it’s ideal for busy Australian QSR, cafés and catering kitchens.:contentReference[oaicite:1]{index=1}

Built for Australian QSRs, restaurants & catering kitchens

The FN8224EE features 17kW stainless steel heating elements, programmable melt cycle, and fail-safe over-temp cut-outs. Each pan operates independently, helping reduce flavour transfer and improve flexibility.:contentReference[oaicite:2]{index=2}

Key features & specifications

• Oil capacity: 12L per pan (2 × 12L)
• Production rate: 31kg/hr
• Heating elements: 3 × 2.83kW per pan (total 17kW)

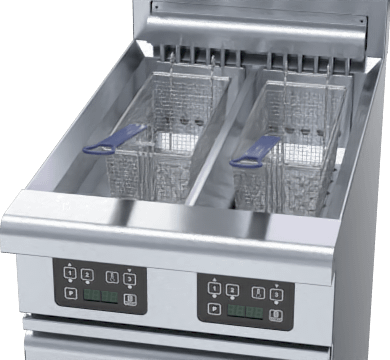

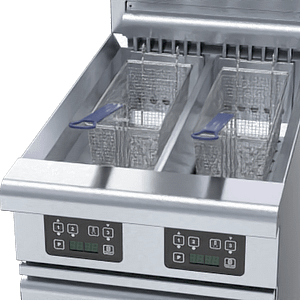

• Controls: Digital thermostat (88–195 °C), 2 timers per pan, melt cycle
• Drain: 25mm drain valves per pan
• Baskets: 2 chrome-plated baskets supplied
• Electrical: 400–415V, 3P+N+E, 17kW, 23.6A per phase:contentReference[oaicite:3]{index=3}
• Dimensions (W×D×H): 450 × 805 × 1130 mm
• Weight: 74kg net / 116kg packed
• Warranty: 12 months parts & labour + 10-year pan warranty

Compliance & safety (AU)

• Electrical: RCM compliant; must be installed by licensed electrician.
• Food safety: FSANZ-aligned twin pan design prevents flavour crossover.

Convenience & usage advice

• Independent pans: Cook different products side by side with no flavour transfer.
• Easy cleaning: Hinge-out elements, smooth stainless surfaces, and 25mm drains simplify maintenance.

Ideal applications

• Quick service restaurants & cafés
• Hotels & pubs
• Catering kitchens with varied menus

Frequently Asked Questions

1) How do I clean it daily?

Drain oil via 25mm valves, wipe pans with mild detergent, rinse and dry. Avoid abrasives/chlorine.

2) What routine maintenance is needed?

Check tilt switches monthly, clean baskets daily, service thermostat quarterly.

3) What are the electrical requirements?

400–415V, 3-phase, 17kW load, 23.6A per phase; licensed electrician required.

4) What about compliance in AU?

RCM certified, FSANZ-aligned; must be installed per AS/NZS electrical standards.

5) Are accessories available?

Yes – Waldorf Filtamax filtration, fish plates, extra baskets, side guards, castors, plinth kits.
