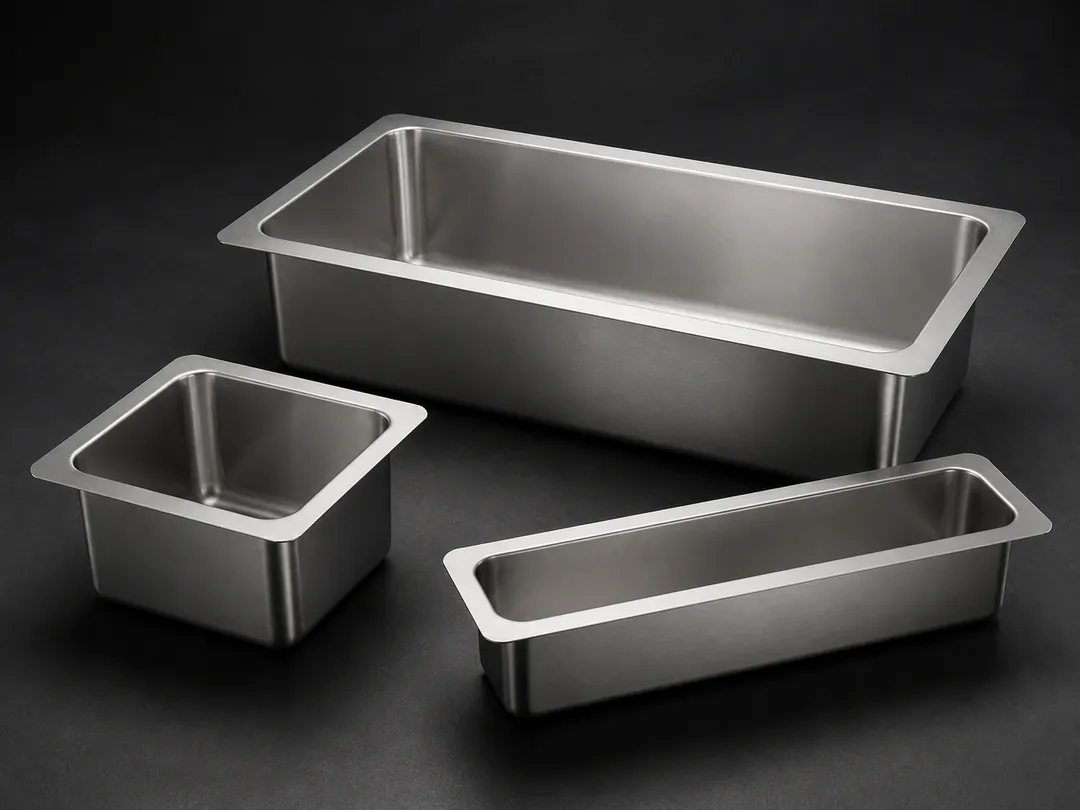

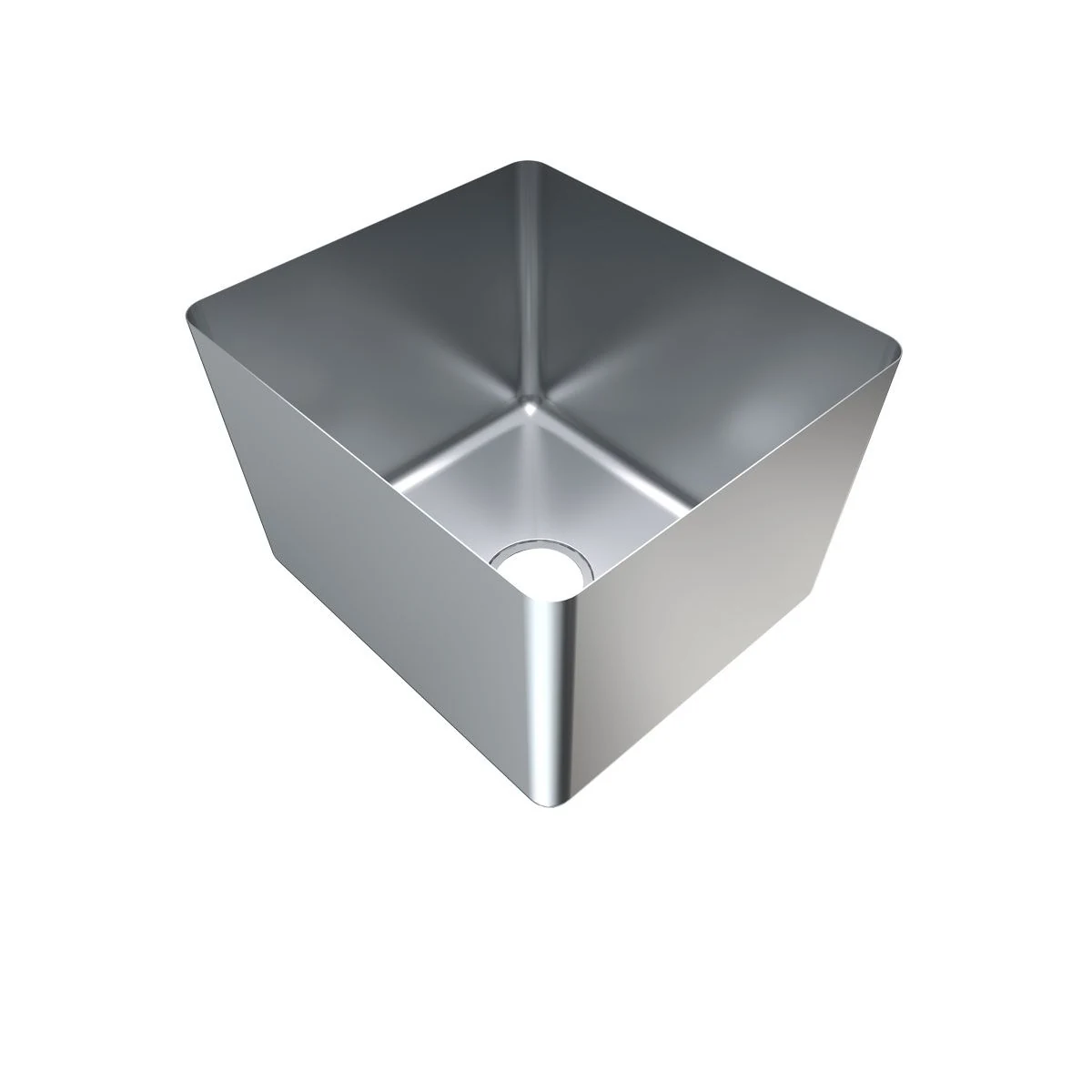

Sink Insert Bowls

Check the bowl dimensions before finalising the bench cut-out. Compare width, front-to-back depth and height separately, then ask your fabricator to confirm the opening and space for the waste connection.

Compare Modular Systems bowl sizes

These are the listed product dimensions in W × D × H order. Confirm internal bowl measurements and cut-out details before using them for fabrication.

• 300 mm wide: HSIN302520 measures 300 × 250 × 200 mm. HSIN303020 measures 300 × 300 × 200 mm. The second model adds 50 mm front to back while keeping the same listed width and height.

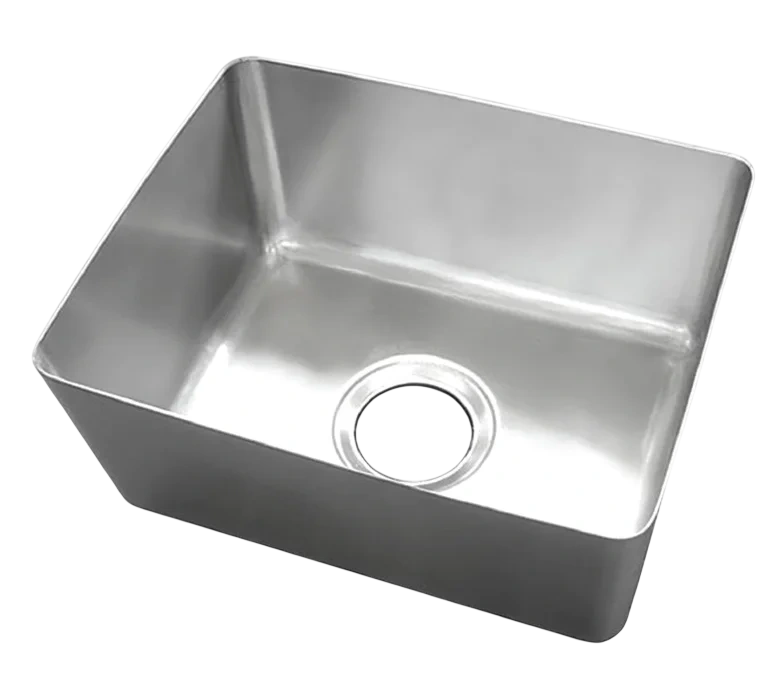

• Different rectangular footprints: HSIN354530 measures 350 × 450 × 300 mm; HSIN453030 measures 450 × 300 × 300 mm. Compare the width and front-to-back measurements against your drawing; these two footprints are different.
• 500 mm wide: HSIN504030 measures 500 × 400 × 300 mm. HSIN505040 measures 500 × 500 × 400 mm. The second model adds 100 mm both front to back and in height, so check the space below the bench as well as the top layout.
• 600 mm wide: HSIN604530 measures 600 × 450 × 300 mm. Compared with HSIN505040, it is 100 mm wider, 50 mm shorter front to back and 100 mm lower in listed height.

Confirm the fabrication details

Before ordering, ask your fabricator to confirm the usable internal dimensions for the items you wash, the cut-out and weld detail, and the waste outlet position and connection size. Check under-bench pipework clearance and leave access for cleaning and servicing.
