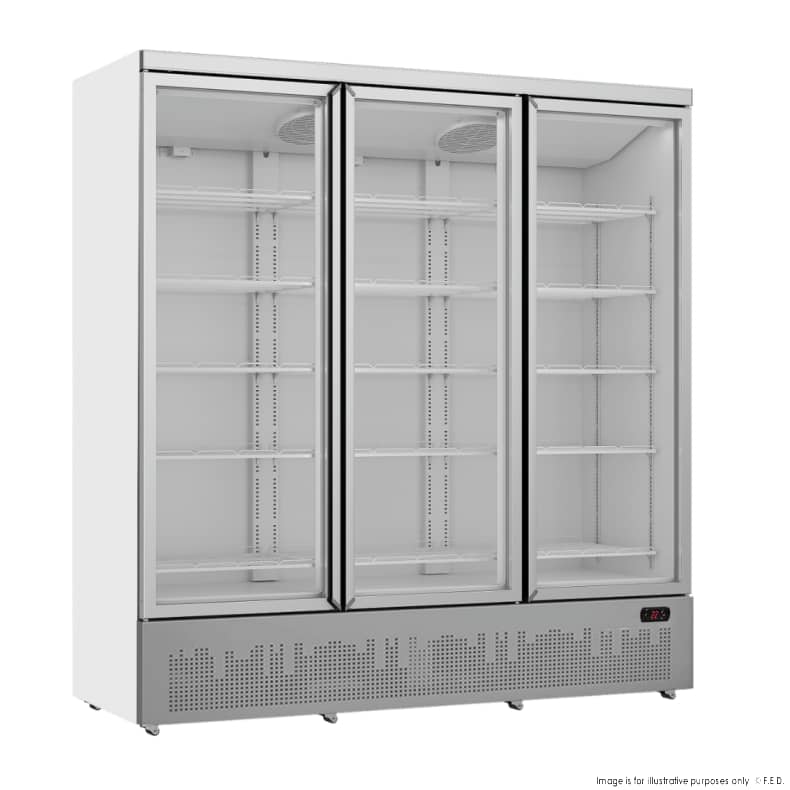

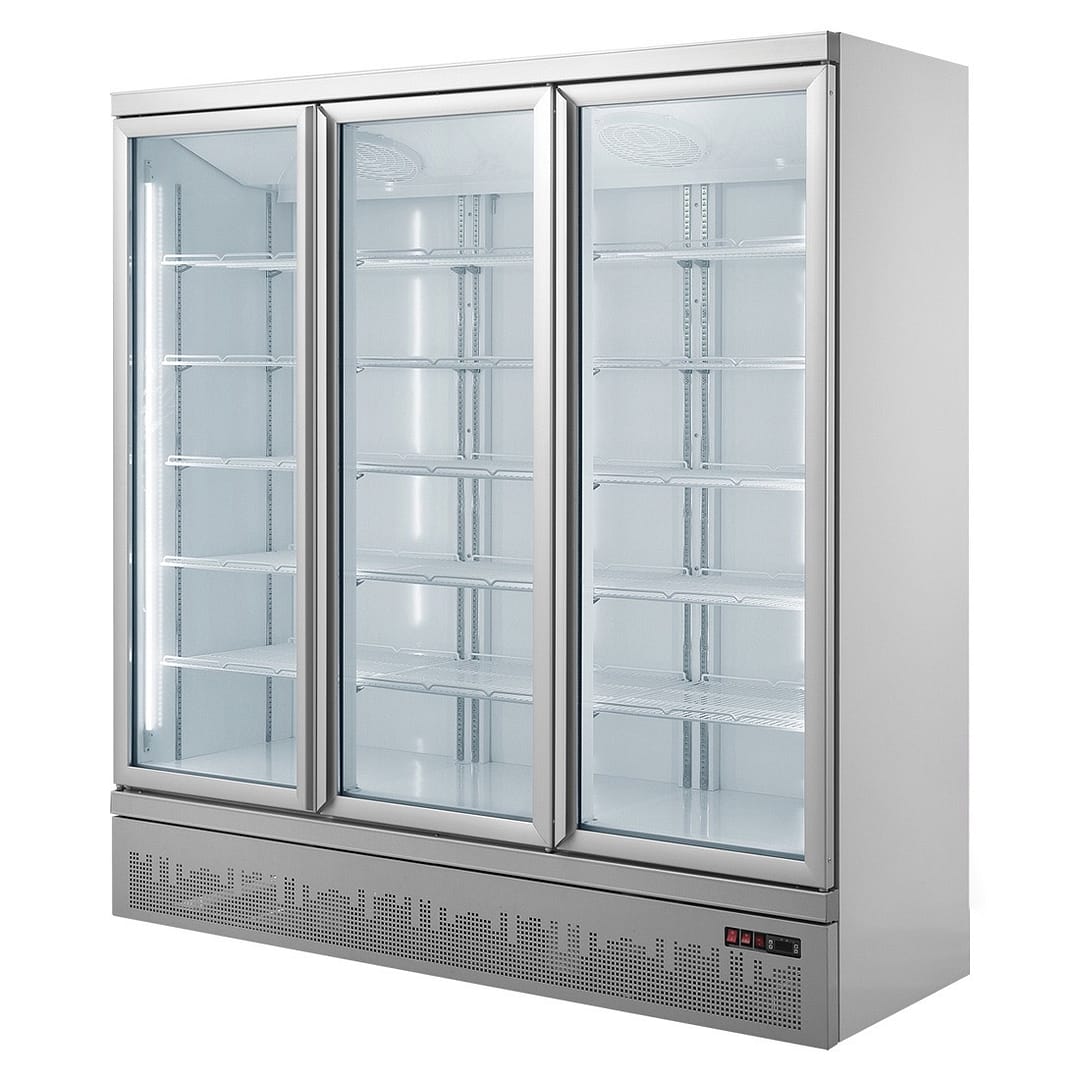

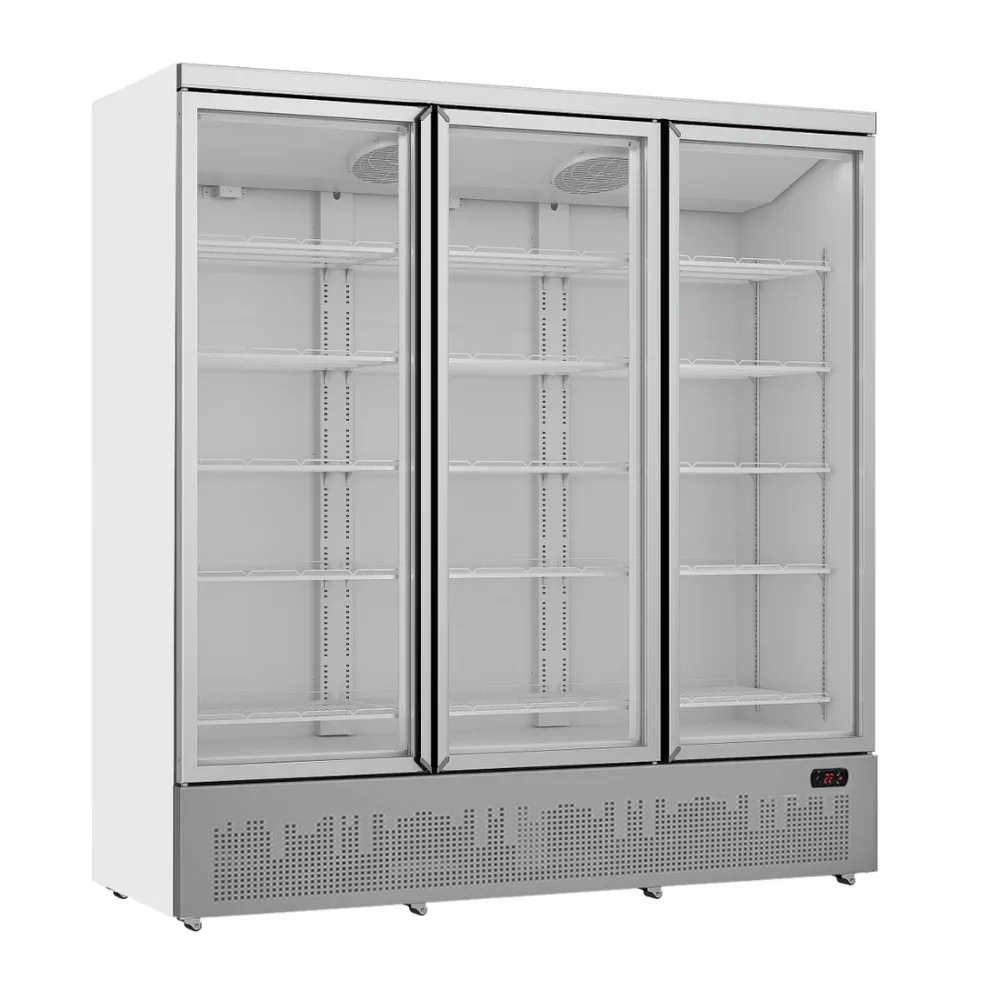

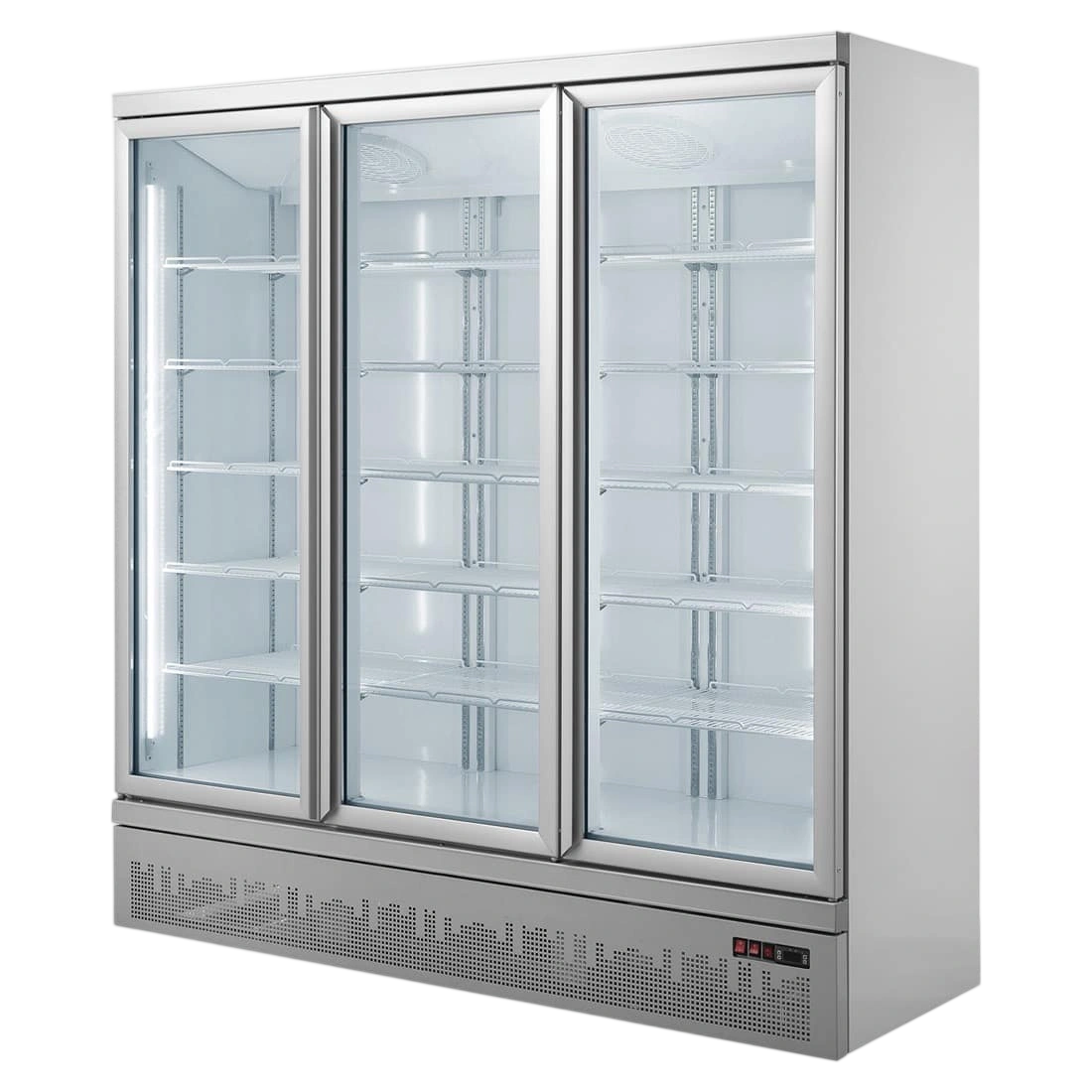

Thermaster LG-1500GBM Triple Door Supermarket Fridge

• Frozen stock needs a commercial display freezer with a temperature range suited to the products.
• If two doors cover your display requirements, compare the Thermaster LG-1000BGBM two-door supermarket fridge.
• For an installation that cannot accommodate the cabinet and hinged-door access, choose a glass-door fridge that fits the measured space.

Start with the stock you intend to display and its required storage temperature. This cabinet operates at 2–8°C; assess the shelf arrangement and 1,246 L net volume against your actual product mix.

Check the dimensions in Key Specifications above against the final position and access route. Three hinged doors also need opening space, so include the aisle and customer access in the layout.

Compare the 700 W power rating and 8.396 kWh/24h energy consumption as separate measures when assessing site utilities. The electrical connection uses a 10 A plug, while the rated current is 2.33 A.

Watch the product video for another view of the cabinet, and use the measurements when planning the installation.

• Three glass doors and interior LED lights provide a visible chilled display.

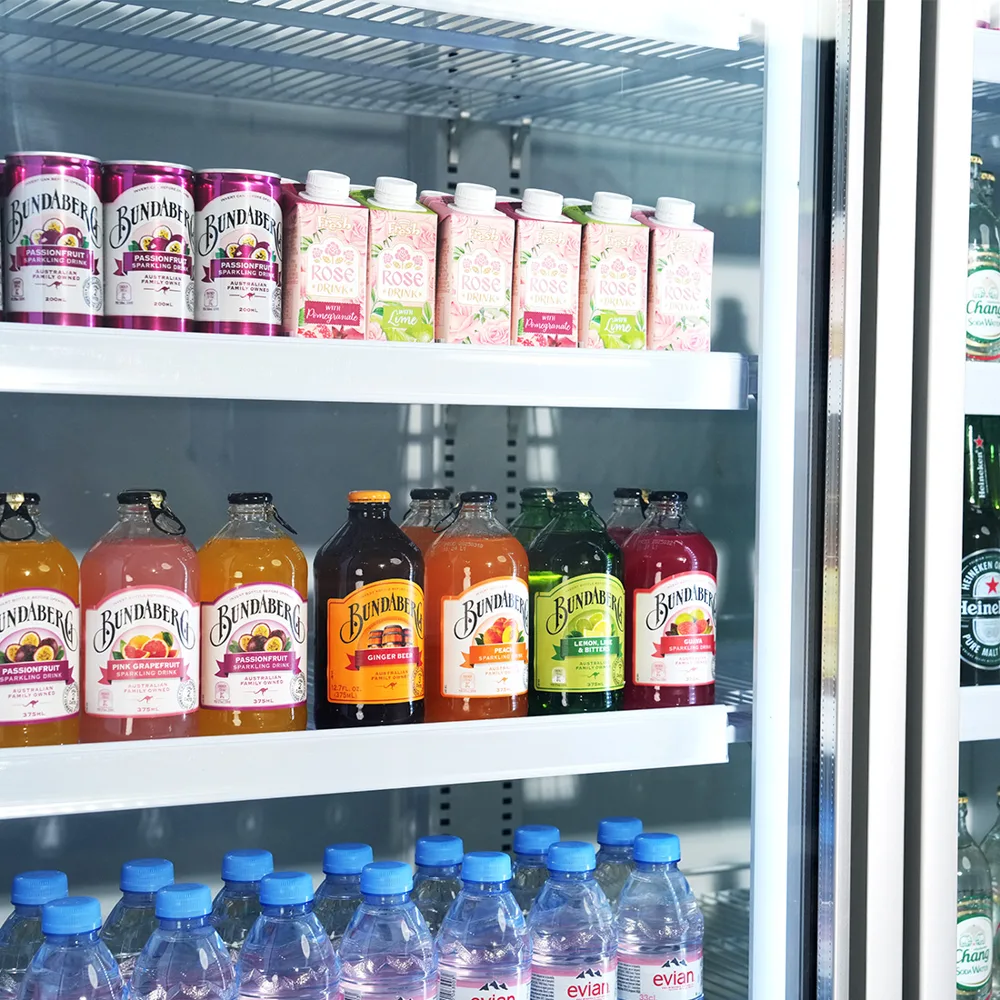

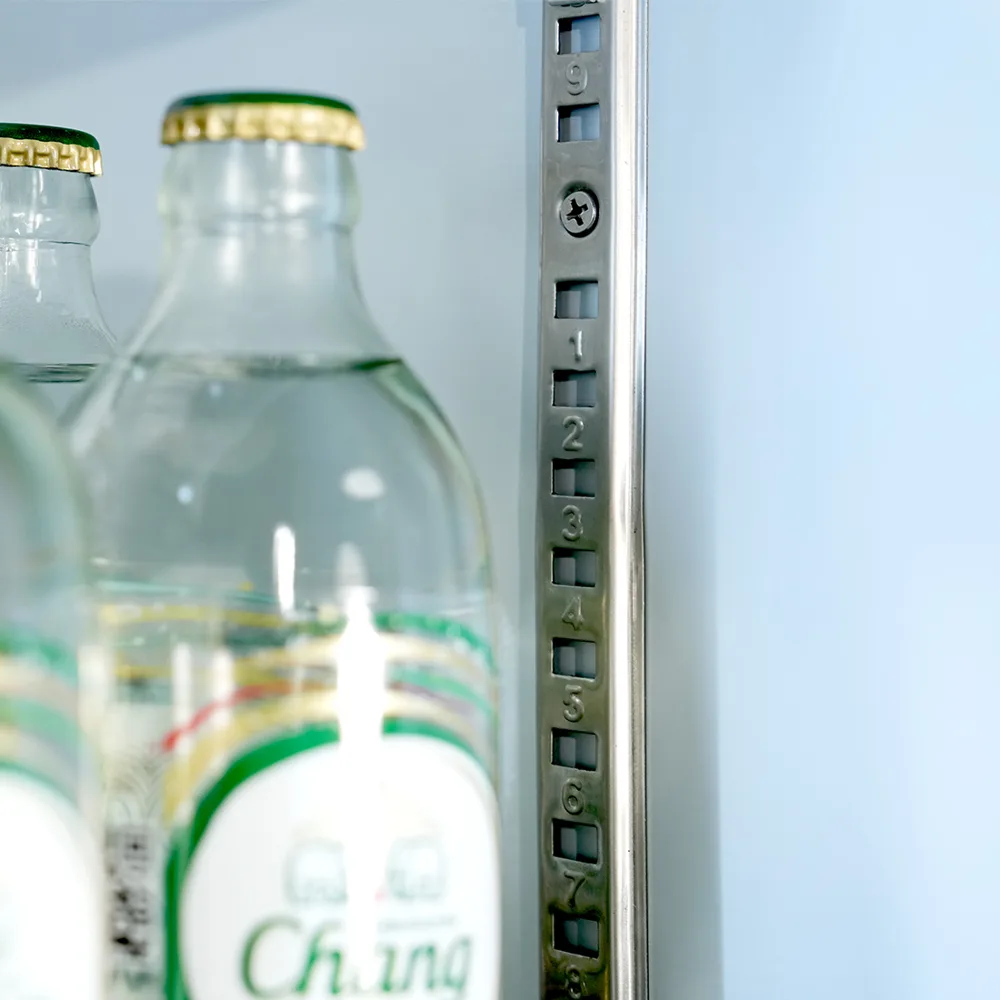

• Fully adjustable shelves allow changes to the stock layout.
• Self-closing doors and a self-evaporating drip tray support everyday operation.
• Universal wheels with front brakes provide a way to reposition and secure the cabinet.

• Three hinged doors need opening clearance in front of the display.
• The 207.5 kg net weight requires planned handling and positioning.
• The 2–8°C operating range suits chilled stock; frozen products require a separate freezer.
• The installation environment must suit the 38°C, 65% RH maximum ambient rating.

• Thermaster LG-1000BGBM Double Door Supermarket Fridge: The Thermaster LG-1000BGBM has two doors and a 460 W rating, compared with three doors and 700 W for the LG-1500GBM.

• Position and door clearance. Use the dimensions in Key Specifications above to assess the footprint and access route; the cabinet height includes the supplied castors. Allow the specified −5 to +10 mm dimensional tolerance and separate space for door opening, ventilation and servicing.
• Handling and packaged access. Plan handling for a 207.5 kg net-weight cabinet. Check the packed dimensions of 760 mm wide × 1905 mm deep × 2060 mm high against the access route.
• Electrical supply. Provide a suitable 240 V, 50 Hz supply for the 10 A plug. The electrical rating is 700 W with a rated current of 2.33 A.
• Ambient conditions and loading. Match the installation environment to the maximum ambient rating of 38°C at 65% relative humidity. Arrange stock on the adjustable shelves while maintaining the forced-air circulation path.
• Commissioning and routine care. Follow the installation and operating instructions for commissioning, cleaning and maintenance. Include the door seals, shelves, interior surfaces and condensate tray in the routine.

For body dimensions, see Key Specifications above.
