Stainless Steel Trolley

A trolley for boxed stock, a clearing trolley and a GN pan rack solve different transport jobs. Start with the largest item, its loaded weight and how staff will put it on and take it off. A shelf count or stainless steel label alone does not establish the usable space, load limit or suitability for hot items.

Two tiers or three within the same footprint

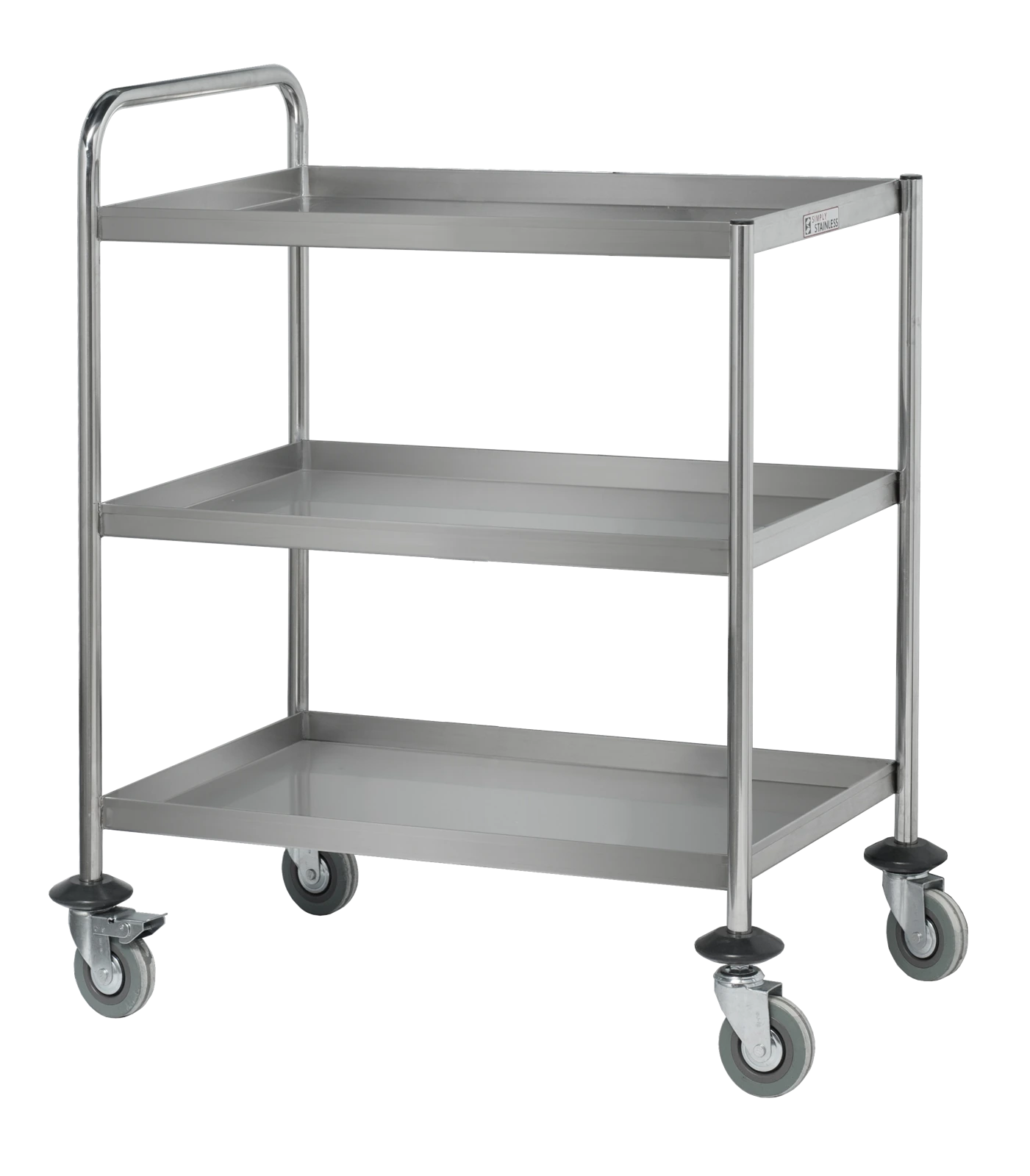

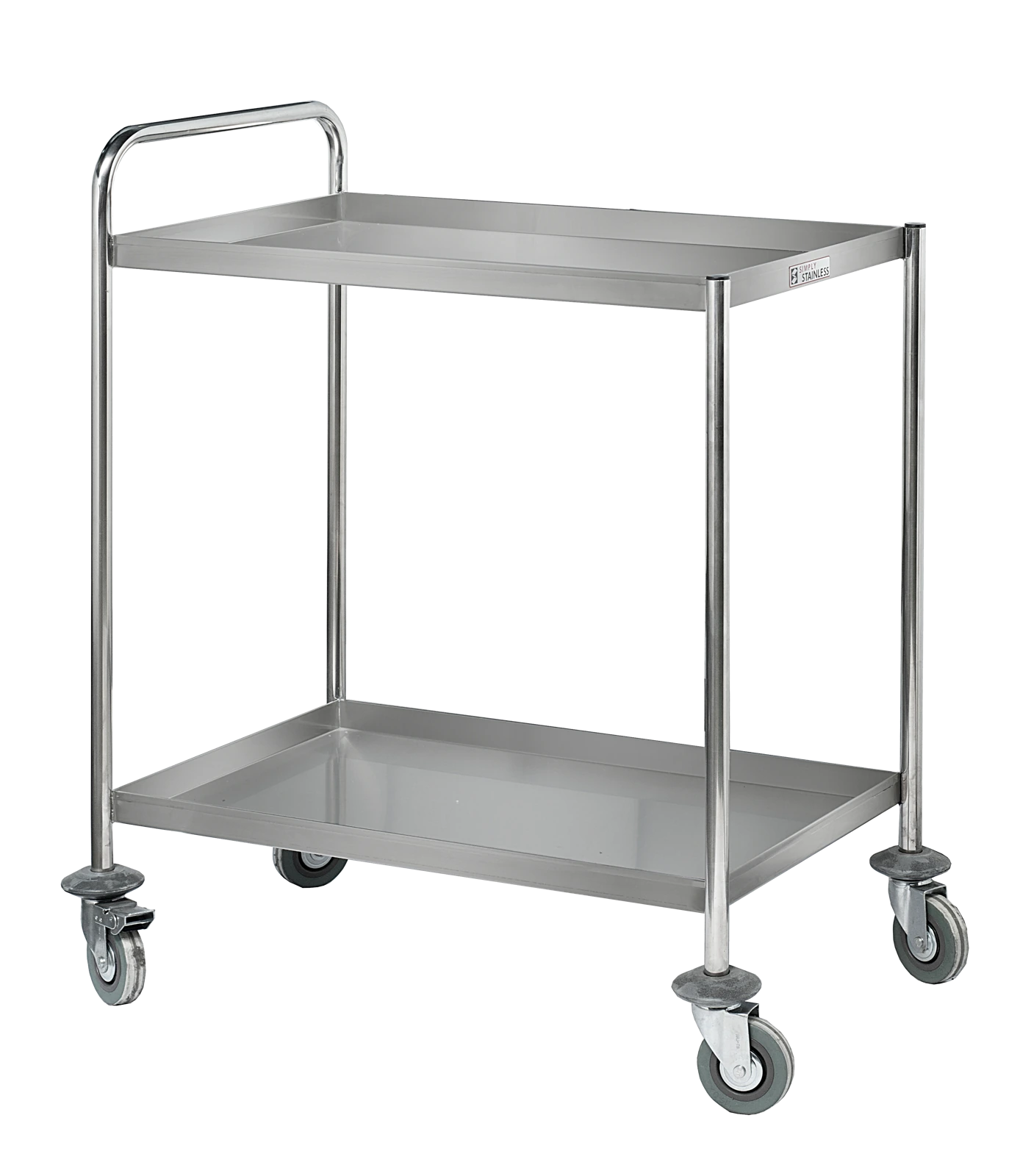

The Simply Stainless SS14 has two tiers and the SS15 has three. Both list overall dimensions of 800 mm wide × 550 mm deep × 900 mm high. Confirm the clear space between their shelves before choosing: the extra tier does not mean extra room for tall containers.

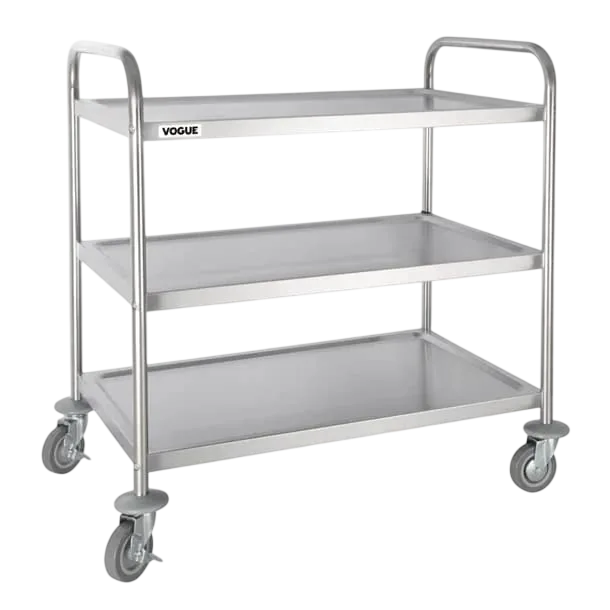

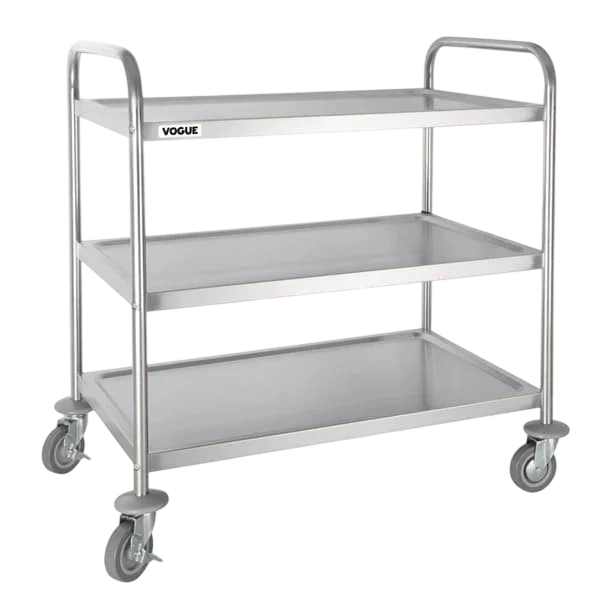

For an example with published shelf gaps, the Vogue F995 lists 274 mm from the middle to top shelf and 257 mm from the bottom to middle shelf. Check the container with its lid, then allow room to lift it out. Do not treat those gaps as usable container heights without checking the loading movement.

Check which shelf has the deeper sides

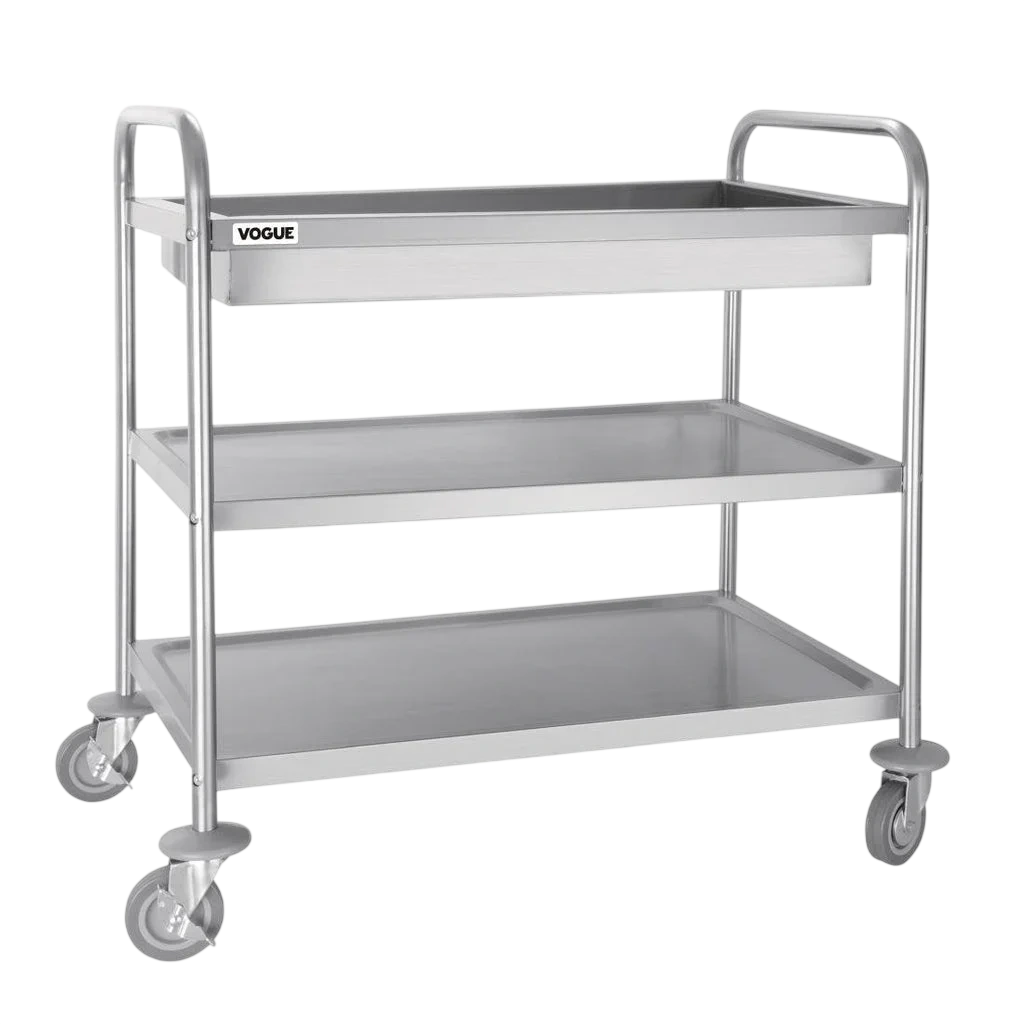

The Vogue CC365 has three shelves and a listed 100 mm-deep top tray. That top tray may suit smaller service items, but the 100 mm measurement does not describe every shelf. Check whether its sides help contain your load or obstruct lifting heavier containers onto it. The listed total load is 150 kg, evenly distributed across the three shelves.

A per-level limit is not the trolley's total limit

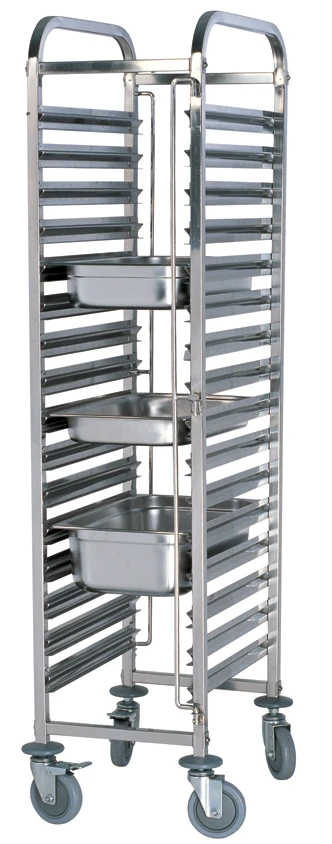

The F995 lists a maximum load of 128 kg. By contrast, the Anvil TRS0015 lists 15 GN tiers and a 20 kg limit per level. Do not multiply that per-level figure to claim a total trolley capacity. Confirm the total permitted load, pan format, rail spacing and retention arrangement before planning a fully loaded rack.

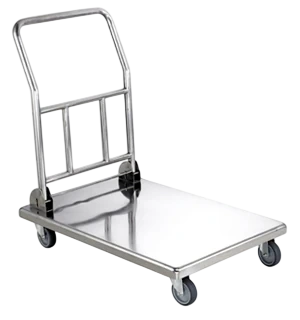

For a platform format, the Anvil TRS0609 lists a fold-down handle and 300 kg carrying capacity. It is a different choice from a tiered shelf trolley: check the load footprint, its restraint and the route, rather than choosing on the largest weight figure alone. Follow the model's loading instructions and confirm that the rating suits the intended movement and floor conditions.

Confirm material and temperature suitability on the exact model

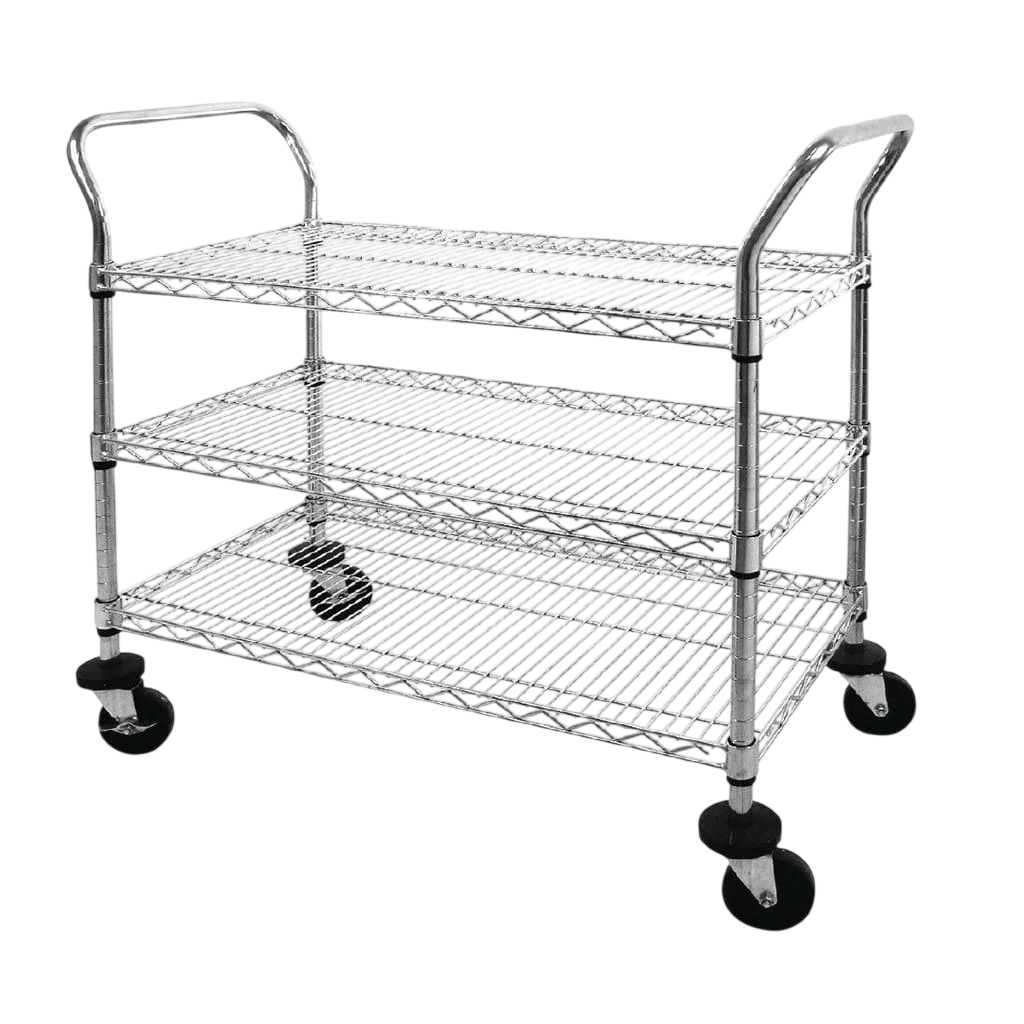

The range also contains the Vogue CC430, described as chrome-plated steel wire. Category placement does not make every trolley stainless steel or establish a 304 grade. For repeated wash-down, cleaning chemicals or hot cookware, confirm the exact materials, finish and permitted use with the supplier. Include castors, handles and any shelf inserts in that check.

Flat shelves load and unload fastest and suit boxed stock, equipment and anything lifted straight off. Raised sides or lipped edges are worth the slower loading where the trolley carries trays, loose containers or plated food, or where the route includes a slope, a threshold or a turn tight enough to shift a load.

Small hard castors run easily on level sealed floors but catch on drain covers and door thresholds. Larger castors roll over those transitions with less effort from the operator. Where the trolley is loaded or unloaded on a slope, or on a floor that is regularly wet, brakes on more than one corner are the practical requirement rather than an option.

Walk the route the trolley will take and record the narrowest doorway, the tightest corner and any threshold or ramp. Compare those measurements against the trolley footprint including handles and castor swing, which extend beyond the shelf dimensions. A trolley that fits the storage bay but not the corner into service will be worked around rather than used. Where stock stays inside chilled storage, compare fixed or mobile cool room shelving instead of using a service trolley as permanent racking.

Clean shelf corners, frame joints and castor housings on the same schedule as the surfaces around them, since these are where residue collects unseen. Check castor fixings and brake function periodically, particularly on trolleys that cross thresholds or carry heavier loads, and address a stiff or wobbling castor before it damages the shelf frame.
