20-tray gas combi cooking with humidity control

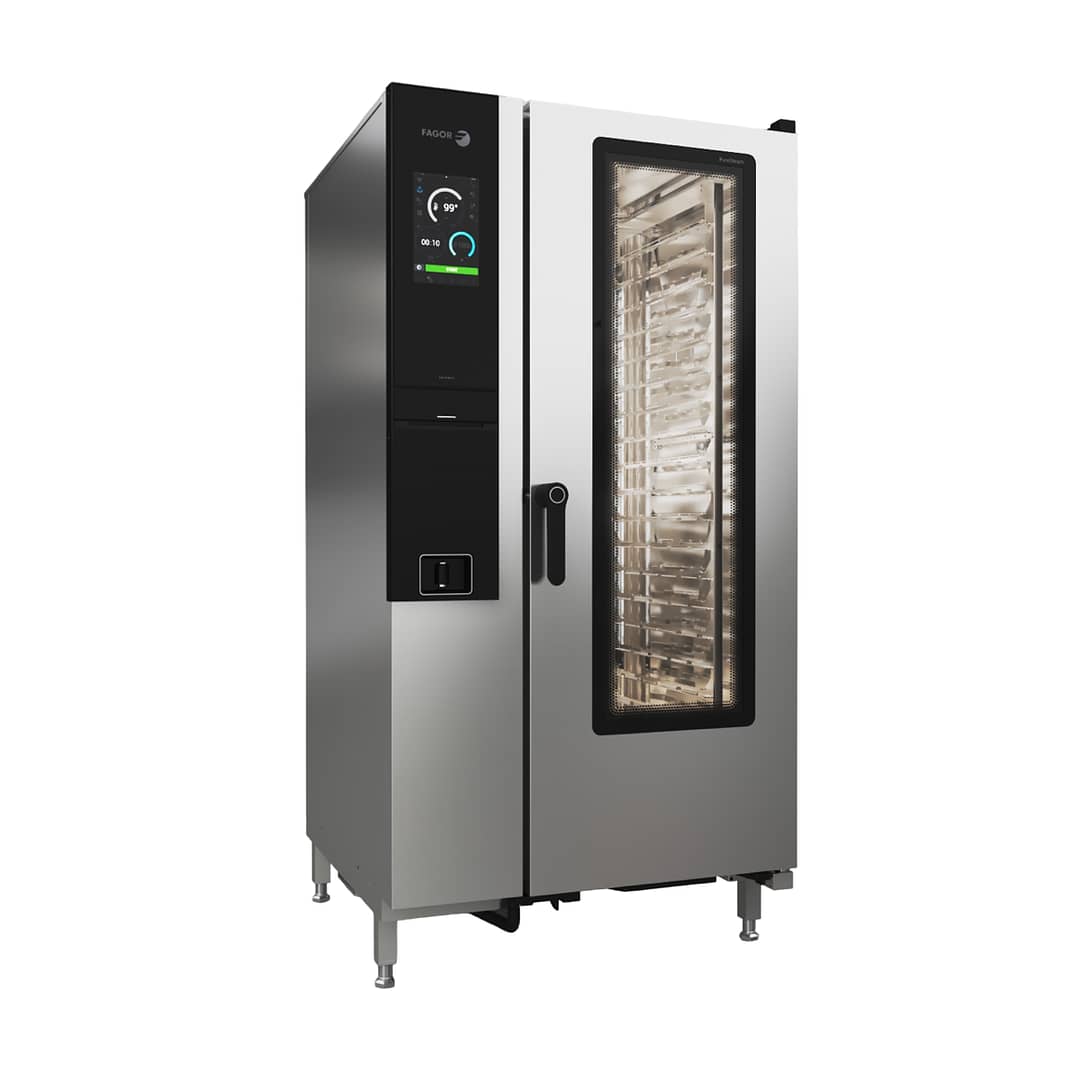

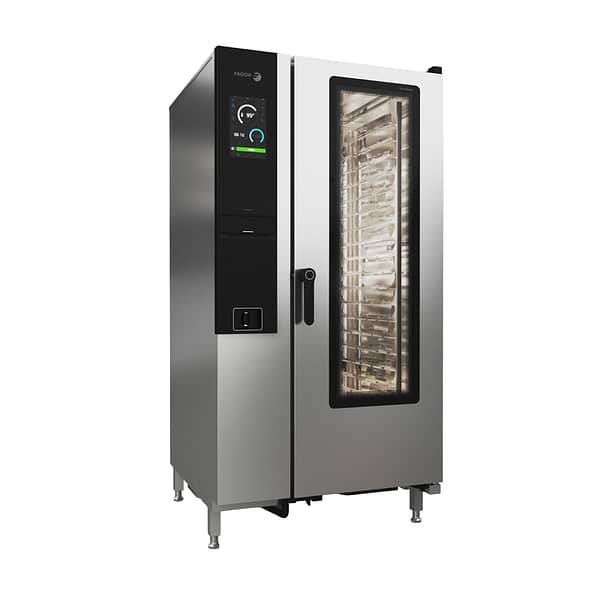

The Fagor APW-201GRLWS iKORE is a boiler gas combi oven for kitchens cooking across 20 GN 1/1 tray positions. It combines automatic cooking adjustments, touchscreen recipes and automatic washing; trays are supplied separately.

A configuration to consider for banquet kitchens, hotels, institutional catering and large restaurants preparing multiple trays of food. Its steam, mixed and convection modes support different production tasks within one oven. Choose a smaller configuration if your normal batches do not justify 20 tray positions.

Features in daily use

20 GN 1/1 tray positions. The oven accommodates 20 GN 1/1 trays. Pans and trays are not included.
Cooking processes you can adjust. iCooking automatically adjusts cooking processes, while the 10.1-inch glass touchscreen lets operators change parameters during cooking. End-of-cycle options include holding temperature and repeating the cooking process.
Measured humidity control. iClima uses a humidity sensor for direct measurement and regulation in 1% increments. Chamber dehumidification supports cooking that requires a drier finish.
Recipes for repeat production. Fagor Cooking Center includes 200 factory-set, culinary-tested recipes, favourite-recipe management and unlimited storage of custom recipes with up to nine stages.
Five cooking modes. Choose low-temperature steam at 30–98°C, steam at 99°C, super steam at 100–130°C, mixed cooking at 30–300°C or convection at 30–300°C.
Additional cooking functions. Functions include regeneration, sous-vide, overnight cooking, fermentation, pasteurisation, smoking, charcuterie and dehydration. DeltaT cooking provides a further option for delicate cooking.
Automatic washing and chamber cooling. iWashing provides automatic washing with a detergent tank. Air and water cooldown functions cool the cooking chamber between tasks.
HACCP data output. HACCP data output supports documentation of cooking processes.

How to choose

Plan around the 20 GN 1/1 tray positions and the cooking modes your menu uses. Order compatible trays and pans separately, and consider how loading, unloading and washing will fit the production schedule.

Specify Natural Gas or LPG when ordering. Gas consumption is 129.6 MJ/h; installation planning must also cover electricity, water, drainage and access.

Plan the access route and installation position around an oven height of 1841 mm and a packed height of 2070 mm. Allow room for loading, cleaning and servicing.

Installation and setup

Gas connection. Choose Natural Gas or LPG; the regulator size is 3/4 inch. Installation must be carried out by an authorised technician in accordance with applicable local requirements.
Water and drainage. Provide water at 200–400 kPa through a 3/4-inch inlet, with a 40 mm drain connection.
Operating environment. The ambient operating range is 5–40°C. Keep ventilation openings unobstructed.
Cleaning and servicing. Use food-use detergents; do not use abrasive, corrosive, acidic, solvent-based or chlorine-based cleaning products. Arrange inspection and maintenance by an authorised service centre at least annually.

APW-201GRLWS technical details

Tray capacity	20 × GN 1/1; pans and trays not included
Gas options	Natural Gas or LPG; specify the required configuration
Gas consumption	129.6 MJ/h
Gas regulator size	3/4 inch
Touchscreen	10.1-inch glass touchscreen
Humidity regulation	Direct humidity measurement; 1% regulation increments
Factory recipes	200
Custom recipes	Unlimited storage; up to nine stages per recipe
Low-temperature steam	30–98°C
Steam	99°C
Super steam	100–130°C
Mixed cooking	30–300°C
Convection	30–300°C
Packed height	2070 mm
Water consumption	Maximum 30 L/h
Water pressure	200–400 kPa (2–4 bar)
Water inlet	3/4 inch
Drain connection	40 mm diameter

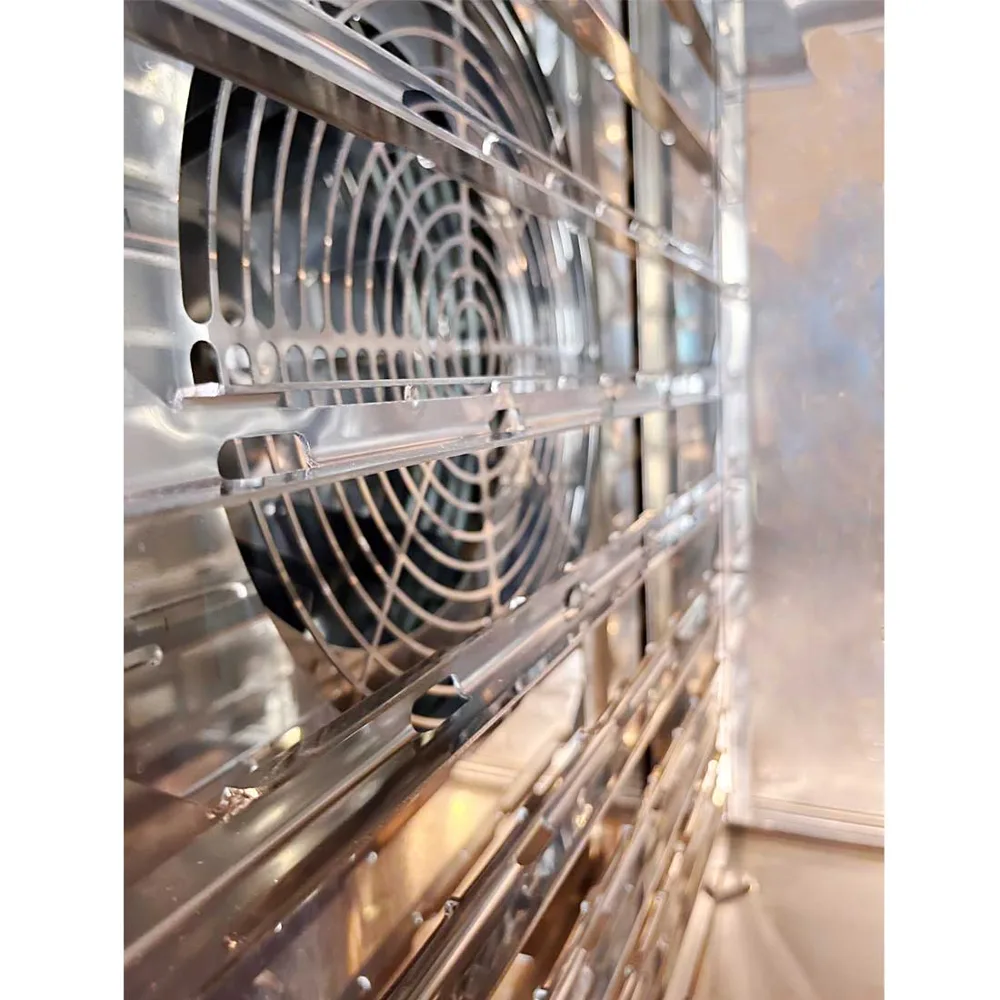

Air circulation	Six programmable speeds, from 1400 rpm to turbine stop; reversing fan rotation
Humidification	Five levels; manual steam injection
Steam generator	Automatic filling, limescale detection and guided semi-automatic descaling
Generator emptying	Automatic and adjustable, every 24 hours of cooking
Construction	AISI 304 stainless steel interior and exterior; mirror-polished interior
Door	Double-glazed and ventilated, with heat-reflective coating and hinged inner panes
Chamber lighting	LED
Interface	36 languages; eight tones
Ambient operating range	5–40°C

For body dimensions and weight, see Key Specifications above.

Documents and warranty

2 Years Parts and Labour Read KW warranty information.

SKU	APW-201GRLWS
Brand	Fagor
Category	Commercial Kitchen Equipment
Weight	306 kg
Dimensions (W×D×H)	898 × 817 × 1841 mm
Stock Status	In Stock
Amperage	15 A
Power	1.55 kW
Gas Input	129.6 MJ/h
Packaging Dimensions (W×D×H)	1095 × 1015 × 2070 mm
