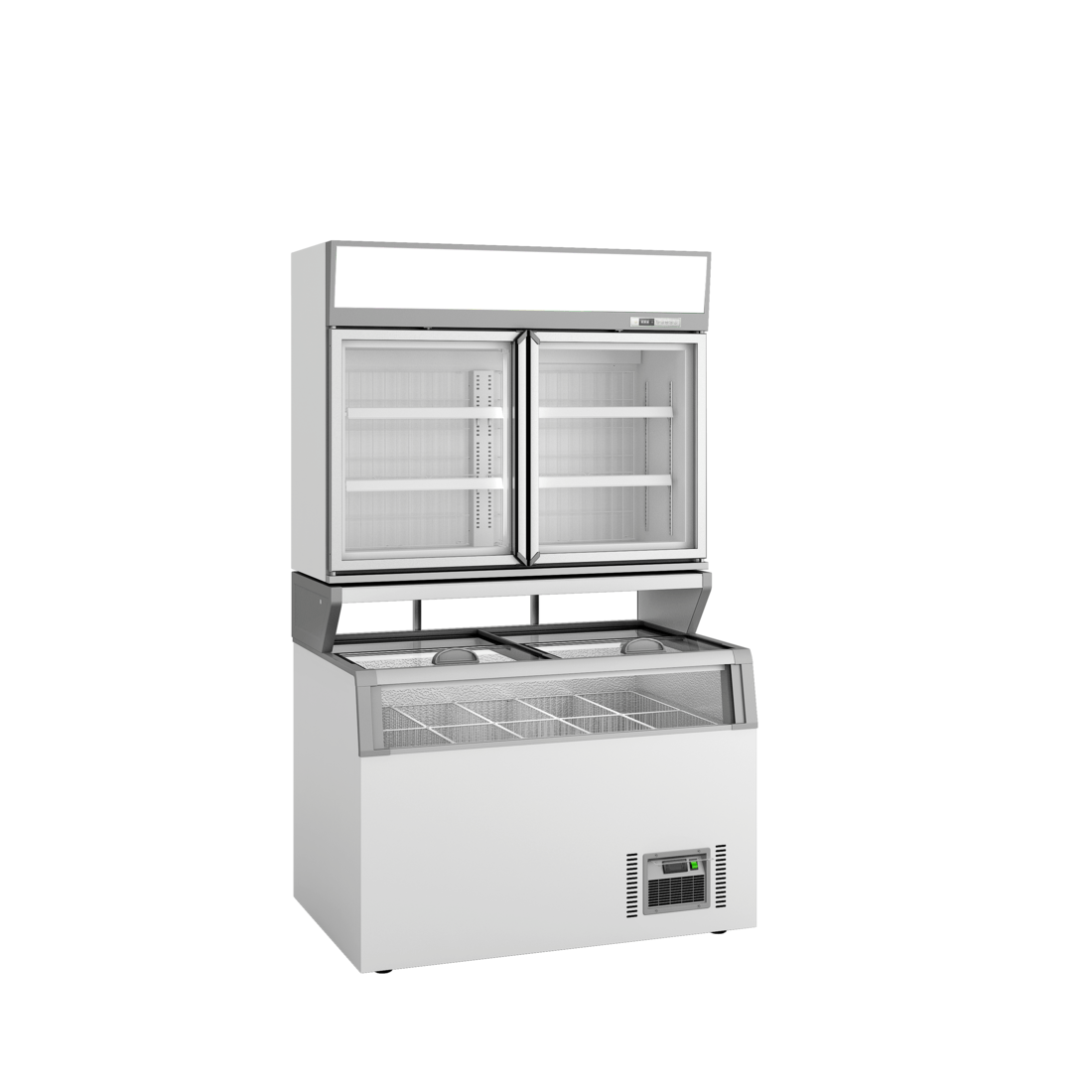

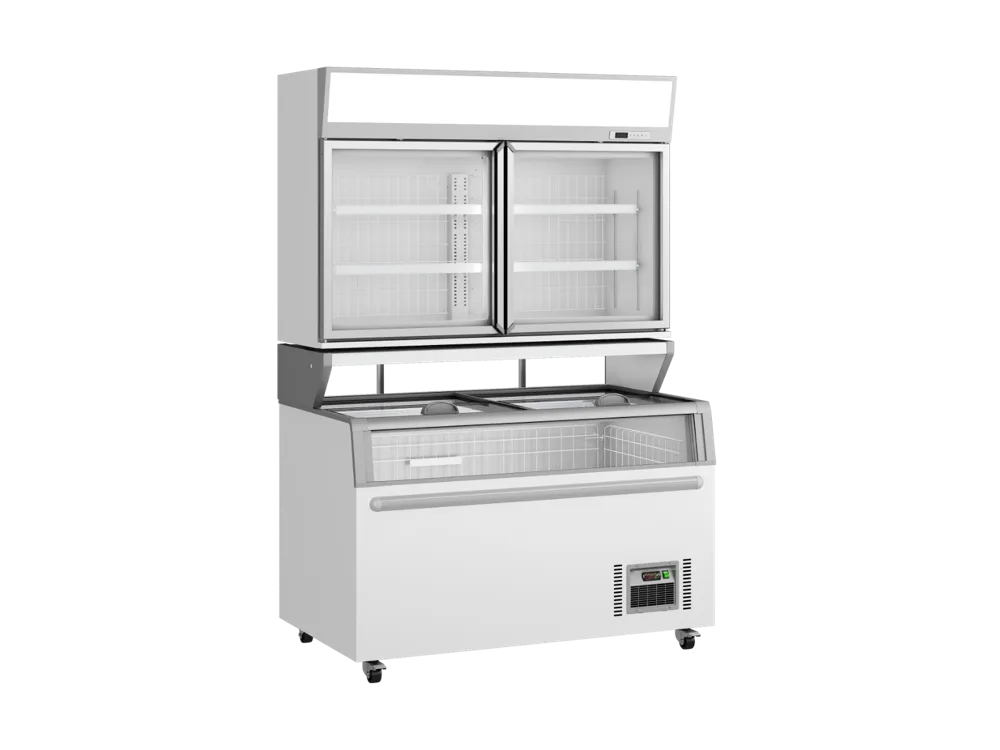

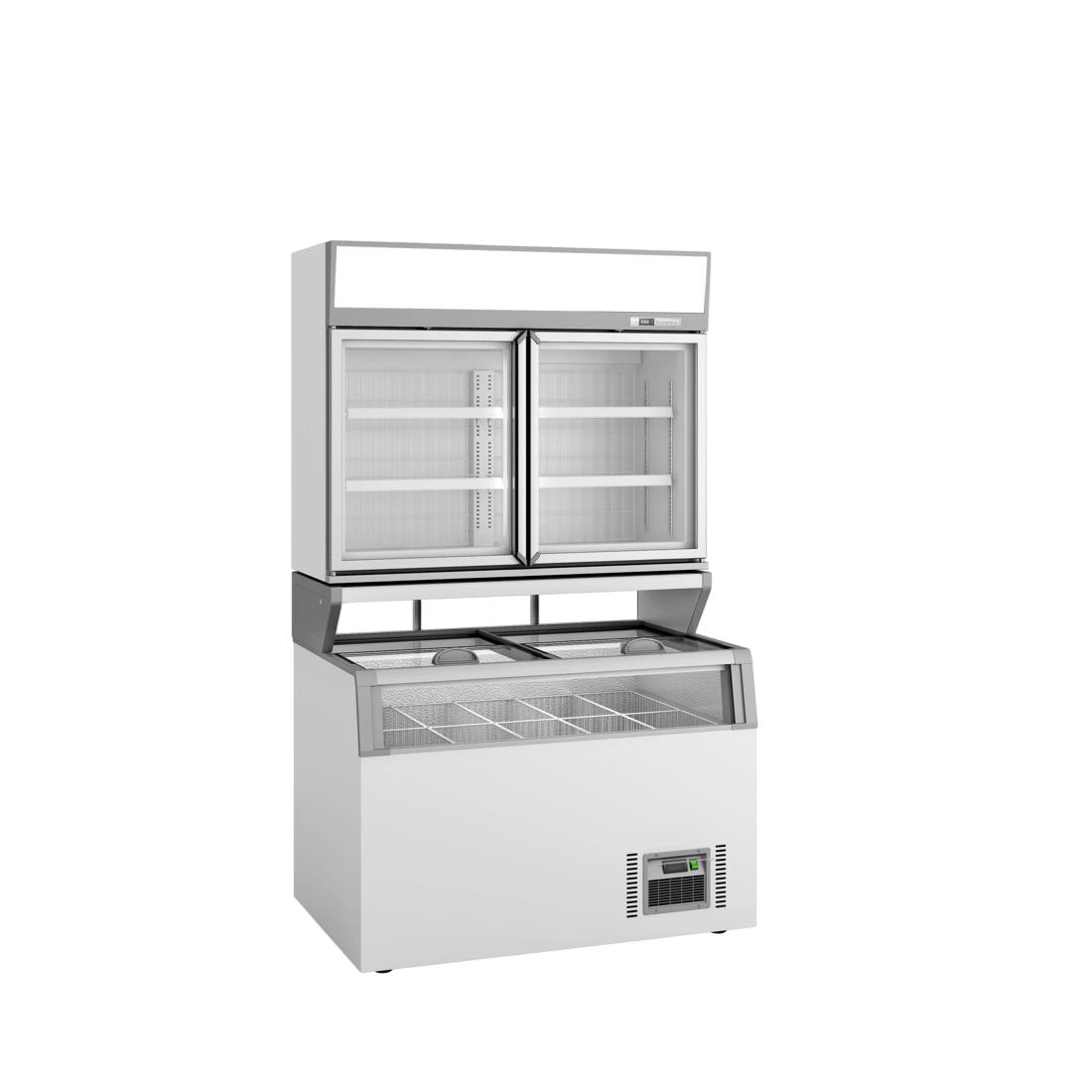

Thermaster ZCDTD145 Supermarket Combined Freezer – Upright & Chest Display, R290
The Thermaster ZCDTD145 Combined Freezer is a space-saving refrigeration solution combining both upright and island-style chest freezer designs. With a flexible dual-zone layout, this system is ideal for supermarkets, grocery stores, and convenience retailers looking to optimize frozen and chilled product display in one unit.
The top section features hinged glass doors with fan-assisted cooling for chilled products, while the bottom section offers sliding Low-E glass doors for static-frozen storage. Built with R290 refrigerant, LED lighting, and mesh storage baskets, it supports energy efficiency, food visibility, and merchandising flexibility.
Key Features
- Combined dual-zone display: upright + chest freezer
- Top freezer: fan-cooled, triple-glazed hinged doors
- Bottom freezer: static cooling with Low-E sliding glass lids
- R290 natural refrigerant – energy and environmentally efficient
- Electronic digital temperature control with LED display
- Auto defrost for upright section
- 6 baskets and 3 base panels included
- Castors and adjustable feet for stability
Specifications
- Model: ZCDTD145
- Total Capacity: 373L – 575L (combined)
- Dimensions: 1454mm (W) x 850mm (D) x 2110mm (H)
- Packing Dimensions: 1540mm (W) x 660mm (D) x 1155mm (H)
- Temperature Range: -25°C to -18°C (bottom), 0°C to +5°C (top)
- Glass Type: Triple-glazed top, Low-E tempered bottom
- Power: Top unit 650W, 2 x 10A plugs required
- Net Weight: 243kg
- Lighting: LED interior illumination
- Warranty: 2 Years Parts & Labour + 2 Years Parts Only (with registration)
Applications
- Supermarkets & Grocery Stores
- Convenience Stores & Petrol Stations
- Specialty Food Retail
- Ice Cream and Frozen Ready Meal Display
Frequently Asked Questions
What is the difference between the top and bottom sections?
The top section is a chilled upright fridge (fan cooled), while the bottom section is a chest-style static freezer with sliding glass lids.
How is temperature controlled?
Each section includes digital electronic temperature control for precise zone management.
Is this unit plug-and-play?
Yes. The unit is supplied with two 10A plugs. No hardwiring is required.
Does the freezer come with baskets?
Yes. It includes 6 PVC-coated baskets and 3 base plates for product organization.
Order Now
Upgrade your commercial frozen and chilled merchandising with the Thermaster ZCDTD145 Combined Freezer.
View all display freezers or call 1300 001 366 to place your order today.
