KW lists FED-X upright and workbench refrigeration, preparation counters, freezers and related spares for commercial kitchens.

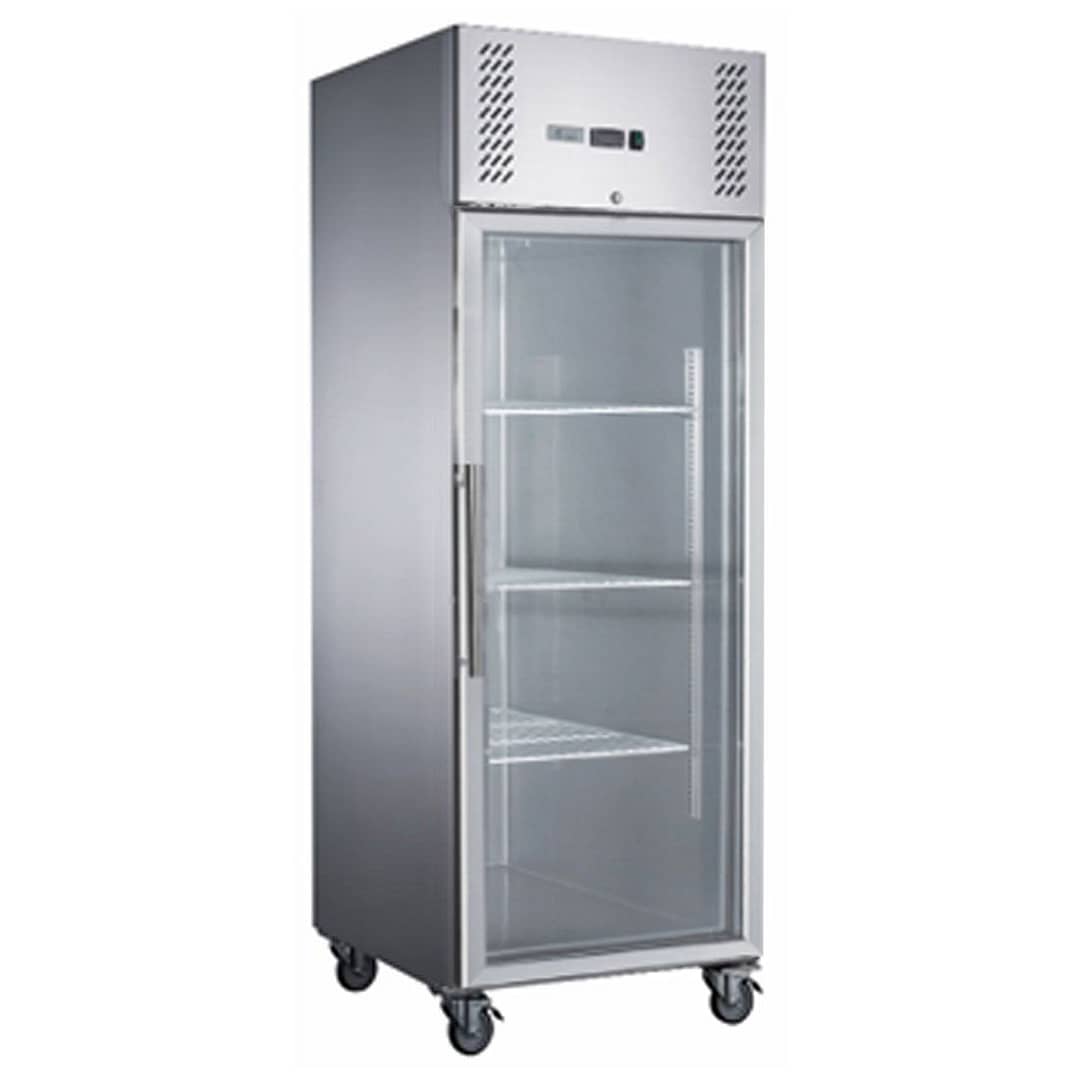

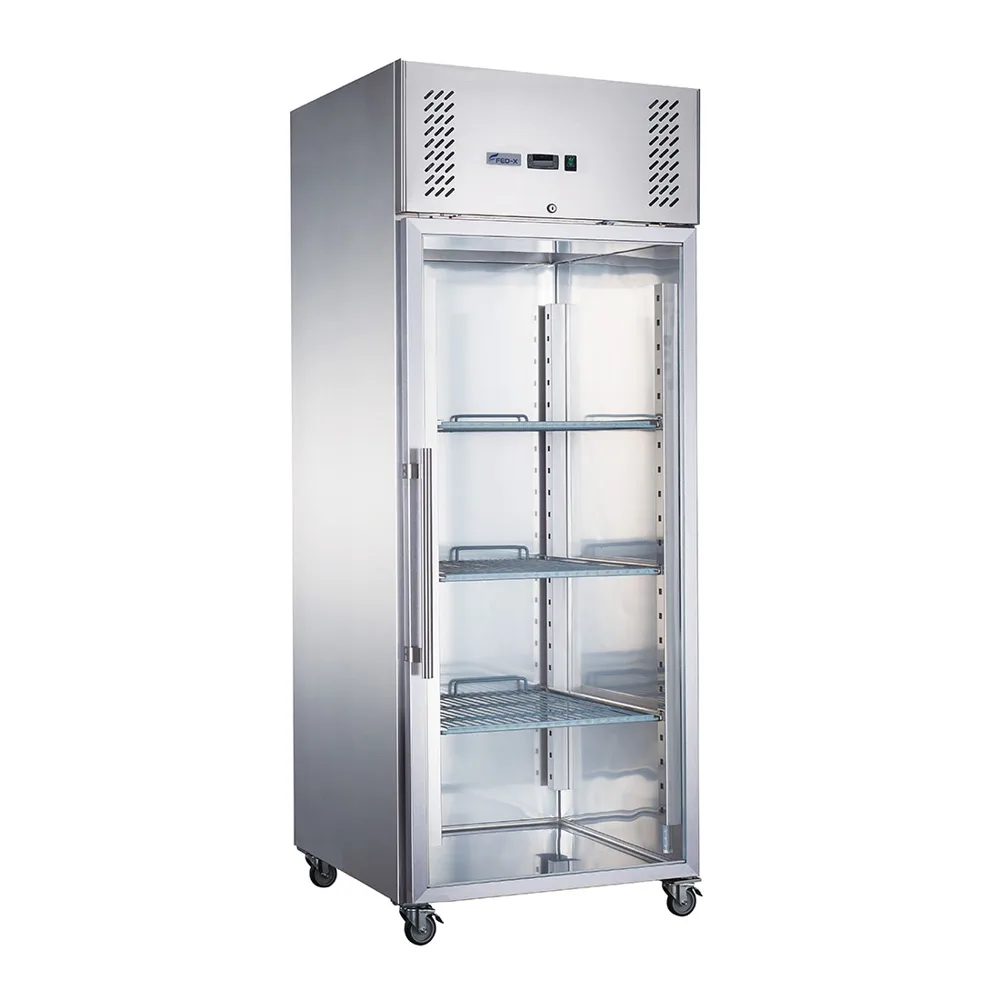

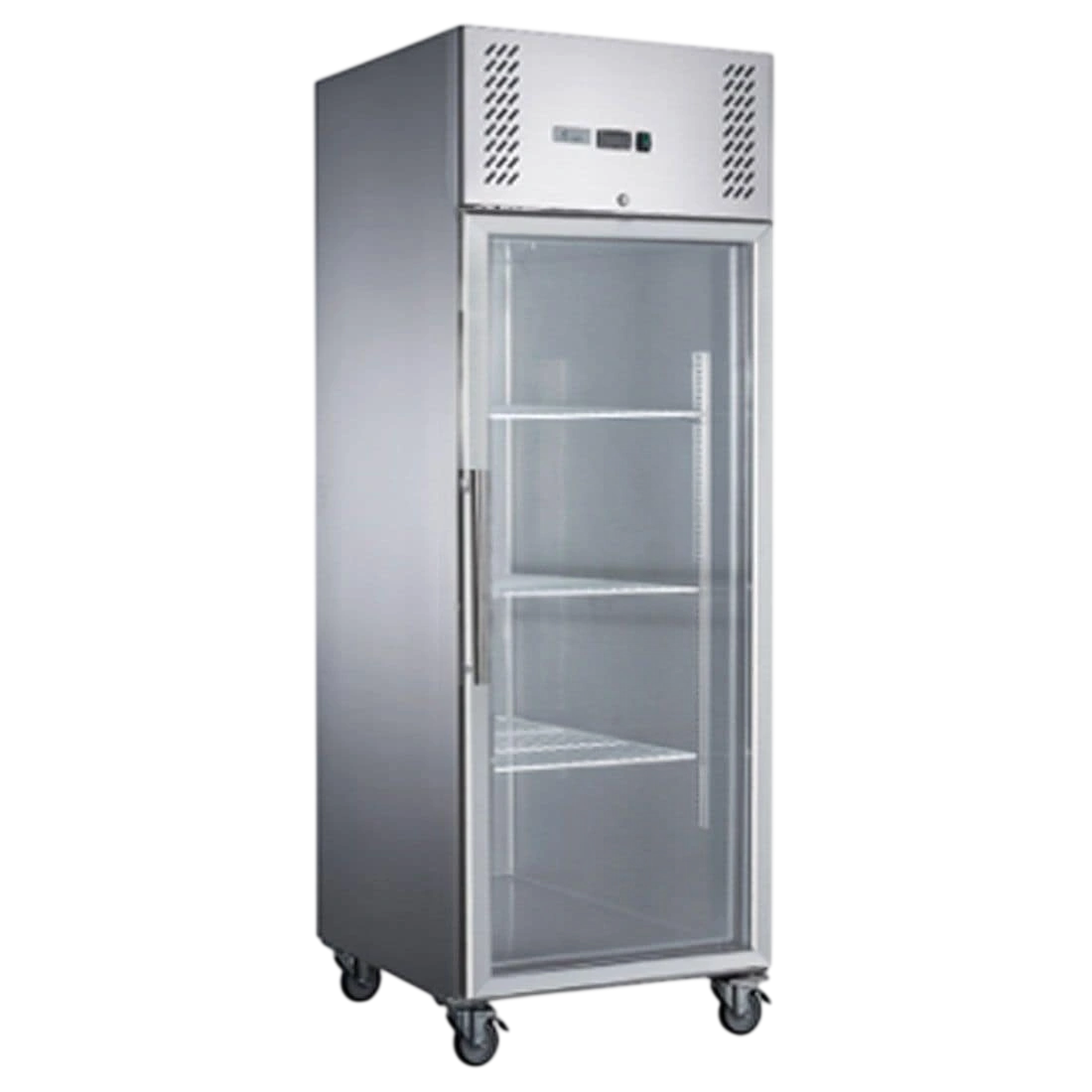

View all FED-X products→The XURF600G1V is a single glass-door upright freezer for commercial frozen-food storage and display. It has 618 L gross and 388 L net volume, three shelf levels plus the base, internal LED lighting and a heated door frame.
For food businesses that want to view frozen stock through a single glass door. The cabinet provides 388 L net volume, three shelf levels plus the base and a -18 to -15°C operating range. Check your products' storage requirements, shelf loads and available ventilation space when planning the layout.
Plan the stock layout around 388 L net volume, three shelf levels and the base. Check containers and pans against the internal width of 564 mm, depth of 682 mm and height of 1394 mm; keep the fans clear and each shelf within its 40 kg load limit.
Choose a position that allows the hinged glass door to open and provides ventilation around the cabinet. Check the route and final location against the dimensions in Key Specifications above, and plan handling for the 132 kg freezer.
Match the -18 to -15°C range to the food you intend to store. The maximum ambient condition is 38°C at 60% RH, so consider the conditions at the proposed position, including nearby heat sources.
For two-door access, compare the XURF1410G2V. If comparing the XURF1200G2V, allow for its 700 W input against this model's 450 W input and check the full installation requirements of the chosen cabinet.
| Product type | Full glass-door upright freezer |
|---|---|
| Form factor | Upright |
| Doors | 1 |
| Door type | Hinged |
| Door glazing | Glass |
| Cabinet material | Stainless steel interior and exterior; rounded corners |
| Gross volume | 618 L |
| Net volume | 388 L |
| Temperature range | -18 to -15°C |
| Maximum ambient temperature | 38°C at 60% RH |
| Cooling system | Fan-forced |

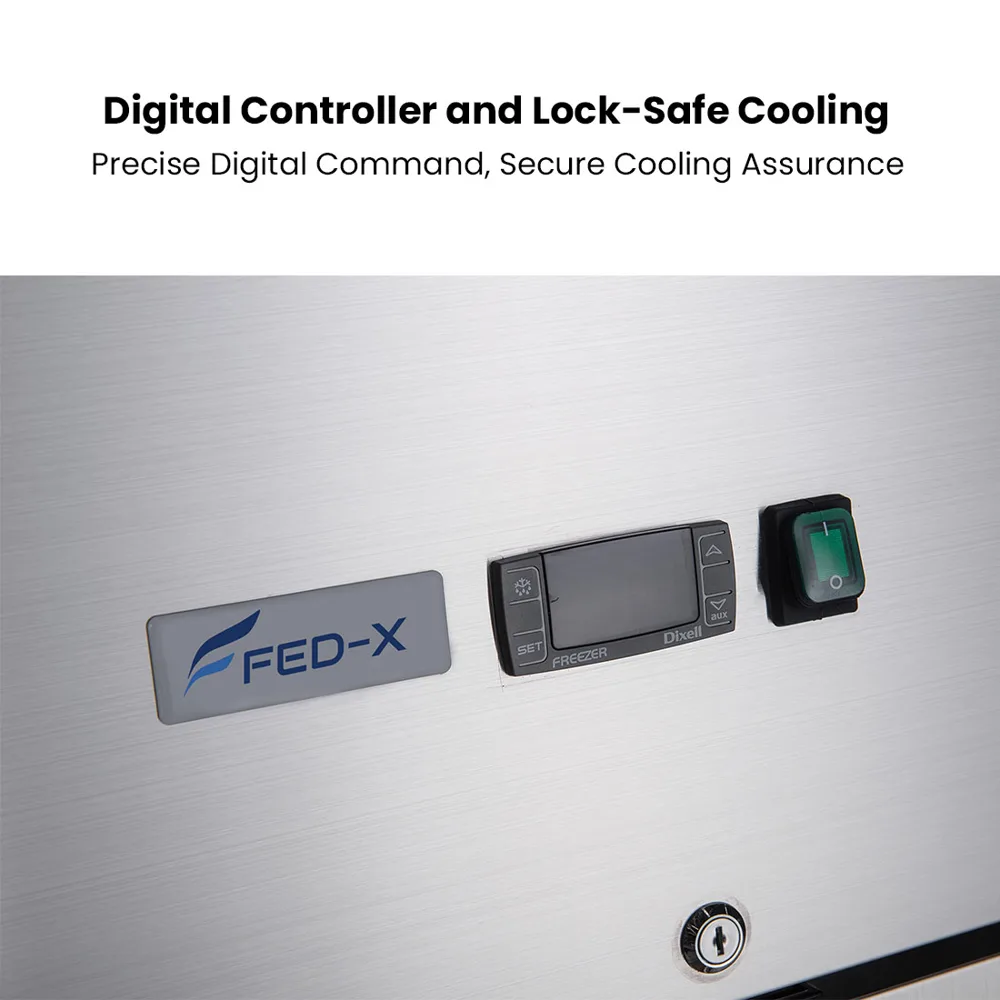

| Controller | Dixell |
| Controls | Digital with temperature display |
| Refrigerant | R290 |
| Refrigerant charge | 90 g |
| Defrost | Automatic |

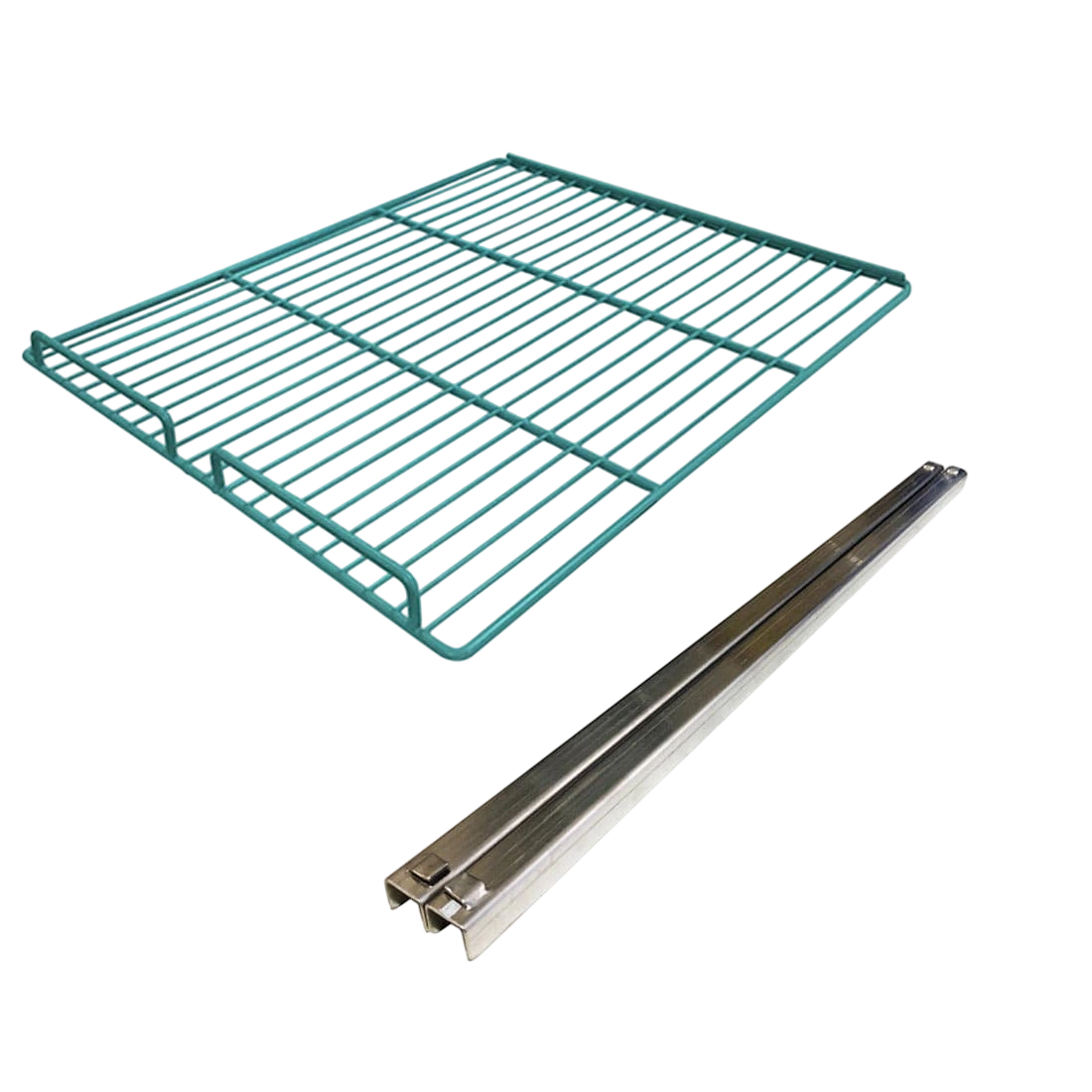

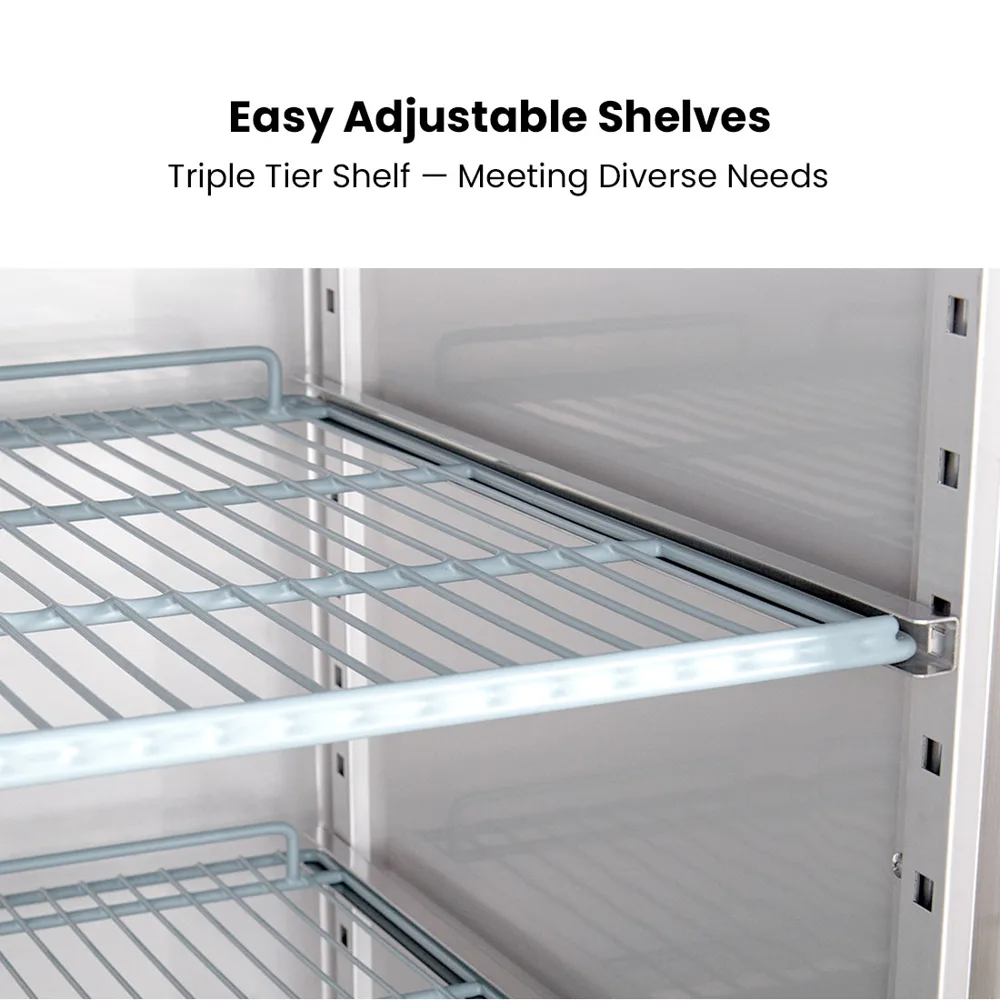

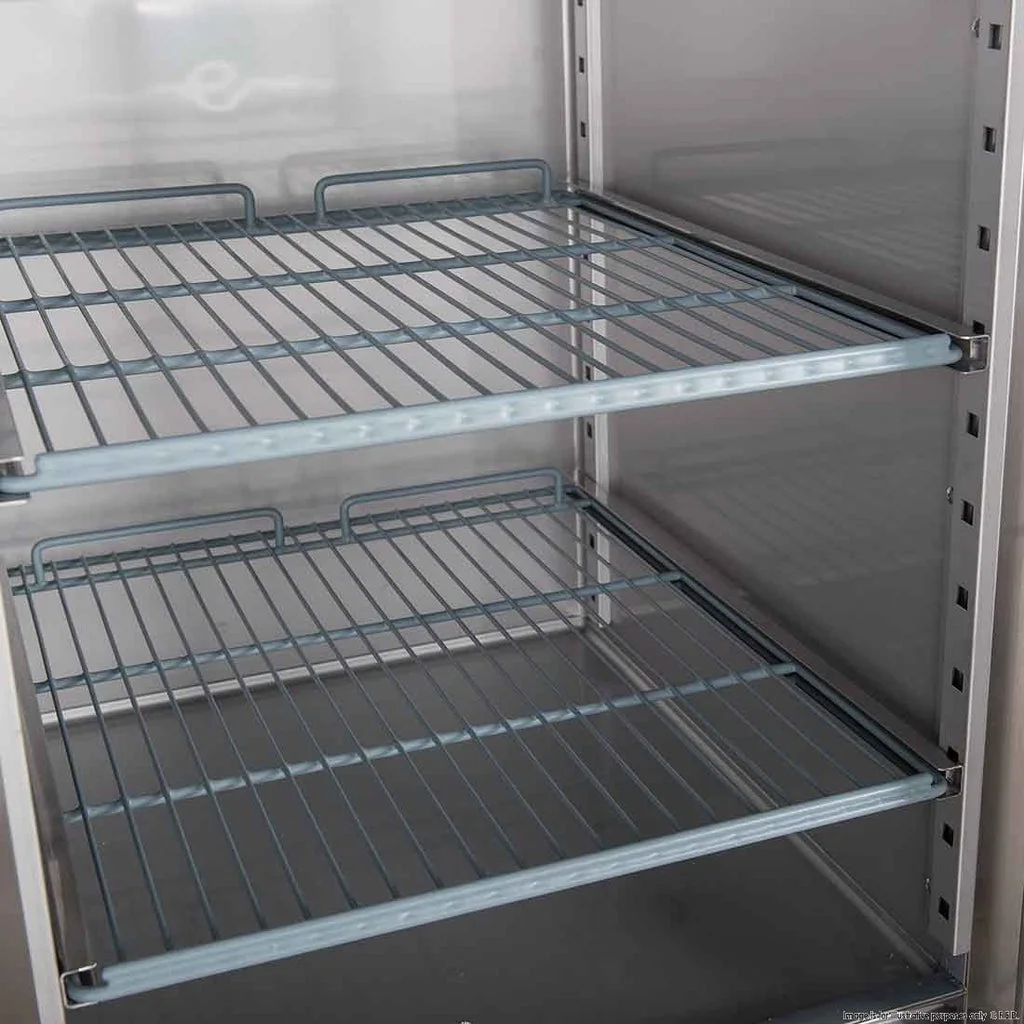

| Shelving | 3 levels plus base |
| GN pan support | 2 × GN 1/1 pans per shelf |
| Shelf load limit | 40 kg per shelf |

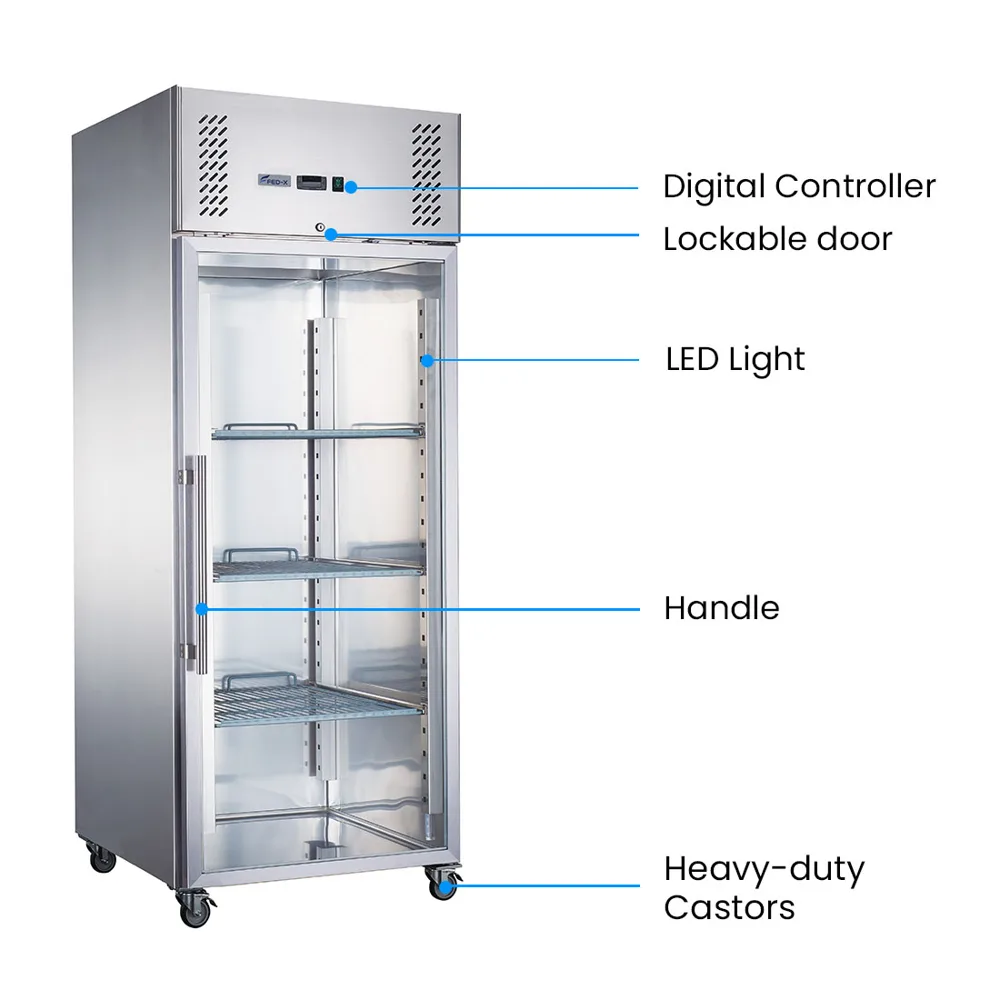

| Door functions | Self-closing; lockable |
| Door seal | Heavy-duty magnetic |
| Door frame | Heated |
| Internal lighting | LED |
| Body insulation | HFC- and CFC-free foam |
| Fans | Heavy-duty evaporator and condenser fans |
| Castors | Heavy-duty; front wheel brakes |
| Internal width | 564 mm |
| Internal depth | 682 mm |
| Internal height | 1394 mm |
| Floor area | 0.62 m² |
| Net weight | 132 kg |
| Voltage | 240 V |
| Frequency | 50 Hz |
| Power input | 450 W |
| Total energy consumption | 7.26 kWh/24 h |
| Yearly energy consumption | 2649.9 kWh/year |
| GEMS star rating | 2 |
| Dimensional tolerance | -5 to +10 mm |
| Ventilation clearance | 20 cm from walls or other objects; increase near heat sources |
| Packing width | 765 mm |
| Packing depth | 855 mm |
| Packing height | 2070 mm |
For body dimensions, see Key Specifications above.
Compare the verified cabinet dimensions, door format, operating temperature, ambient rating and electrical requirements with your site, access path and storage needs.
Check voltage, phase, plug type, and circuit capacity before purchase. Commercial electrical installation must be completed by a licensed electrician.
| SKU | XURF600G1V |
| Brand | FED-X |
| Category | Commercial Fridges and Commercial Freezers |
| Weight | 139 kg |

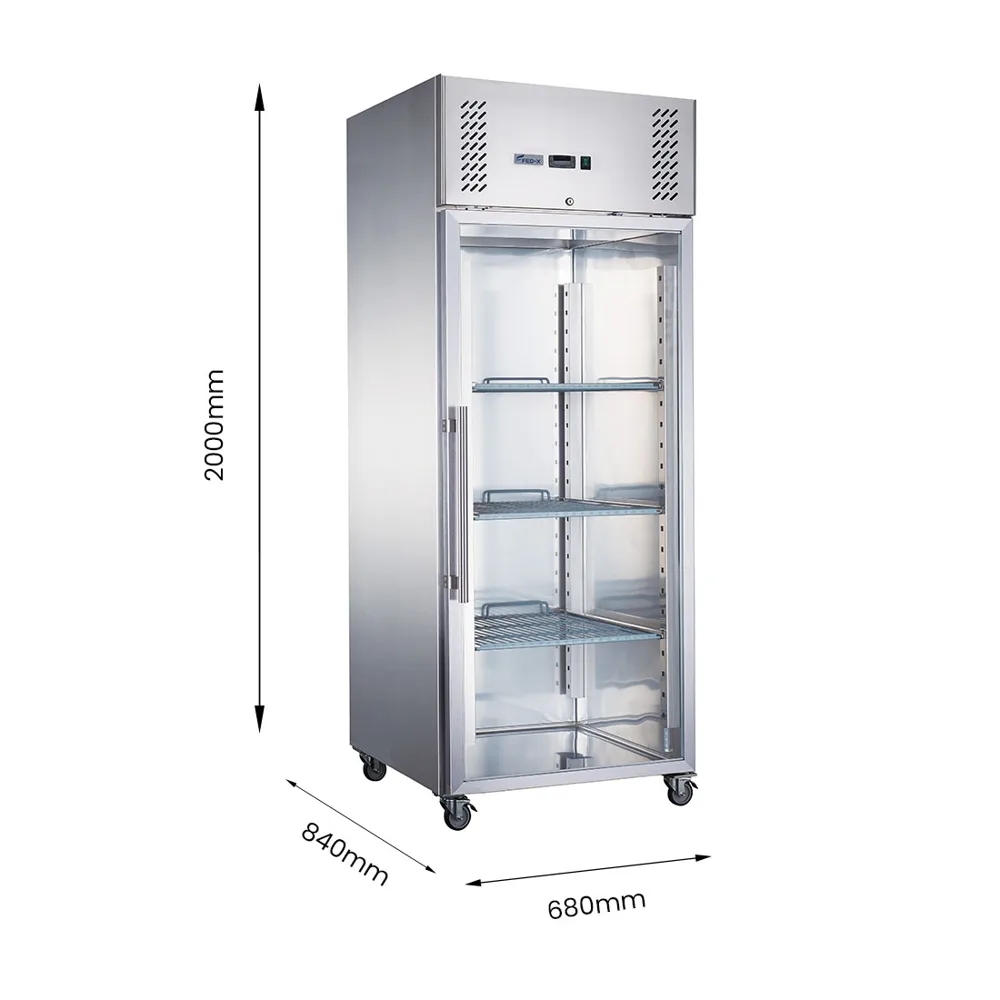

| Dimensions (W×D×H) | 680 × 840 × 2000 mm |
| Stock Status | In Stock |
| Voltage | 240 V |
| Amperage | 10 A |
| Refrigerant | R290 |
| Operating Temperature | −18 °C to −15 °C |
