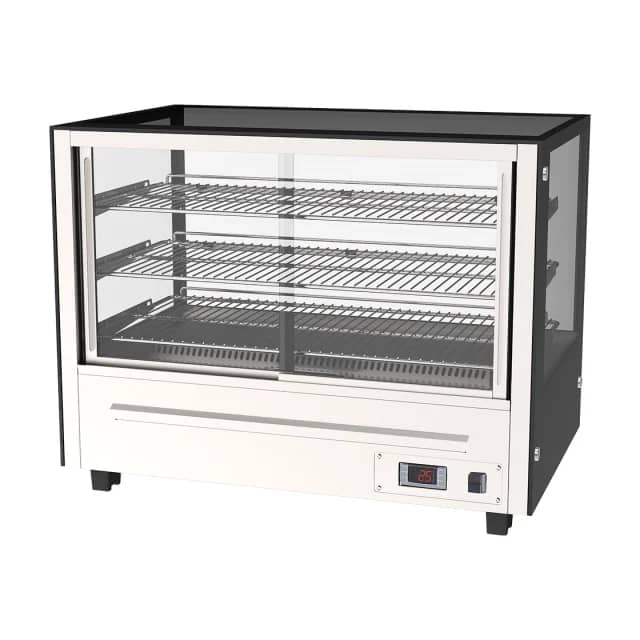

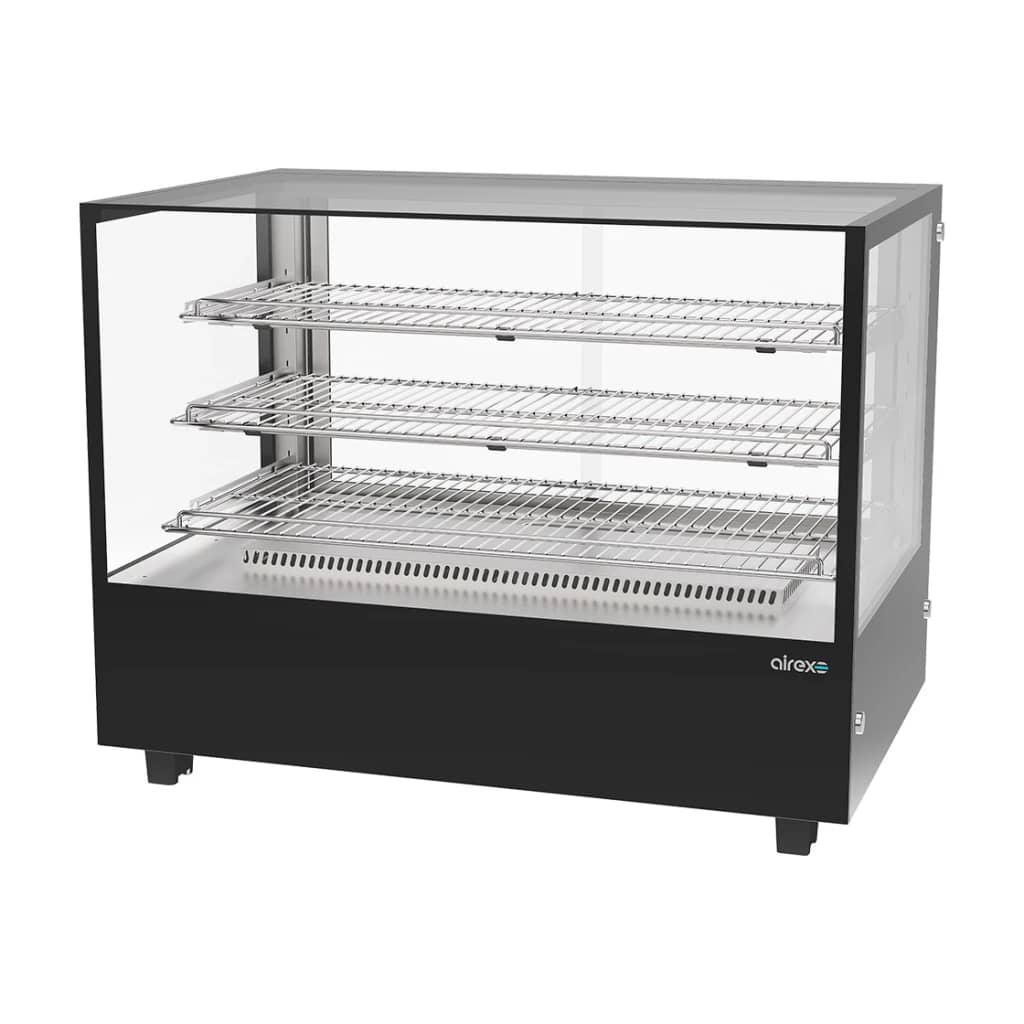

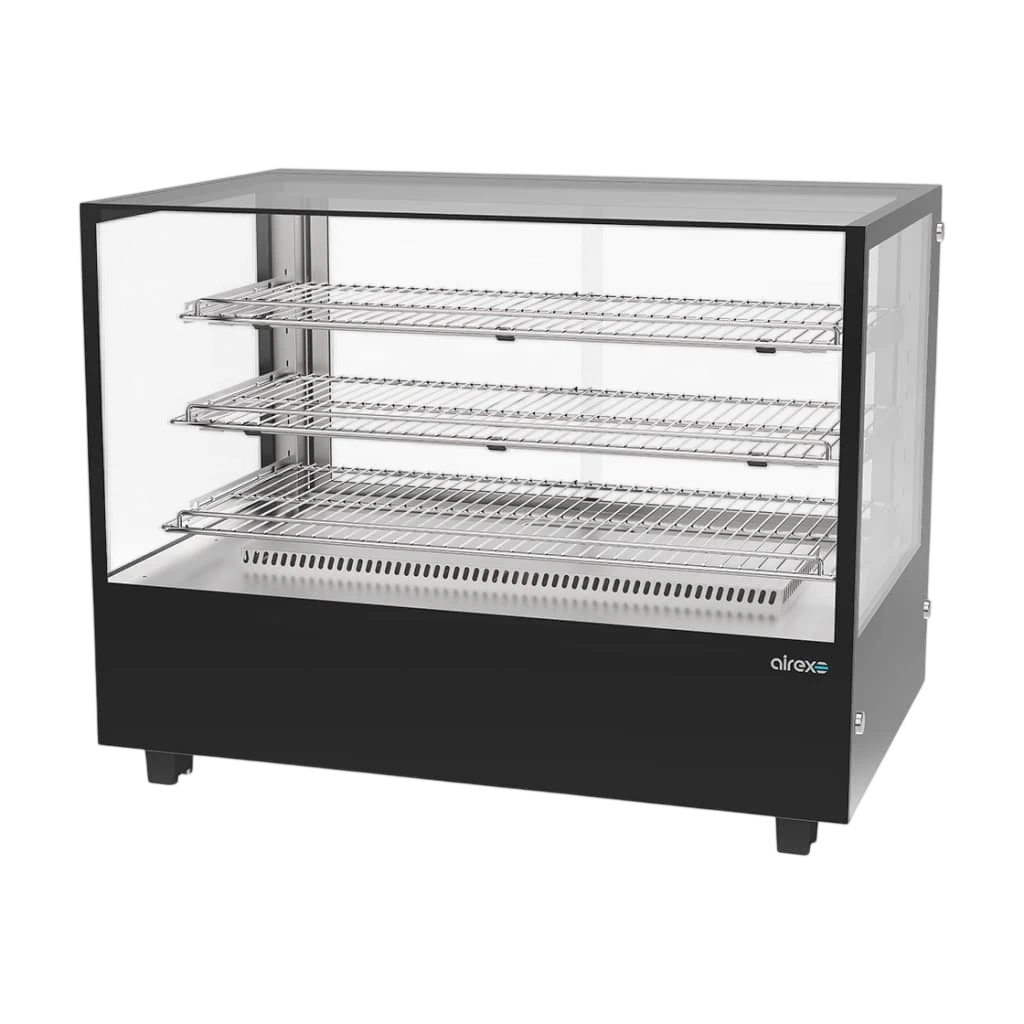

Airex AXH.FDCTSQ.09 Countertop Heated Square Food Display – 160L
Updated:
Built for Australian cafés, bakeries and hot food service counters
The Airex AXH.FDCTSQ.09 is a premium, commercial-grade countertop heated display cabinet, ideal for keeping pre-cooked food warm, fresh and ready to serve. It combines adjustable digital temperature control (60°C–80°C), integrated humidity via water pan and LED shelf lighting in a compact 885-mm footprint.
Key features & specifications
- Capacity: 160 L
- Temperature range: 60°C – 80°C
- Ambient rating: Suitable for controlled indoor environments
- Power/Voltage: 0.8 kW, 230VAC / 50Hz, 10A plug & lead
- Dimensions (W×D×H): 885 × 565 × 676 mm
- Construction: Black finish stainless steel frame, frameless single-glass panels, water pan humidity system, sliding rear glass doors, LED lighting
- Warranty: 24 months parts & labour
Compliance & safety (AU)
- Electrical: RCM; installed per AS/NZS 60335.1.
- Food safety: Maintains food above 65°C serving temperature; FSANZ-aligned hot holding.
Convenience & usage advice
- Humidity assist: Fill water pan to reduce drying of food and extend freshness
- Easy access: Rear sliding doors allow fast serving and restocking without heat loss
Ideal applications
- Bakeries and patisseries
- Cafés and coffee shops
- Convenience and takeaway outlets
Frequently Asked Questions
1) How do I clean it daily without harming finishes?
Turn off and allow to cool; use warm soapy water with a microfibre cloth; avoid abrasives and harsh chemicals; dry thoroughly.
2) What routine maintenance keeps performance stable?
Empty and clean water pan daily; wipe seals weekly; keep vents and crumb tray clear.
3) What are the power requirements and typical energy use?
10A plug & lead; draws 0.8 kW; energy use depends on duty cycle and ambient temperature.
4) What about installation and Australian compliance?
RCM; position in a ventilated area away from direct heat sources; install per AS/NZS 60335.1.
5) Are spare parts and accessories available?
LED lamps, glass panels, shelves, and seals are available. Quote model and serial for correct parts.
Specs source: official datasheet for Airex AXH.FDCTSQ.09.
