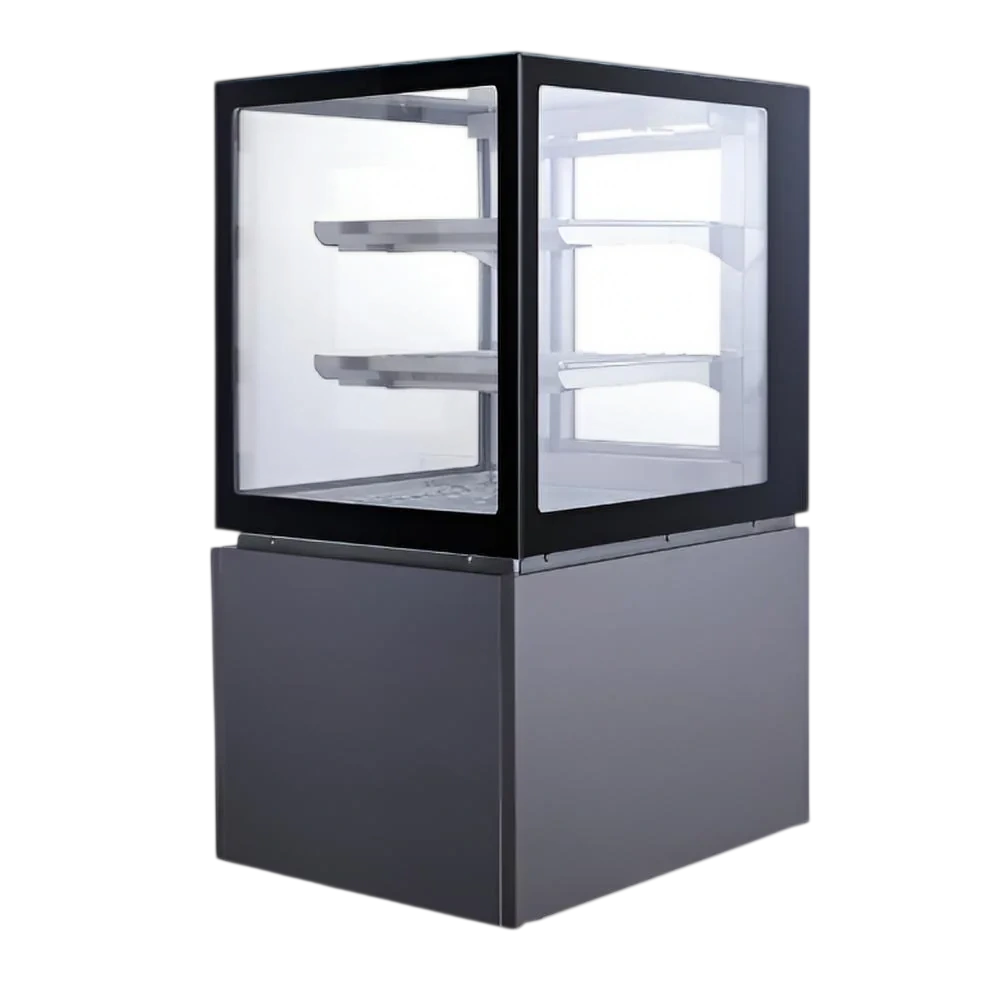

Anvil NDHV3730 Square Glass Hot Display – 285L, 3 Tier
Updated:
Built for Australian bakeries, cafés and food outlets

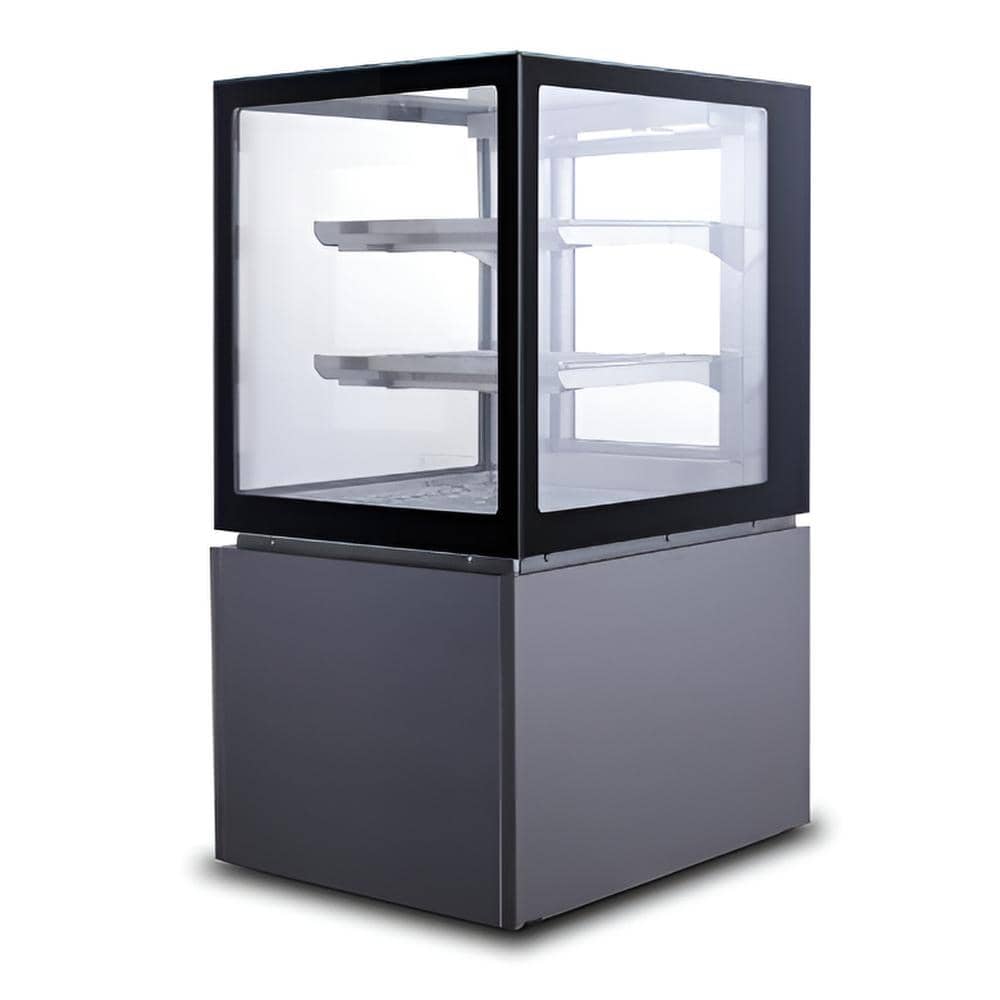

The Anvil NDHV3730 is a commercial-grade 3 tier square glass hot food display built for merchandising pies, pastries, and ready-to-serve meals. It combines warm LED illumination, adjustable wire shelving, and rear sliding doors in a 900-mm wide footprint for efficient countertop service.
Key features & specifications
- Capacity: 285 L
- Temperature range: 40°C – 75°C
- Ambient rating: 28°C (avoid direct sunlight)
- Power/Voltage: 0.72 kW, 220V / 50Hz / 1 phase
- Dimensions (W×D×H): 900 × 680 × 1200 mm
- Weight: 122 kg
- Construction: #304 stainless steel body, removable panels, 2 wire racks + base shelf, rear sliding doors, LED lighting, accessible controller
- Warranty: Double Gold Star Warranty – 2 Years Parts & Labour
Compliance & safety (AU)
- Electrical: RCM compliant.
- Energy: GEMS/MEPS where applicable.
- Food safety: FSANZ-aligned hot food holding; follow local council guidance.
Convenience & usage advice
- Flexible shelving: Adjust racks for various bakery items and hot meals.
- Easy cleaning: Removable panels and wire racks simplify hygiene routines.
Ideal applications
- Bakeries
- Cafés and food courts
- Convenience stores
Frequently Asked Questions
1) How do I clean it daily without harming finishes?
Use a pH-neutral cleaner and microfibre cloth; avoid abrasives or chlorine; dry stainless steel and glass thoroughly.
2) What routine maintenance keeps performance stable?
Weekly vent wipe-downs; monthly vacuuming of condenser; check door seals quarterly.
3) What are the power requirements and typical energy use?
Connect to a 220V single-phase circuit (0.72 kW); usage varies by duty cycle and ambient load.
4) What about installation and Australian compliance?
Ensure RCM compliance; maintain ventilation clearances; avoid direct heat or sun; GEMS/MEPS obligations apply.
5) Are spare parts and accessories available?
Yes—wire racks, panels and controllers are stocked. Quote model and serial number for accuracy.
Specs source: official datasheet for Anvil NDHV3730:contentReference[oaicite:1]{index=1}.
