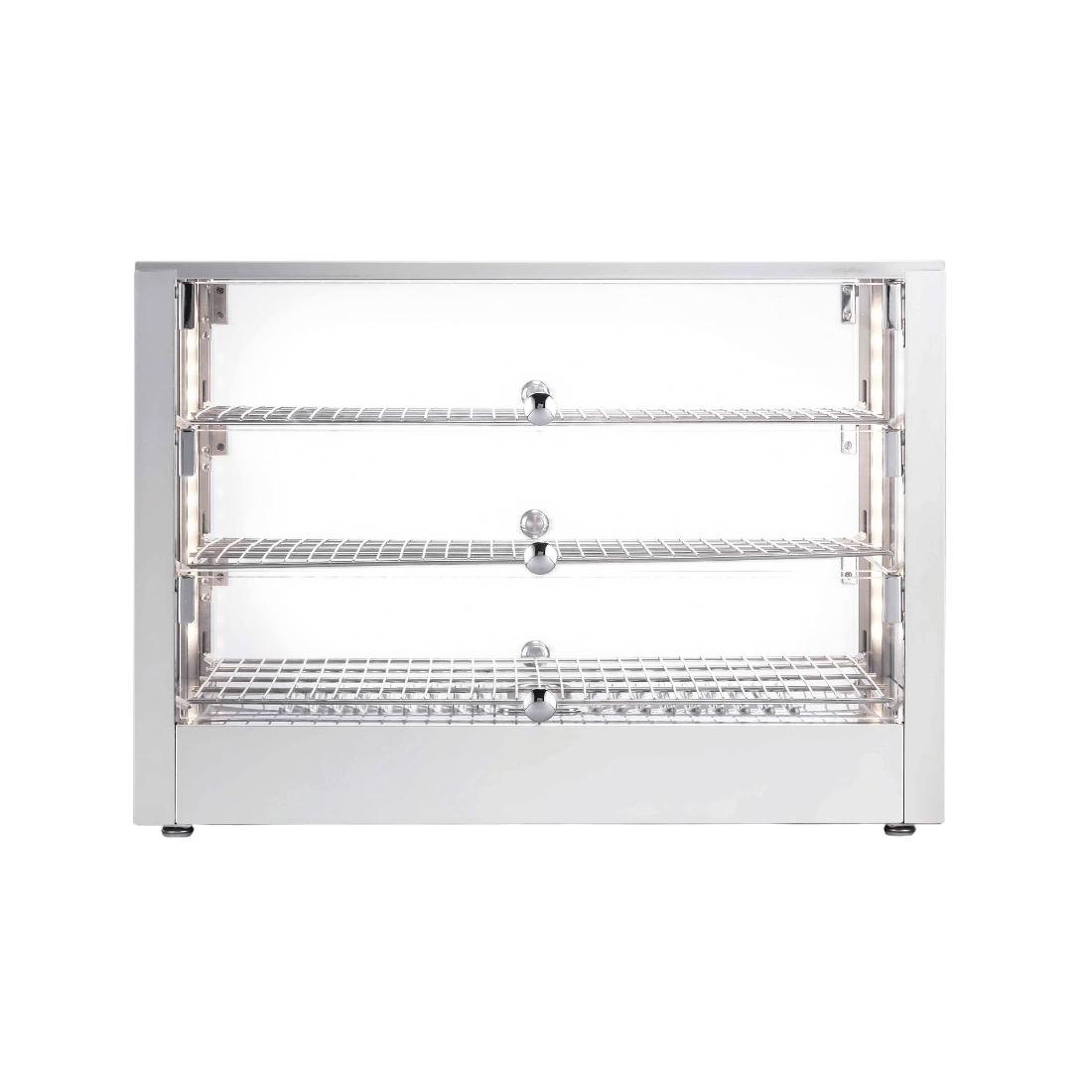

Bonvue HSW-115L Countertop Self-Service Heated Food Display

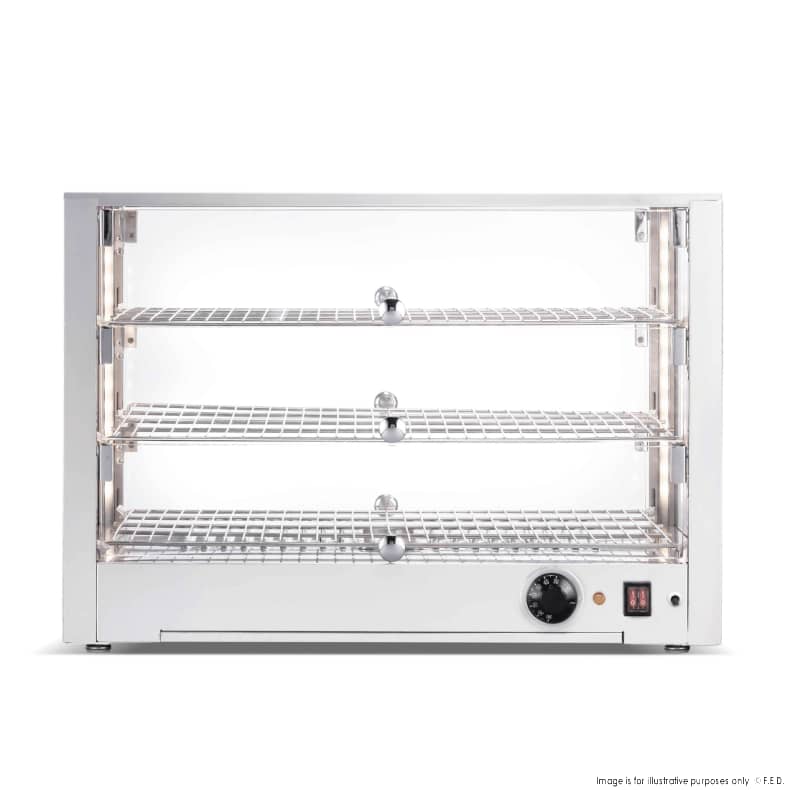

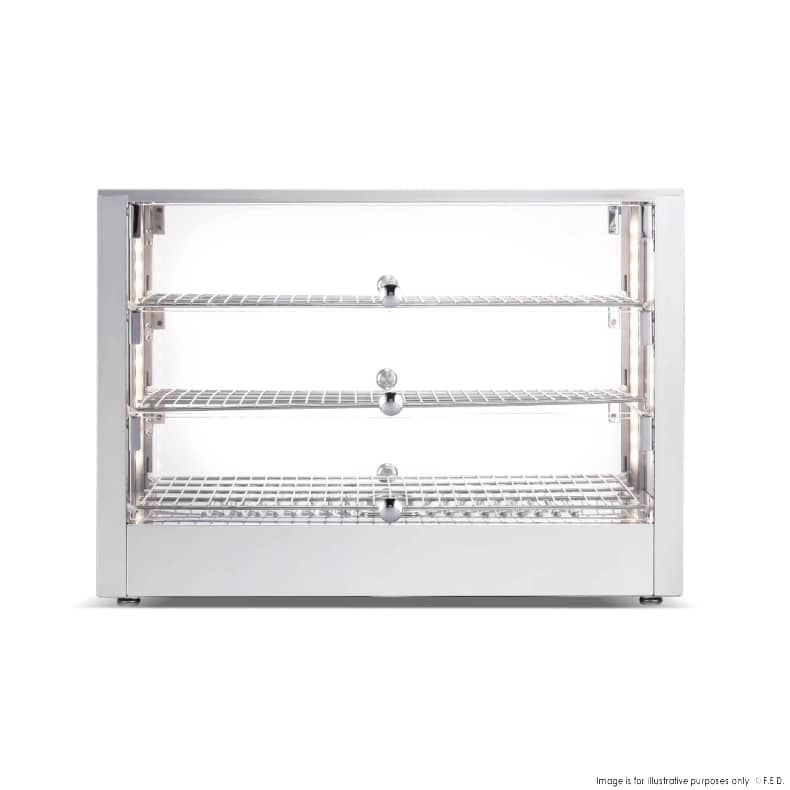

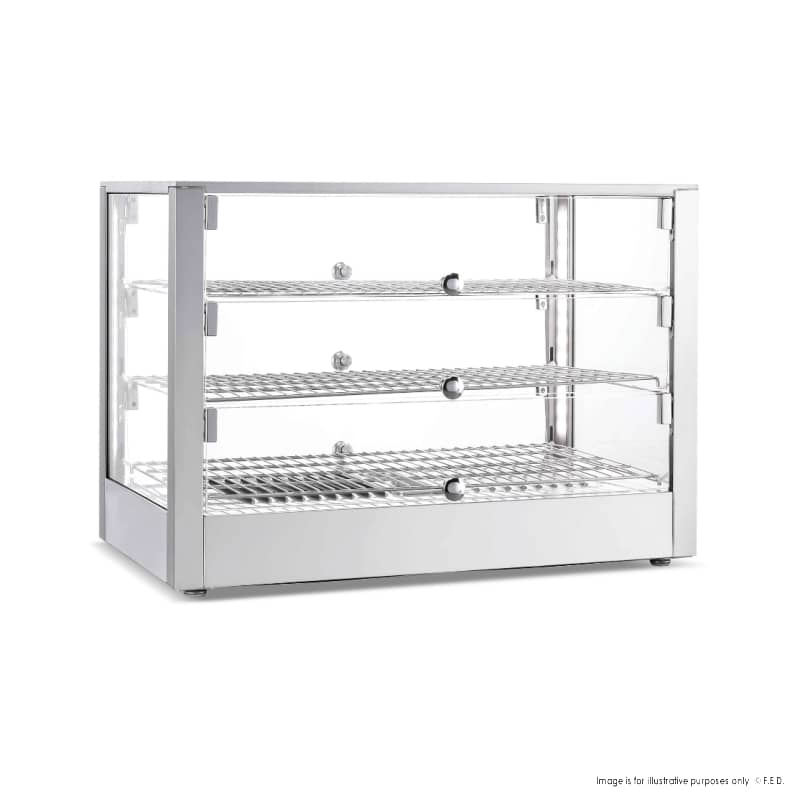

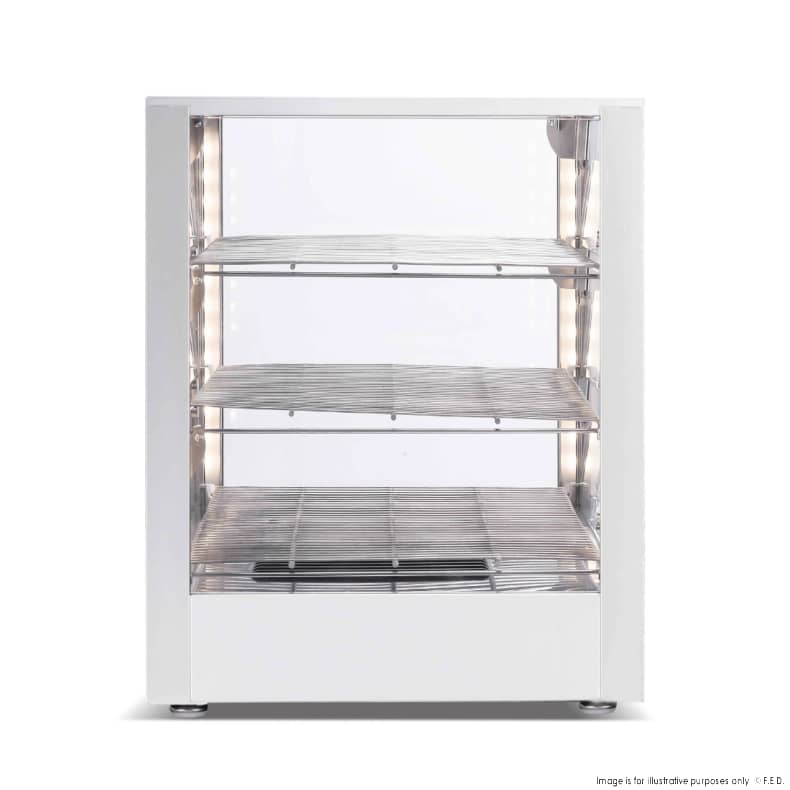

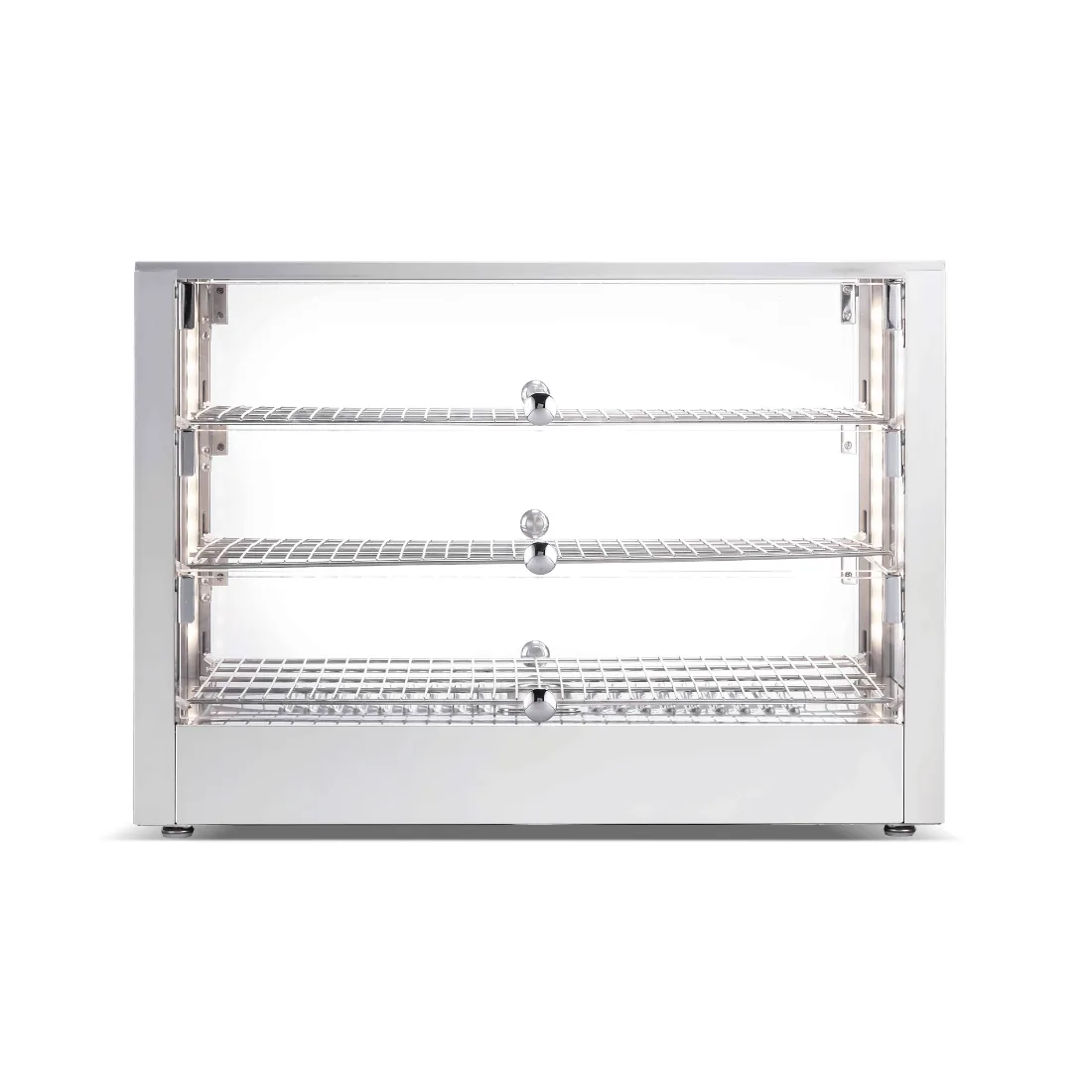

The Bonvue HSW-115L is a countertop self-service heated food display with 115 L gross volume and three display levels. It has hinged doors at the front and back, fixed chrome-plated shelves, side-mounted LED lighting and mechanical temperature control.

For commercial service counters needing a heated display that can be accessed from the front and rear. The three-level layout and fixed chrome-plated shelves provide a display arrangement to check against the intended containers and products. Straight glass on five sides and side-mounted LEDs present the contents to customers, while the mechanical control adjusts the display temperature.

• Self-service counters needing hinged-door access from both front and rear.
• Display layouts suited to three levels with fixed chrome-plated shelves.
• Counters with suitable support for the 19.5 kg cabinet and a 240 V, 10 A connection.

• Layouts needing adjustable shelf heights: choose a display with adjustable shelving.
• Service plans needing substantially more display volume: compare the 340 L gross SG090FE-2XB or 310 L gross H-SL830.
• Chilled product display: choose a refrigerated display cabinet matched to the intended products.

Choose this cabinet when front-and-rear hinged access suits the service counter. Keep customer access, rear loading and the rear main switch in mind when deciding where it will sit.

The internal dimensions are 685 × 388 × 370 mm (W × D × H). Compare containers with that internal envelope and the fixed shelf arrangement; use the dimensions in Key Specifications above for the cabinet's external fit.

Plan the display around 115 L gross volume and three levels. If a larger volume is required, the SG090FE-2XB offers 340 L gross at the same 1100 W rating, while the H-SL830 offers 310 L gross; compare the layouts as well as volume.

Match the counter's electrical connection to the 240 V, 50 Hz and 10 A specification. The display is rated at 1100 W, with a 30–90°C mechanical control range; include door use, cleaning and switch access in the operating routine.

• Hinged doors at both front and rear for access from either side.
• Five sides of straight glass and four side-mounted LEDs.
• A three-level display with 115 L gross volume.
• Mechanical temperature adjustment over a 30–90°C control range.

• The chrome-plated shelves are fixed in height.
• The counter layout needs door-opening space at the front and rear, plus access to the rear main switch.
• The 19.5 kg net cabinet needs suitable counter support and handling.

• Bonvue SG090FE-2XB Heated Food Display – Gross Volume: 340L: The Bonvue SG090FE-2XB has 340 L gross volume at an 1100 W rating, compared with the HSW-115L's 115 L gross and 1100 W.
• Bonvue H-SL830 Bonvue Heated Food Display – Gross Volume: 310L: The Bonvue H-SL830 has 310 L gross volume, providing a larger-volume alternative to the 115 L gross HSW-115L.

• Plan the counter position. Use the dimensions in Key Specifications above to check the cabinet's external fit, and plan counter support and handling for the 19.5 kg net weight. Leave room to open the front and rear hinged doors and reach the rear main switch.
• Check containers and shelf layout. Compare the intended containers with the 685 × 388 × 370 mm internal dimensions (W × D × H) and the fixed shelf positions. The cabinet provides three display levels.
• Check the electrical connection. Match the site to the 240 V, 50 Hz and 10 A connection specification. The power rating is 1100 W.
• Plan operation and cleaning. Use the mechanical temperature control to set the display within its 30–90°C control range. Switch off, disconnect from power and allow the cabinet to cool before cleaning.

For body dimensions, see Key Specifications above.
