Bonvue HWB2-152 Backfill Heated Display Cabinet – 1400 mm

Updated: 2 Nov 2025

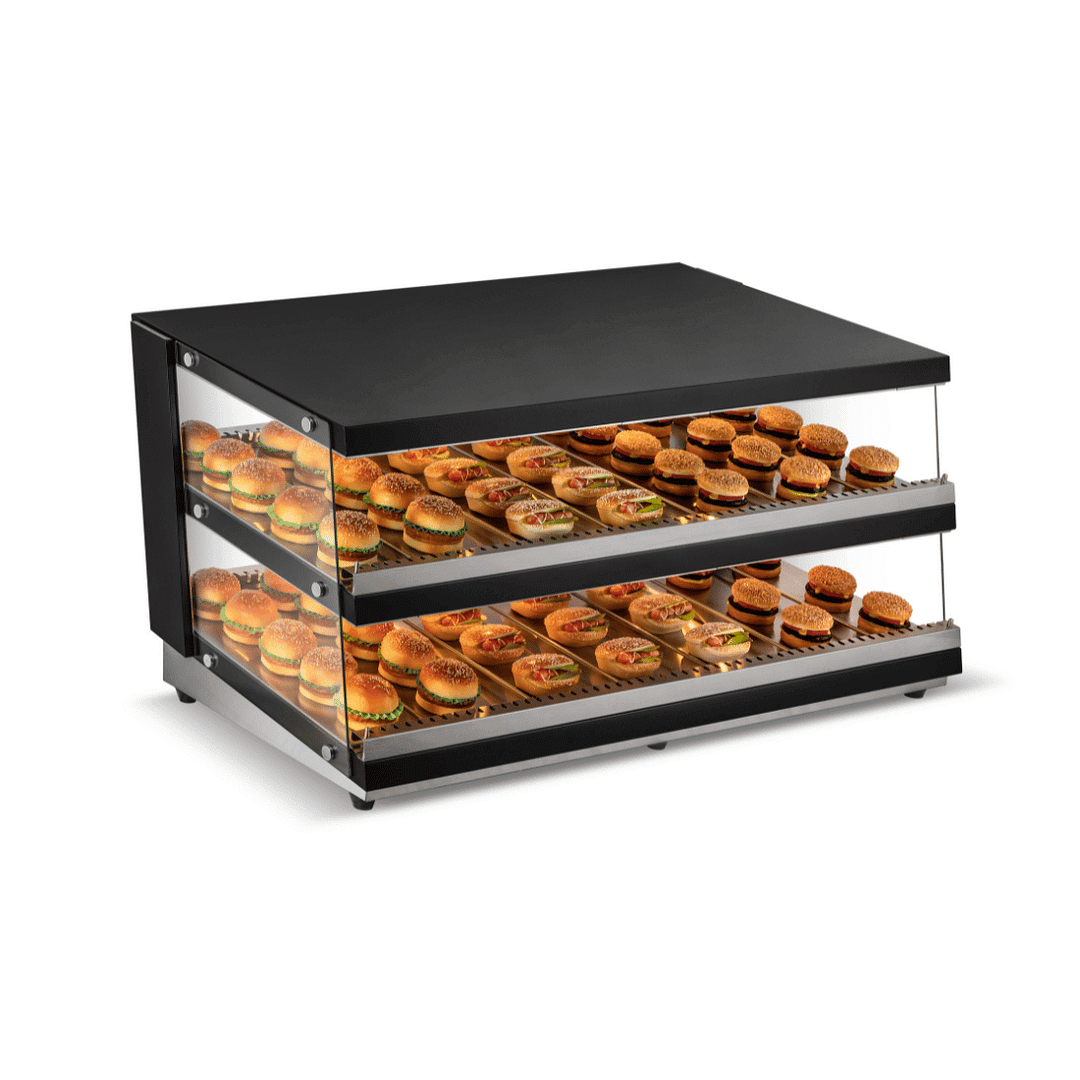

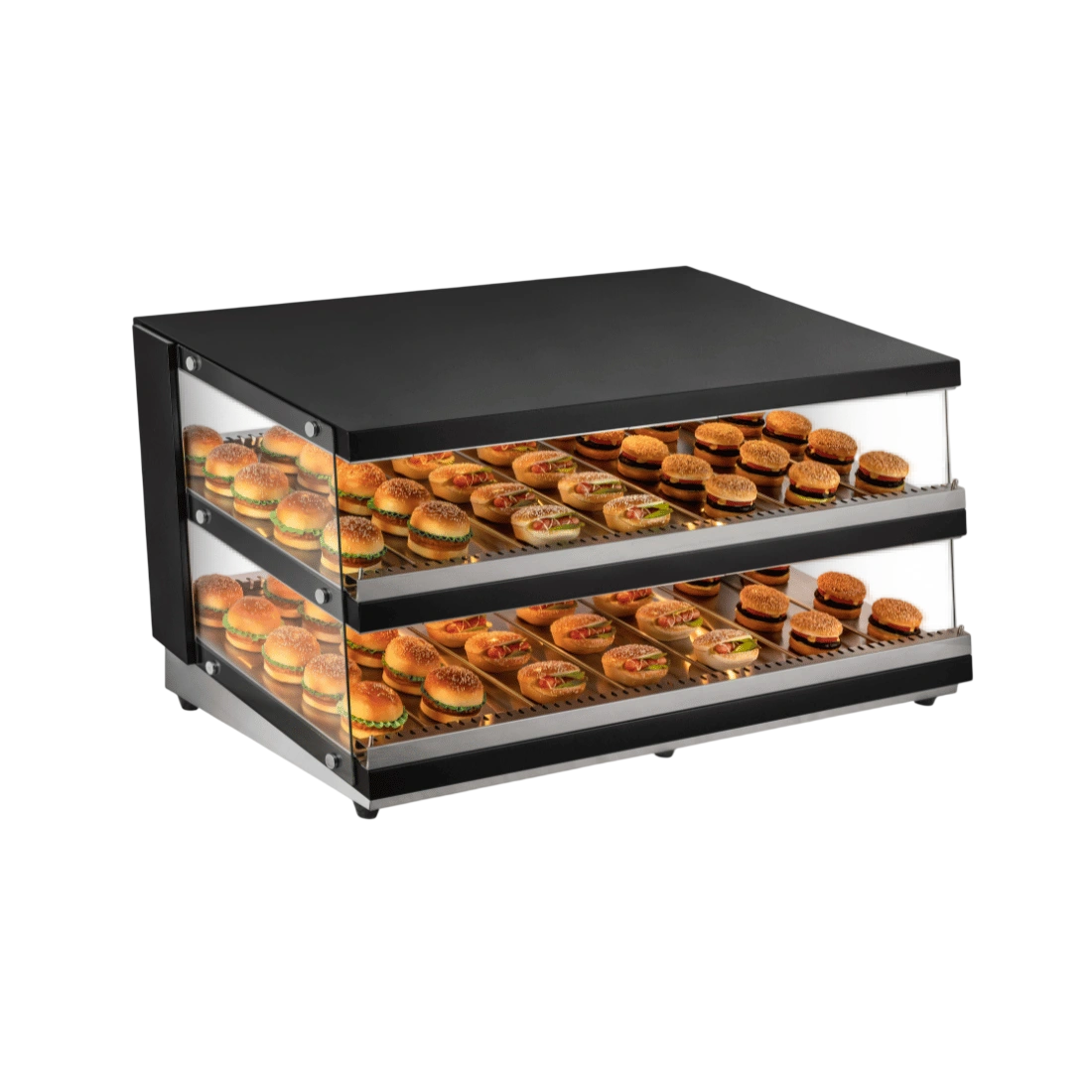

At KW Commercial Kitchen, the Bonvue HWB2-152 is a high-capacity backfill heated display cabinet providing 1.52 m² of display area, dual-tier stainless shelving and a 30–90 °C range for efficient hot food presentation. With a durable black finish, full-glass visibility and IPX4 waterproof rating, it’s ideal for cafés, bakeries and hotel buffets across Australia.

Built for Australian hot food passes & service counters

The HWB2-152 combines stainless slide guides for easy food transfer, mechanical temperature control for reliable daily operation, and dual-tier shelves for maximum front display area—all within a compact 1400 mm width.

Key features & specifications

• Display area: 1.52 m² dual-tier configuration with stainless food slide guide
• Temperature / Power: 30 – 90 °C range; 1880 W rated input; 8.2 A current draw
• Electrical: 220–240 V / 50 Hz / 10 A plug & lead
• Dimensions (W×D×H): 1400 × 703 × 704 mm:contentReference[oaicite:0]{index=0}
• Weight: 86 kg (± 10 mm tolerance as per drawing):contentReference[oaicite:1]{index=1}
• Construction: Black stainless body; stainless-steel dual-tier shelves; visible temperature display; mechanical control; rear-feed design; full glass visibility; robust leg supports; IPX4 splashproof
• Controls: Mechanical dial thermostat with analog heat indicator
• Origin: Bonvue commercial heated display series
• Warranty: 1-year parts & labour

Compliance & safety (AU)

• Electrical: RCM compliant.
• Food safety: FSANZ-aligned—maintains ≥ 60 °C for safe hot food holding.
• Ingress protection: IPX4 rating for splash resistance in busy service environments.

Convenience & usage advice

• Rear refill design: Streamlines food transfer from prep area to customer-facing display.
• Manual reliability: Mechanical control provides stable performance without digital calibration.

Ideal applications

• Bakery pie and pastry display
• Hotel or restaurant buffet pass
• Café or canteen hot snack counter

At a glance

• 1400 × 703 × 704 mm | 1.52 m² display area | 86 kg
• 30–90 °C adjustable | 1880 W / 8.2 A | 240 V plug-in
• Dual-tier stainless shelves | IPX4 splashproof | Mechanical temperature control
• Warranty 1-year parts & labour | RCM compliant

Frequently Asked Questions

1) How do I clean it daily without harming finishes?

Power off and allow to cool; wipe glass and stainless surfaces with a mild cleaner; avoid abrasive pads; dry completely.

2) What routine maintenance keeps performance stable?

Wipe food slide weekly; check temperature indicator; inspect thermostat and cable quarterly; ensure air vents are unobstructed.

3) What are the power requirements and typical energy use?

Runs on 240 V / 10 A plug; rated at 1.88 kW. Use calculator below to estimate daily operating cost based on usage time and tariff.

4) What about installation and Australian compliance?

Bench or counter-mount with rear service access; maintain level installation; certified RCM compliance; FSANZ hot-holding temperature adherence.

5) Are spare parts and accessories available?

Replacement thermostats, glass panels, and stainless slide guides are available—quote model and serial number for parts support.

Specs source: Bonvue HWB2-152 engineering drawing (1400 × 703 × 704 mm, 1.52 m² display, IPX4, 240 V / 1880 W).:contentReference[oaicite:2]{index=2}
