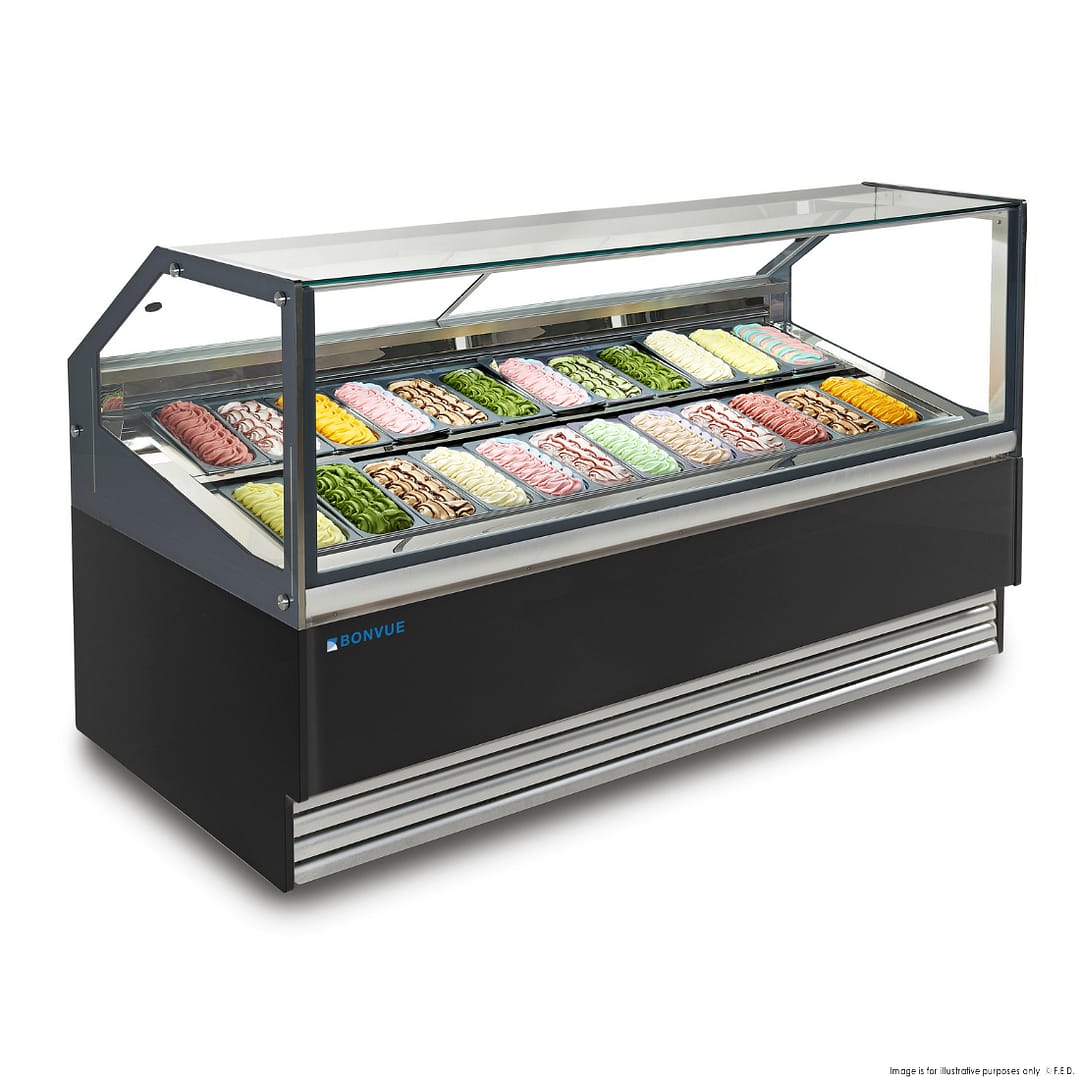

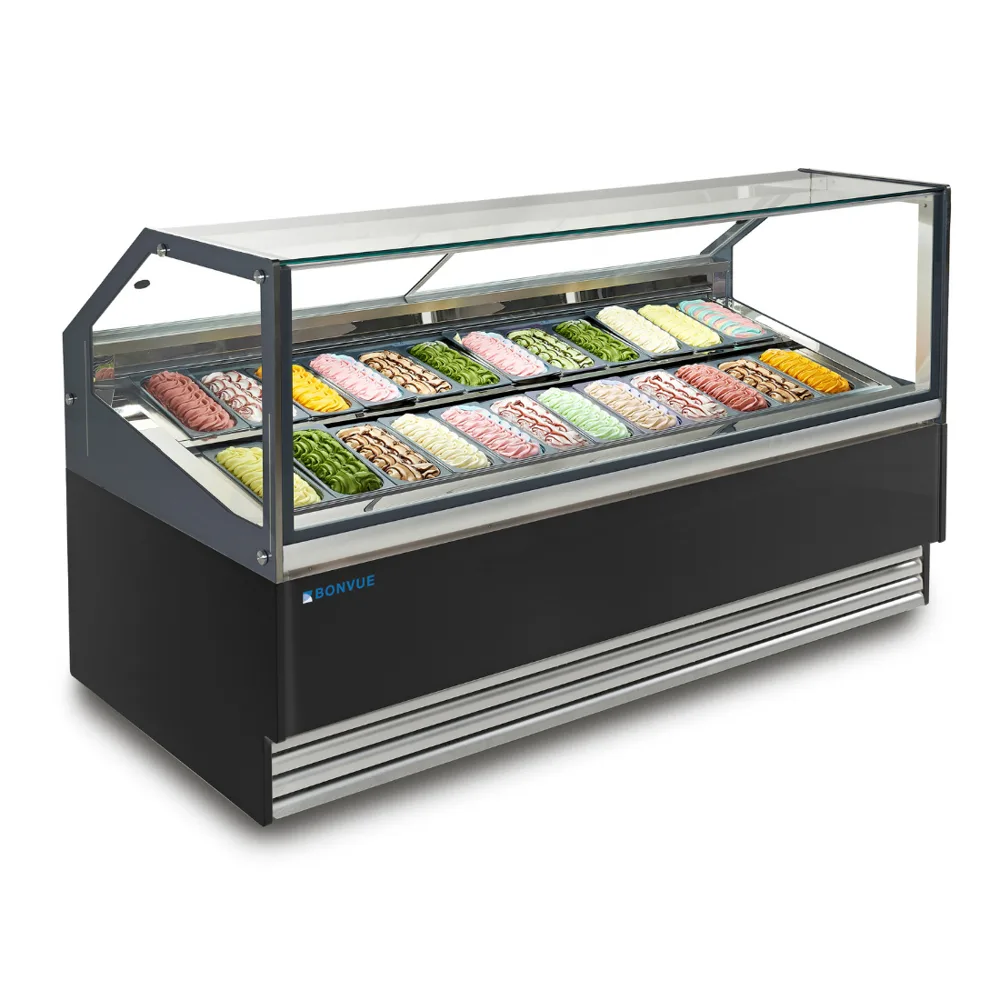

Bonvue SGD-24B Gelato / Ice Cream Display Showcase – 24 × 5 L Pans
Updated:
At KW Commercial Kitchen, the Bonvue SGD-24B is a premium gelato and ice cream display showcase designed for quiet operation, crystal-clear presentation and energy-efficient performance. With 24 × 5 L pans and -16 °C to -18 °C stability, it’s the perfect front-of-house solution for Australian gelaterias and dessert venues.
Built for Australian gelaterias & dessert bars
The SGD-24B combines dual-vent cooling, anti-fog heated glass and LED illumination to display each flavour at its best. Eco-friendly R290 refrigerant and high-efficiency insulation cut running costs while the self-defrost system simplifies maintenance.:contentReference[oaicite:1]{index=1}
Key features & specifications
- Capacity / Pans: 24 × 5 L standard gelato pans (not included)
- Temperature range: -18 °C to -16 °C
- Ambient rating: 30 °C / 55 % RH (tropicalised)
- Cooling system: Dual-vent forced air for even chill
- Defrost: Automatic self-defrost system
- Lighting: LED display illumination for bright, premium presentation
- Glass: Heated anti-fog front for clear visibility in all conditions
- Interior: AISI 304 mirror-finish stainless steel for hygiene and easy cleaning
- Insulation: High-efficiency polyurethane for energy savings
- Refrigerant: Eco-friendly R290 hydrocarbon
- Dimensions (W×D×H): 2310 × 1095 × 1300 mm
- Weight: 580 kg
- Electrical: 240 V / single phase
- Warranty: 2 years parts & labour (AU)
Compliance & safety (AU)
- Electrical: RCM compliant 240 V refrigerated display.
- Food safety: FSANZ 3.2.2A aligned for frozen dessert storage and display.
- Environmental: R290 low-GWP refrigerant meets GEMS efficiency standards.
Convenience & usage advice
- Display maintenance: Run auto-defrost daily to prevent ice build-up and retain clear glass visibility.
- Best practice: Use standard 5 L gelato pans for optimum airflow and temperature uniformity.
Ideal applications
- Gelato and ice cream shops
- Dessert cafés & patisseries
- Hotel and restaurant buffets
At a glance
- 2310 × 1095 × 1300 mm | 24 × 5 L pans
- -18 °C to -16 °C dual-vent cooling system
- R290 eco-refrigerant | anti-fog heated glass
- 2-year parts & labour warranty (AU)
Frequently Asked Questions
1) How do I clean it daily without harming finishes?
Wipe interior and glass with pH-neutral cleaner; avoid abrasives and chlorine; dry thoroughly after defrost cycle.
2) What routine maintenance keeps performance stable?
Clean air filters monthly; check seals and LED lenses quarterly; schedule annual refrigeration inspection.
3) What are the power requirements and typical energy use?
Runs on 240 V single phase; power draw TBA (~2 kW est.); use dedicated circuit with 10 A breaker.
4) What about installation and Australian compliance?
RCM certified; allow rear and side clearance for ventilation; install on level surface in 30 °C ambient max.
5) Are spare parts and accessories available?
Yes – replacement pans (GELATO-5L), LED tubes and door seals are available via Bonvue AU service.
