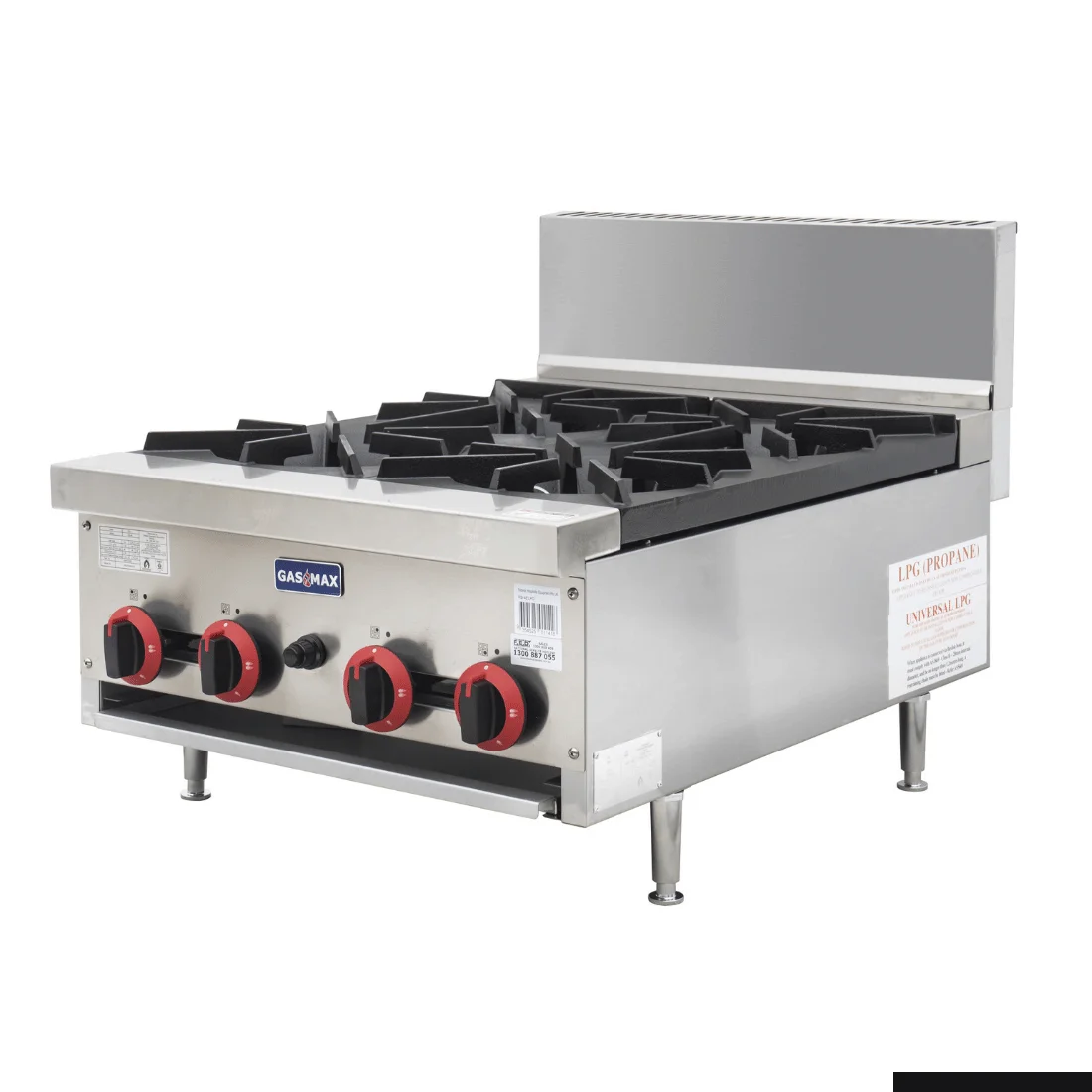

Gasmax RB-4E Gas 4-Burner Cooktop – High Output with Flame Failure
Updated:

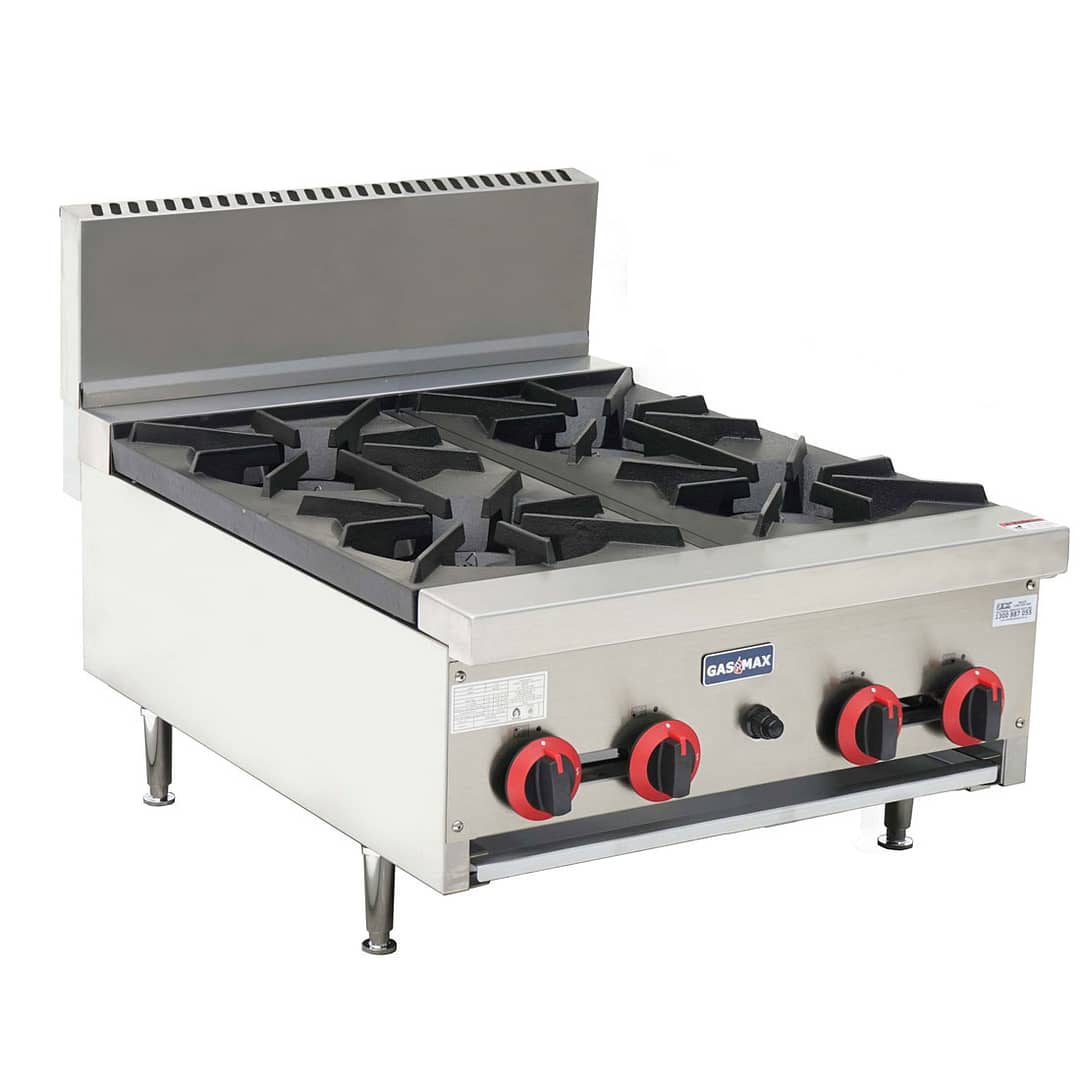

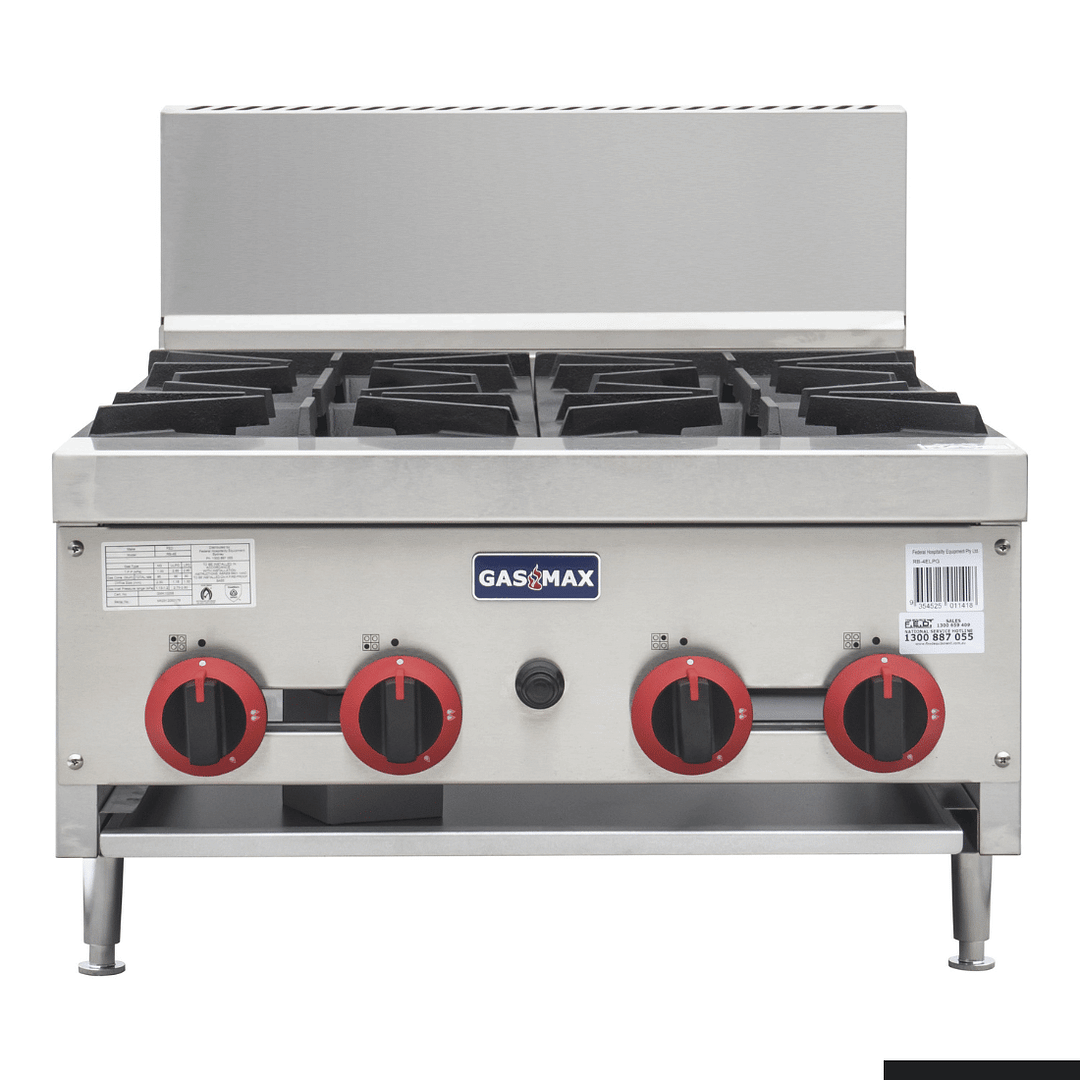

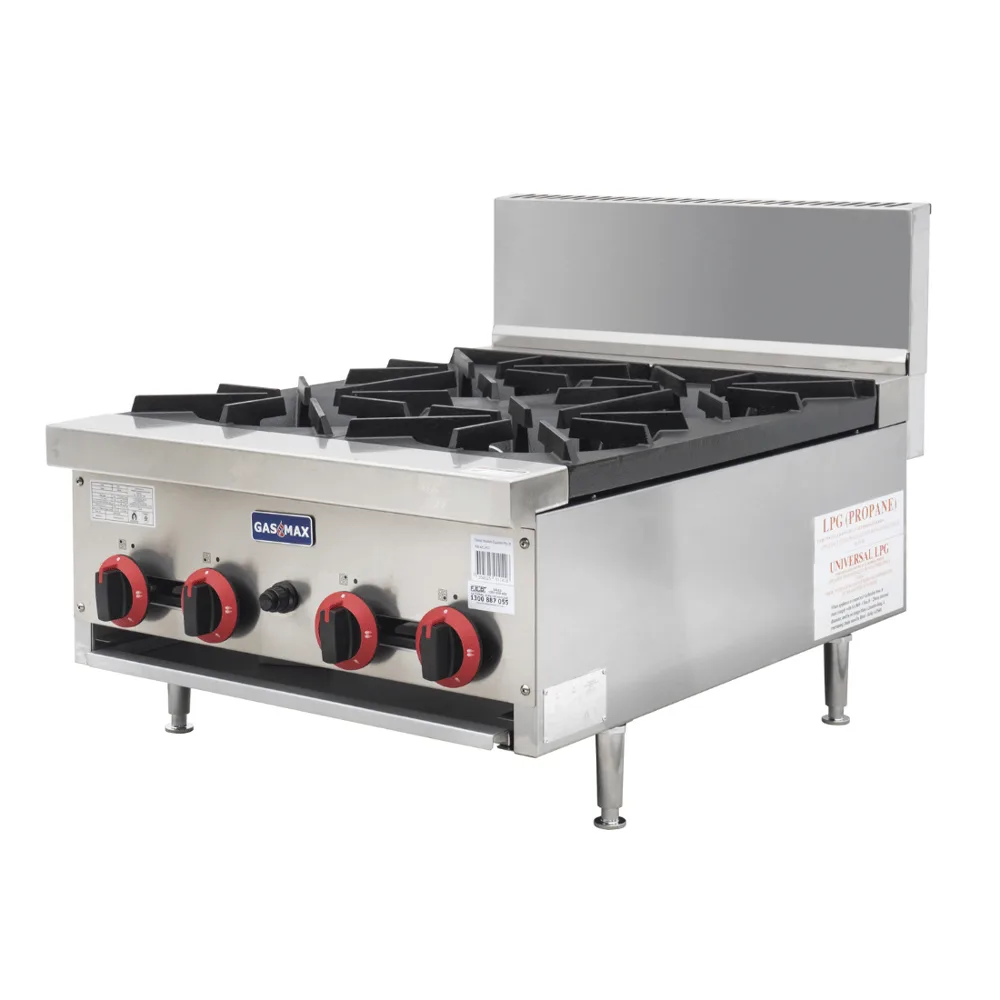

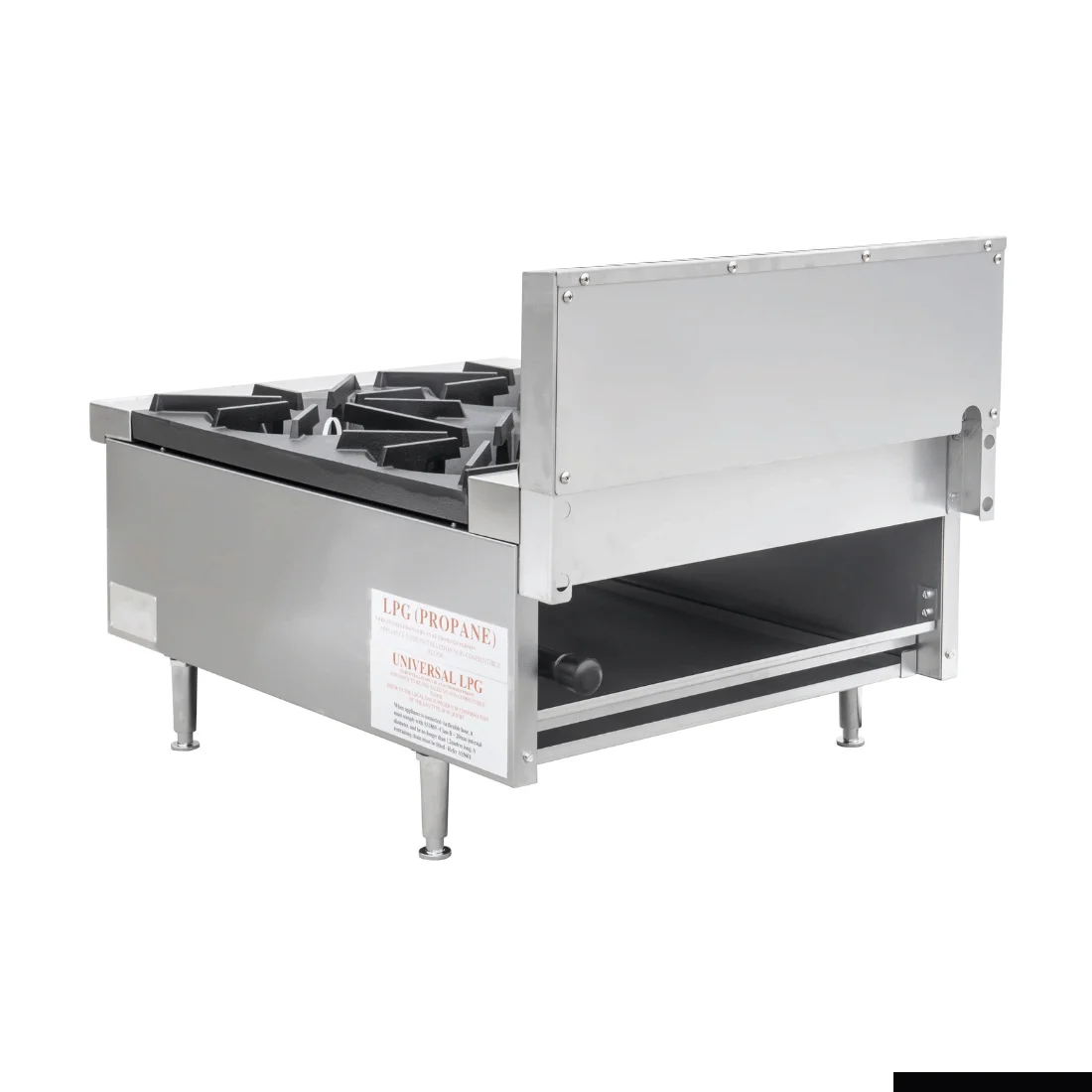

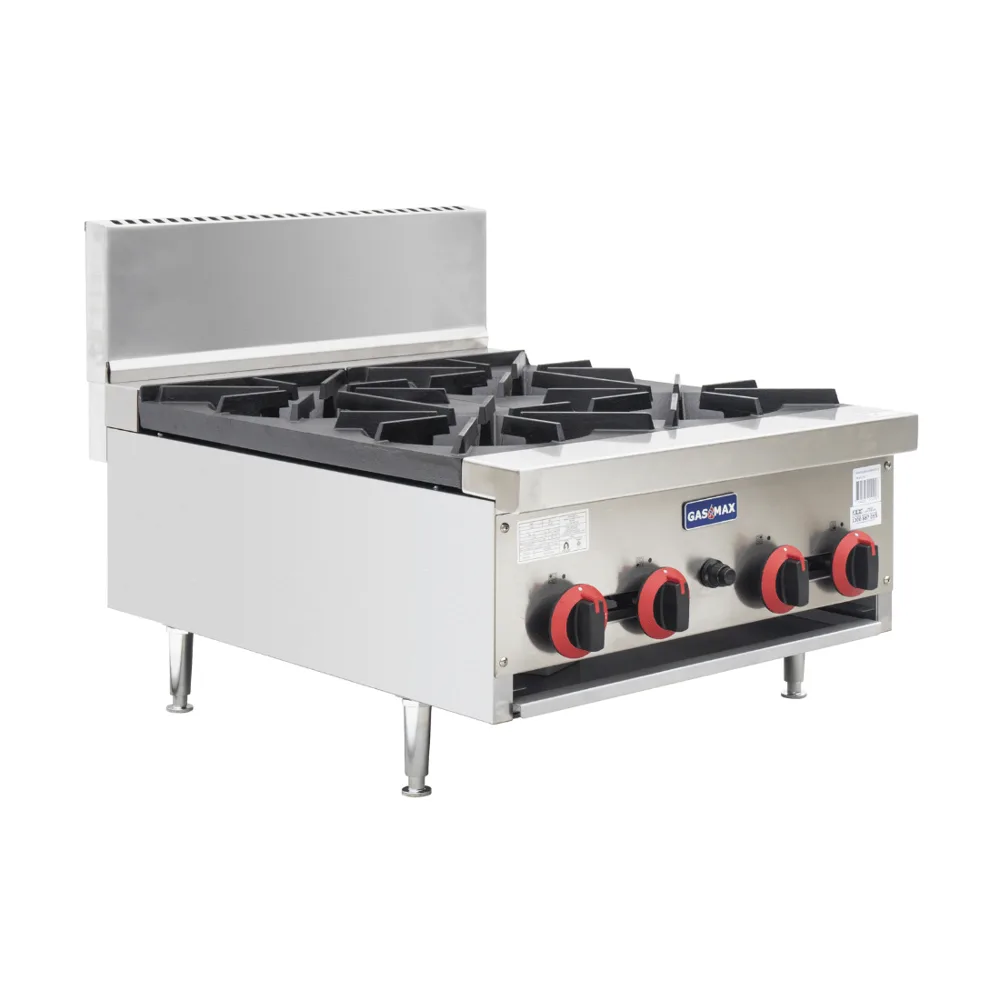

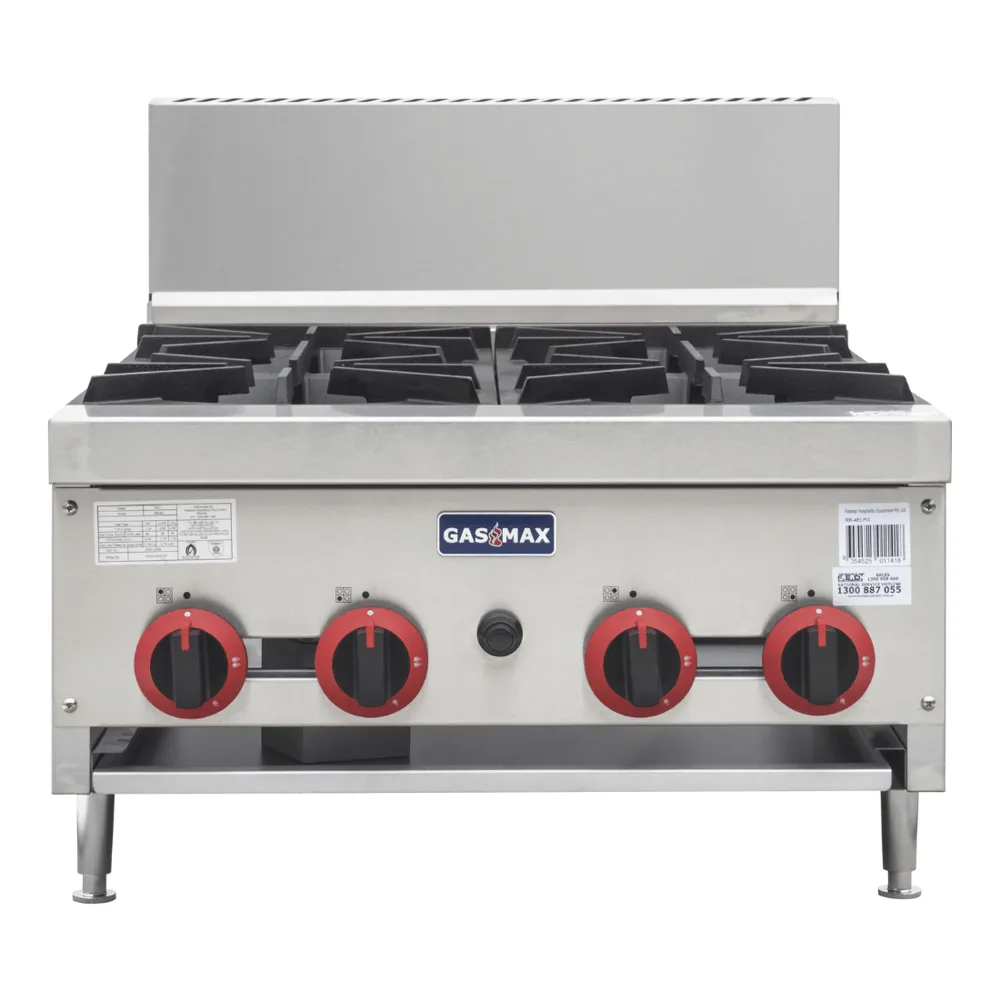

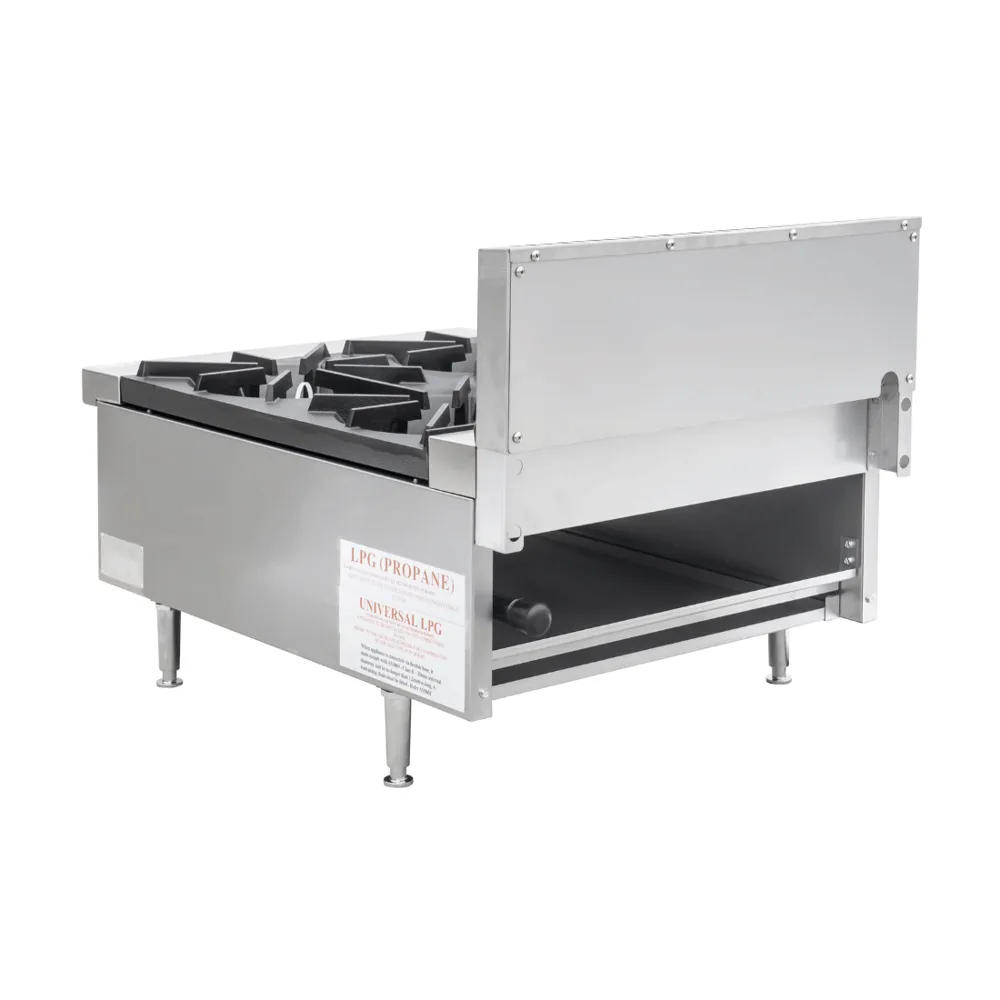

At KW Commercial Kitchen, we supply the Gasmax RB-4E—a compact 4-burner commercial cooktop delivering 96MJ/h total heat, flame failure safety on every burner, and piezo ignition in a durable stainless-steel build with flat heavy-duty trivets and integrated splashback.
Built for Australian cafés, restaurants & catering kitchens
The RB-4E pairs fast heat-up, precise manual control and easy-clean stainless construction to keep service moving during peak periods.
Why this model
- Safety first: Flame failure devices on all four burners for compliance and peace of mind.

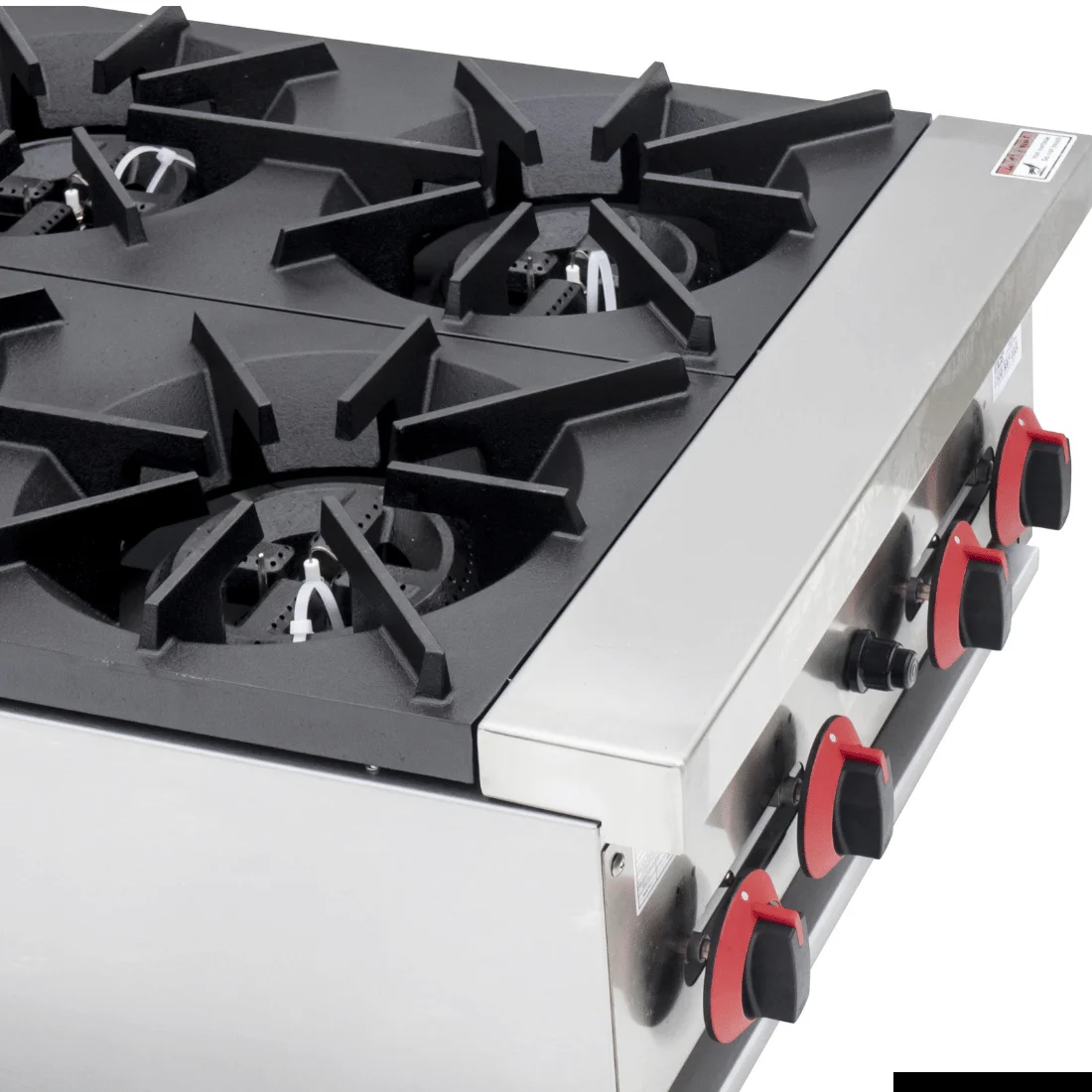

- Service-ready: Heavy flat trivets for pots and pans; stainless splashback reduces mess.
- Low-maintenance: Piezo ignition and removable S/S drip pans simplify daily cleaning.
Key features & specifications

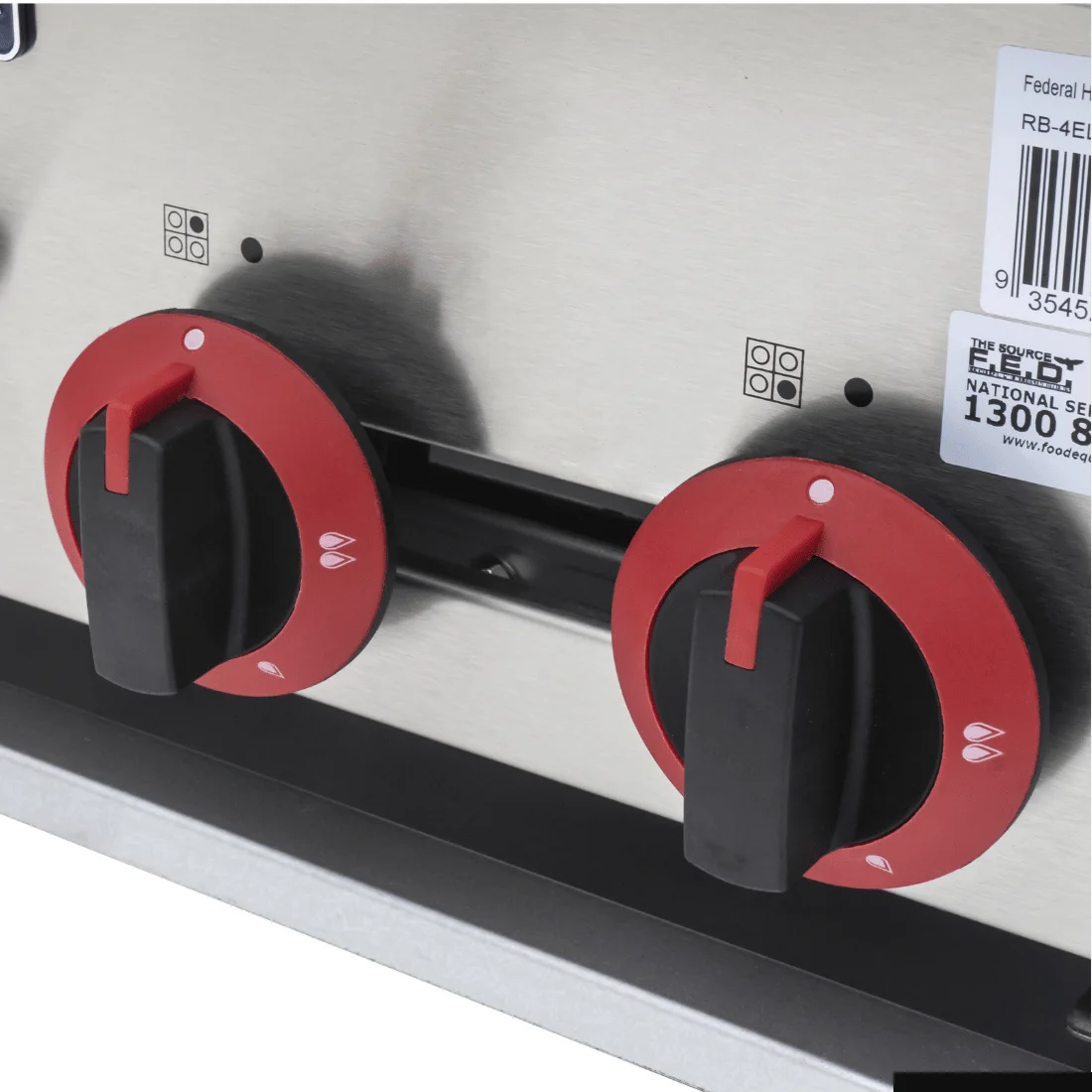

- Burners: 4 open burners, manual control (NG)
- Total input: 96MJ/h
- Ignition: Piezo
- Safety: Flame failure on each burner
- Gas connection: 3/4″ regulator
- Dimensions (W×D×H): 602 × 824 × 574 mm
- Net weight: 60 kg

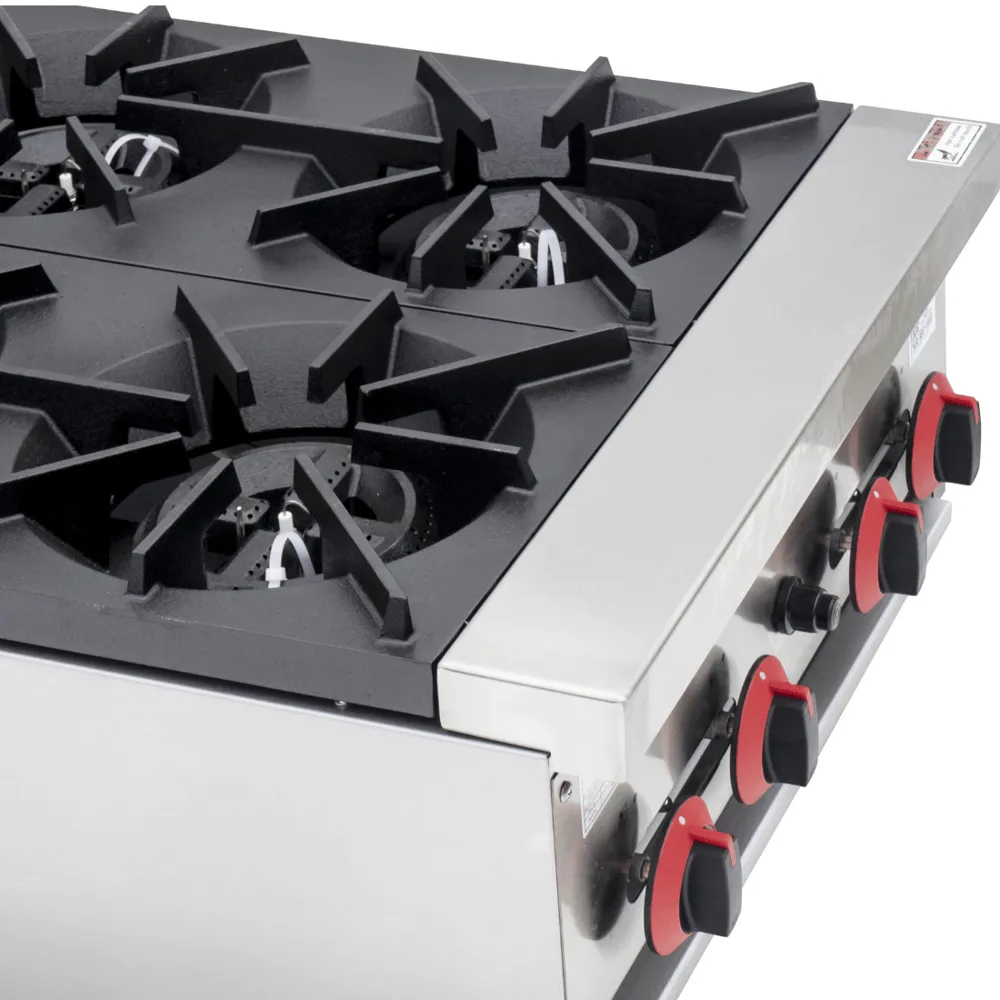

- Construction: Stainless steel body, flat heavy-duty trivets, stainless splashback, adjustable feet (±45 mm), S/S drip pans
- Warranty: 2 years parts & labour + extra 2 years parts only when registered within 14 days
Compliance & safety (AU)
- Gas: Must be installed by a licensed gas fitter per AS/NZS 5601.1.
- Electrical: RCM (if ancillary electrics apply).
- Food safety: Operate per FSANZ and local council extraction/clearance requirements.
Convenience & usage advice
- Level & secure: Use the adjustable feet to level the unit and ensure stable pot support.
- Daily clean: Let surfaces cool to warm, lift trivets and empty drip pans, wipe with a pH-neutral degreaser.
Ideal applications
- Multi-pan sauté and boil stations
- Prep and finishing in compact cooklines
- Cafés, restaurants, canteens and catering sites
Frequently Asked Questions
1) How do I clean it daily without harming finishes?
While warm, remove trivets and drip pans; use a pH-neutral cleaner and microfibre cloth; avoid abrasives and chlorine; dry thoroughly before re-firing.
2) What routine maintenance keeps performance stable?
Weekly check burner caps and ports for blockages; inspect gas hose/connectors quarterly; keep ventilation paths clear.
3) What are the gas requirements and typical energy use?
Connect to NG with a compliant 3/4″ regulator and isolation valve; energy use varies by heat setting and duty cycle.
4) What about installation and Australian compliance?
Install by a licensed gas fitter per AS/NZS 5601.1 with appropriate clearances and extraction; retain the compliance certificate.
5) Are spare parts and accessories available?
Common items include trivets, knobs, valves and ignition components; quote “RB-4E” and serial number for exact parts.
Specs source: supplier literature for Gasmax RB-4E.
