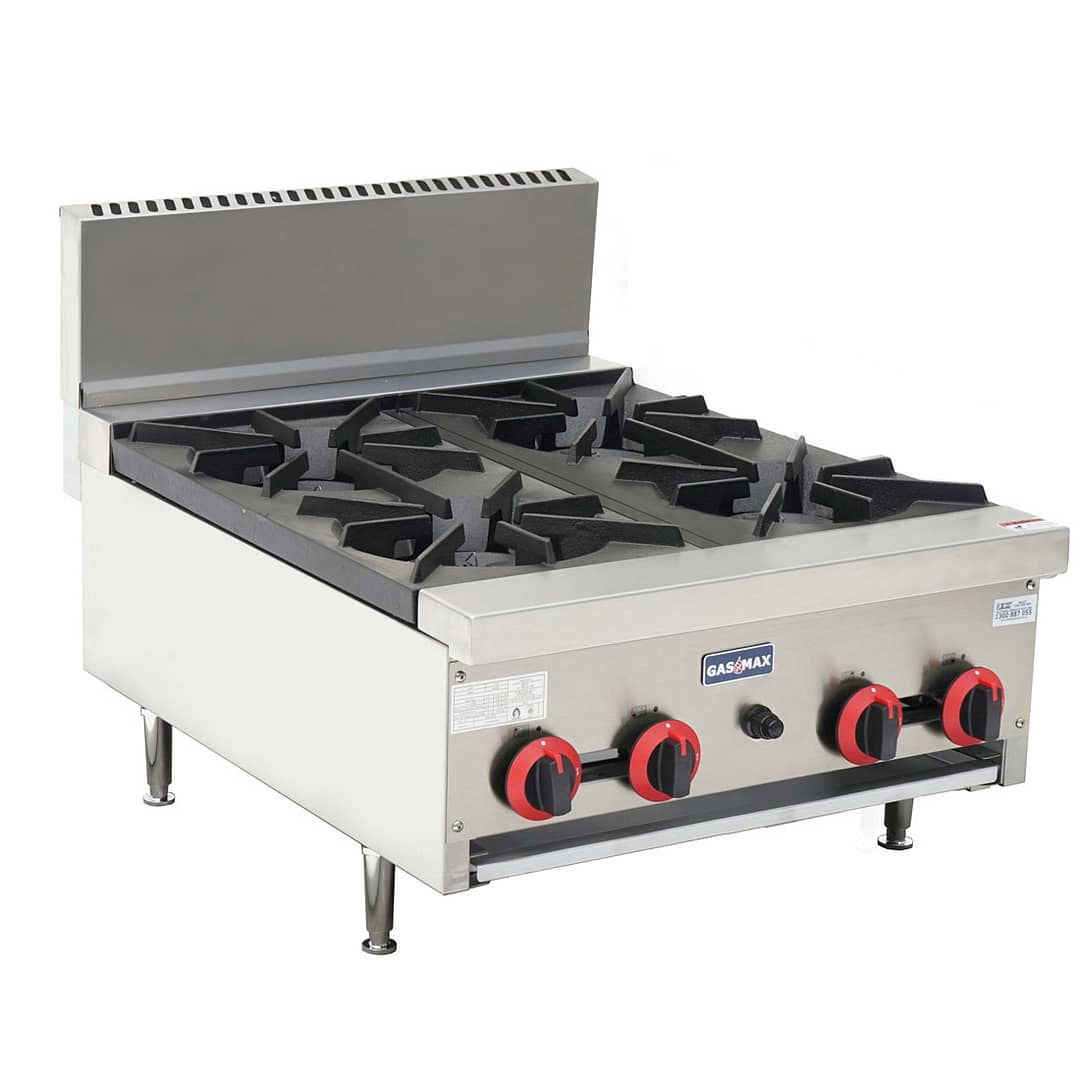

Gasmax RB-4ELPG 4-Burner LPG Cooktop

The Gasmax RB-4ELPG is a four-burner LPG benchtop cooktop for commercial kitchens. Its 80 MJ/h total input, flat heavy-duty trivets and flame-failure protection support everyday pot-and-pan cooking.

Consider the RB-4ELPG for a commercial kitchen that uses LPG and needs four independently controlled cooking points on a bench or compatible stand. Stainless-steel construction, drip pans and a splashback give the cooking line surfaces to include in its regular cleaning routine.

• Commercial LPG kitchens preparing several dishes in separate pots or pans.
• Cooking lines needing four open burners with individual controls.
• Benchtop installations or installations using the compatible Gasmax RB-4-SEN stand.

• Kitchens with a natural-gas supply should choose a natural-gas cooktop such as the four-burner Gasmax RB-4E.
• Operators who need more than four cooking points should compare a six-burner LPG cooktop such as the Gasmax RB-6ELPG.

Start with the gas supply: the RB-4ELPG is the LPG version. Its four individually controlled burners suit jobs that need several pots or pans cooking at once; compare the RB-4E when the kitchen uses natural gas.

Check the 602 × 824 × 574 mm appliance dimensions against the bench layout, then allow for installation clearances, extraction and service access. The 60 kg net weight also matters when selecting the support surface.

Choose between a suitable bench and the compatible Gasmax RB-4-SEN stand. Have an authorised technician assess the LPG regulator, supply capacity, ventilation and connection before installation.

• Four independently controlled open burners.
• Piezo ignition and flame-failure protection.
• Stainless-steel construction, drip pans and splashback.
• Feet offer up to 45 mm of height adjustment.

• The LPG configuration requires a matching gas supply; kitchens using natural gas should select the appropriate model.
• The 60 kg appliance requires a stable bench or compatible stand suitable for the installed load.
• Four burners limit the number of separate cooking points available at once.
• Installation and commissioning require an authorised technician, with ventilation, extraction and clearances planned before connection.

• Gasmax RB-4E Gas 4-Burner Cooktop – 96MJ/h, Flame Failure: The Gasmax RB-4E also has four burners and flame-failure protection, but uses natural gas with 96 MJ/h input, compared with this model’s LPG supply and 80 MJ/h.
• Gasmax RB-6ELPG 6 Burner LPG Cooktop – Flame Failure, Stainless Steel, 900mm: The Gasmax RB-6ELPG provides six LPG burners and a 900 mm width, compared with this model’s four burners and 602 mm width.

• LPG supply and connection. Arrange installation and commissioning by an authorised technician. Check the LPG regulator, supply capacity and 3/4-inch gas connection; the regulator size is also 3/4 inch.
• Bench or stand. Provide a stable support suitable for the 60 kg appliance and its installed load. The compatible stand is the Gasmax RB-4-SEN; the feet offer up to 45 mm of height adjustment.
• Ventilation and access. Confirm ventilation, extraction and installation clearances before connection. Keep access available for cleaning and scheduled servicing.
• Cleaning and inspection. Remove and clean drip pans as required, following the operating and service instructions supplied with the appliance. Inspect trivets, burner ports, ignition and flame-failure operation, and clean the splashback and stainless-steel surfaces without obstructing burner ports.

For body dimensions, see Key Specifications above.
