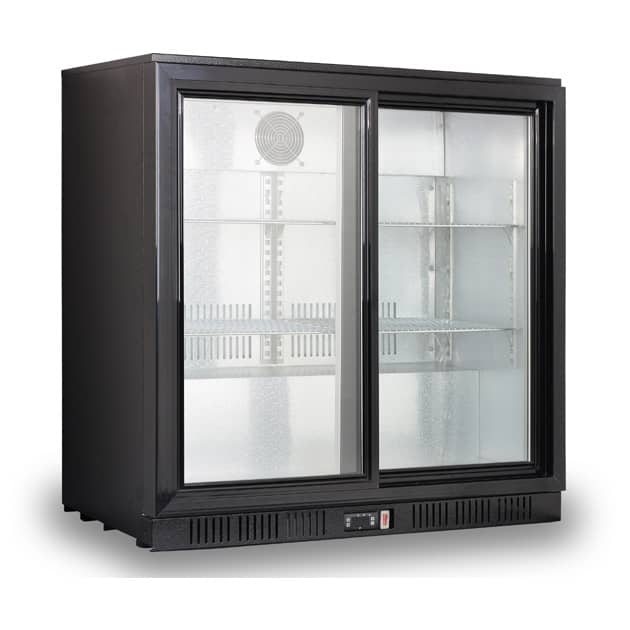

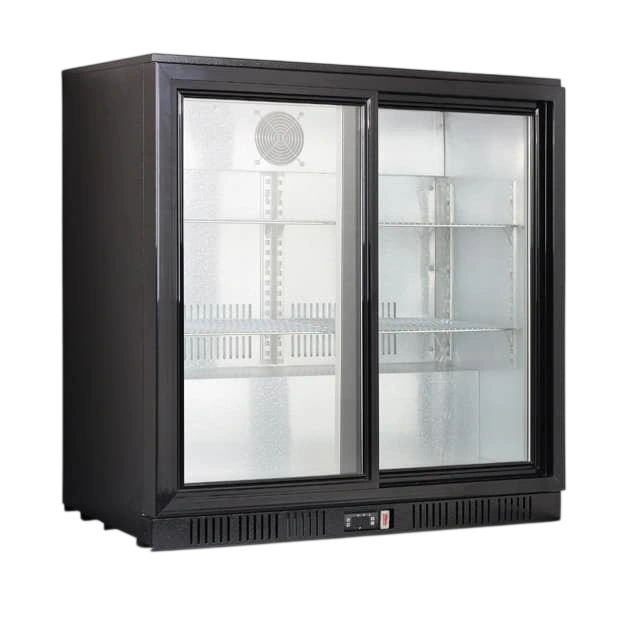

Thermaster LG-208SC Under Bench Two Sliding Door Bar Fridge/Cooler

The Thermaster LG-208SC is an under-bench bar fridge for pubs, clubs, bars and restaurants. Two sliding glass doors provide access to 150 L net storage, with adjustable shelving and a +2 to +8°C temperature range.

Consider the LG-208SC for a drinks service point where staff need to see the selection through glass doors and access stock below the bench. Its sliding doors avoid a hinged door swinging into the service aisle. Plan around the 150 L net volume and retain the required 100 mm wall clearance for ventilation.

• Pubs, clubs and restaurant bars storing chilled beverages close to service.
• Under-bench installations with room for the cabinet and its required ventilation clearance.
• Drinks selections that benefit from adjustable shelving and a view through glass doors.

• Frozen drinks or ice storage: choose a commercial freezer instead.
• Installations that cannot provide 100 mm wall clearance: choose bar refrigeration with ventilation requirements suited to the space.
• Drinks selections needing more than 188 L gross volume: compare the SC248G, which has 202 L gross volume.

Base the drinks selection on 150 L net storage rather than the 188 L gross cabinet volume. Check bottle and can sizes against the shelf arrangement before deciding how much stock to keep at the service point.

Measure the installation space and access route, then allow the required 100 mm wall clearance for ventilation. Sliding doors help with aisle access, but the ventilation space remains part of the installation.

Check the location against the maximum ambient rating of 38°C at 65% relative humidity and the 240 V, 280 W electrical specification. Use the 1.759 kWh/24 h energy consumption figure when comparing operating requirements.

Compare the SC248G for a higher gross volume, or the LG-330HC for a three-door under-bench arrangement. Choose around your drinks selection and service layout.

• Sliding doors avoid an outward door swing into the service aisle.
• Double-glazed glass doors and internal lighting let staff view the drinks selection.
• Fully adjustable shelving supports changes to the storage layout.
• Digital temperature control, automatic defrost, self-closing doors and locks support day-to-day bar operation.

• Requires 100 mm wall clearance for ventilation, adding to the installation space.
• Net storage is 150 L within the 188 L gross cabinet volume.
• The +2 to +8°C operating range is for chilled storage.
• At 75 kg net weight, moving and positioning the cabinet requires planned handling.

• Thermaster SC248G Two Door Drink Fridge/Cooler – Gross Volume: 202L: The Thermaster SC248G is a two-door drink fridge with 202 L gross volume, compared with the LG-208SC’s 188 L gross volume.
• Thermaster LG-330HC Under Bench Three Door Bar Fridge/Cooler: The Thermaster LG-330HC has three doors and a 315 W power specification, compared with the LG-208SC’s two sliding doors and 280 W.

• Bench space and ventilation. The cabinet measures 900 × 530 × 835 mm W × D × H. Allow 100 mm wall clearance for ventilation when assessing the under-bench space.
• Access and handling. Check the access route against the packed dimensions of 950 × 570 × 920 mm W × D × H. Plan handling for the 75 kg net cabinet weight.
• Electrical supply and environment. Provide a suitable 240 V supply for the 280 W electrical specification. Check the installation location against the maximum ambient rating of 38°C at 65% relative humidity.
• Positioning and routine care. Use the four adjustable legs to level the cabinet and arrange the shelves for the drinks selection. Follow the operating instructions and site procedures for commissioning, cleaning and maintenance.
• Warranty registration. Register the product within 14 days of invoice to meet the registration requirement for the additional parts-only warranty period.

For body dimensions, see Key Specifications above.
