Anvil UBG6180(H) Back Bar Fridge – 535L, 2½ Glass Doors
Updated:
At KW Commercial Kitchen, we supply the Anvil UBG6180(H) back bar fridge with 2½ glass doors, a 535L capacity, and Dixell temperature control. Fluorescent illumination, heated mullions, and stainless-steel build ensure reliable performance in Australian bar and hospitality environments.
Built for Australian bars and hospitality venues

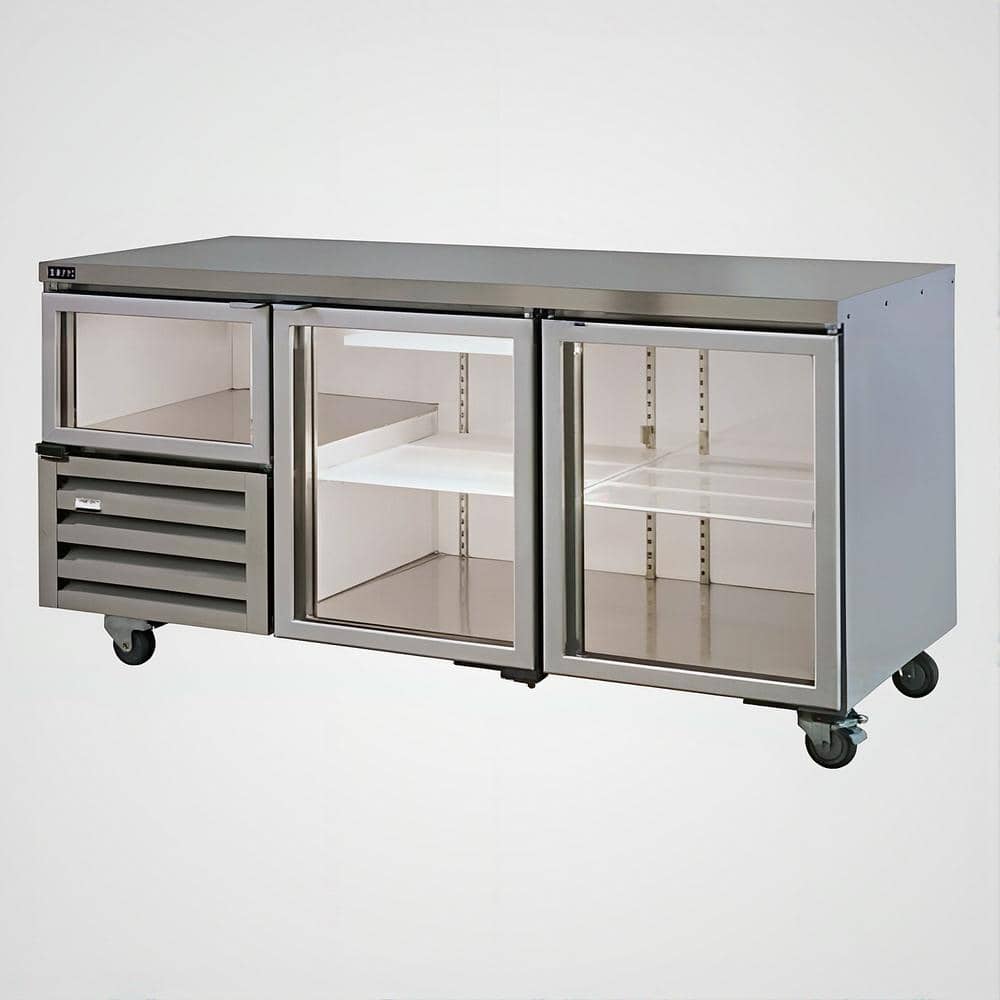

The Anvil UBG6180(H) combines glass display doors, fluoro interior lighting, and a stainless steel countertop in a 1800-mm wide back bar design—ideal for showcasing drinks in high-demand service areas.
Key features & specifications
- Capacity: 535 L
- Doors: 2½ self-closing glass doors with heated mullions
- Lighting: Fluorescent illumination
- Ambient rating: 35°C at 70% RH
- Power/Voltage: 0.58 kW, 240V single phase
- Dimensions (W×D×H): 1800 × 610 × 985 mm
- Weight: 165 kg
- Construction: Stainless steel countertop, back & sides; mounted on 2 lockable and 2 free castors
- Controller: Dixell digital controller
- Warranty: Extended Gold Star Warranty – 2 Years Parts & 1 Year Labour
Compliance & safety (AU)
- Electrical: RCM compliant.
- Energy: GEMS/MEPS (where applicable).
- Food safety: FSANZ-aligned chilled display; suitable for licensed venues.
Convenience & usage advice
- Fast service: Glass doors with bright illumination keep beverages visible and accessible.
- Simple care: Clean condenser fins quarterly with a brush or vacuum to maintain airflow.
Ideal applications
- Bars and pubs
- Restaurants and cafés
- Hotels and function venues
Frequently Asked Questions
1) How do I clean it daily without harming finishes?
Use warm soapy water with a microfibre cloth; avoid abrasives and harsh chemicals; dry stainless steel and glass surfaces.
2) What routine maintenance keeps performance stable?
Quarterly condenser cleaning with a brush or vacuum; check seals and castors regularly.
3) What are the power requirements and typical energy use?
Connect to a dedicated 240V single-phase circuit (0.58 kW). Consumption varies by duty cycle and ambient load.
4) What about installation and Australian compliance?
RCM compliant; maintain ventilation clearance; avoid direct sunlight or heat; meets FSANZ and GEMS/MEPS obligations.
5) Are spare parts and accessories available?
Yes—shelves, door seals, and controllers are available. Quote model and serial number for accuracy.
Specs source: official datasheet and line drawing for Anvil UBG6180(H).
