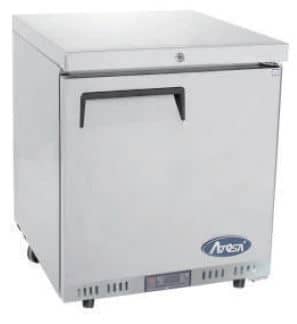

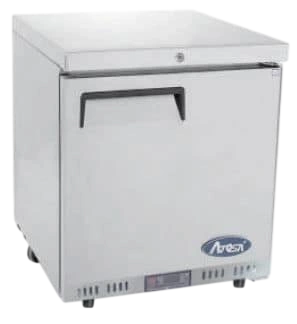

Atosa MBC24F 105 L Bar Freezer Cabinet – Compact & Energy Efficient
Updated:
At KW Commercial Kitchen, we supply the Atosa MBC24F Bar Freezer Cabinet — a compact 105 L commercial freezer engineered for efficiency and reliability. Perfect for bars, cafés, and compact kitchens, this unit combines precise digital control, stainless-steel durability, and A+ energy performance for everyday professional use.
Built for Australian bars & hospitality spaces
The MBC24F delivers fan-assisted cooling, eco-friendly R290 refrigerant, and a self-closing lockable door — providing stable freezing even in 43 °C ambient conditions.
Key features & specifications
- Gross capacity: 105 L | Net usable: 50 L
- Dimensions (W×D×H): 605 × 635 × 785 mm
- Ambient rating: 43 °C (Climate Class 5)
- Energy class: A+ efficiency rating
- Construction: 304-grade stainless interior & exterior with LED interior light
- Cooling system: Fan-cooled with heavy-duty Embraco compressor
- Refrigerant: R290 eco-friendly gas
- Insulation: C5H10 polyurethane foam for superior efficiency
- Door: Lockable, self-closing & stay-open function
- Shelves: 2 adjustable (380 × 475 mm) plus base shelf
- Weight: 52 kg (net) | 62 kg (gross)
- Warranty: 2 Years Parts & Labour + Additional 2 Years Compressor/Motor Parts (on registration)
Compliance & safety (AU)
- Electrical: RCM compliant for Australian 230 V / 50 Hz power.
- Energy: GEMS-aligned A+ efficiency and low-GWP R290 refrigerant.
- Food safety: FSANZ-compliant cold storage for beverages and frozen goods.
Convenience & usage advice
- Digital thermostat: Easily set and monitor precise temperatures for consistent performance.
- LED lighting: Illuminates contents for fast service in low-light bar environments.
Ideal applications
- Bars & beverage counters
- Cafés & small commercial kitchens
- Hotel suites & hospitality service areas

At a glance
- 105 L gross / 50 L usable capacity
- Fan-cooled C5H10-insulated cabinet
- Lockable self-closing door with LED light
- 2 + 2 year commercial warranty
Frequently Asked Questions
1) How should I install the MBC24F?
Place on a level surface with minimum 100 mm rear clearance for ventilation. Connect to a dedicated 10 A outlet.
2) What temperature should I set for optimal freezing?
Set the digital controller to -18 °C or below for frozen storage. The unit automatically cycles to maintain consistency.
3) How do I clean and maintain it?
Wipe interior and exterior with neutral detergent weekly; defrost if ice builds over 5 mm. Vacuum the condenser every 3 months.
4) Is it energy-efficient and eco-friendly?
Yes — A+ rated with R290 refrigerant and C5H10 insulation for low energy consumption and minimal environmental impact.
5) Are replacement parts available in Australia?
Yes — shelves, door gaskets, LED modules and locks are available through Atosa Australia service network.
Specs source: official datasheet for Atosa MBC24F Bar Freezer Cabinet.
