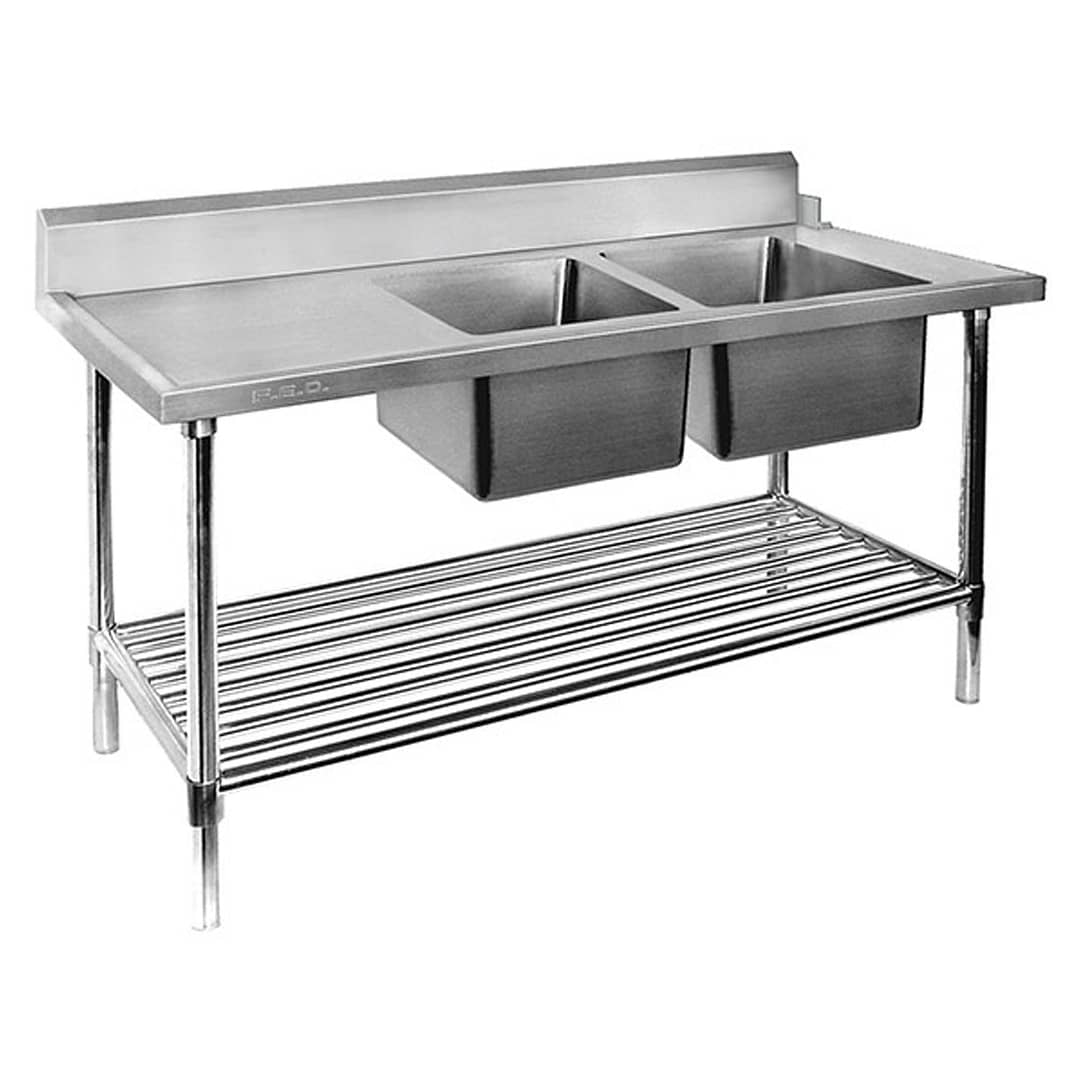

Modular Systems DSBD7-2400R/A Right Inlet Double Sink Dishwasher Bench

The Modular Systems DSBD7-2400R/A is a right-inlet double sink dishwasher bench with welded bowls, a wet edge and adjustable stainless steel legs for a wash-up line planned around right-hand inlet access.

DSBD7-2400R/A suits a dishwasher line whose inlet and sink arrangement belong on the right when facing the bench. Confirm this orientation against the dishwasher and room layout before arranging services.

• Dishwasher lines requiring a right-side inlet and double bowls.
• Wash-up stations using welded bowls and a raised wet edge.

• Choose DSBD7-2400L/A when the inlet and sinks need to be on the left.
• Choose a shorter inlet bench when this format does not suit the wash-up line.

Stand facing the planned bench position and verify that right-side inlet access matches the dishwasher flow. Do not choose the model by the R suffix alone without checking the actual layout.

Check bowl size against wash items, and the dimensions in Key Specifications above against the dishwasher line. Confirm the inlet interface, services and optional castor arrangement before ordering.

• Explicit right-hand inlet arrangement.
• Two welded bowls with a wet edge.
• Adjustable stainless steel legs and optional lockable castors.

• Requires a dishwasher layout that matches the right-side inlet.
• Flat-packed supply requires assembly.

• Modular Systems DSBD7-2400L/A Left Inlet Double Sink Dishwasher Bench: DSBD7-2400L/A changes the inlet and sink arrangement to the left.
• Modular Systems DSBD7-1800R/A Right Inlet Double Sink Dishwasher Bench: DSBD7-1800R/A provides a shorter right-inlet double sink format.

• Line planning. Confirm the right-hand inlet interface and bowl position against the dishwasher before plumbing. Keep space for waste fittings and service access.
• Assembly and cleaning. Assemble using the supplied instructions and tools, level the adjustable feet and keep access around the welded bowls, wet edge and splashback for cleaning.

For body dimensions, see Key Specifications above.
