Modular Systems SSBD7-1500L/A Left Inlet Single Sink Dishwasher Bench

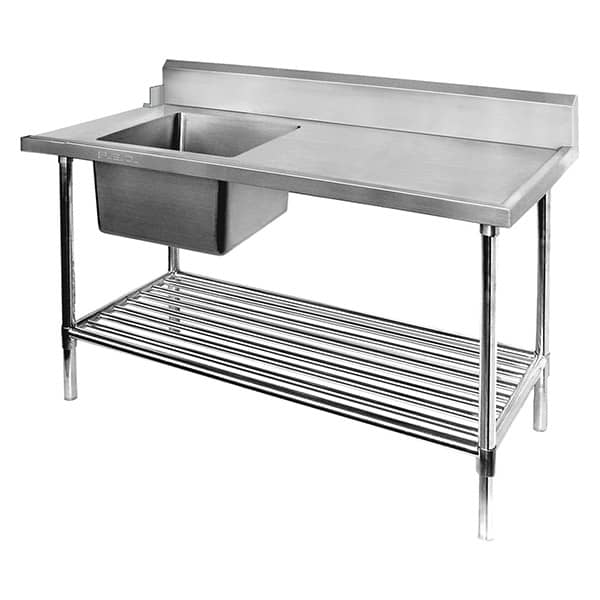

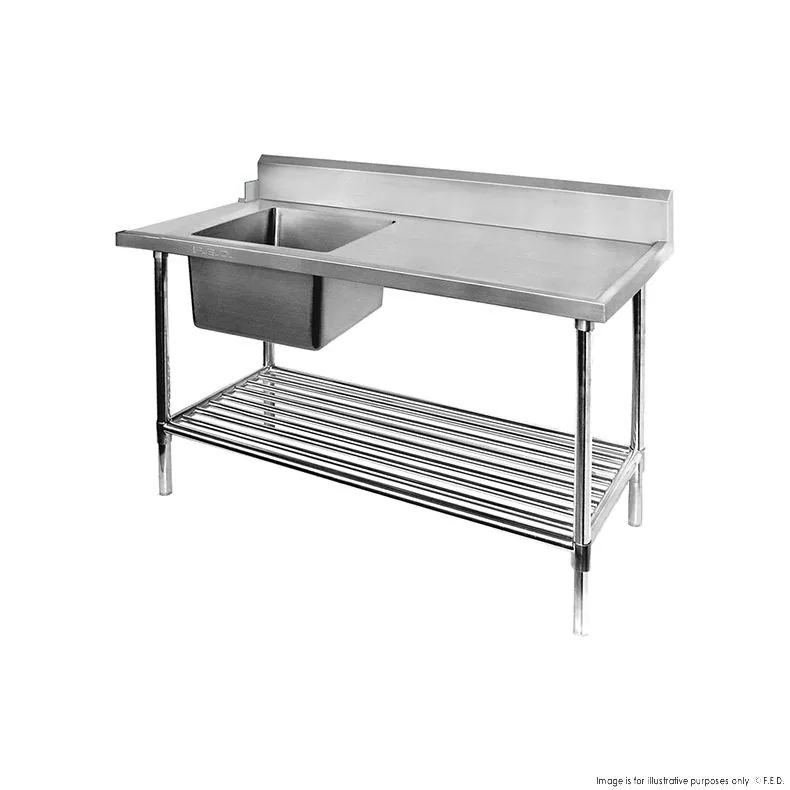

Modular Systems SSBD7-1500L/A is a left-inlet dishwasher bench with a 450 × 450 × 300 mm sink, a 15 mm wet edge and four adjustable legs. Facing the bench, the inlet and bowl are on the left; the bench is supplied flat-packed with assembly instructions and tools.

Dishwashing areas planning a left-inlet bench and a single sink for their wash-up layout. Check the dishwasher interface, bowl position, waste connection and splashback clearance together, with access and assembly space for a 39.25 kg net bench.

• Wash-up layouts requiring the inlet and sink on the left when facing the bench.
• Operators choosing one fully welded sink with a 450 × 450 × 300 mm bowl.
• Fitouts assembling a four-leg bench on site with adjustable disc feet.

• For a right-inlet single-sink layout, compare SSBD7-1500R/A.
• For a left-inlet bench with two sinks, compare DSBD7-1800L/A.

Stand facing the proposed bench position and check which hand the inlet and sink need to be on. Select this left-inlet model only when that orientation matches the dishwasher and the wash-up sequence.

Check the 450 × 450 × 300 mm bowl against the utensils and wash-up task. Have the installer match the waste fitting to the 90 mm drain hole and confirm the plumbing and dishwasher interface for the site.

Use the dimensions in Key Specifications above to review the access route and final layout. Include the splashback above the worktop when checking wall services and nearby equipment, and allow room for assembly of the flat-packed bench.

Plan support and handling for the 39.25 kg unit, then adjust the disc feet during installation. If mobile placement is required, confirm the optional lockable castor kit for the bench before ordering it.

• A defined left-inlet arrangement with one fully welded, polished sink.
• 1.2 mm SUS304 worktop with a 15 mm wet edge and U-channel reinforcement.
• Enclosed, bevelled splashback and four adjustable legs.
• Assembly instructions and tools accompany the flat-packed bench.

• The left-inlet orientation must suit the dishwasher layout.
• The single bowl needs to accommodate the intended wash-up tasks; choose a double-sink alternative when two bowls are required.
• Site assembly is required, and lockable castors are optional rather than the standard disc-foot arrangement.

• Modular Systems SSBD7-1500R/A Right Inlet Single Sink Dishwasher Bench: SSBD7-1500R/A is a right-inlet single-sink dishwasher bench, while SSBD7-1500L/A has its inlet and sink on the left when facing the bench.
• Modular Systems DSBD7-1800L/A Left Inlet Double Sink Dishwasher Bench: DSBD7-1800L/A is a left-inlet double-sink dishwasher bench, compared with the single-sink SSBD7-1500L/A.

• Confirm handedness and interfaces. Review the left-inlet arrangement from the front of the bench and confirm the dishwasher interface with the installer. Arrange the sink waste connection for the bowl and its 90 mm drain hole.
• Receive and assemble. Plan handling for 39.25 kg net weight and an assembly area along the delivery route. Assemble the flat-packed bench using the supplied instructions and tools.
• Position and adjust. Check the dimensions in Key Specifications above and the splashback clearance, then adjust the polished disc feet for the installed position. Select and fit a matching lockable castor kit only if that optional arrangement is part of the plan.
• Maintain access for care. Keep the welded bowl, wet edge, splashback and worktop accessible for cleaning. Follow the stainless steel care and installed plumbing instructions, retaining access for maintenance.

For body dimensions, see Key Specifications above.
