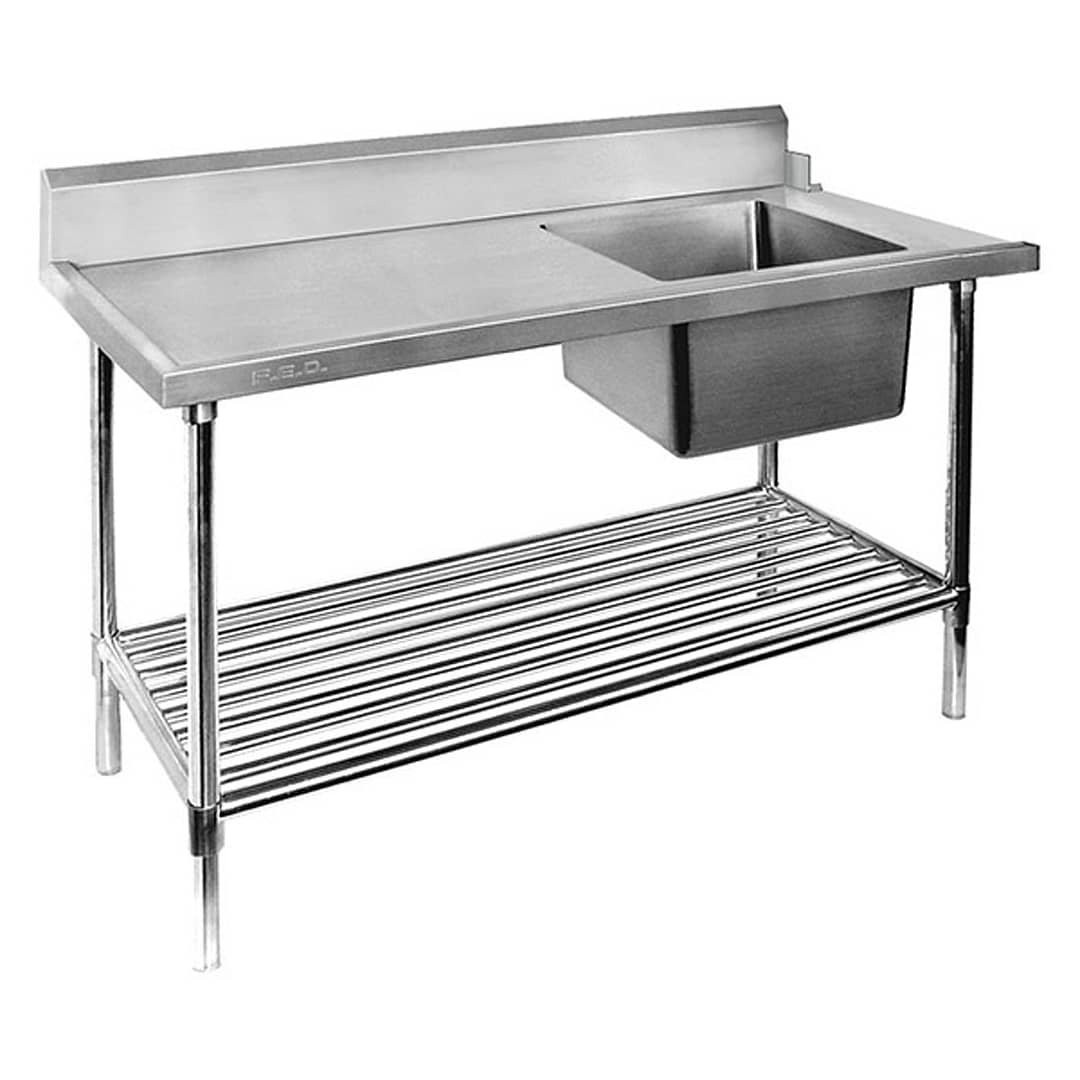

View all Modular Systems products→The Modular Systems SSBD7-1200R/A is a single-sink dishwasher inlet bench. When facing the bench, the sink and dishwasher inlet are on the right; the bowl measures 450 × 450 × 300 mm and has a 90 mm drain hole.
For a commercial wash-up area requiring a right-hand dishwasher inlet, this bench provides one stainless steel bowl, a wet edge and a splashback. The bowl is fully welded and polished inside and out. Choose the right-hand layout by standing in front of the planned bench position and checking the dishwasher connection and sink location from that viewpoint.
Choose the right-hand version when the sink and dishwasher inlet need to be on your right as you face the bench. If they need to be on your left, choose the SSBD7-1200L/A instead.
Measure the largest items you intend to put in the 450 × 450 × 300 mm bowl. A single bowl suits a layout requiring one sink; compare a double-sink bench when the process needs two bowls.
Check the dimensions in Key Specifications above against the available run and the adjoining dishwasher. Confirm the required working height, splashback clearance and support configuration with KW before ordering.
Plan access for the flat-packed bench, assembly and its 32.5 kg net weight. Check the bowl's 90 mm drain opening against the proposed waste fittings and plumbing layout.
| Brand | Modular Systems |
|---|---|
| Model | SSBD7-1200R/A |
| Product type | Single-sink dishwasher inlet bench |
| Inlet and bowl position | Right when facing the bench |
| Sink bowls | 1 |
| Bowl dimensions (W × D × H) | 450 × 450 × 300 mm |
| Bowl material | 304 stainless steel |
| Bowl finish | Fully welded; polished inside and out |
| Drain hole diameter | 90 mm |
| Wet edge | 15 mm |
| Benchtop surface material | SUS304 (18/8) stainless steel |
| Benchtop reinforcement | Stainless steel U channels beneath top |
| Splashback height | 150 mm |
| Splashback thickness | 40 mm |
| Splashback design | Bevelled; fully enclosed; stainless steel backed |
| Legs | 4 |
| Leg diameter | 42 mm |
| Feet | Adjustable |
| Supply format | Flat-packed |
| Assembly items | Instruction manual and tools |
| Net weight | 32.5 kg |
| Packing width | 770 mm |
| Packing depth | 1270 mm |
| Packing height | 530 mm |
| Power | 0 |
For body dimensions, see Key Specifications above.
2 Years Parts Only Read KW warranty information.
Compare the verified rack size, cycle capacity, electrical and water connections, drainage, access and wash workflow with your peak service demand.
Check access, clearances, delivery path, and installation requirements before purchase. Delivery is to ground floor unless arranged otherwise.
| SKU | SSBD7-1200R/A |
| Brand | Modular Systems |
| Category | Stainless Steel |
| Weight | 32.5 kg |
| Dimensions (W×D×H) | 1200 × 700 × 900 mm |
| Stock Status | In Stock |
| Material | Stainless Steel 304 |
