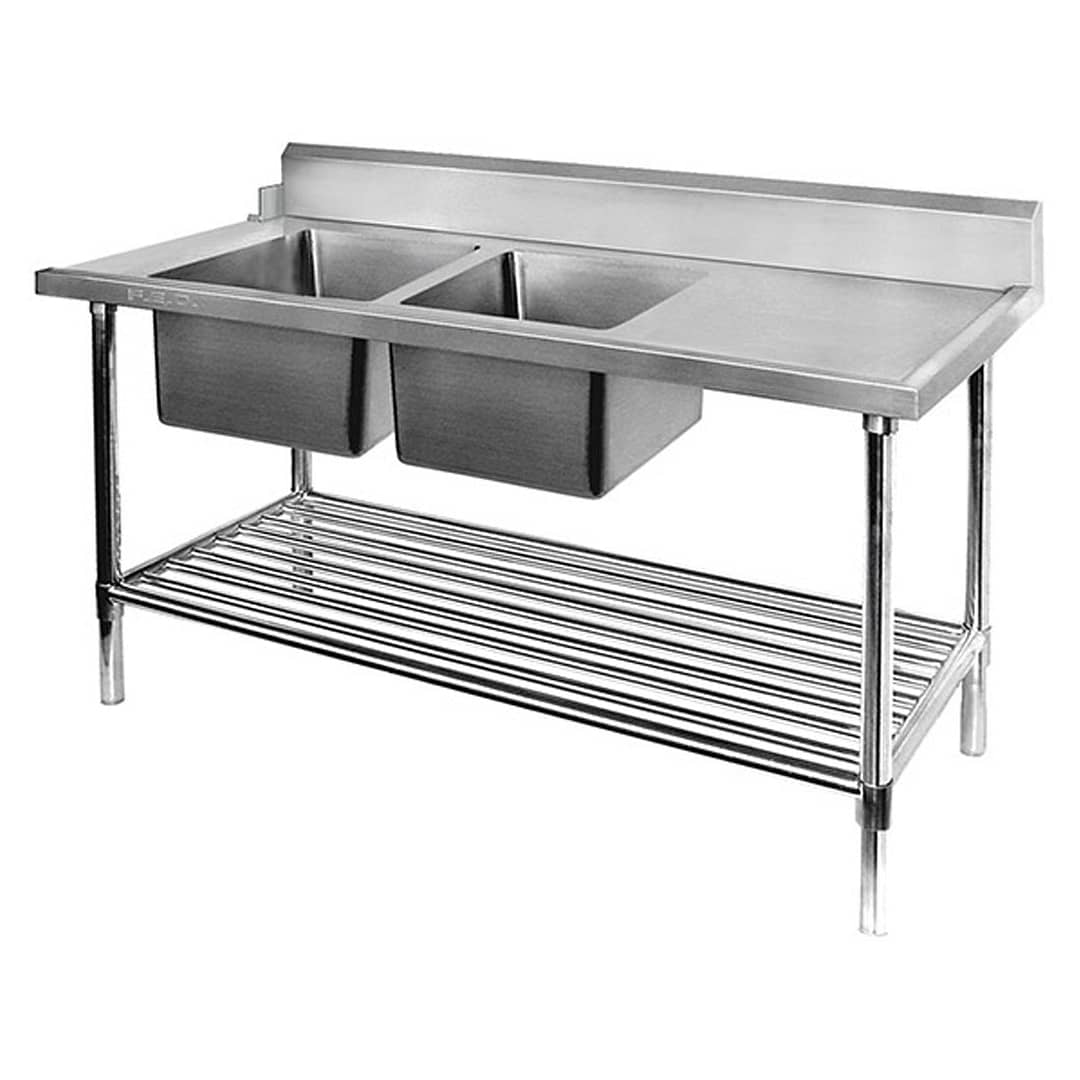

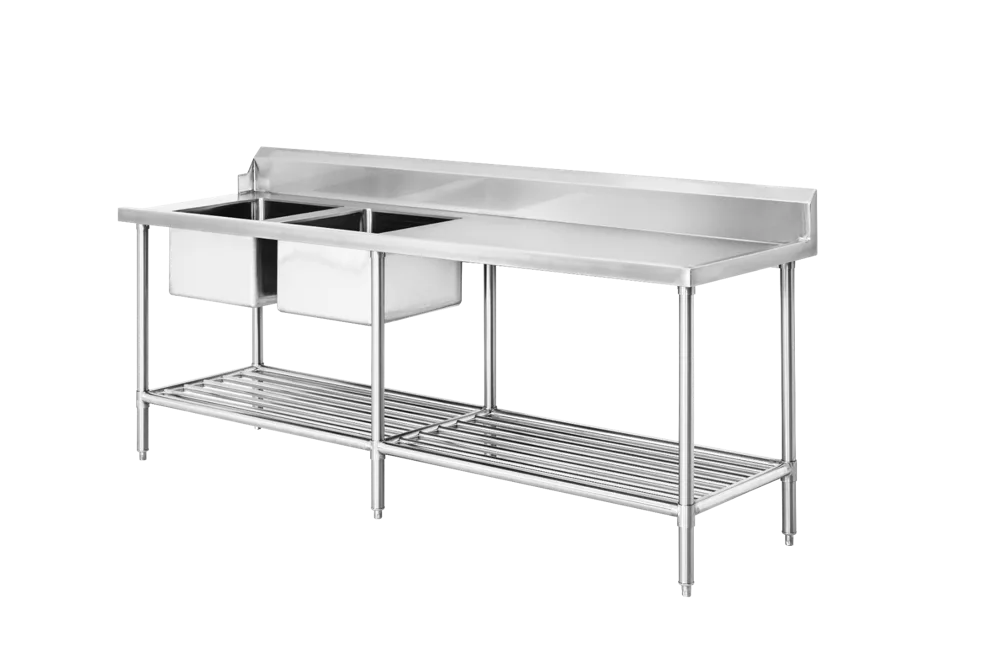

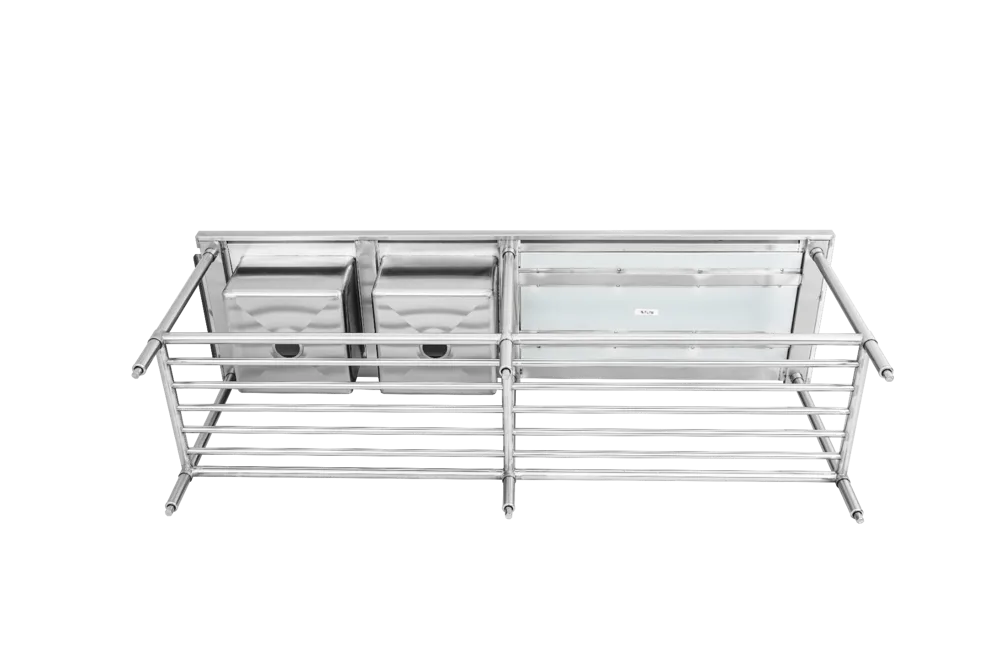

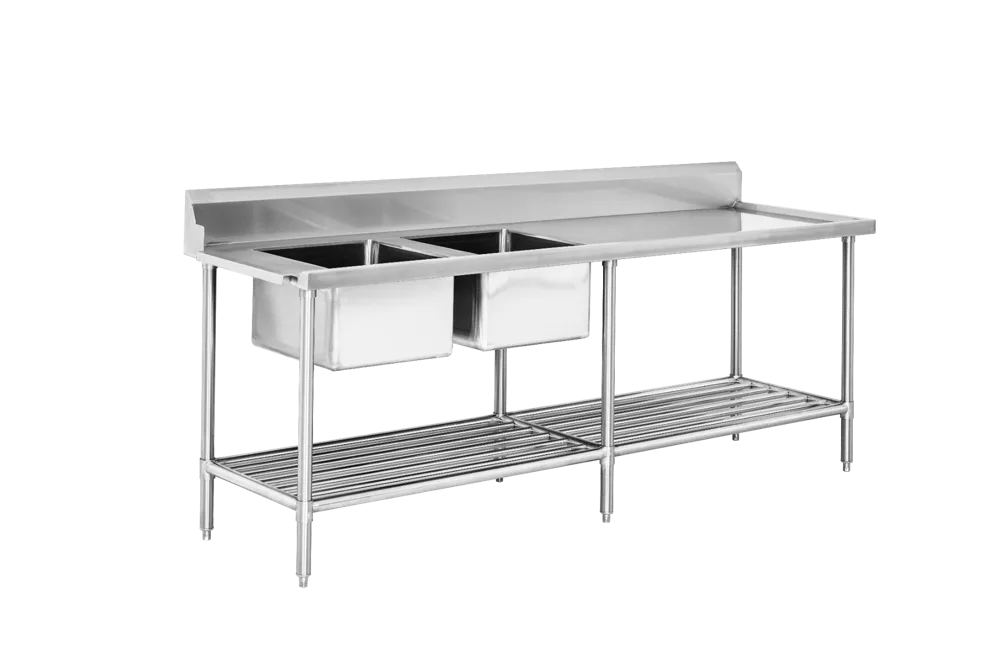

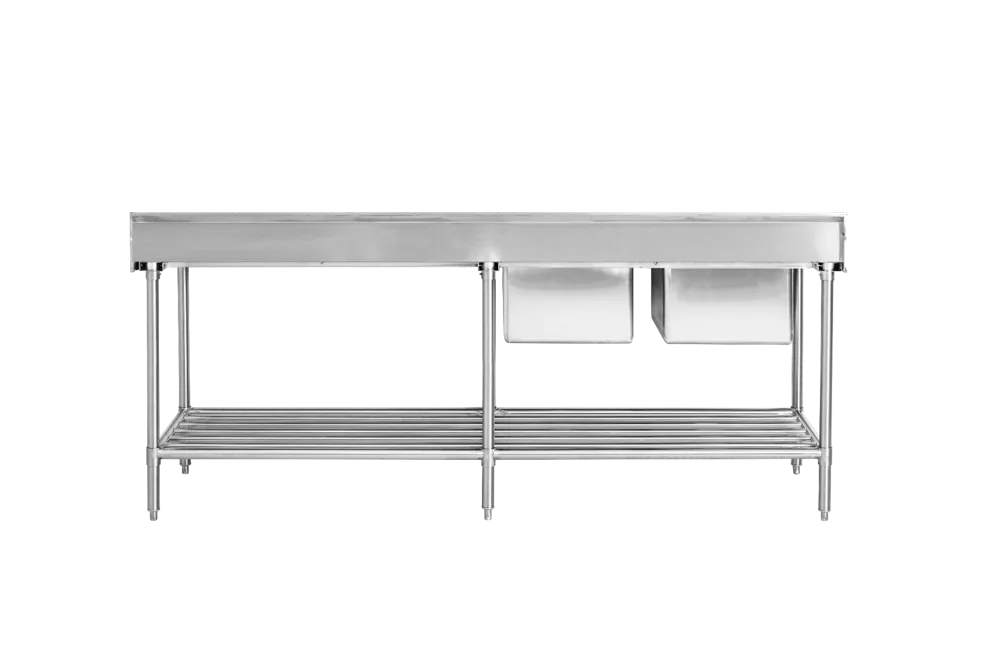

Modular Systems DSBD7-2400L/A Left Inlet Double Sink Dishwasher Bench

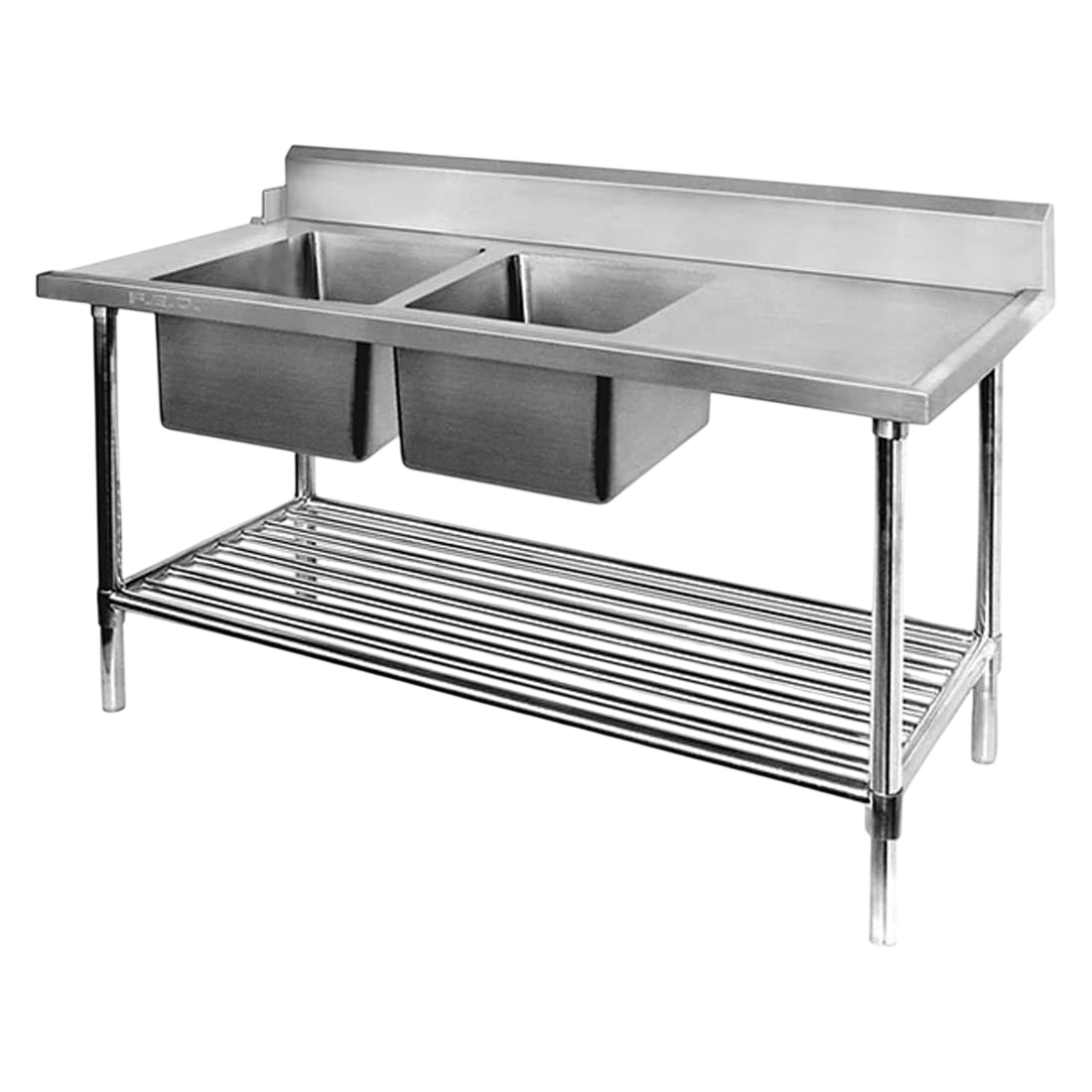

The Modular Systems DSBD7-2400L/A is a dishwasher inlet bench with two left-hand sink bowls. It suits wash areas planned around a left-side dishwasher inlet when facing the bench.

Consider this bench when the dishwasher inlet and both sinks need to sit on the left as you face the bench. Choose a right-hand configuration if your wash line runs the other way, and check the dishwasher interface before selecting this model.

Check the direction of the wash line first: the dishwasher inlet and two bowls are on the left when you face this model. Compare your wash items with the 450 × 450 × 300 mm bowls, and check the intended dishwasher's interface before ordering.

Allow for a 2400 mm wide × 700 mm deep footprint when planning the wash area. Use the packed dimensions of 770 × 2470 × 530 mm to assess the access route.

Follow the supplied care instructions and site procedures for commissioning, cleaning and maintenance. Warranty: 2 Years Parts Only.

• Orientation. The dishwasher inlet and sinks are on the left when facing the bench.
• Assembly and levelling. Use the supplied manual and tools for assembly. The model has six legs and adjustable feet.
• Installation tolerance. Allow dimensional tolerances of -5 mm to +10 mm during installation. Check the installation space and dishwasher interface before committing to a tight opening.

For body dimensions and weight, see Key Specifications above.
