KW lists FED-X upright and workbench refrigeration, preparation counters, freezers and related spares for commercial kitchens.

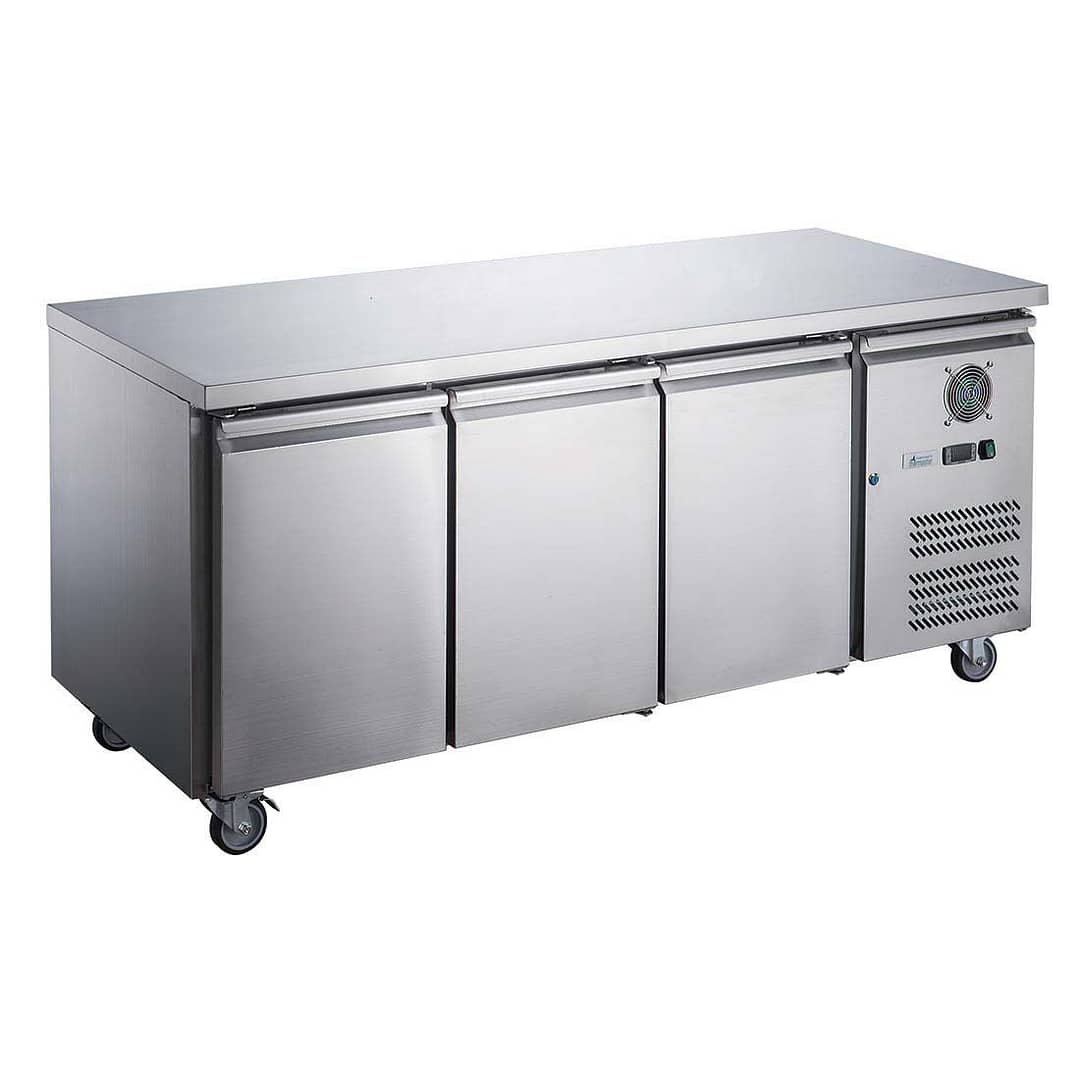

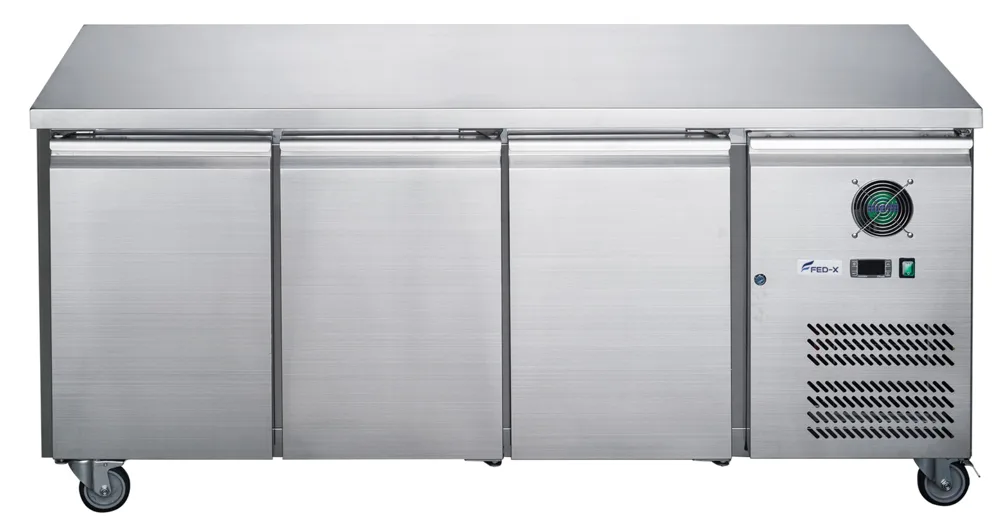

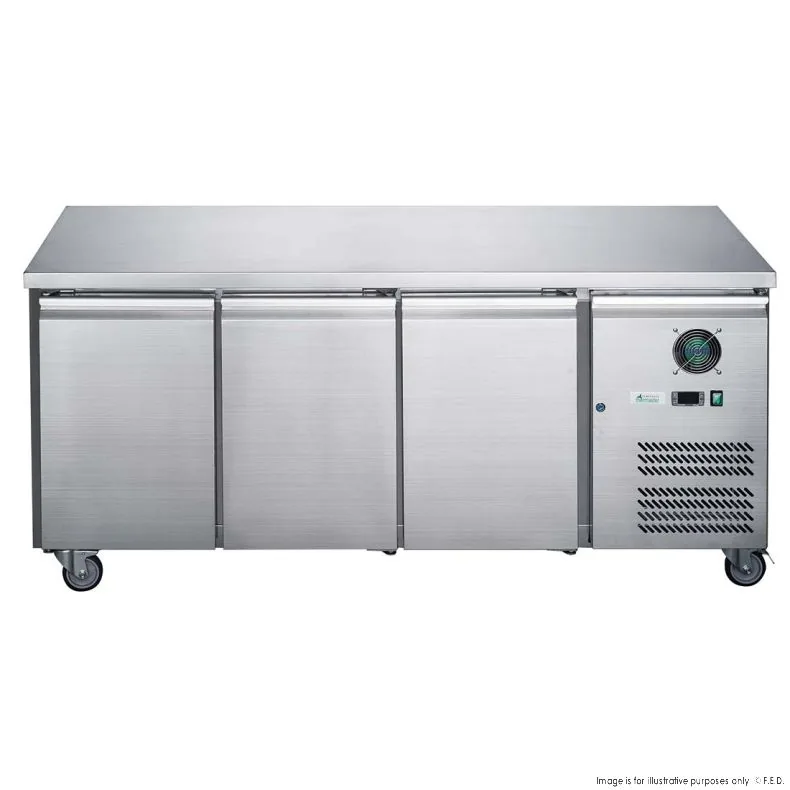

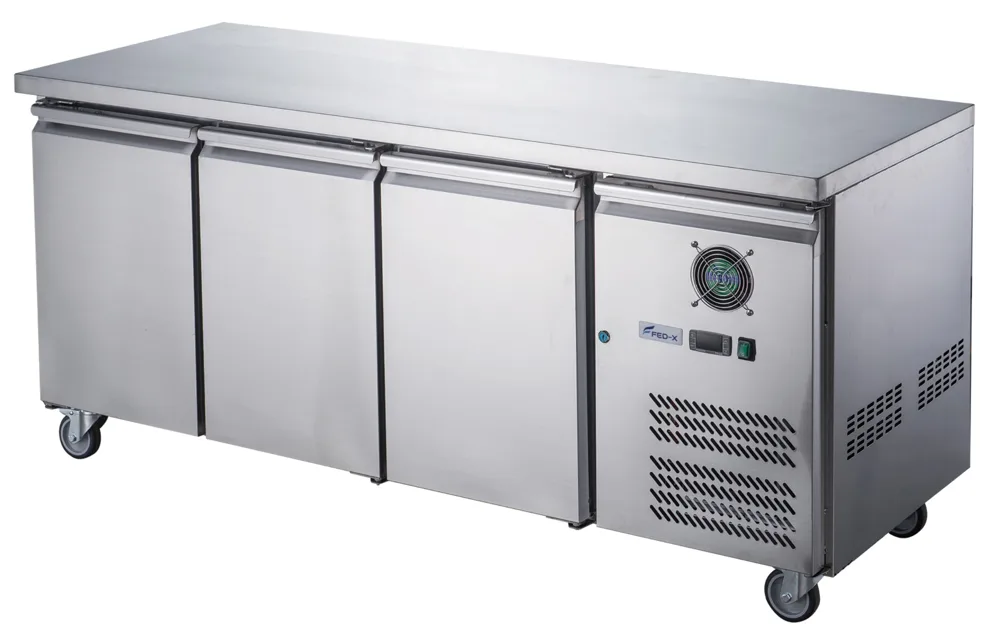

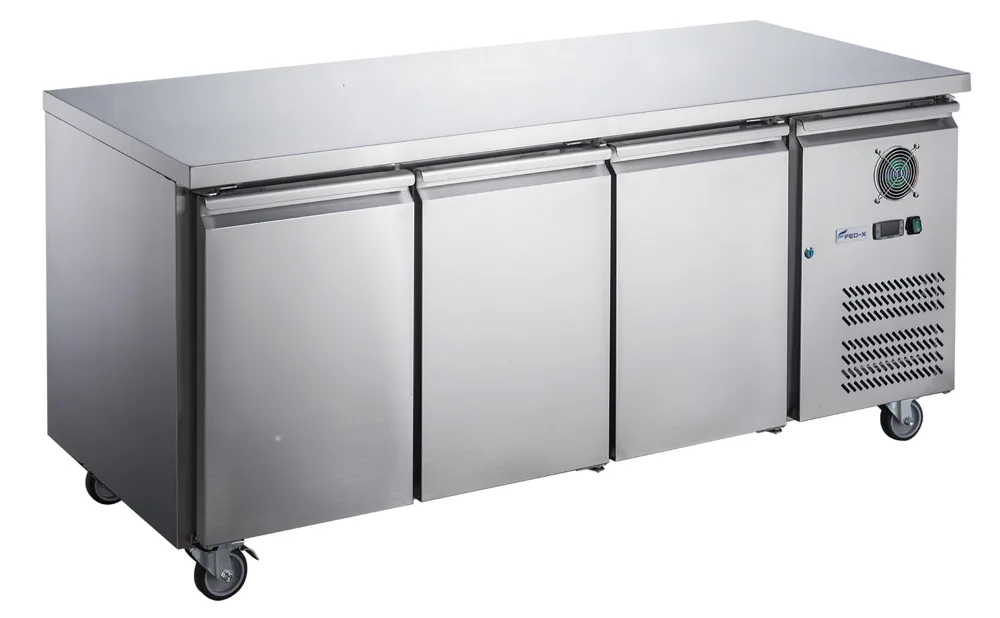

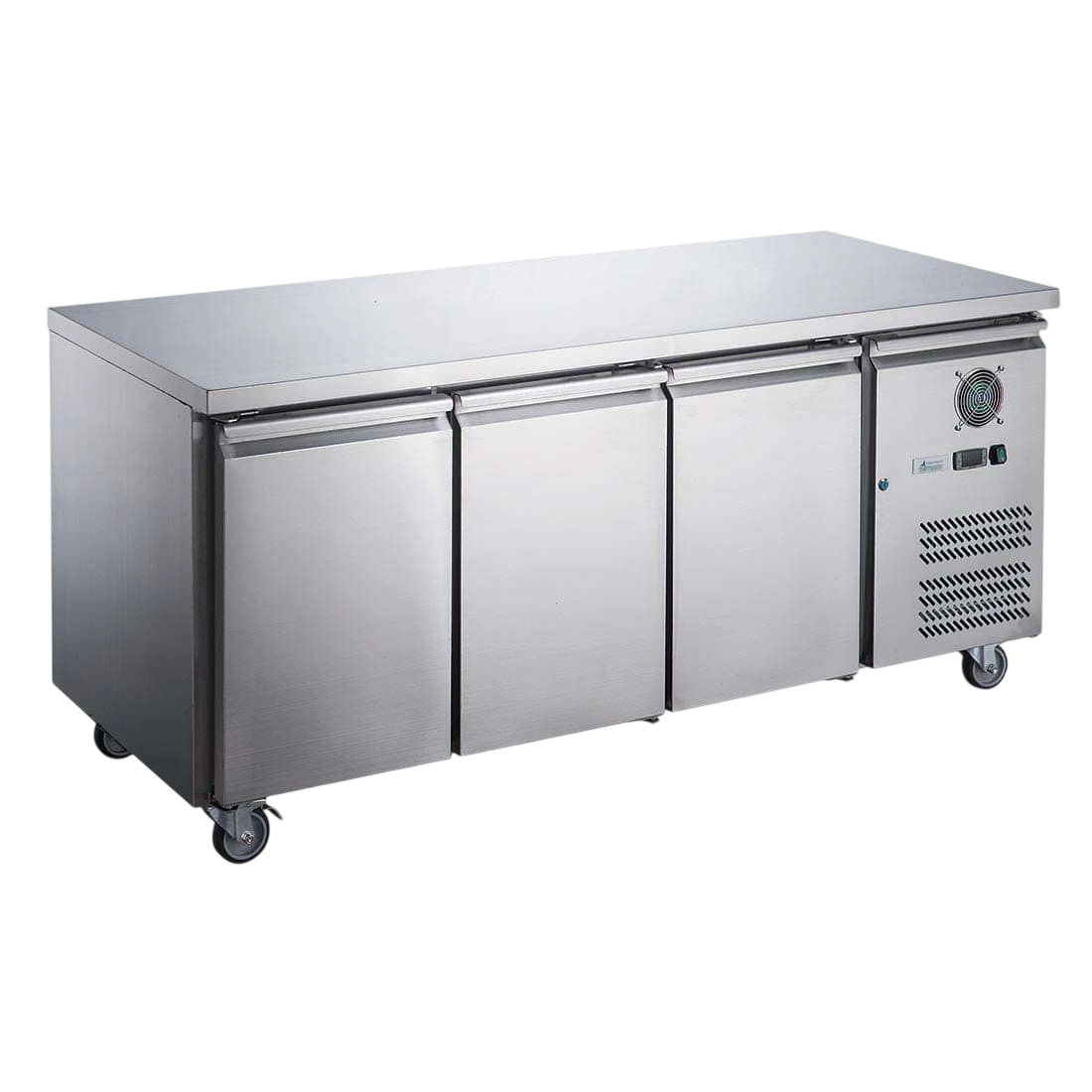

View all FED-X products→FED-X XUB6C18S3V is a three-door workbench fridge with 254 L net storage. Digital control, fan-forced cooling and automatic defrost suit chilled ingredient storage beneath a stainless steel work surface.
For a preparation line that needs three door openings and chilled storage below the worktop. The cabinet can be organised by ingredient group while keeping the working surface above available for preparation.
Use the 254 L net figure when planning ingredient storage. Check the internal storage dimensions and shelf spacing against the containers used at the station.
The ambient rating is 43°C at 60% relative humidity. Compare the actual installation conditions with that rating before placing the cabinet near heat-producing equipment.
Confirm the final footprint using Key Specifications above, along with electrical access and space for cleaning and maintenance.
For a closer look at ingredient access, ask KW about photos or a model-specific video of the three door openings and shelf layout.
| Doors | 3 |
|---|---|
| Door Type | Hinged Doors |
| Body | Stainless Steel |
| Gross Volume | 339L |
| Net Volume | 254L |
| Max Ambient Temperature | 43°C, 60%RH |
| Temperature Range | -2 to 8°C |
| Total Energy Consumption | 3.327 kWh/24h |
| Packing Width (mm) | 1825 mm |
| Packing Depth (mm) | 630 mm |
| Packing Height (mm) | 910 mm |
| Net volume | 254 L |

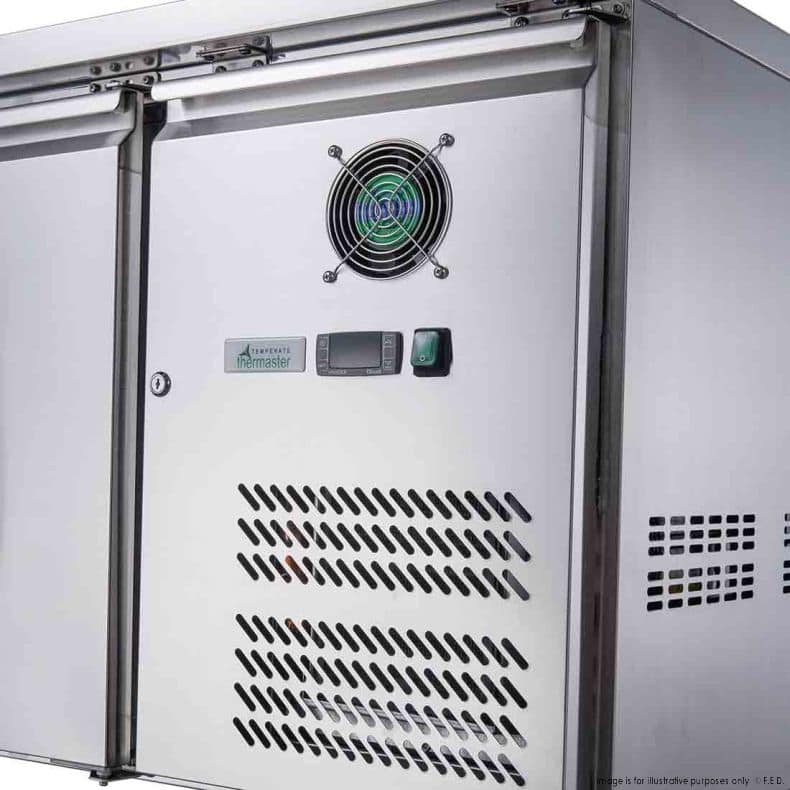

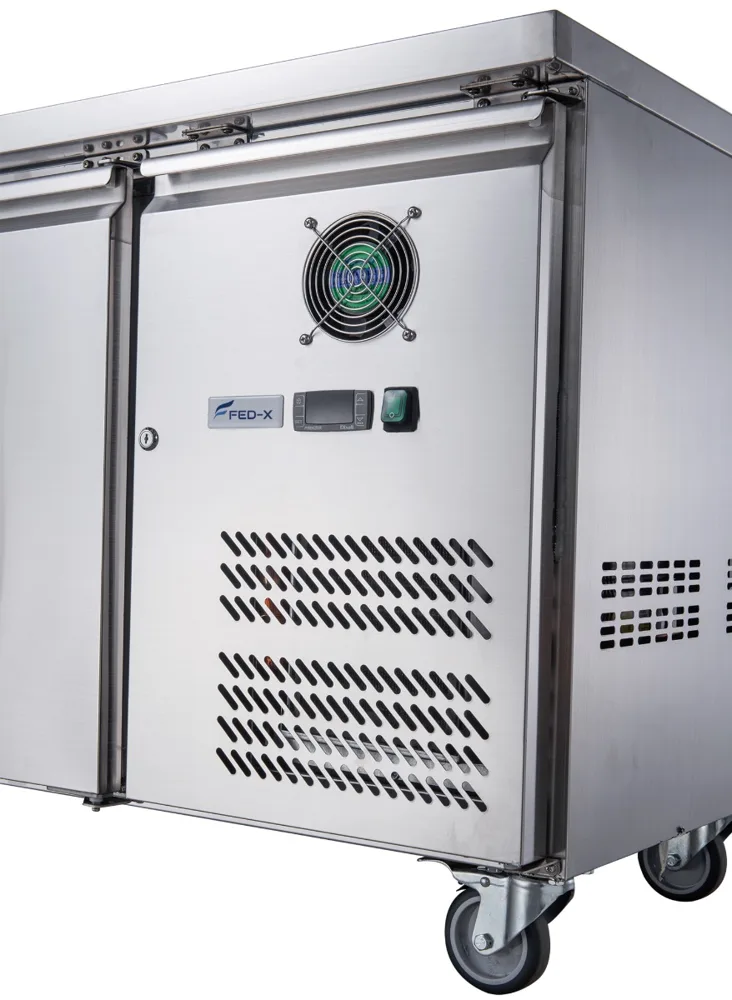

| Cooling system | Fan-forced |
| Compressor | Cubigel |

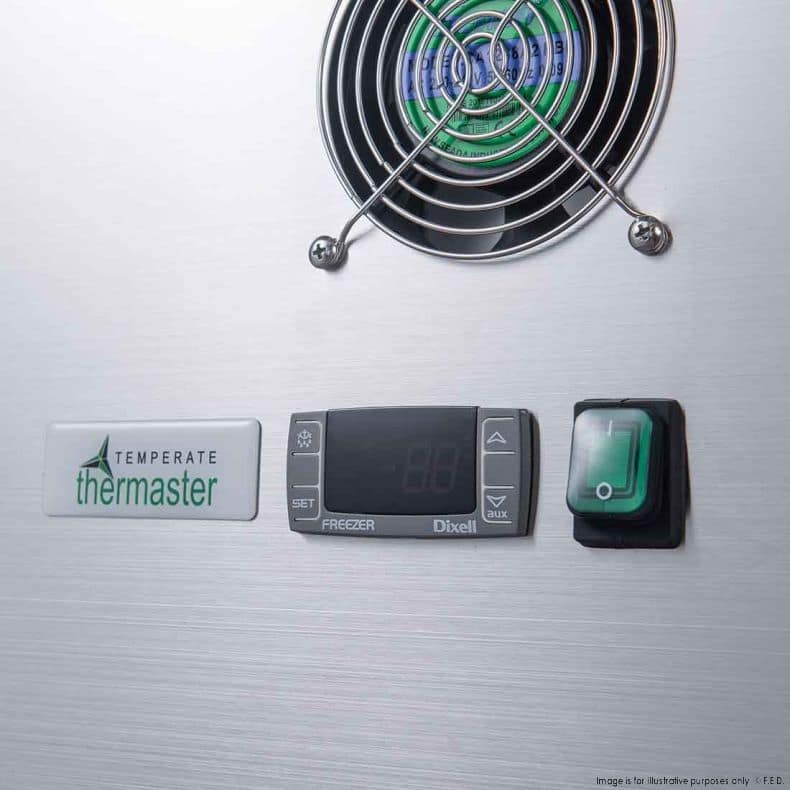

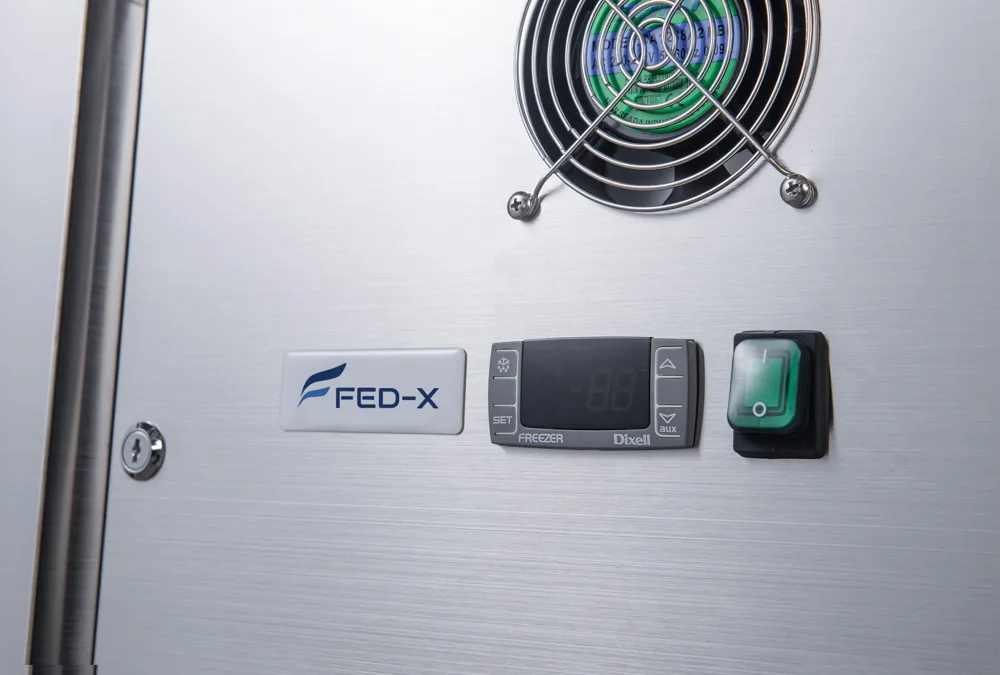

| Controller | Dixell |
| Refrigerant | R290 |
| Defrost | Automatic |
| Electrical supply | 240 V / 50 Hz; 230 W |
| Rated current | 1.3 A |
| Plug | 10 A |
| Shelf load rating | 40 kg per shelf |
| Internal storage dimensions | 1234 × 480 × 564 mm (W × D × H) |
| Cabinet and door material | AISI 201 stainless steel |
| Water tray | 0.7 L |

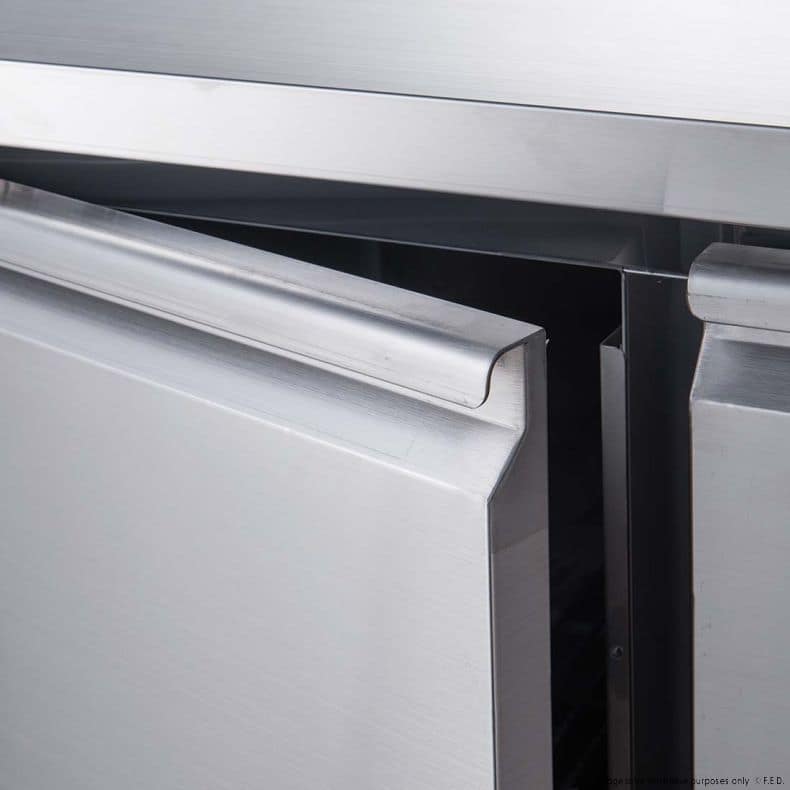

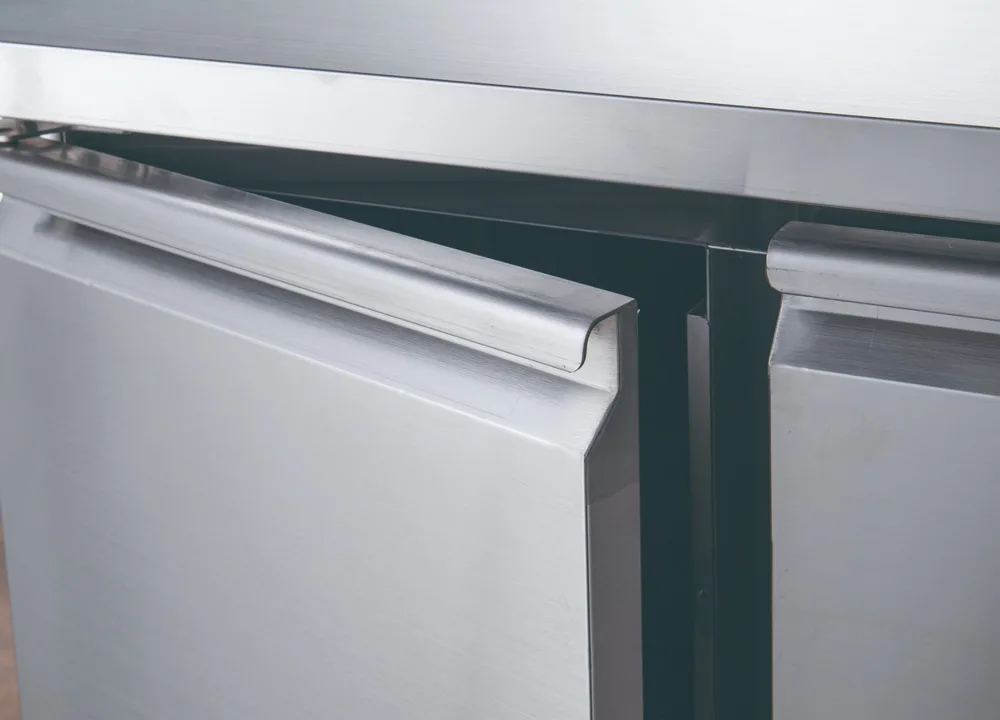

| Door hardware | Lockable; recessed handles; self-closing magnetic seals |
| Cabinet protection | Rodent protection |

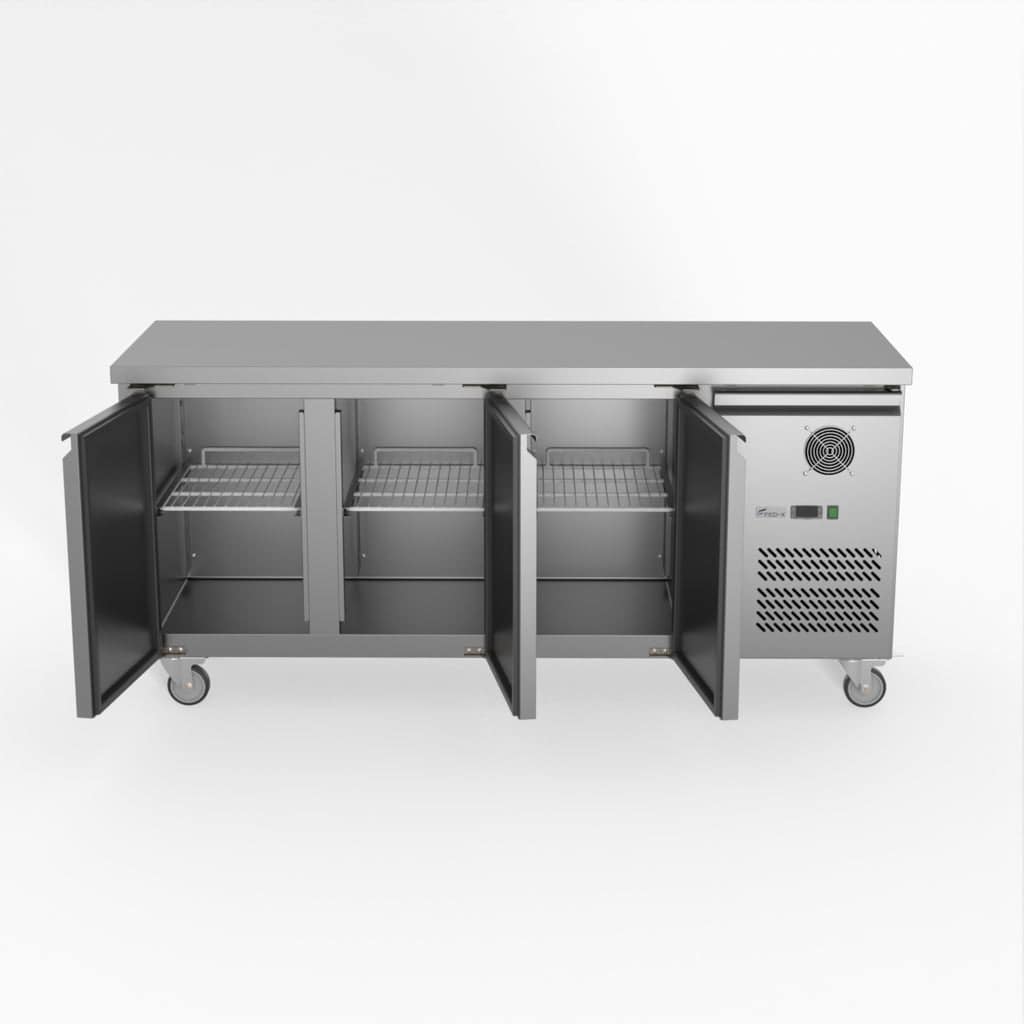

| Main shelf panels per layer | Three; 333 × 430 mm |
| Middle shelf panels per layer | Two; 155 × 315 mm |
| Shelf construction | Plastic-coated steel |
| Pan compatibility | GN 1/1 |
| Blowing agent | Cyclopentane; 60 mm insulation |
| Top and side ventilation clearance | 50 mm |
| Rear ventilation clearance | No rear clearance requirement |
| Climate class | 4 |
| GEMS rating and temperature class | 4 stars; 4M1 |
| Annual energy consumption | 1215.45 kWh/year |
| Energy efficiency index | 49.819% |
| Refrigerant charge | R290; 52 g |
| Power cord | 10 A plug and lead; 3 m total, 2.3 m outside cabinet |
| Evaporator | Aluminium-finned; one fan |
| Compressor cooling capacity | 295 W |
For body dimensions, see Key Specifications above.
Compare the verified cabinet dimensions, door format, operating temperature, ambient rating and electrical requirements with your site, access path and storage needs.
Check voltage, phase, plug type, and circuit capacity before purchase. Commercial electrical installation must be completed by a licensed electrician.
| SKU | XUB6C18S3V |
| Brand | FED-X |
| Category | Commercial Fridges and Commercial Freezers |
| Weight | 106 kg |
| Dimensions (W×D×H) | 1795 × 600 × 850 mm |
| Stock Status | In Stock |
| Material | Stainless Steel |
| Voltage | 240 V |
| Power | 230 W |
| Refrigerant | R290 |
| Operating Temperature | −2 °C to 8 °C |
