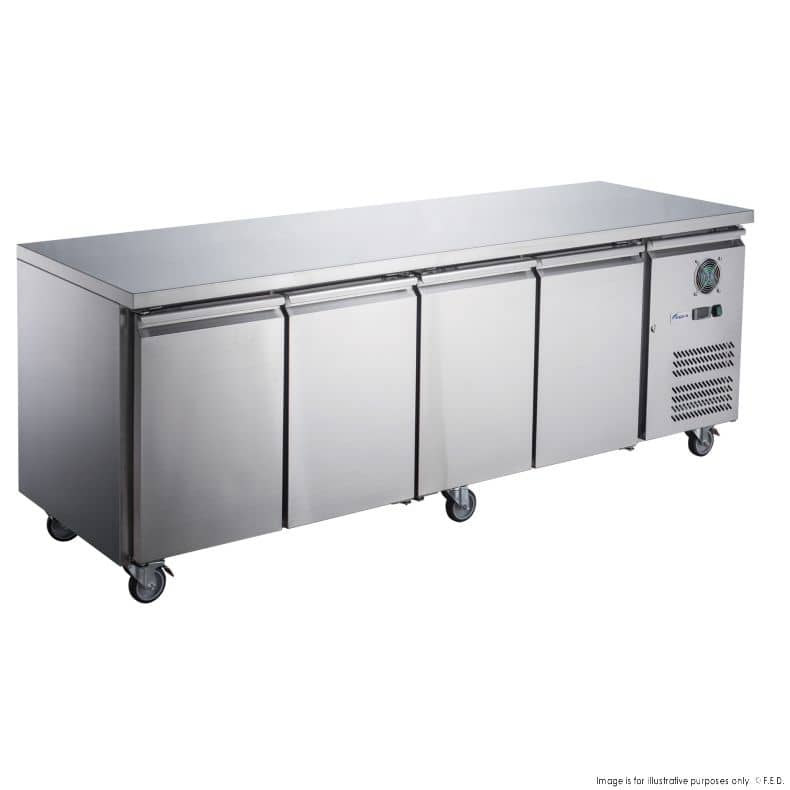

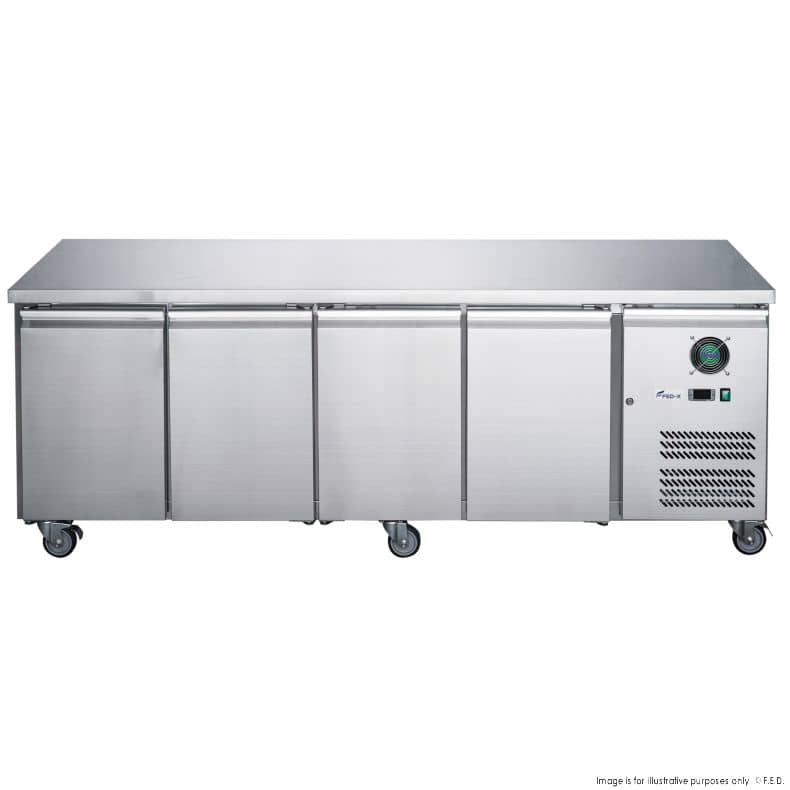

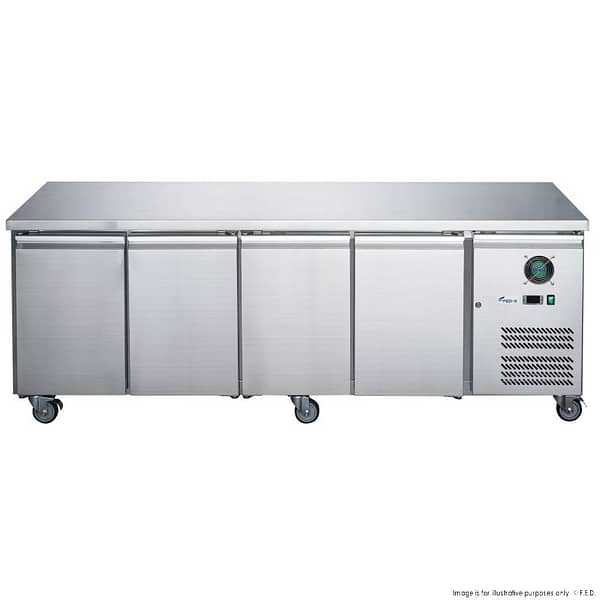

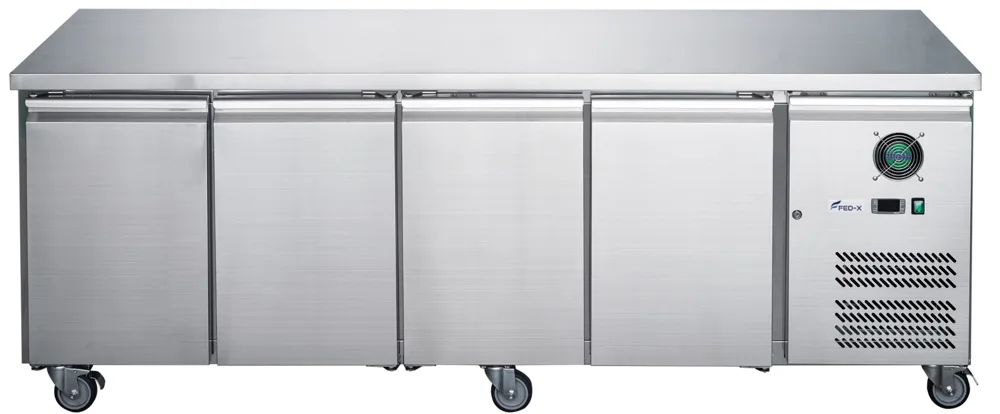

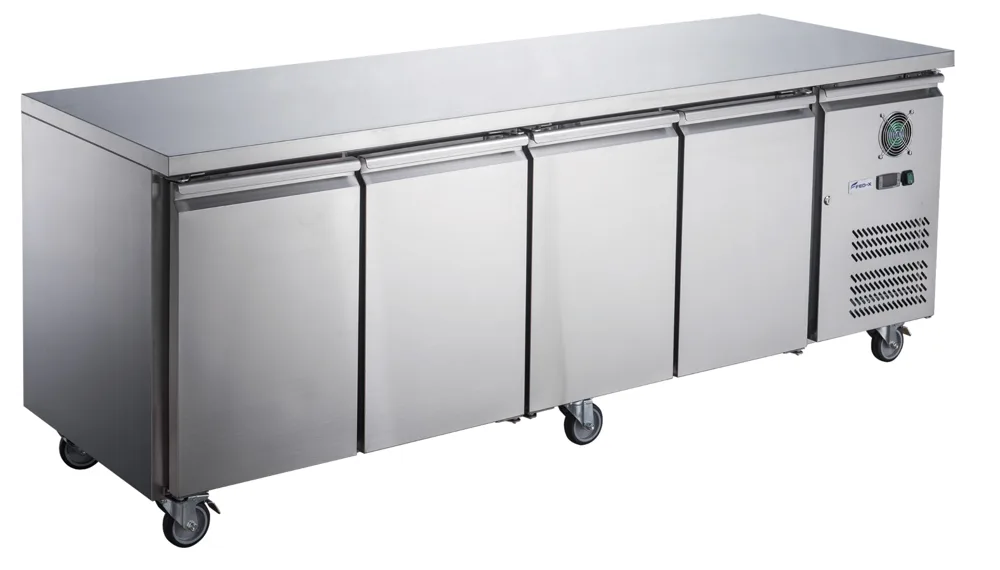

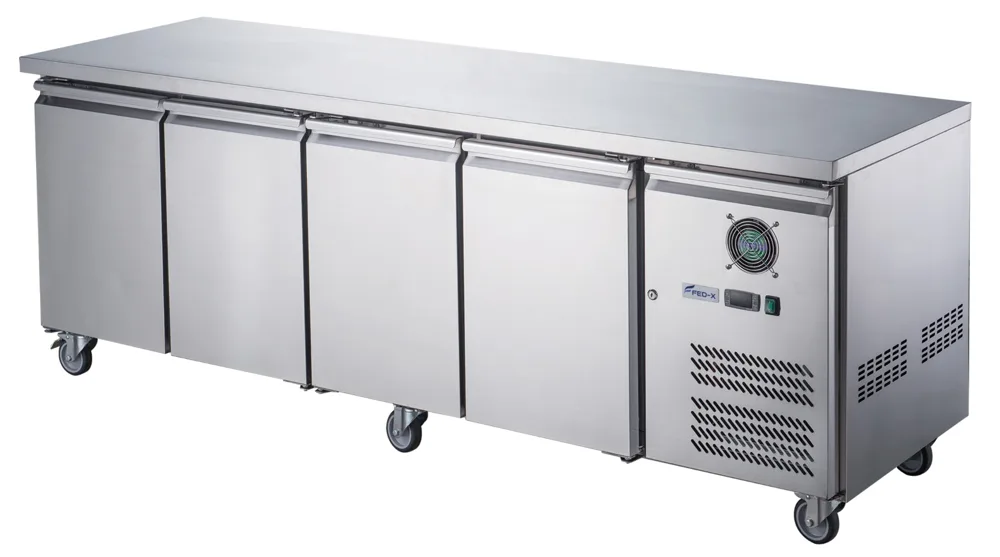

FED-X XUB6C22S4V S/S Four Door Bench Fridge – Gross Volume: 449L

The FED-X XUB6C22S4V is a stainless steel bench fridge with 449 L gross and 339 L net volume. Fan-forced cooling, digital controls and self-closing doors support refrigerated storage at the preparation bench.

Use this format when the preparation area needs chilled stock beneath a working surface. Match the usable volume and shelf loading with the intended containers, then plan cooling clearances and service access around the bench position.

• Preparation benches needing solid-door refrigerated storage.
• Stock arrangements that suit the 339 L net cabinet volume and 40 kg per-shelf rating.

• For a drawer layout, compare the XGNS900-4D rather than a hinged-door cabinet.
• For a glass-door display format, compare the XUB7C18G3V.

Compare the 339 L net volume and 40 kg per-shelf loading with the containers and stock held at the bench.

Use the dimensions in Key Specifications above to check the access route and bench position. Preserve 50 mm top and side ventilation clearance and access to cooling components.

Check the 240 V, 50 Hz supply and 10 A plug and lead. The rated input is 345 W; rated current is 2 A. Arrange handling for the 121 kg net weight.

• Net storage capacity is stated alongside gross volume.

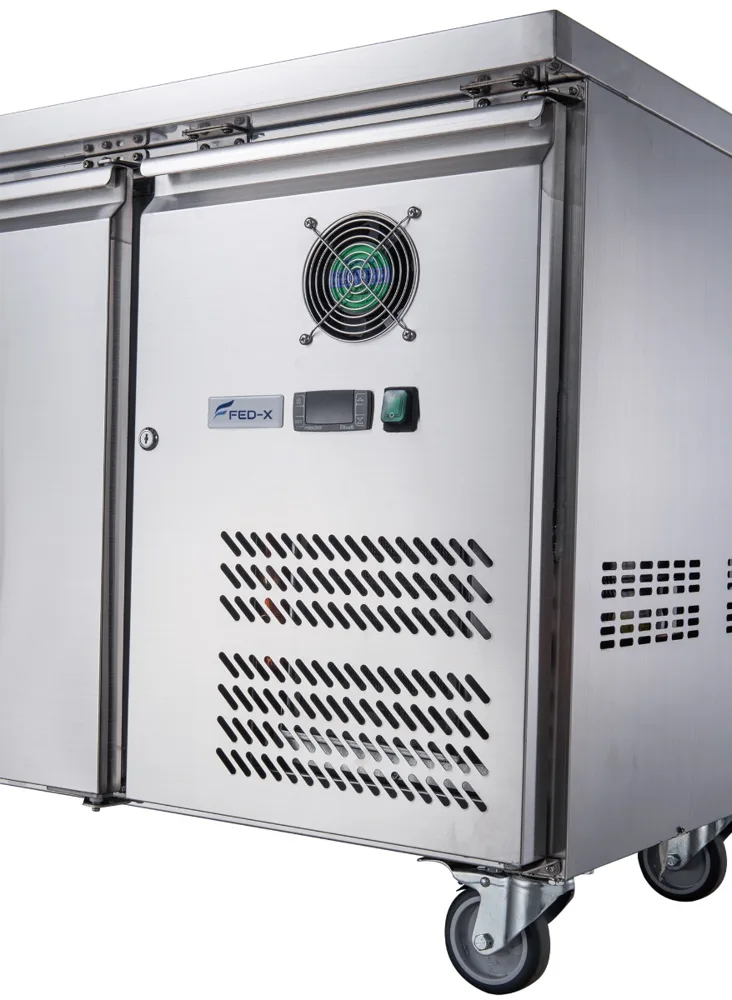

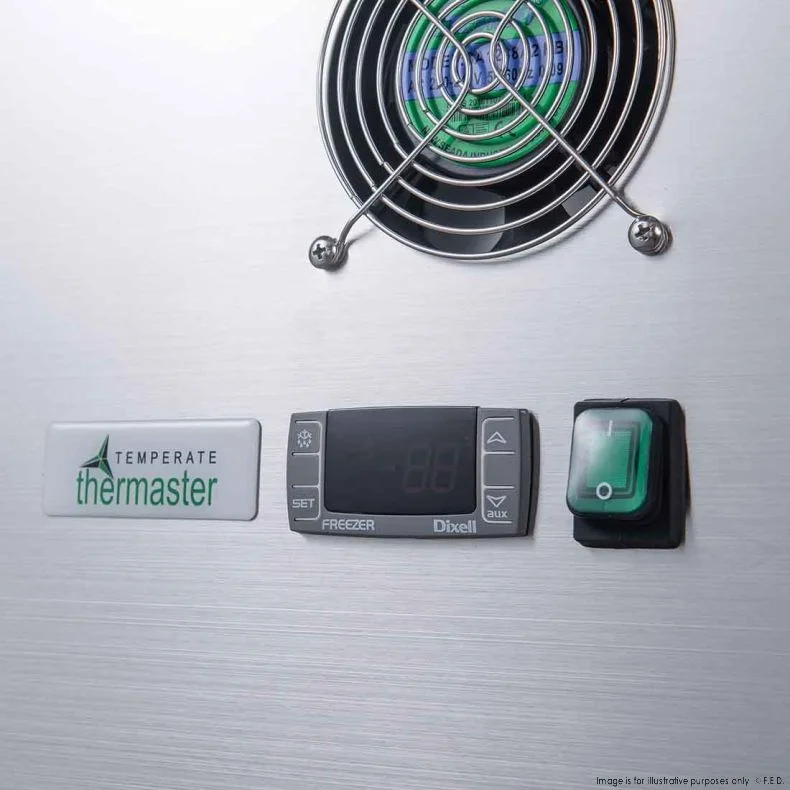

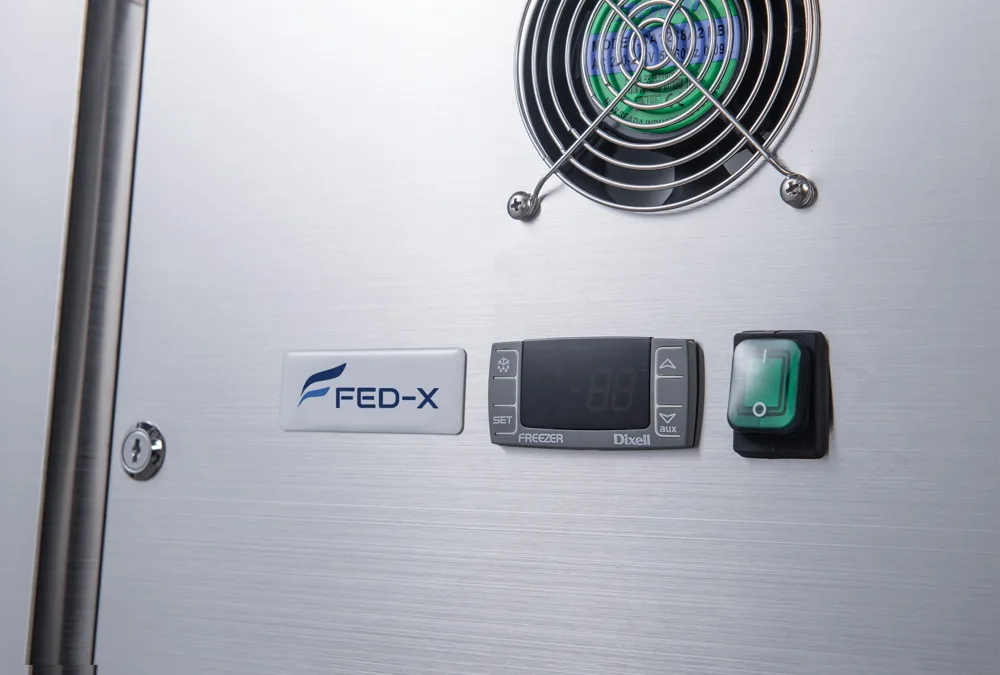

• Self-closing doors, magnetic seals and a digital controller support routine operation.

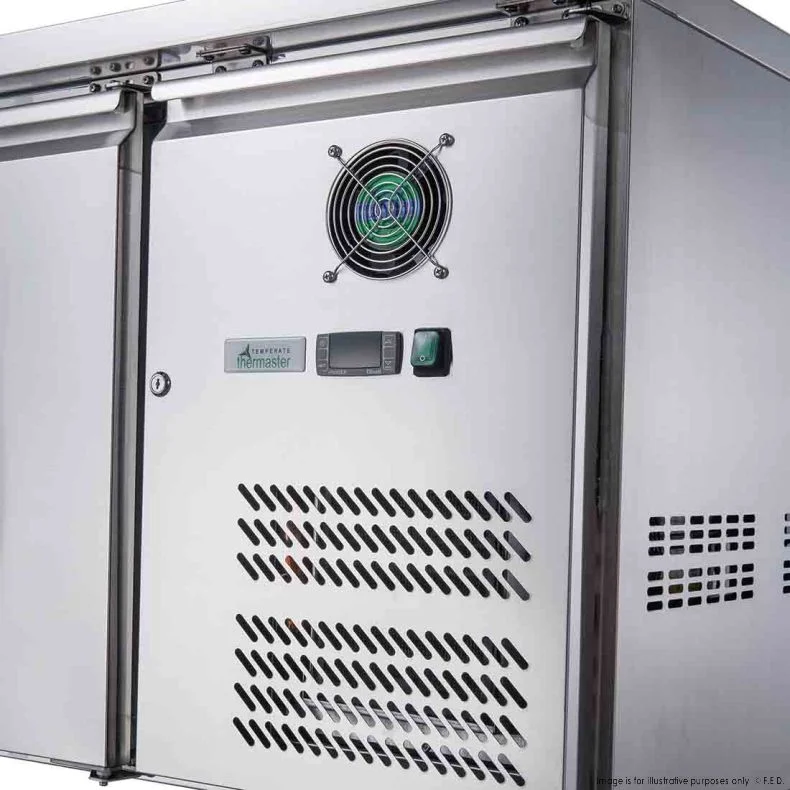

• The model sheet specifies top, side and rear ventilation requirements.

• The 121 kg net cabinet requires planned handling.
• The installation needs the specified top and side clearance.

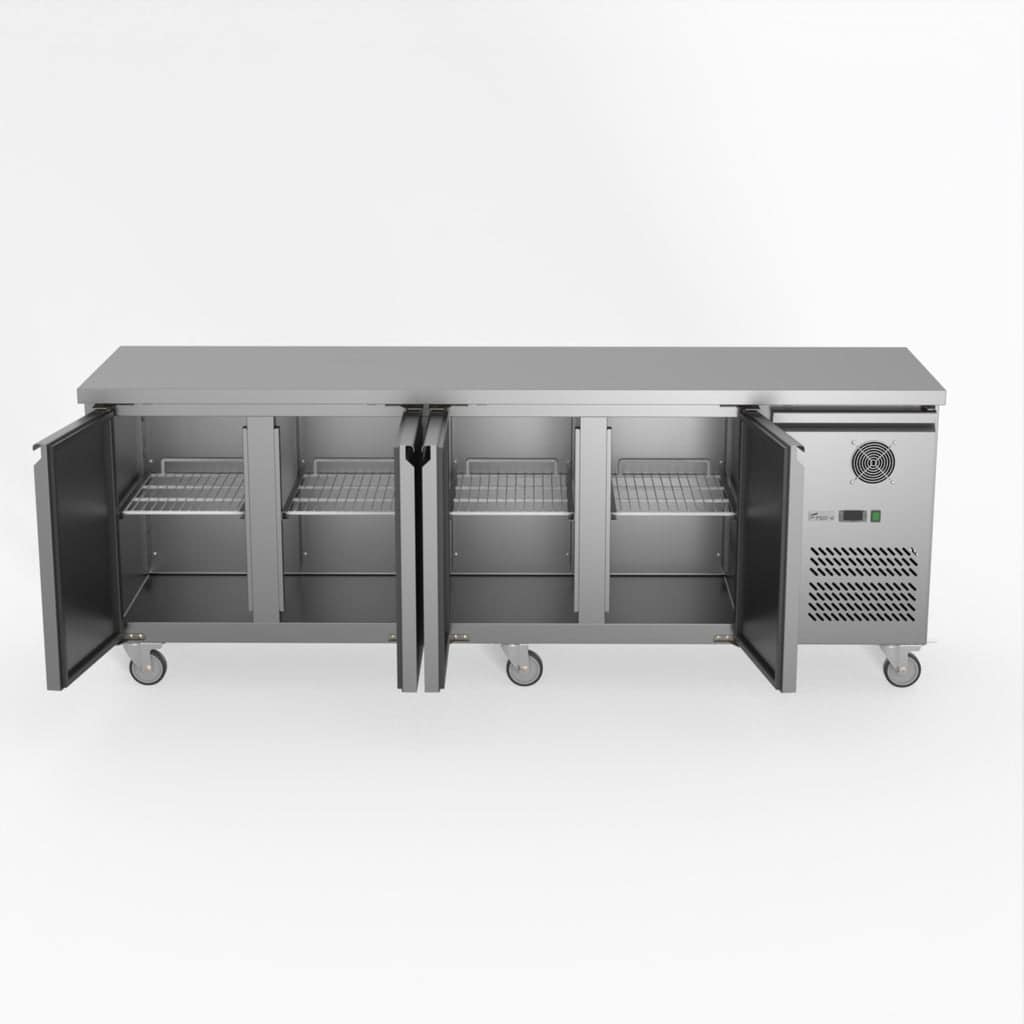

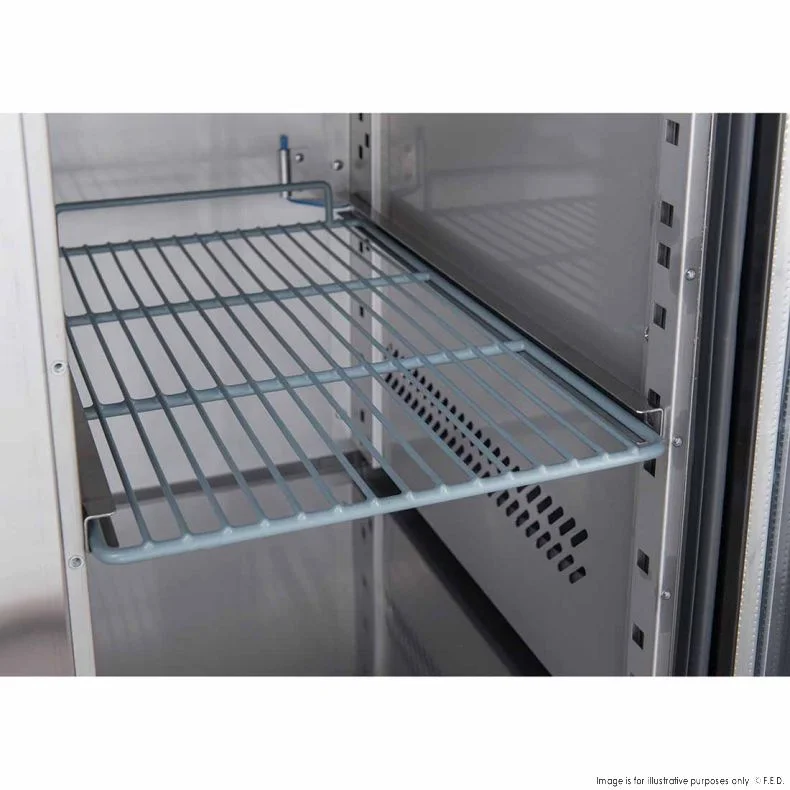

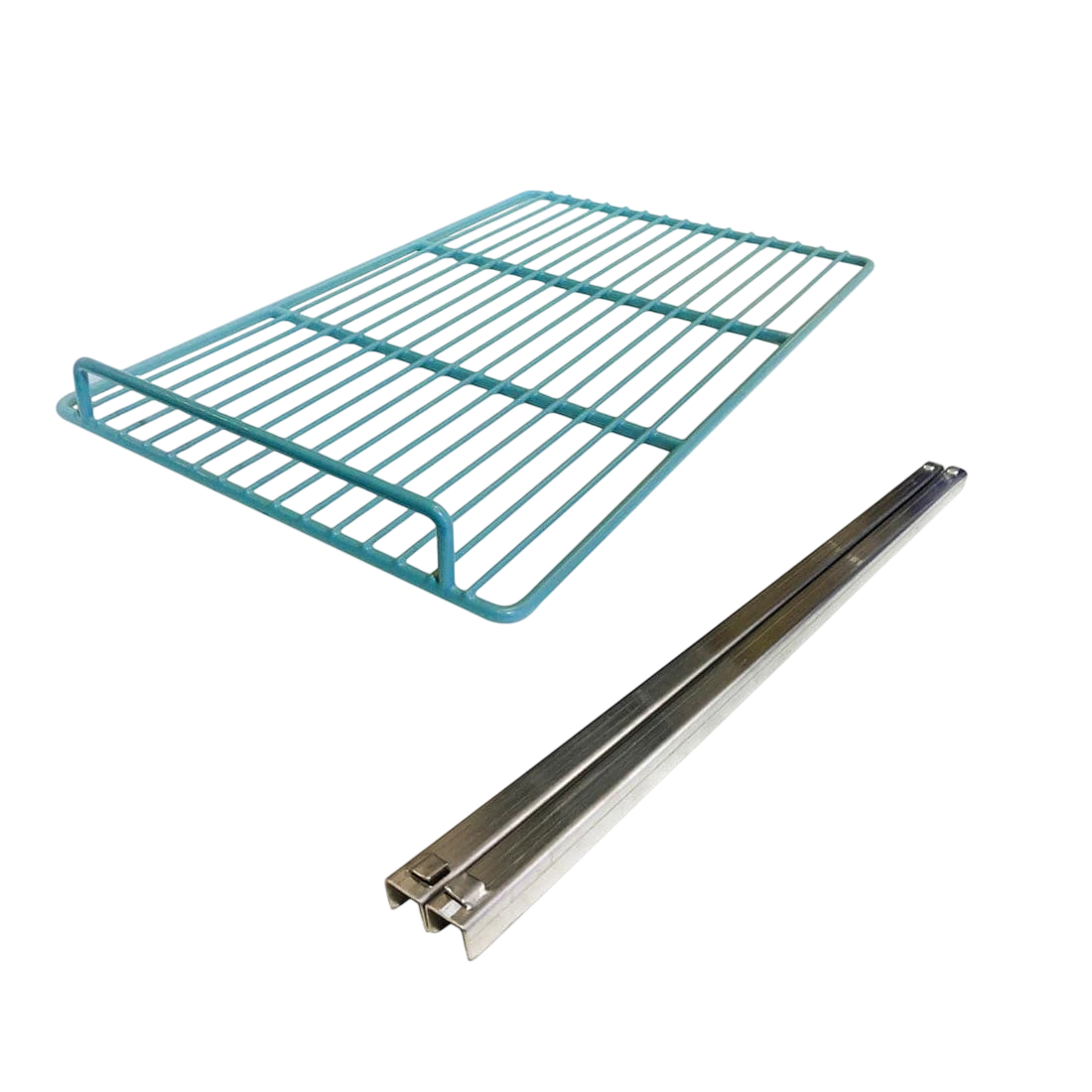

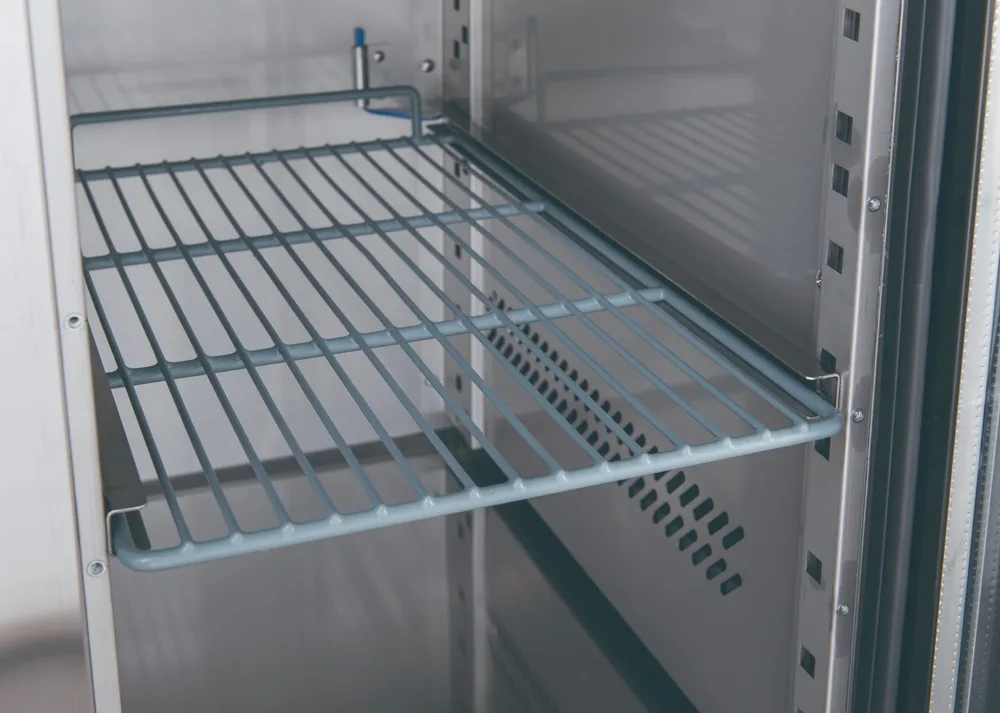

• The shelf arrangement must be checked with the intended containers and optional shelf sets.

• FED-X XGNS900-4D Four Drawer Compact Workbench Fridge: Compare the XGNS900-4D for a drawer-based workbench fridge layout.
• FED-X XUB7C18G3V Three Glass Door Bench Fridge Stainless Steel: Compare the XUB7C18G3V for a glass-door bench fridge format.

• Connections. Check the 240 V, 50 Hz supply, 10 A plug and lead and 345 W rated input. Plan the cable route around a 3 m cord, with 2.3 m outside the cabinet.

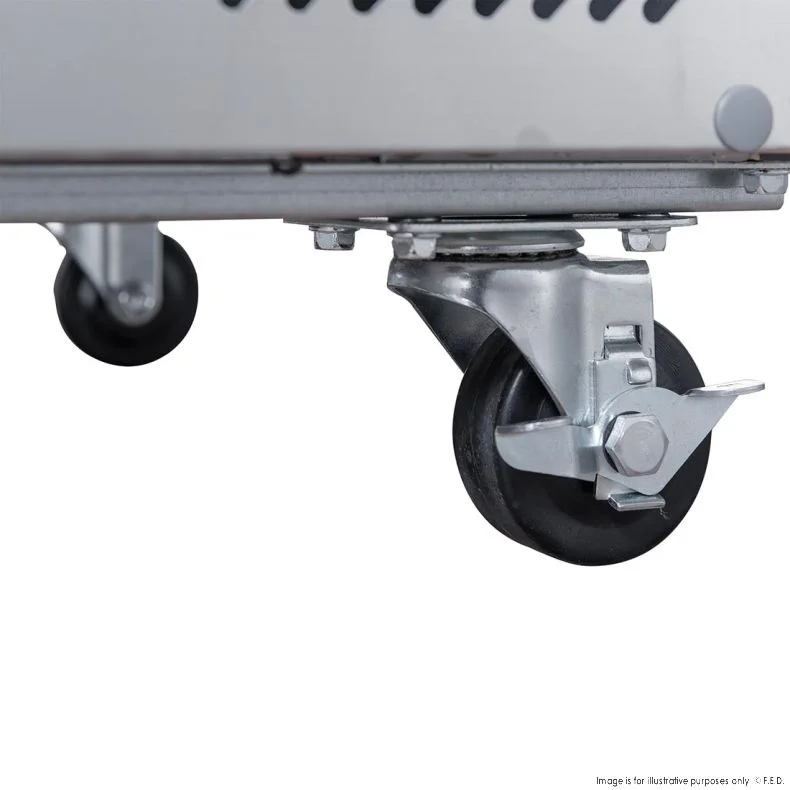

• Position and loading. Preserve 50 mm above and at the sides, position the unit and use the front wheel brakes. Confirm shelves and containers before stocking it.
• Care. Include the magnetic seals, rounded corners, water tray and cooling components in the cleaning and maintenance routine.

For body dimensions, see Key Specifications above.
