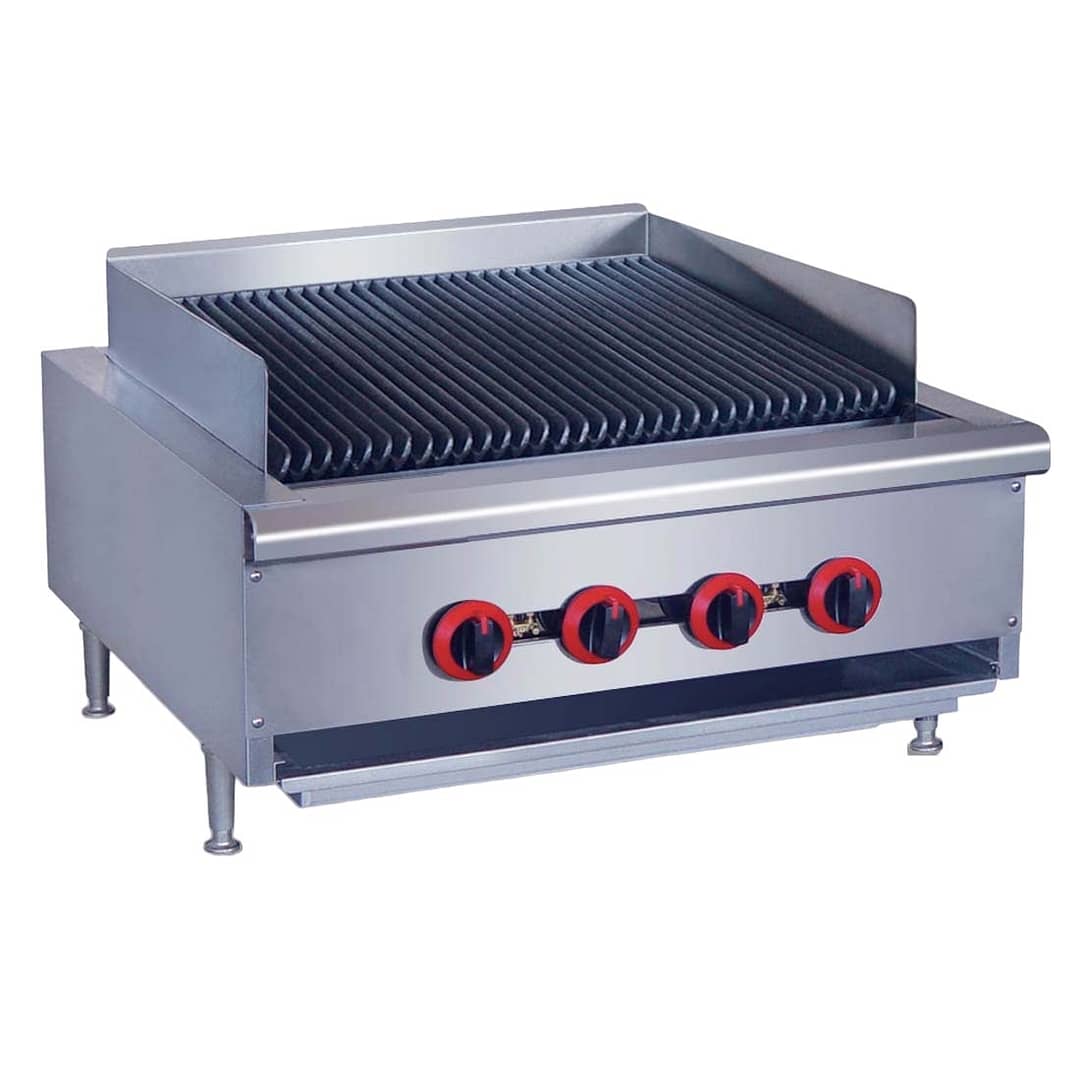

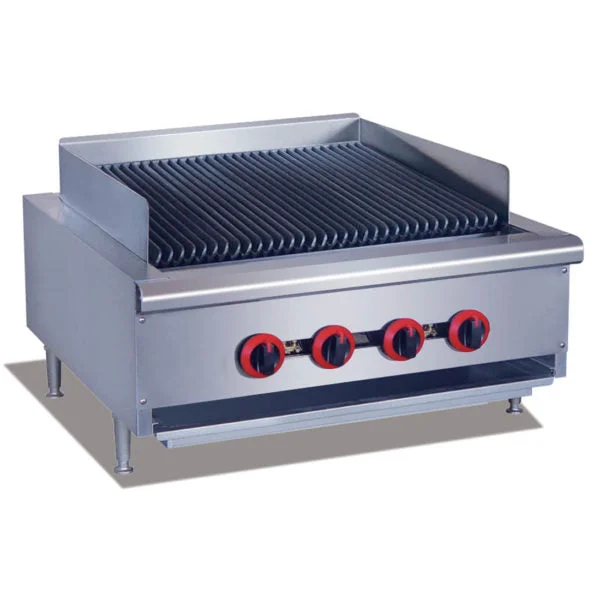

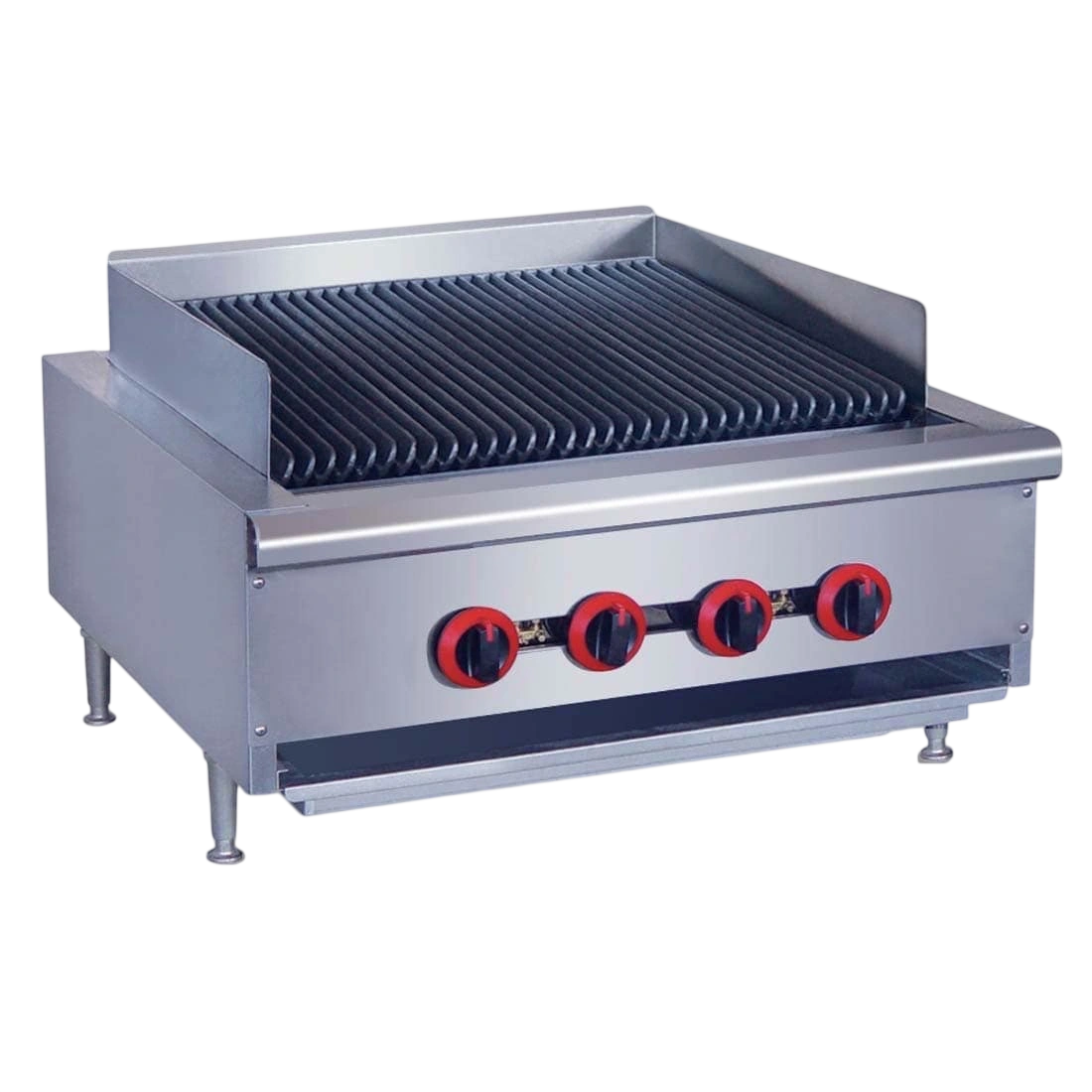

Gasmax QR-24ELPG 4-Burner LPG Char Grill

The Gasmax QR-24ELPG is a stainless steel, four-burner LPG char grill top for commercial kitchens. Four control knobs, automatic ignition and flame failure shut-off support day-to-day grill service.

Consider the QR-24ELPG for a commercial kitchen adding a four-burner char grill to an LPG cooking line. Its four knobs give the operator control across the grill, while the stainless steel drip tray supports routine clean-down. Plan a supporting bench or matching QR-24-S stand around the unit’s 95 kg net weight.

• Commercial kitchens with an LPG supply that need a four-burner char grill top.
• Cooking lines where four heat controls suit the grilling workflow.
• Installations using a supporting bench or the matching QR-24-S stand.

• Kitchens requiring natural gas should compare the QR-24E four-burner natural gas char grill.
• Operators wanting six LPG burners should compare the QR-36ELPG.

Start with the gas supply: this is the LPG version. Choose the QR-24E if the kitchen needs a four-burner natural gas model.

Match the burner count to the way the grill will be used. The QR-24ELPG provides four burners and four knobs; compare the QR-36ELPG when six LPG burners would better suit the cooking line.

Check the space, support and gas connection together. Allow for the grill body, access for operation and cleaning, a 95 kg appliance and a ¾-inch gas inlet. Confirm site, service and installation requirements before ordering.

• Four burners and four knobs provide control across the grill.
• Automatic ignition and flame failure shut-off are included.
• Stainless steel construction, a stainless steel drip tray and adjustable feet support everyday kitchen use.

• The LPG connection must suit the kitchen’s gas supply; natural gas kitchens need a different model.
• At 95 kg net weight, the unit needs a suitable supporting surface and handling plan.
• Four burners may be limiting for a cooking line seeking the six-burner arrangement of the QR-36ELPG.

• Gasmax QR-24E 4-Burner Natural Gas Char Grill: The Gasmax QR-24E has four burners like the QR-24ELPG, but uses natural gas instead of LPG.
• Gasmax QR-36ELPG 6-Burner LPG Char Grill: The Gasmax QR-36ELPG uses LPG like the QR-24ELPG, with six burners instead of four.

• Space and support. Plan for a body measuring 609 × 770 × 460 mm, W × D × H, and a net weight of 95 kg. Choose a suitable supporting bench or the matching QR-24-S stand, with access for operation and cleaning.
• Gas connection. The grill uses LPG, has a ¾-inch gas inlet and a listed total gas input of 78 MJ/h. Confirm the site’s gas supply and installation requirements before ordering.
• Positioning. The sturdy adjustable feet provide 45 mm of height adjustment. Account for this adjustment when planning the working height.
• Packed size. Packing dimensions are 740 × 900 × 650 mm, W × D × H. Use these separately from the appliance body dimensions when planning handling and access.
• Warranty registration. Register the product within 14 days of invoice for the stated parts-only extension.

For body dimensions, see Key Specifications above.
