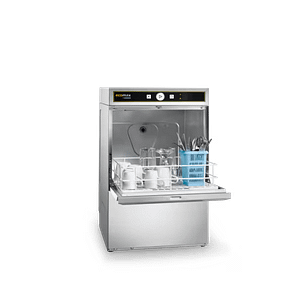

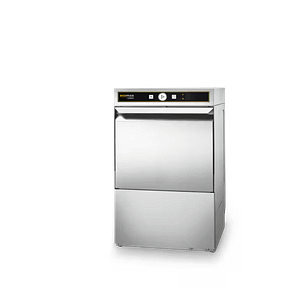

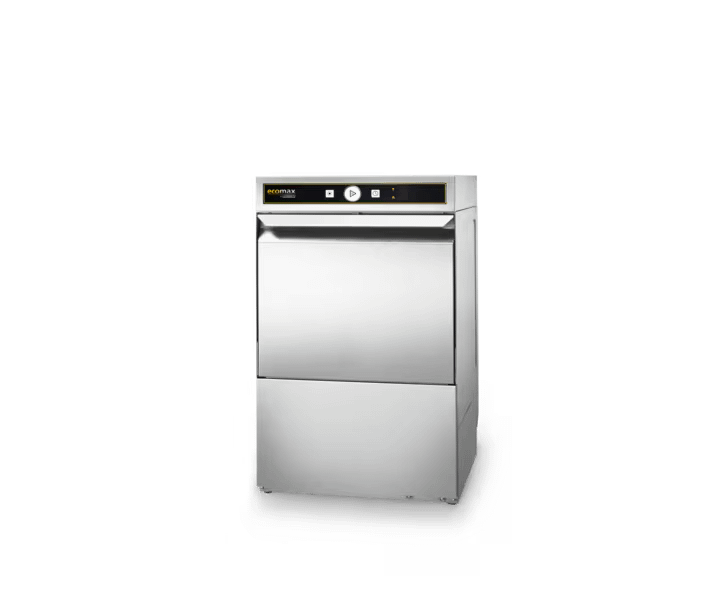

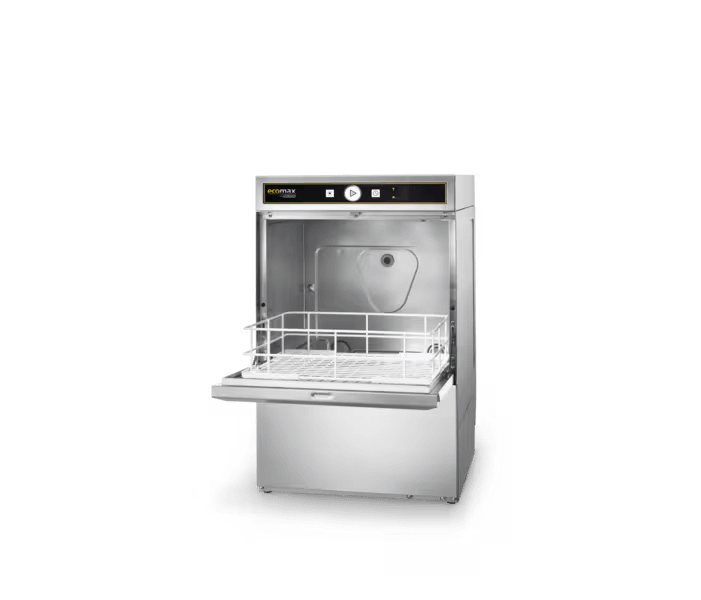

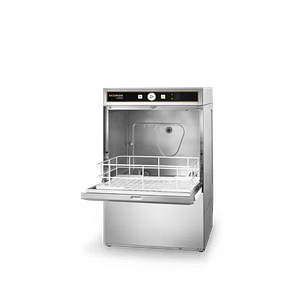

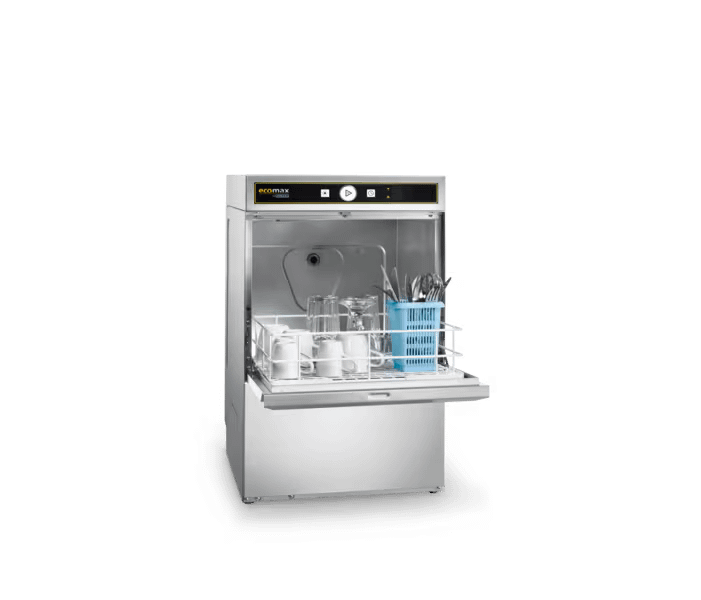

Hobart ECOMAX 404 Undercounter Glasswasher

The Hobart ECOMAX 404 Glasswasher is a compact, energy-efficient undercounter unit engineered for busy pubs, cafés, bars, and hospitality venues. Made in Germany with precision, this unit delivers high-performance cleaning for up to 600 glasses per hour — all while minimising water and energy usage thanks to its intelligent design and double-skinned door insulation.

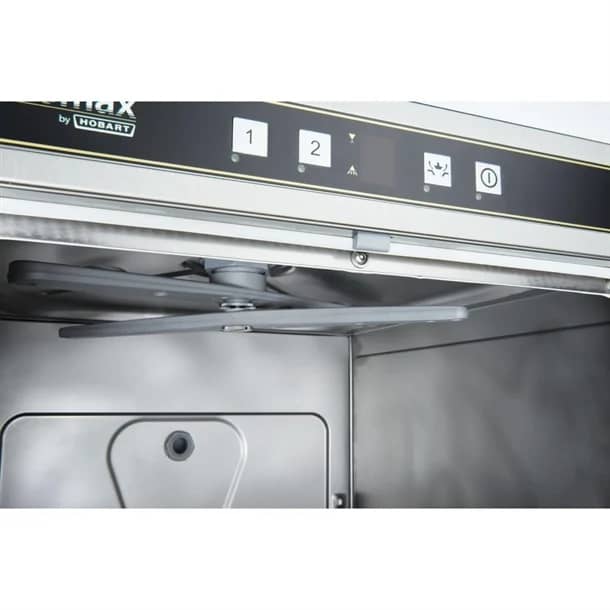

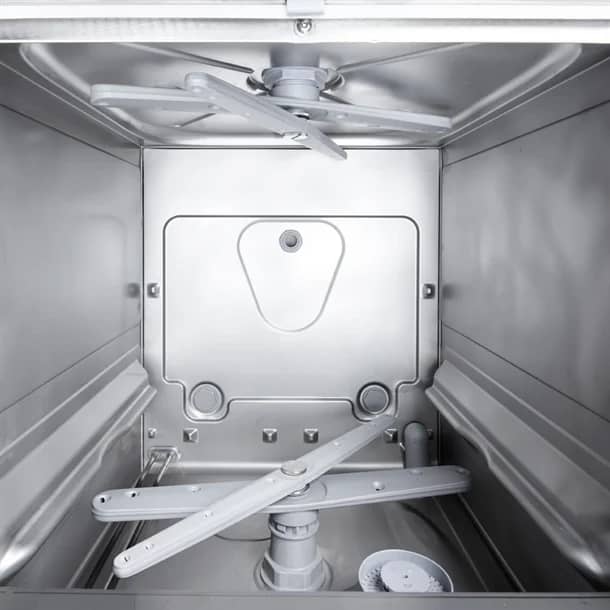

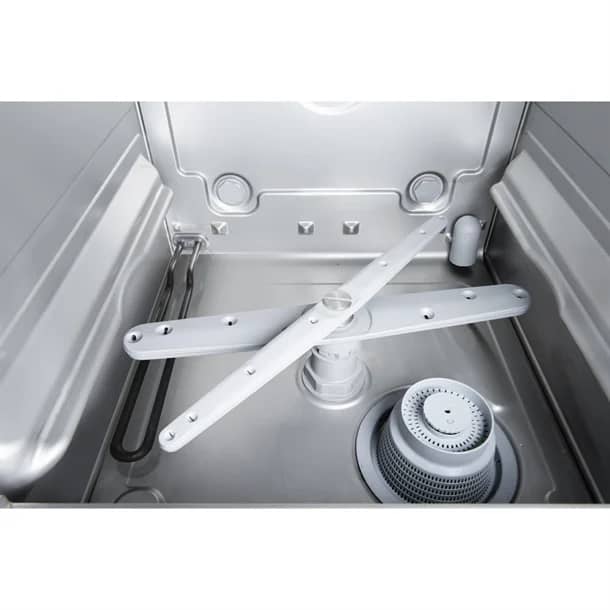

Featuring a wide-angle fan nozzle and rotating top and bottom wash arms, the ECOMAX 404 ensures thorough and even glass coverage every cycle. Its low 2.0L rinse volume and thermostop-controlled high-temperature rinse phase preserve energy while maintaining strict hygiene standards.

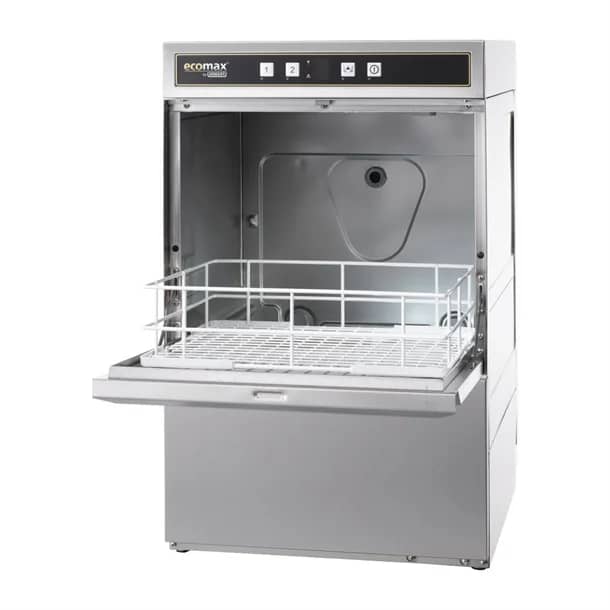

The unit includes a drain pump, pump inlet strainer, adjustable legs, and 17″x14″ rack for fast setup. A 15A plug is pre-installed for quick “connect and use” installation. Digital controls and two time-saving cycle options (60 or 120 seconds) make it easy for staff to use with minimal training.

Key Features:

• High Output: Washes up to 600 glasses per hour

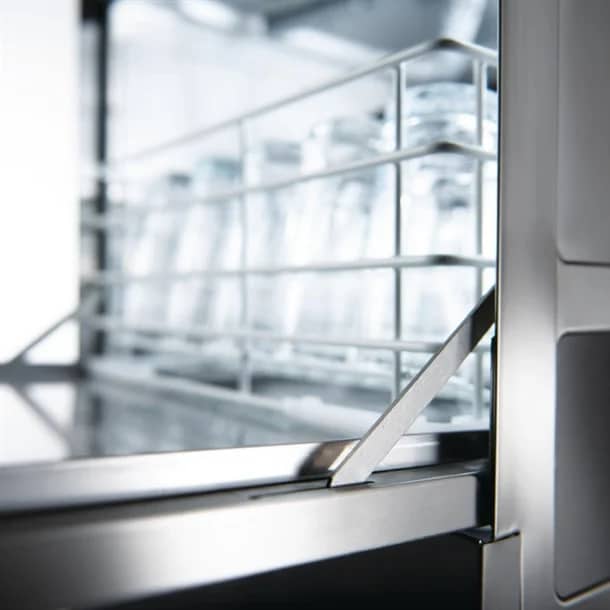

• Double Skinned Door: Reduces heat and noise for front-of-house suitability
• Wide Angle Fan Nozzle: Even, high-performance water distribution
• Cycle Times: Choose between 60 and 120 seconds for quick turnover
• Water Efficient: Just 2.0L per rinse cycle saves on utilities:contentReference[oaicite:0]{index=0}:contentReference[oaicite:1]{index=1}
• Digital Temperature Gauges: Ensures wash and rinse cycles meet hygiene standards

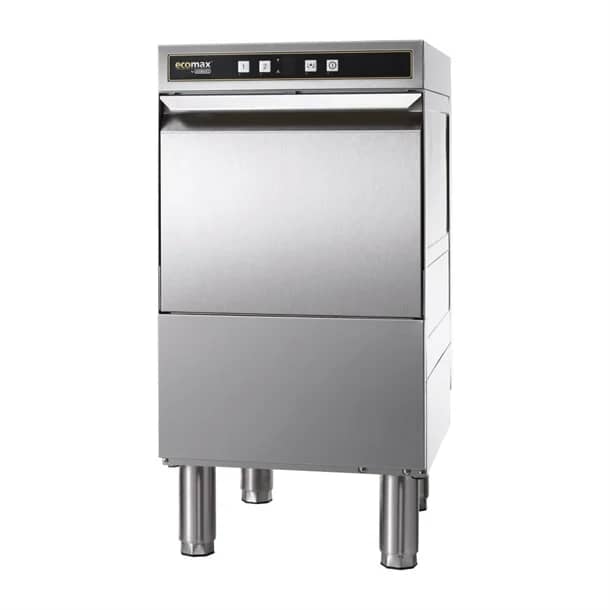

• Adjustable Height: 700mm base + 150mm stainless legs included
• Installation-Ready: Supplied with pump-out drain, fill and rinse hoses, and detergent line

Specifications:

• Model: Hobart ECOMAX 404
• Power Supply: 240V / 50Hz / Single Phase / 15A plug
• Total Load: 2.1kW | Booster: 1.9kW | Tank: 1.8kW
• Water Usage: 2.0L per rinse cycle
• Tank Capacity: 10L
• Wash Temperature: 55–60°C
• Rinse Temperature: Minimum 82°C (Thermostop controlled)
• Pump Capacity: 180W
• Loading Height: 308mm

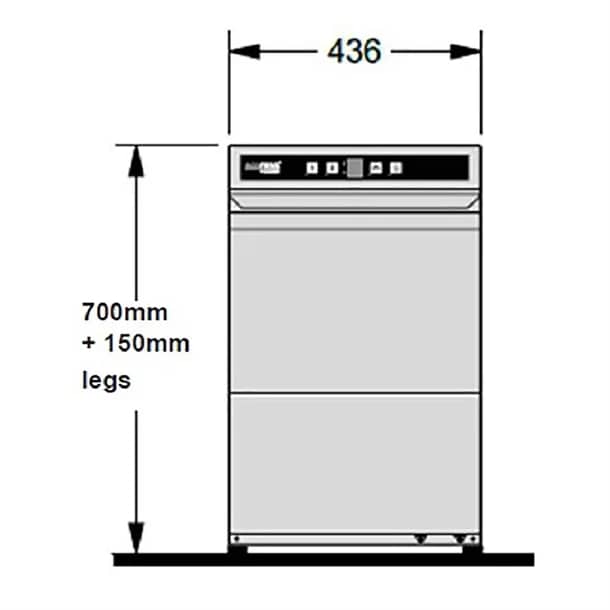

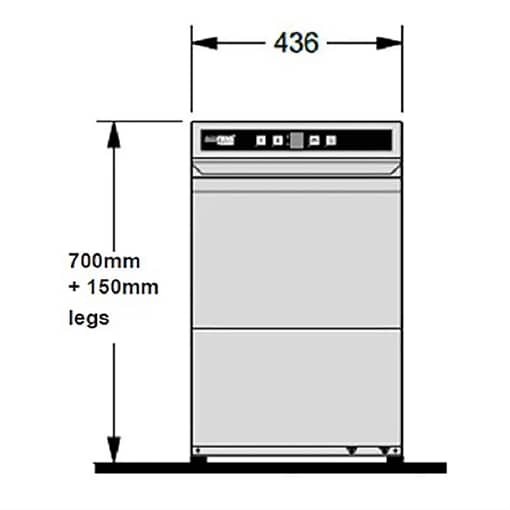

• Dimensions: 534mm (D) × 436mm (W) × 700–850mm (H)
• Rack Size: 17” x 14” included
• Made in: Germany

Applications:

• Pubs, bars, clubs, and wine lounges
• Cafés, bakeries, and quick-service counters
• Hotel breakfast bars or poolside bars
• Any venue requiring quiet, compact glasswashing performance

Why Choose Hobart from KW Commercial Kitchen?

Hobart is a world leader in commercial washing technology, and the ECOMAX 404 represents their commitment to durability, water efficiency, and easy operation. Supplied with essential fittings and backed by KW Commercial Kitchen’s expert support, it’s the smart glasswasher choice for modern Australian hospitality venues.

Frequently Asked Questions

Can the Hobart ECOMAX 404 be installed without a technician?

No — it must be installed by a trained professional to ensure safety and proper drainage and dosing system function.

Does it come with a glass rack?

Yes — one 17” x 14” rack is included as standard

Is it suitable for use with reverse osmosis systems?

No. The ECOMAX 404 is not suitable for use with RO water systems unless specifically modified
