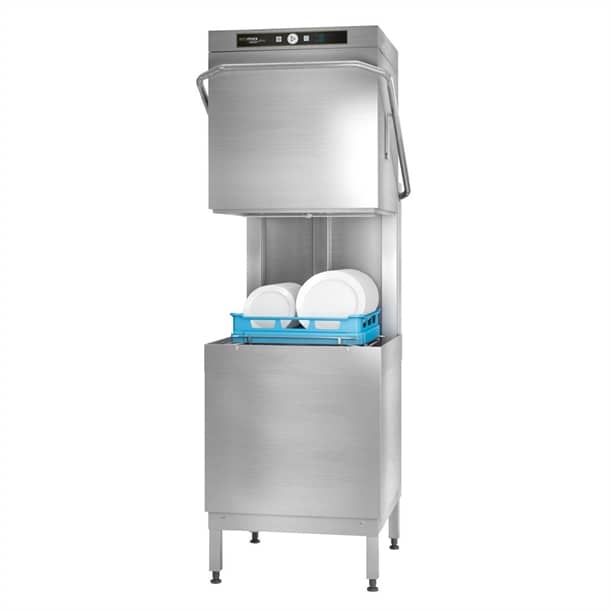

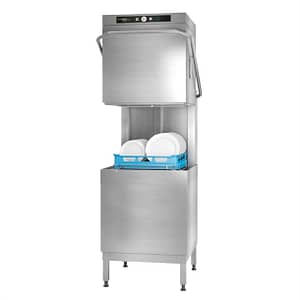

Hobart ECOMAX PLUS H615 Pass Through Dishwasher

The Hobart ECOMAX PLUS H615 is a premium German-made hood-type dishwasher engineered for high-volume use in commercial kitchens. With a performance output of up to 60 racks per hour and ultra-low water usage of just 2.3 litres per cycle, the H615 delivers exceptional cleaning results while reducing your running costs and chemical consumption.

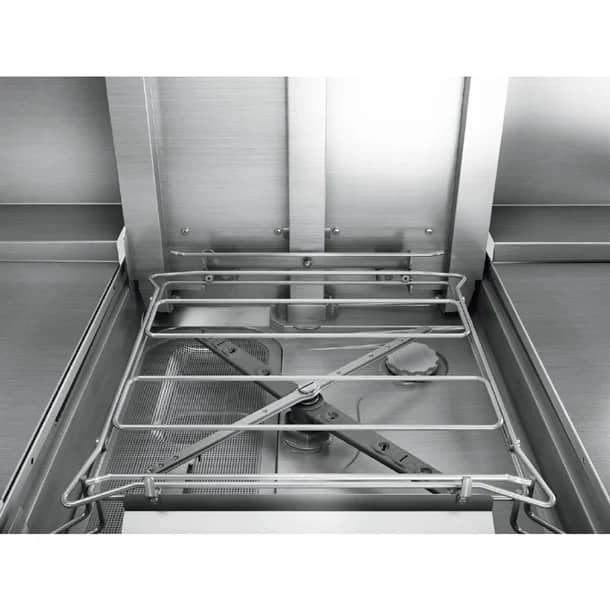

Designed for reliability, hygiene, and ease of use, the machine features a spring-loaded hood with full wraparound handle for ergonomic operation. The Hobart E-Store hood system retains 70% of generated steam inside the machine, improving thermal efficiency and reducing ambient heat loss. The one-piece deep-drawn 21L tank with coved corners prevents bacterial buildup and simplifies cleaning.

Key Features:

• High Output: Washes up to 60 racks/hr – ideal for busy hospitality operations
• Three Cycles: 60, 90, and 180 seconds + hygiene cycle
• Steam Retention: Hobart E-Store hood retains 70% of steam to lower energy use
• Water Saving: Only 2.3L rinse volume per cycle thanks to high-efficiency design
• Full 4-Sided Hood Enclosure: Reduces heat and steam loss for a cooler kitchen
• Wide-Angle Fan Nozzle: Patented design delivers full rack rinse coverage
• Tank Design: Deep-drawn single-piece tank with no welds or sharp edges
• Includes Drain & Rinse Pumps: Preinstalled for easy setup and reliable pressure
• Digital Interface: Simple one-button control with temperature gauges

Specifications:

• Model: Hobart ECOMAXPLUS H615
• Power Supply: 415V / 50Hz / 3 Phase
• Total Power Load: 7.1kW | Booster: 6.2kW | Tank: 2.5kW
• Water Usage: 2.3L per cycle:contentReference[oaicite:1]{index=1}
• Tank Capacity: 21L
• Cycle Times: 60 / 90 / 180 seconds
• Rinse Temperature: Minimum 82°C (Thermostop-controlled)
• Wash Temperature: 55–65°C
• Pump Capacity: 0.7kW
• Max Loading Height: 440mm
• Rack Size: 500 × 500mm
• Weight: 98kg
• Dimensions: 635mm (W) × 742mm (D) × 1,470mm (H)
• Made in: Germany

Applications:

• Restaurants, hotels, and function venues
• Hospitals, aged care, and education kitchens
• Production kitchens and high-volume caterers

Why Choose the H615 from KW Commercial Kitchen?

The Hobart ECOMAX PLUS H615 combines world-class German manufacturing with maximum water efficiency, steam retention, and operator-friendly design. At KW Commercial Kitchen, we provide expert support, fast shipping, and all the accessories you need to install and operate this powerful machine — no hidden extras.

Frequently Asked Questions

Is the H615 suitable for washing large items like GN pans?

Yes. With a 440mm internal loading height and wide rack compatibility, this unit can wash 1/1 GN pans using optional tray racks:contentReference[oaicite:2]{index=2}.

Does the dishwasher include the drain and rinse pumps?

Yes — both are preinstalled. The rinse pump ensures consistent water pressure and the drain pump supports flexible installation.

Does it require professional installation?

Yes. For safety and compliance, the machine must be installed by a trained technician. It includes all essential components: plug, hose sets, chemical dispensers, and racks for quick setup.
