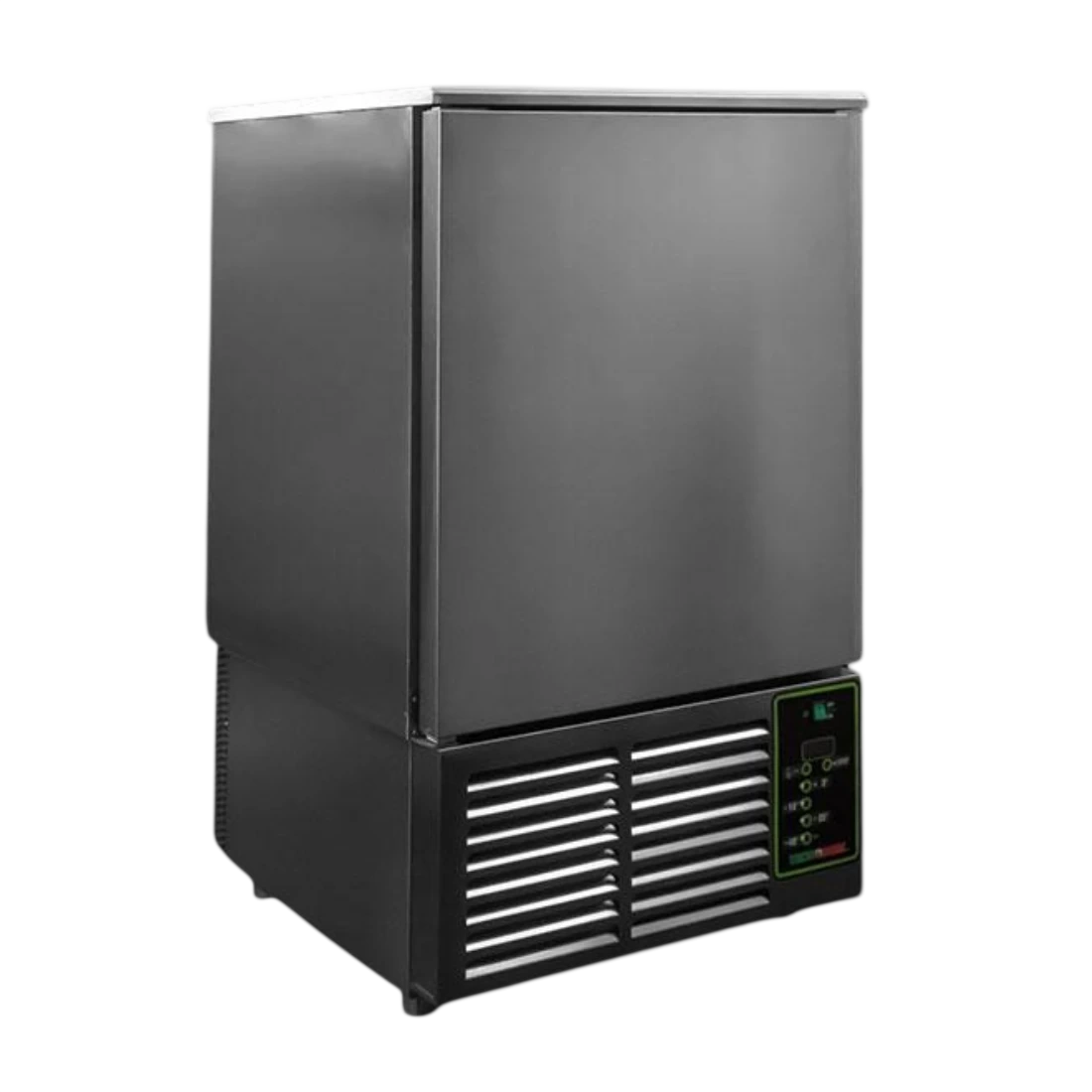

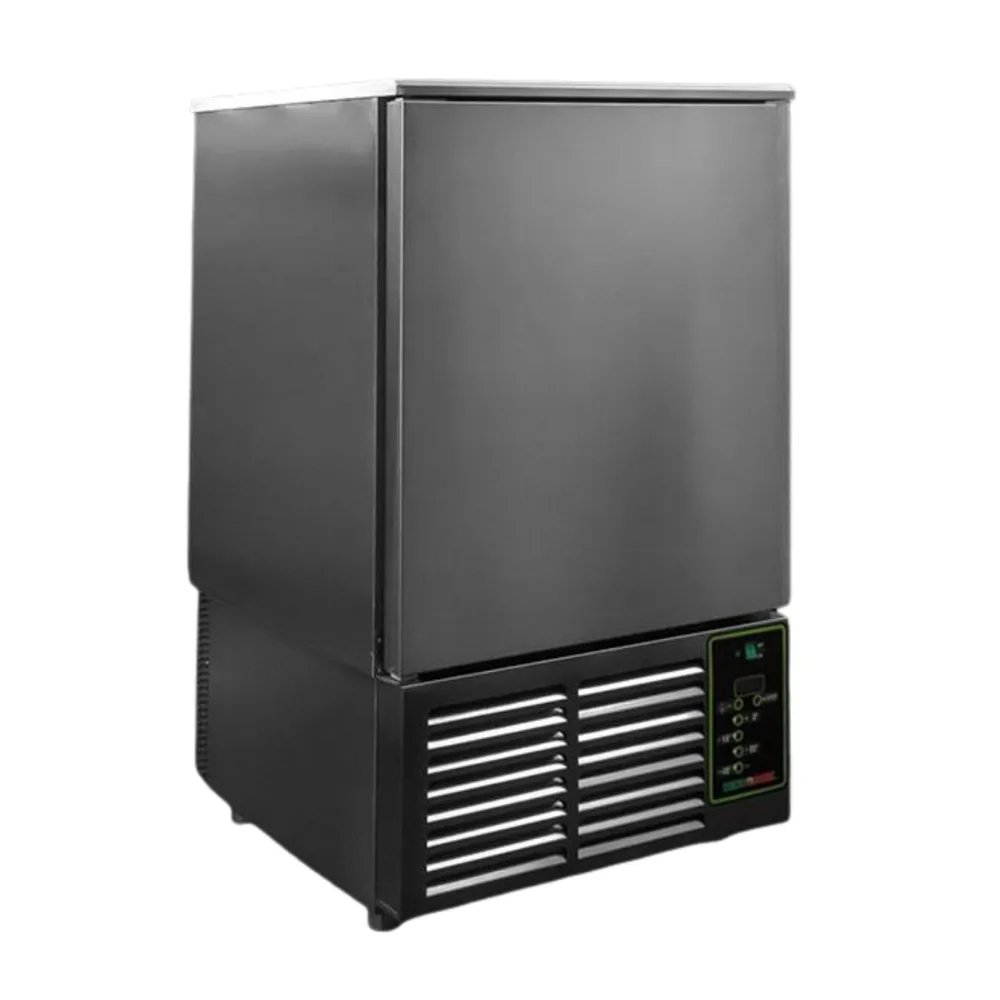

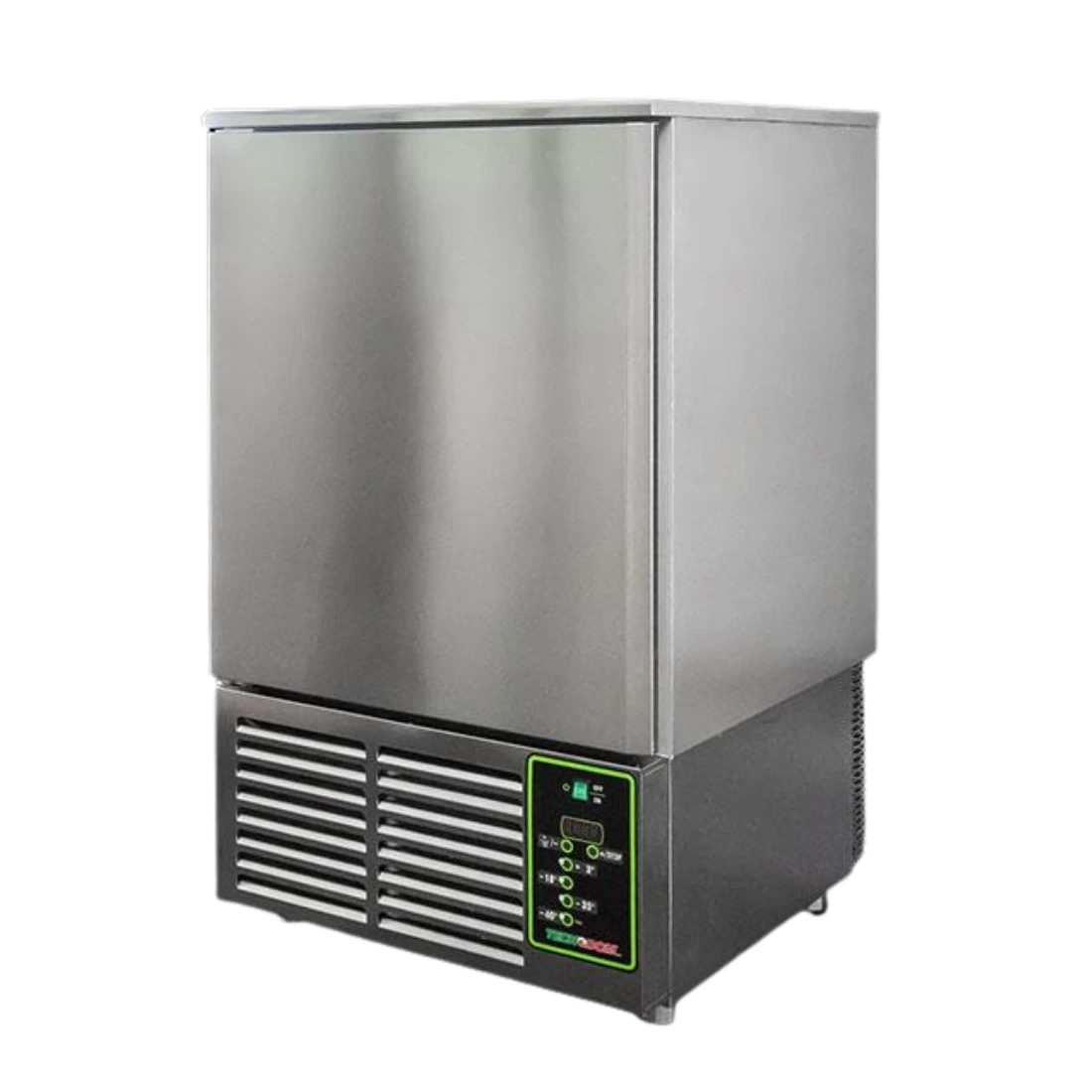

Tecnodom DO10EA R290 10-Tray Blast Chiller & Shock Freezer

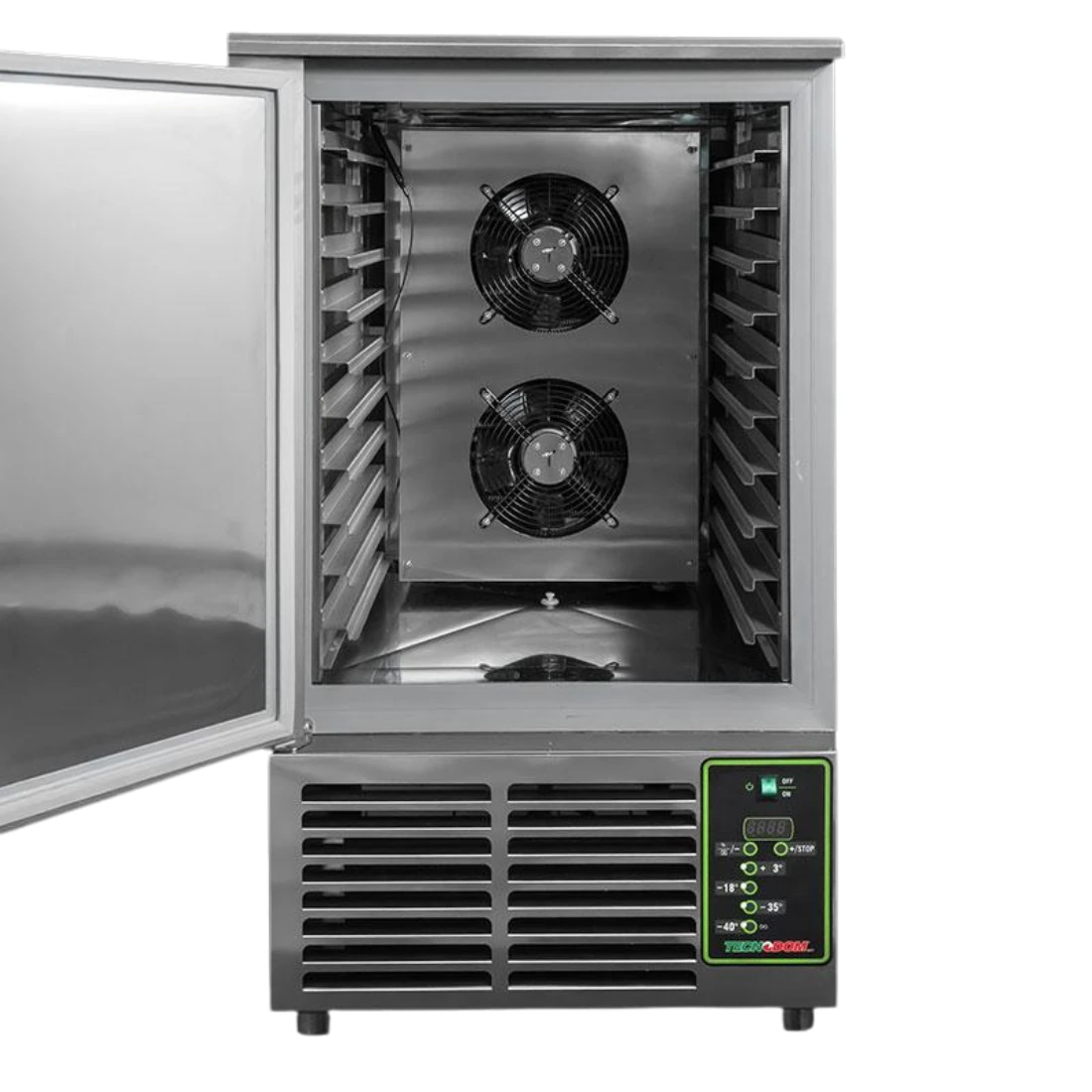

The Tecnodom DO10EA is an R290 blast chiller and shock freezer for commercial batch preparation. It takes 10 GN1/1 or 600 × 400 mm trays and includes chamber and core probes.

For catering and production kitchens organising cooked-food batches on GN1/1 or 600 × 400 mm trays. Choose by both tray format and batch mass: the full-load ratings are 25 kg for chilling and 22 kg for freezing. Select another capacity if the planned batches exceed those ratings.

Check the batch mass as well as the number of trays. The 62-minute chilling test ends at +10°C; the 226-minute freezing test ends at -18°C. Use the core probe to monitor the required process.

Plan the access route around the packed size of 800 × 800 × 1480 mm. The cabinet height is 1312/1332 mm. Include access to the left-hinged door and front condenser grid in the site review.

Review the single-phase, 50 Hz supply and 2150 W rated power against the site utilities and intended operating pattern. Follow operating instructions and site procedures for commissioning, cleaning and maintenance. Warranty: 2 Years Parts and Labour.

• Electrical supply. Single phase, 50 Hz, with a rated power of 2150 W.

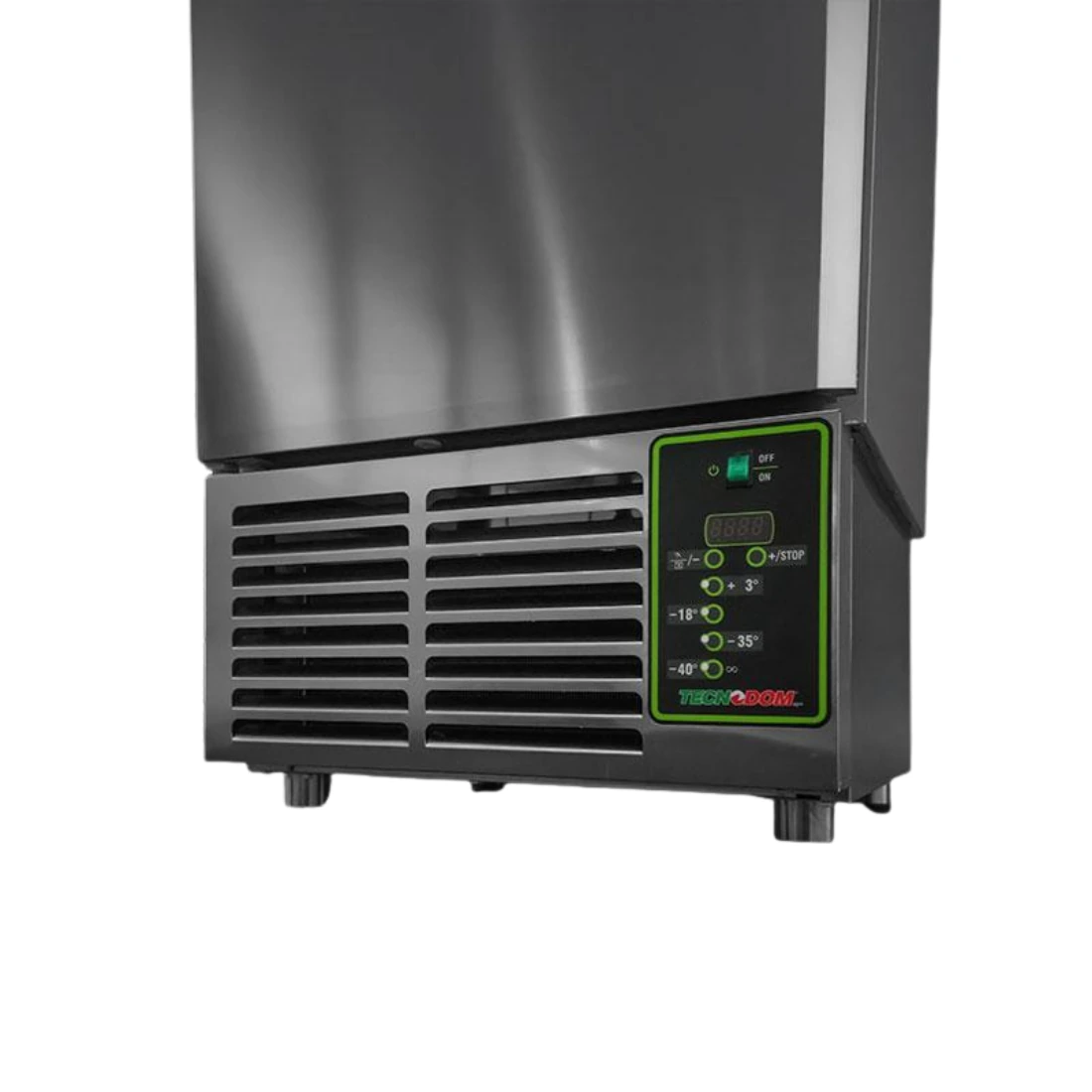

• Feet and door. Four adjustable stainless steel feet provide a height range of 60–80 mm. The single self-closing door has left-hand hinges.
• Defrost and condensate. Defrosting takes place with the door open, without heaters or hot gas. A removable bottom tray collects condensate.

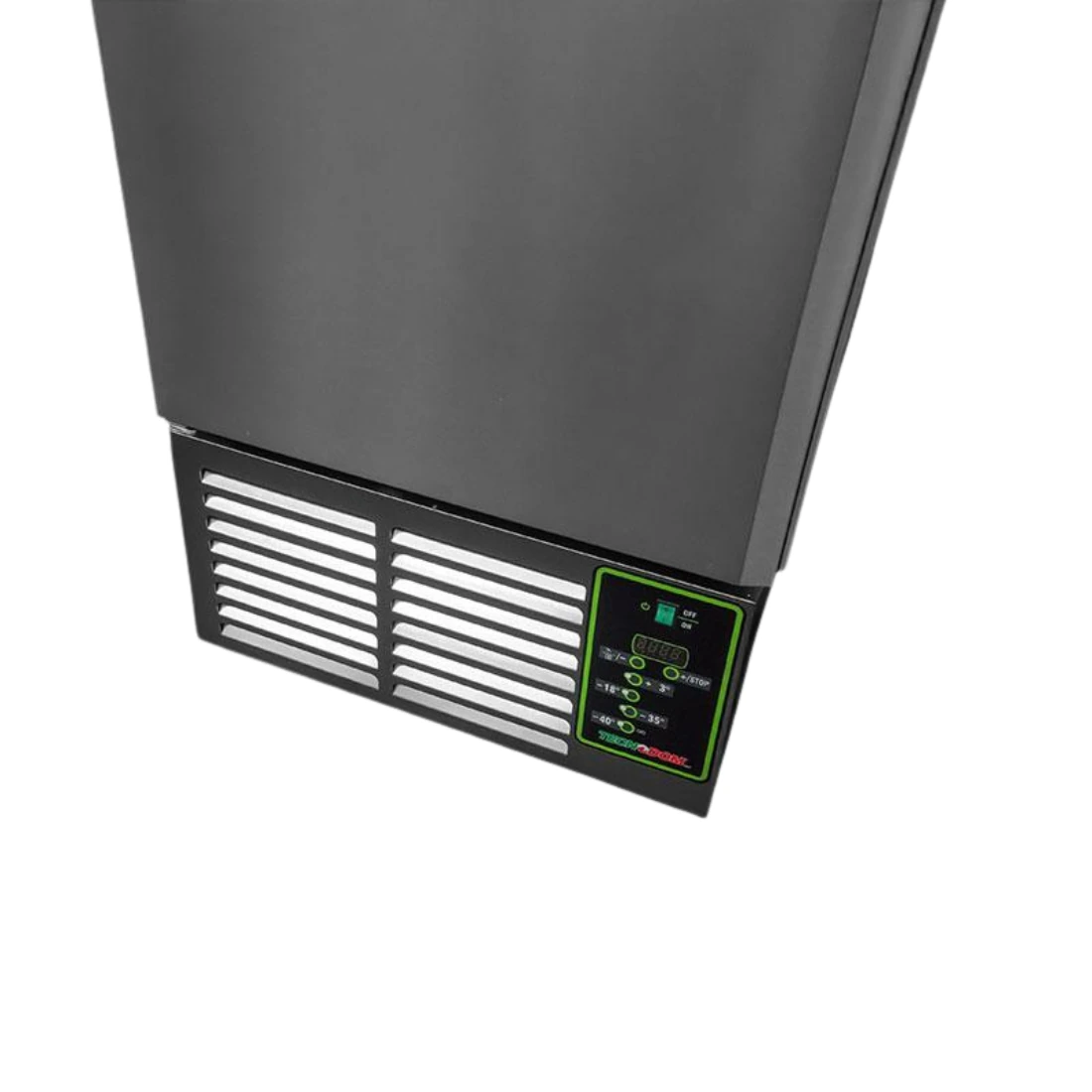

• Condenser access. The front grid opens to provide access to the condensing unit for maintenance.

For body dimensions and weight, see Key Specifications above.
