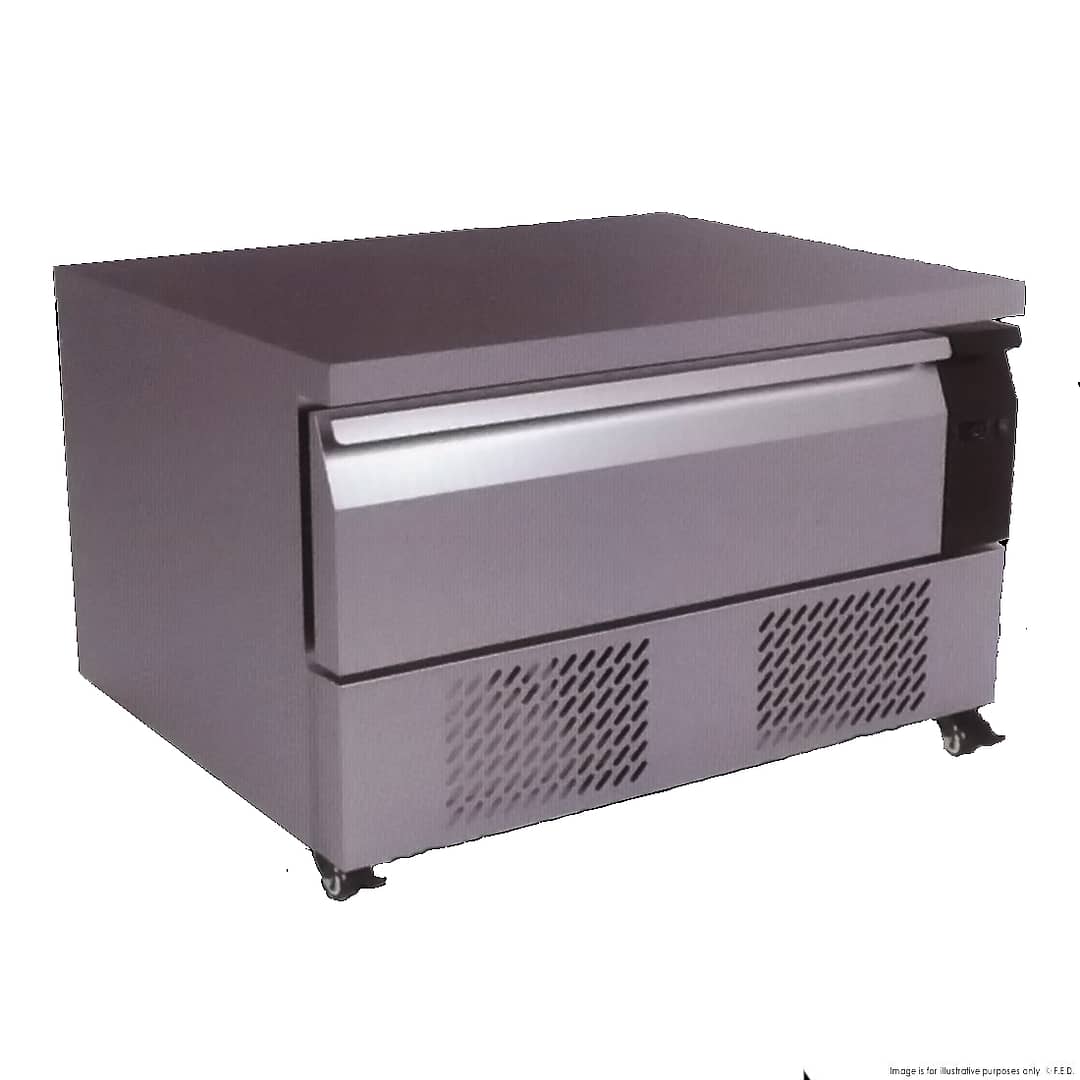

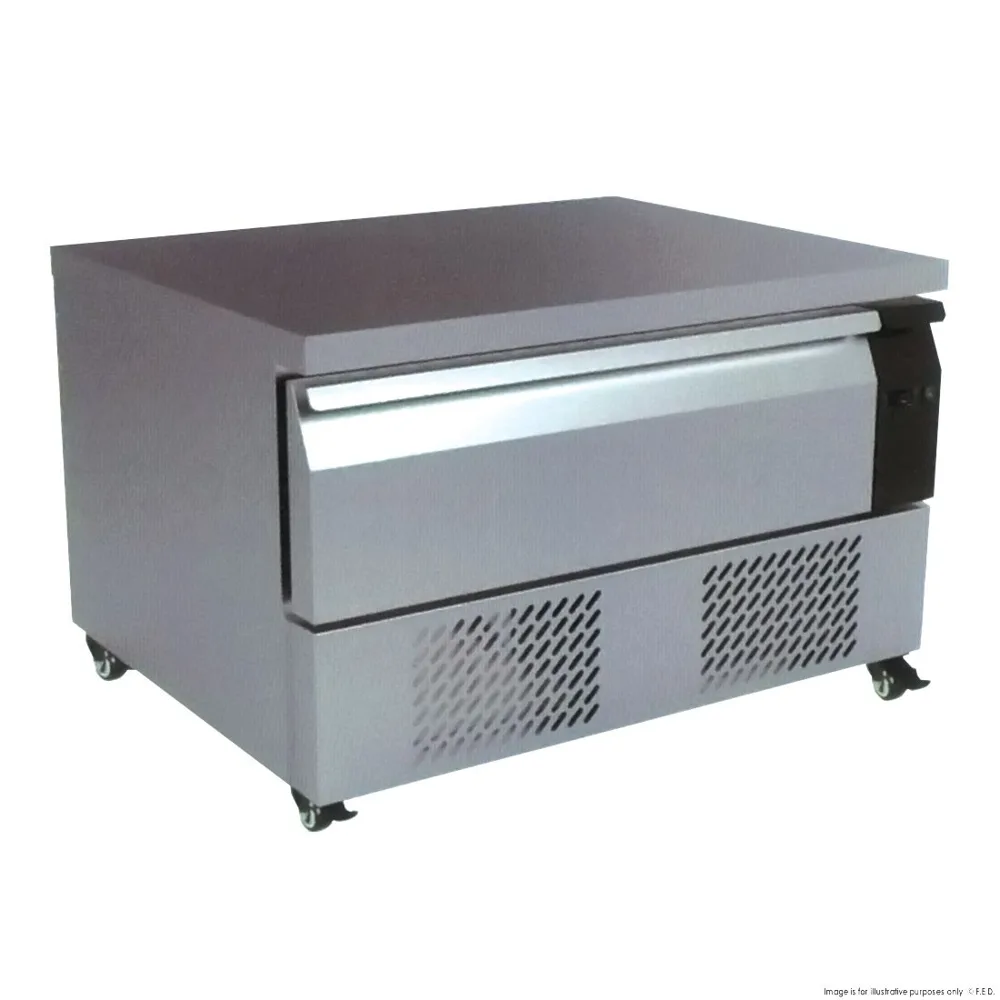

Thermaster CBR1-2 is a refrigerated drawer counter that can be set for fridge or freezer operation. Gross volume is 78 L and net volume is 51 L.

Choose the drawer format around the required storage mode and GN pan arrangement. Use the fridge and freezer ranges as separate operating modes.

Choose the required fridge or freezer mode and check product temperatures and ventilation.

Operating modes. Fridge operation is +2 to +8°C; freezer operation is -22 to -18°C.
Controls. The controls have an LED temperature display and allow a change between fridge and freezer operation.
Pan format. The drawer accommodates GN 1/1 pans up to 150 mm deep.
Refrigerant and defrost. R290 refrigerant and hot-gas defrost are provided.
Movement. Heavy-duty castors have front wheel locks.

Choose the storage mode and GN pan arrangement before ordering.

Check the 40°C and 40% RH maximum ambient conditions and leave ventilation clear.

Thermaster CBR1-3 Flexdrawer counter – Gross Volume: 116L: Compare CBR1-3 for a larger flexdrawer counter with 116 L gross volume.

Positioning. Keep ventilation clear and access the castor brakes before using the drawer.

For body dimensions, see Key Specifications above.

SKU	CBR1-2
Brand	Thermaster
Category	Commercial Fridges and Commercial Freezers
Weight	34 kg
Dimensions (W×D×H)	905 × 700 × 605 mm
Stock Status	In Stock
Voltage	230 V
Power	0.24 kW
Compliance	RCM

Thermaster CBR1-2 Flexdrawer counter – Gross Volume: 78L

Key Specifications
