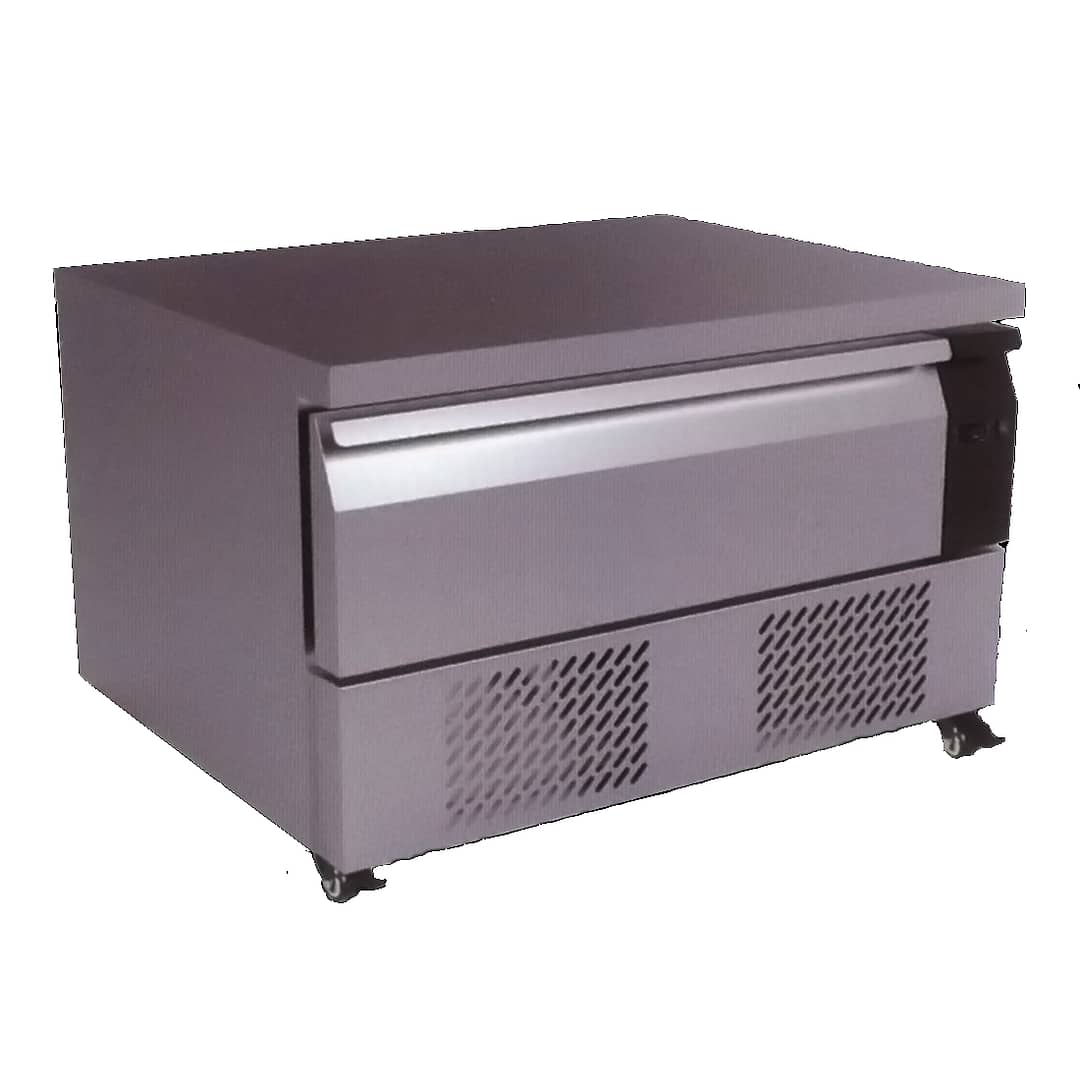

Thermaster CBR1-3 Flexdrawer Counter – Dual-Mode Fridge or Freezer
Updated:
At KW Commercial Kitchen, we supply the Thermaster CBR1-3, a versatile 116 L flexdrawer counter that can switch between fridge and freezer modes at the touch of a button. Built low for under-bench use and tested to 40 °C ambient, it’s ideal for high-demand kitchens.
Built for Australian commercial kitchens
The Thermaster CBR1-3 pairs dual-mode temperature control (-22 °C to +8 °C), R290 natural refrigerant and user-friendly digital display in a 1230-mm footprint—perfect for energy-efficient cold storage where flexibility matters.
Key features & specifications
- Gross/Net volume: 116 L / 77 L
- Temperature range: -22 °C to -18 °C & +2 °C to +8 °C
- Ambient rating: 40 °C / 40 % RH
- Power/Voltage: 270 W, 230 V / 50 Hz
- Dimensions (W×D×H): 1230 × 700 × 605 mm

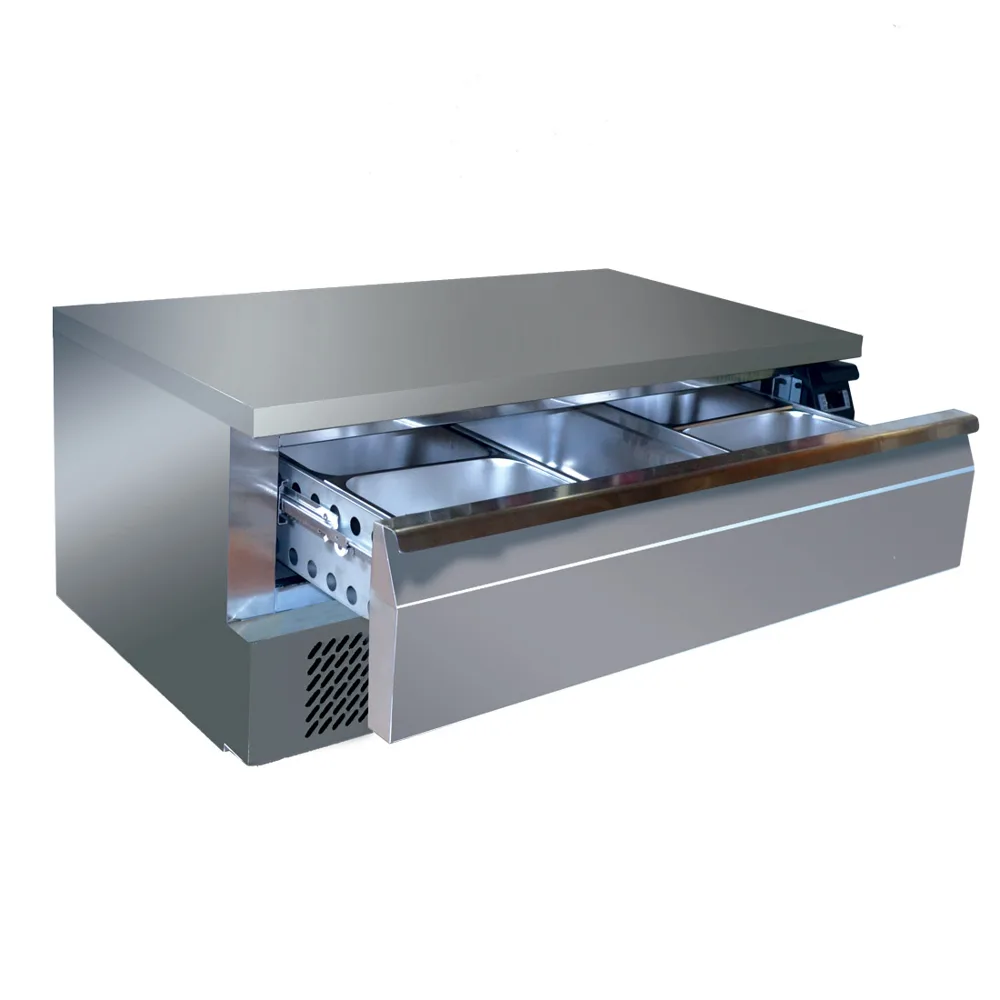

- Construction: Stainless-steel body, GN 1/1 150 mm pan capacity, automatic hot-gas defrost, magnetic gaskets, LED controls, heavy-duty 90 mm castors (locking front)
- Refrigerant: R290 Natural Hydrocarbon
- Warranty: 2 Years Parts & Labour + 2 Years Parts only (with registration within 14 days)
Compliance & safety (AU)
- Electrical: RCM compliant.
- Energy: GEMS/MEPS certified commercial refrigeration standard.
- Food safety: FSANZ-aligned storage temperatures; suitable for perishable and frozen goods.
Convenience & usage advice
- Easy conversion: Toggle between fridge and freezer modes using front LED controls as menu needs change.
- Keep airflow clear: Allow minimum 100 mm rear vent clearance for efficient condensing and cooling.
Ideal applications
- Hotel and restaurant kitchens
- Quick-service and catering operations
- Bars and cafés requiring low height cold drawers
Frequently Asked Questions
1) How do I clean it daily without harming finishes?
Use a pH-neutral cleaner and soft cloth; avoid chlorine or abrasives on stainless surfaces; wipe dry after use.
2) What routine maintenance keeps performance stable?
Weekly wipe door gaskets and drawer rails; monthly vacuum condenser coils; verify temperature calibration quarterly.
3) What are the power requirements and typical energy use?
Runs on 230 V/10 A outlet (270 W); energy use varies with mode and ambient temperature.
4) What about installation and Australian compliance?
RCM marked; site on level surface with ventilation; GEMS tested for commercial use; FSANZ-aligned temperature range.
5) Are spare parts and accessories available?
Drawer gaskets, LED controllers and castors are readily available; quote model CBR1-3 for spare parts.
Specs source: manufacturer datasheet for Thermaster CBR1-3 Flexdrawer Counter.
