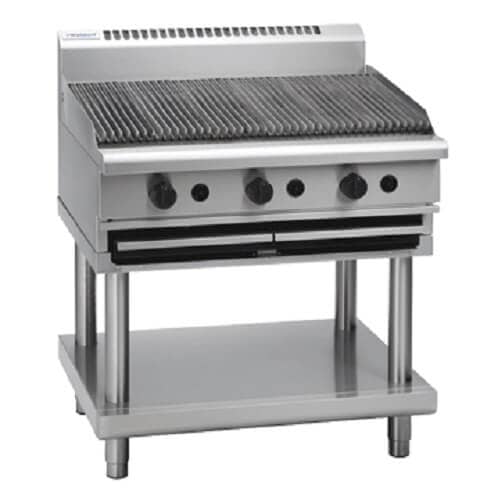

Waldorf CH8900G-LS Gas Char Grill – 900mm Commercial Stand Grill
Heavy-Duty Flame Grilling for High-Volume Kitchens
The Waldorf CH8900G-LS Gas Char Grill offers superior chargrilling power, precision, and durability in a fully modular 900mm-wide format. Equipped with three 33MJ/hr stainless steel U-burners and cast iron radiants, this unit ensures fast heat recovery and evenly distributed grilling temperatures. Featuring reversible heavy-duty grates with an inclined setting, grease is directed into the front channel for safer, cleaner operation.
Key Features
- Burners: 3 x 33MJ/hr stainless steel U-burners (total: 99MJ/hr)
- Grates: Reversible cast iron top grates – level or inclined
- Flare Control: Grooved incline design for grease channeling
- Safety: Pilot and flame failure protection to every burner
- Cleaning: Removable radiants, baffles, burners, and grates for access
- Controls: Hi-Lo individual burner control knobs – heat resistant
- Construction: Full stainless steel exterior with 2.5mm splash guards
- Stand: Supplied on a modular open leg stand with adjustable feet

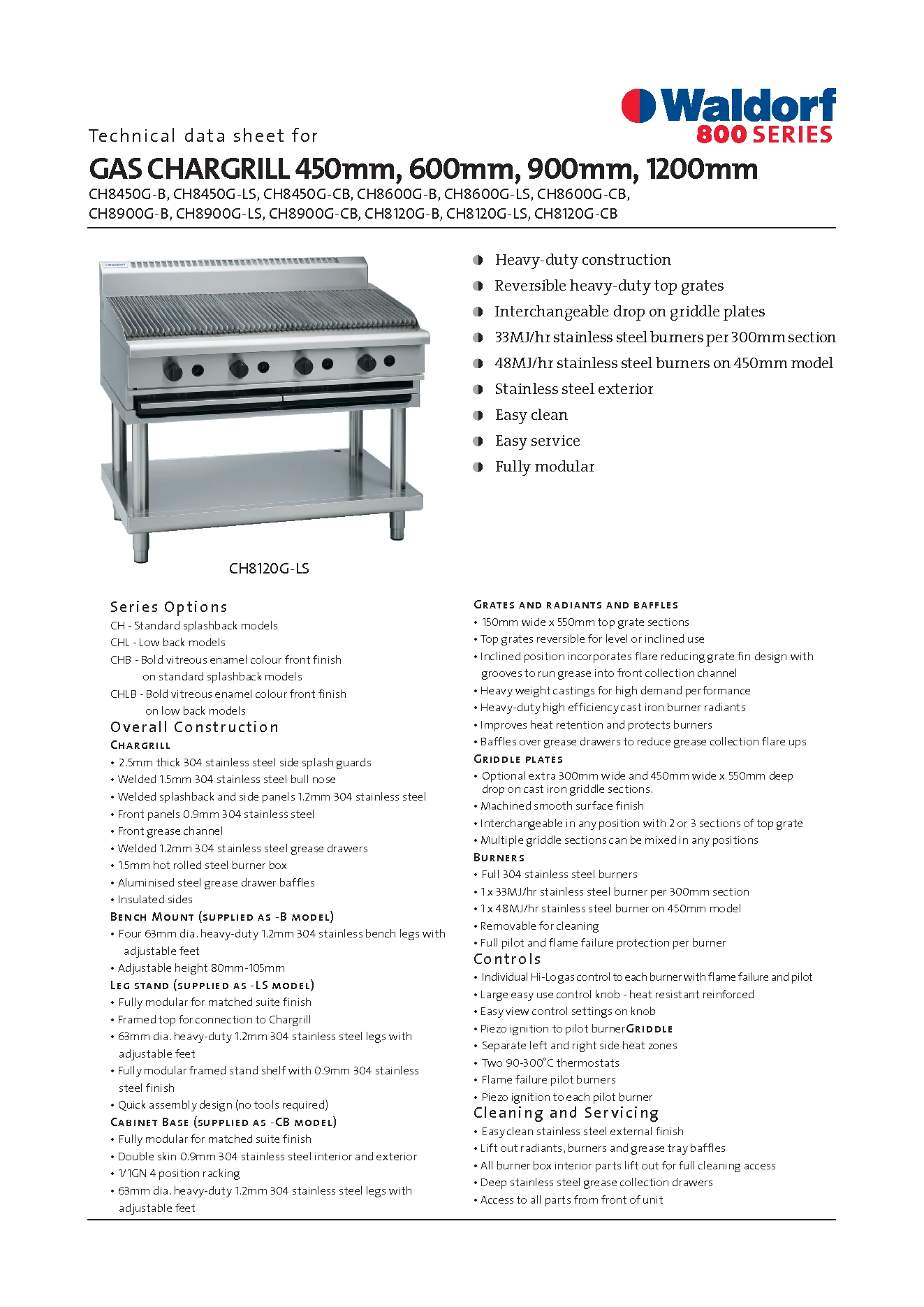

Technical Specifications
- Model: CH8900G-LS
- Total Output: 99MJ/hr | 27.7kW
- Dimensions: 900(W) x 805(D) x 1130(H) mm (incl. splashback)
- Gas Connection: ¾” BSP male | Natural or LP gas (specify when ordering)
- Weight: 178kg (net)
- Cooking Area: 892mm x 500mm
- Optional Accessories: Drop-on griddle plates, castors, plinth mounting
Frequently Asked Questions (FAQs)
What’s the difference between the inclined and flat grate positions?
Inclined grates reduce flare-ups and channel grease forward. Flat grates provide maximum grill contact for searing.
How easy is the CH8900G-LS to clean?
Very easy. All internal burner box components lift out, including burners, radiants, and grease drawer baffles.
Is it compatible with modular Waldorf 800 Series equipment?
Yes – this unit is fully modular and fits seamlessly into your Waldorf 800 kitchen suite.
Upgrade to robust grilling with the Waldorf CH8900G-LS Gas Char Grill – power, safety, and easy maintenance in one complete unit. Explore commercial chargrills.
