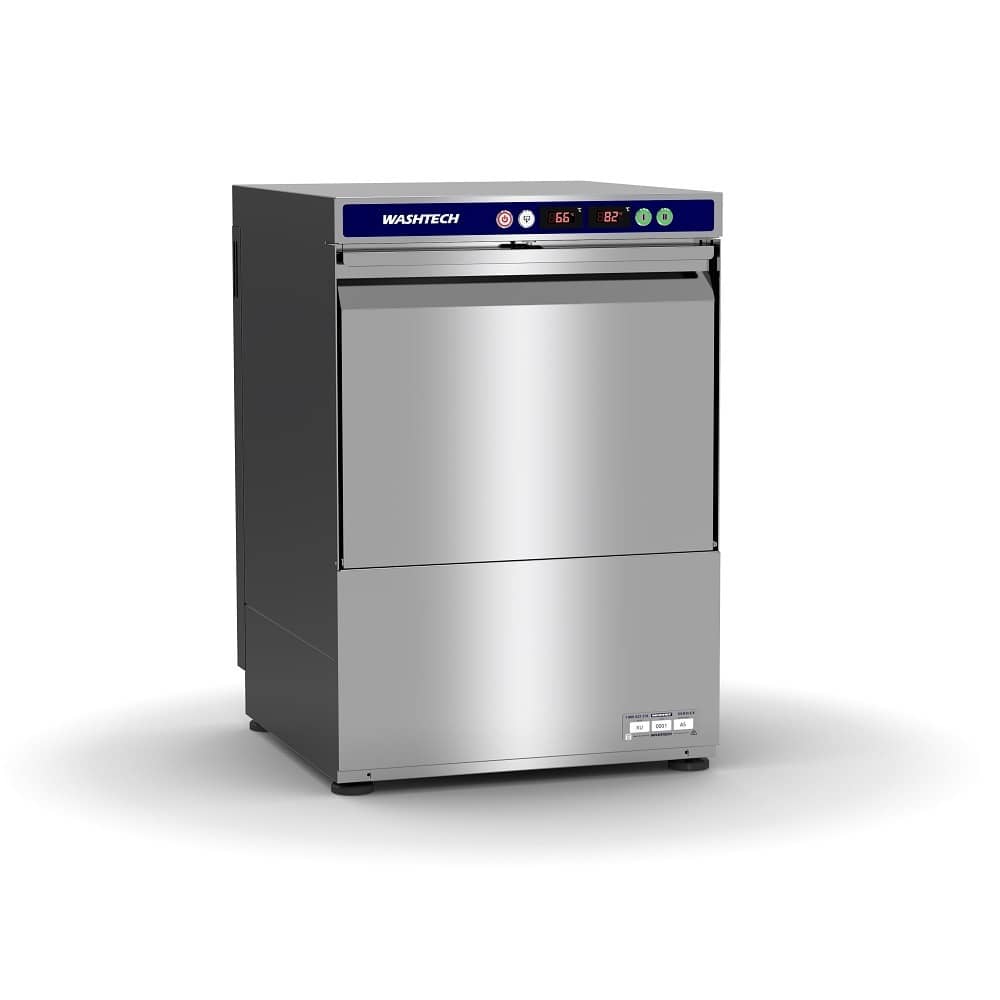

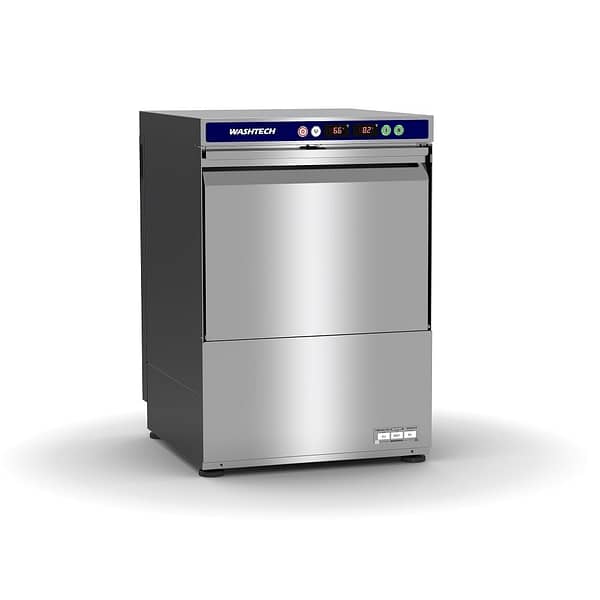

Washtech XU Economy Undercounter Dishwasher/Glasswasher – 500mm Racks
Updated:
Built for Australian cafés, bars & restaurants
The Washtech XU is an economy undercounter dishwasher and glasswasher engineered for busy hospitality venues. With 500mm racks, 1–2 minute cycles, and low water use of just 2.6 L per cycle, it delivers high efficiency in a compact footprint. Stainless steel construction and composite filtration ensure durability and easy maintenance, while digital displays support HACCP compliance.
Key features & specifications
- Rack size: 500 × 500 mm
- Capacity: Up to 1,080 plates or 1,500 glasses per hour
- Cycle times: 1–2 minutes
- Water consumption: 2.6 L per cycle
- Power/Voltage: 3.4 kW, 240 V / 15 A single phase
- Dimensions (W×D×H): 575 × 600 × 840 mm
- Heating elements: Wash 2.5 kW, Rinse 3.0 kW
- Construction: Stainless steel cabinet; composite filtration system; digital temperature display; electromechanical controls; precision moulded wash/rinse jets
- Accessories: Includes dish rack, cup rack, and cutlery container
- Warranty: Moffat 5-2-1 (5 years on cabinet parts, 2 years on wash pump, 1 year on parts & labour)
Compliance & safety (AU)
- Electrical: RCM.
- Food safety: FSANZ-aligned; digital temperature readout supports HACCP records.
- Installation: Supplied with QuikConnect hoses, pumps, and 15 A plugset.
Convenience & usage advice
- Save water: Just 2.6 L per cycle reduces utility costs and environmental impact.
- Fast turnaround: 1-minute cycle ideal for peak times in cafés, bars, and restaurants.
Ideal applications
- Cafés
- Bars & pubs
- Restaurants & catering venues

Frequently Asked Questions
1) How do I clean it daily without harming finishes?
Remove and rinse filters; wipe stainless steel with a soft cloth and pH-neutral cleaner; avoid abrasives.
2) What routine maintenance keeps performance stable?
Daily filter cleaning; weekly descaling; check rinse arms and nozzles for blockages; follow manual schedule.
3) What are the power requirements and typical energy use?
Requires 240 V / 15 A outlet; average draw is 3.4 kW depending on cycle use.
4) What about installation and Australian compliance?
RCM certified; QuikConnect package includes hoses, pumps, and plugset; professional installation recommended.
5) Are spare parts and accessories available?
Yes, racks, pumps, filters and seals are stocked. Quote model and serial for accuracy.
Specs source: Washtech official datasheet for XU.
