Modular Systems WBBD7-0600L/A Steel Dishwasher Bench Left Outlet

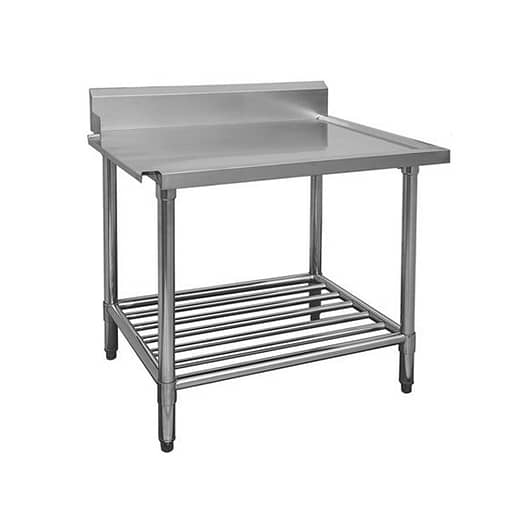

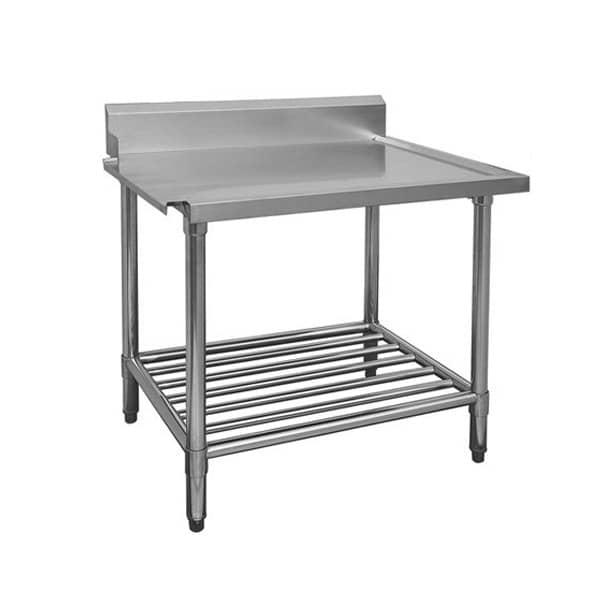

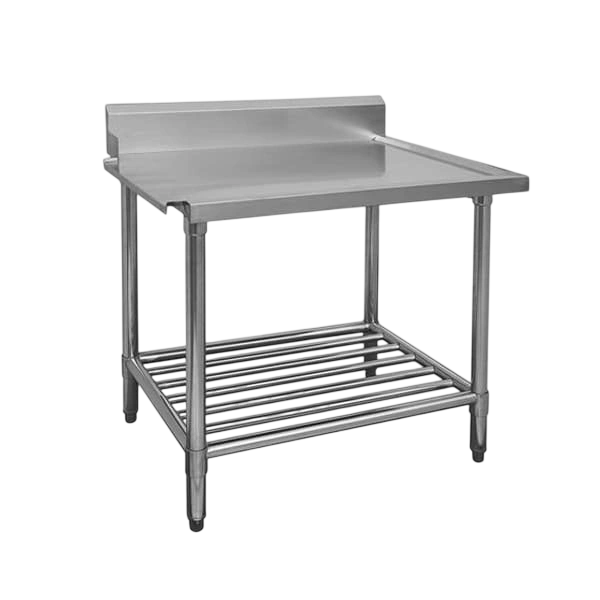

The Modular Systems WBBD7-0600L/A is a dishwasher outlet bench with a splashback and adjustable feet. It is supplied flat-packed with assembly tools and instructions; confirm the left-side connection arrangement against the dishwasher before ordering.

Choose the bench around the actual dishwasher opening, dish movement and operator position. Confirm which side is called left when facing the bench, and match the service and clearance arrangement before installation.

• Choose the bench around the actual dishwasher opening, dish movement and operator position.

• Compare WBBD7-0600R/A when the dishwasher layout requires the right-outlet arrangement.

Confirm the left-outlet arrangement while facing the installed bench and dishwasher.

Have KW confirm the complete assembled dimensions and the dishwasher connection before setting the machine position.

Confirm support, waste access and any optional castor arrangement with the installer.

• The model is identified as a left-outlet dishwasher bench; check the orientation against the complete wash-up line.
• A rear splashback separates the work surface from the wall area.

• The bench orientation and complete installed height must match the actual dishwasher.

• Modular Systems WBBD7-0600R/A Steel Dishwasher Bench Right Outlet: WBBD7-0600R/A provides the corresponding right-outlet arrangement; check the direction against the dishwasher.
• Modular Systems WBBD7-0900L/A Steel Dishwasher Bench Left Outlet: WBBD7-0900L/A is a longer left-outlet bench for a different wash-up layout.

• Fit to the dishwasher. Check the machine opening, bench side and service clearances together before assembly.
• Level and connect. Follow the supplied assembly instructions and have the installer check the final bench level and service access.

For body dimensions, see Key Specifications above.
