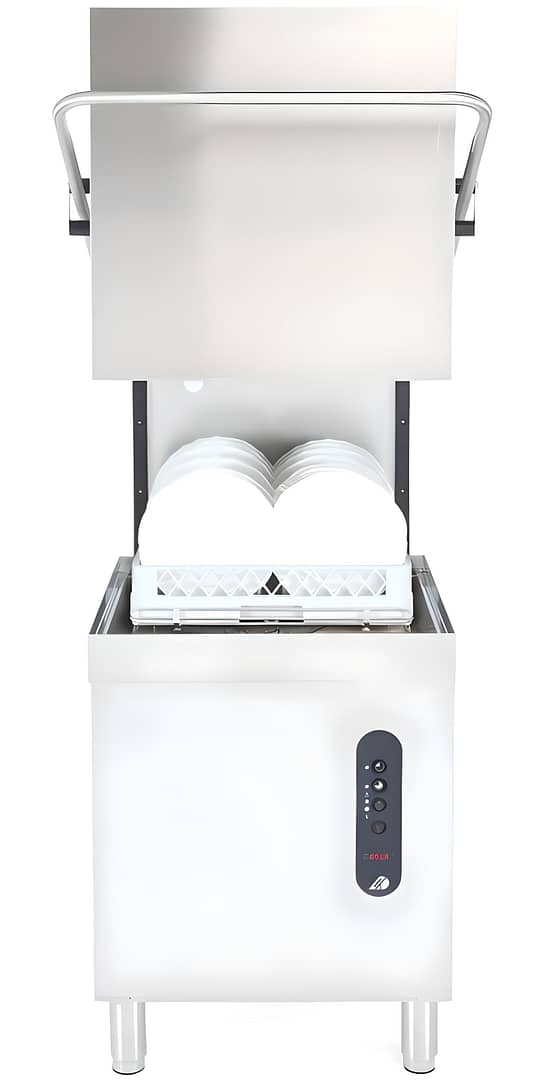

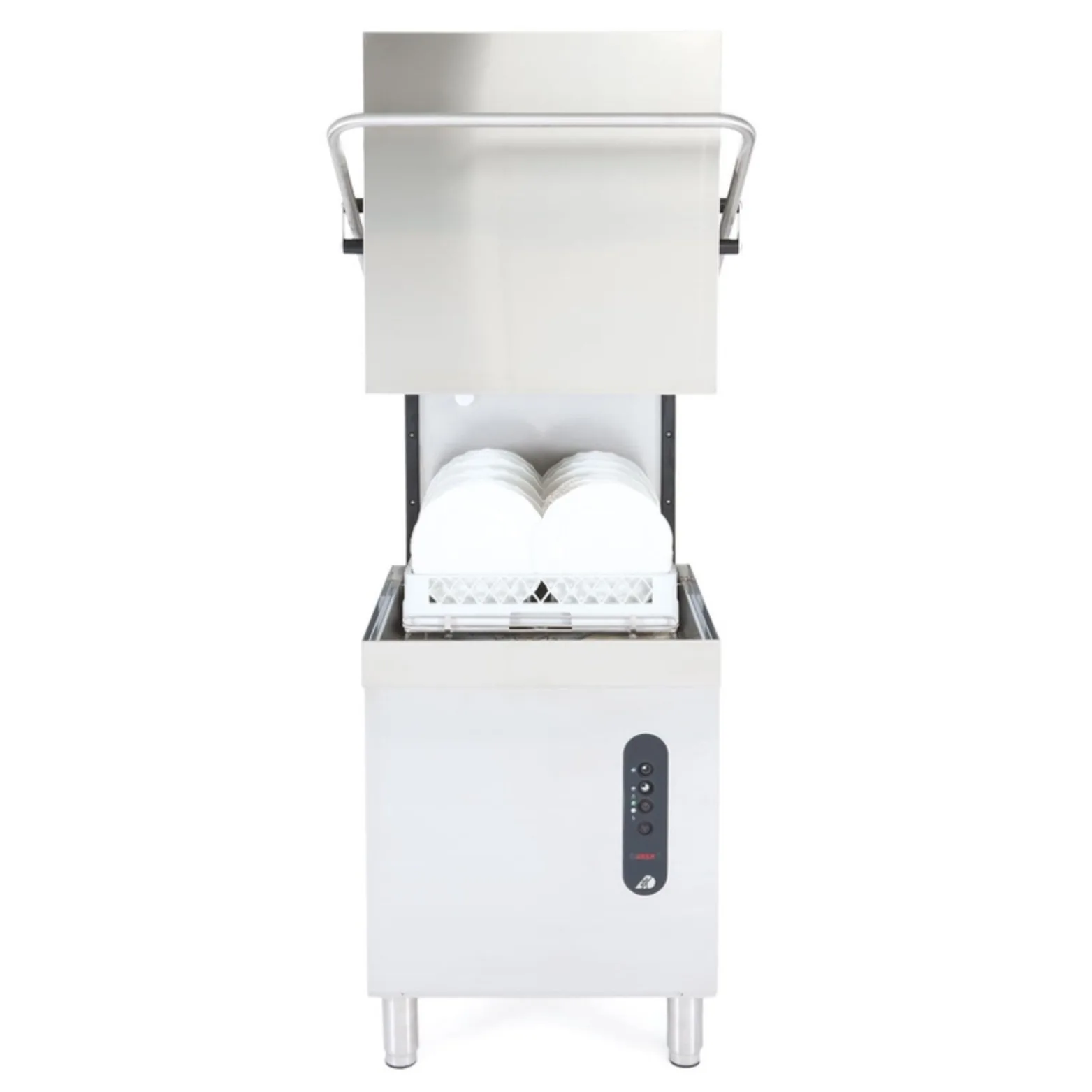

Adler DWA2001 Pass Through Dishwasher – 1PH Commercial Use
The Adler DWA2001 is a powerful 1-phase pass-through dishwasher from Italy, built for compact kitchens that require high performance without 3-phase power. With advanced ECOLINE engineering, digital control, dFilter dual-stage filtration, and durable stainless steel construction, the DWA2001 delivers robust cleaning while conserving water and energy. Ideal for smaller venues needing rapid, hygienic results without sacrificing reliability.
Why Choose Adler?
- Made in Italy: Precision-built in Europe with over 60 years of commercial dishwashing experience
- Single Phase Power: Operates on 240V 1PH for easy installation in standard kitchens

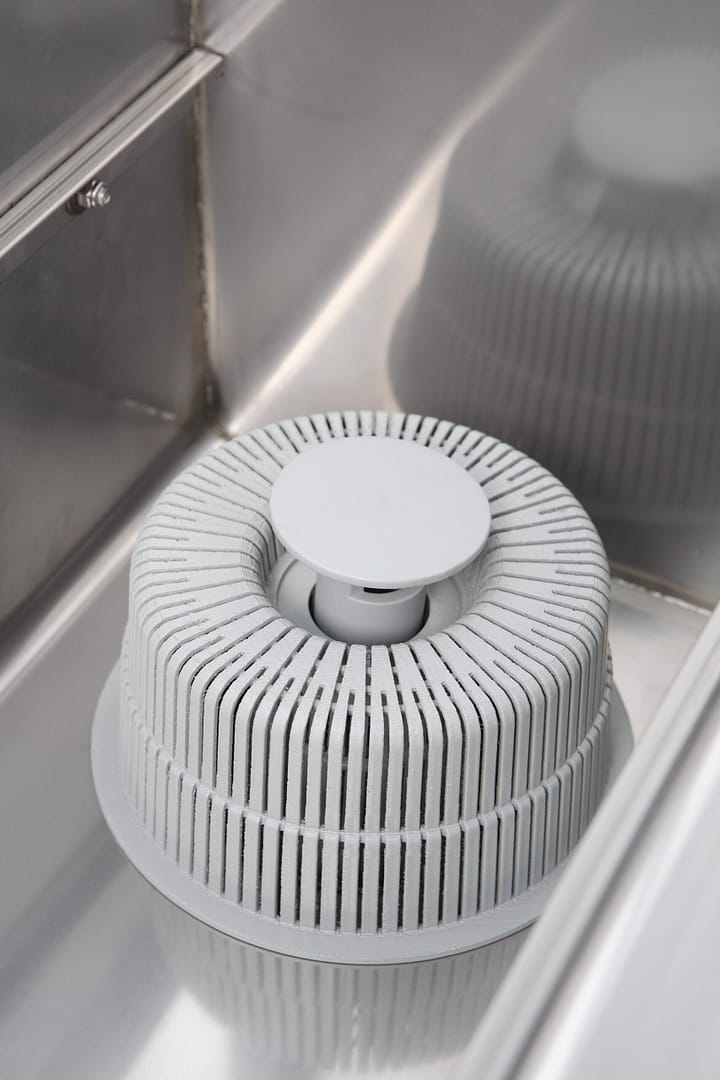

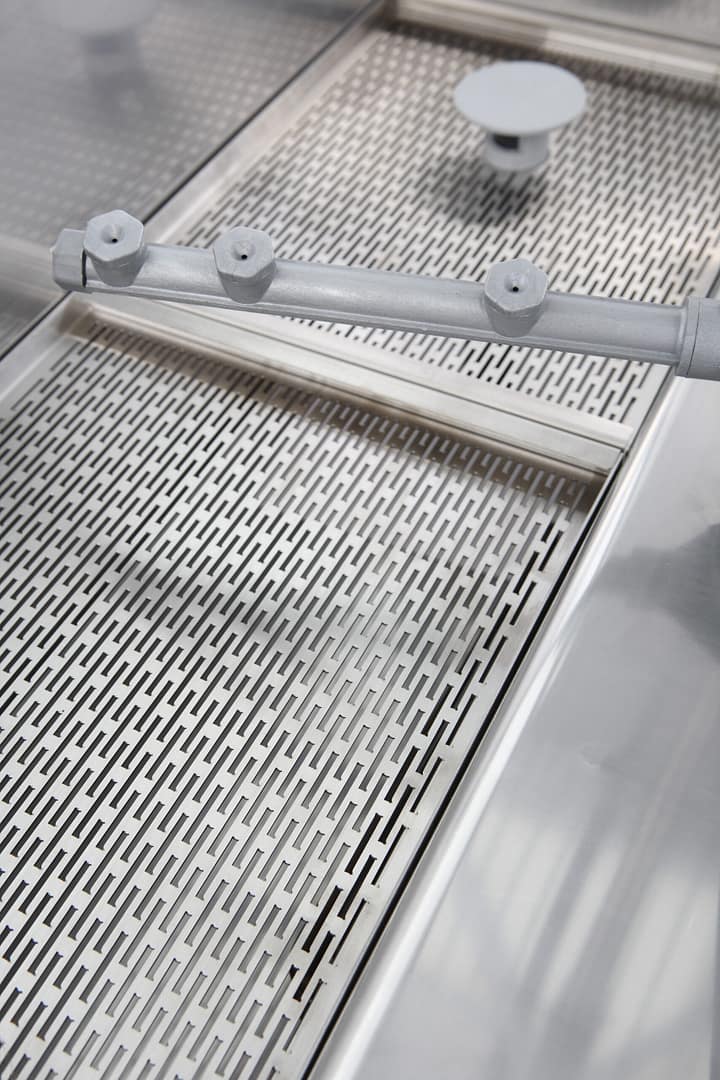

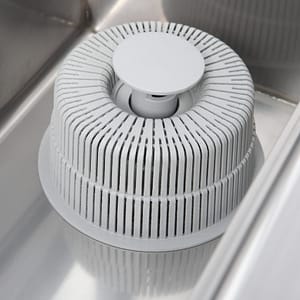

- dFilter System: Dual microfiltration ensures cleaner water, improved hygiene, and longer machine life
- Energy-Efficient: Uses only 1.7L of water per cycle and optimized 3.6kW boiler
- User-Friendly: Digital temperature display, LED interface, rinse aid + detergent pump included
Key Features
- Three programmable wash cycles: 1 min, 3 min, or 4 min (manual hold)
- 420mm internal clearance – suitable for large plates and baking trays
- Stainless steel wash arms and durable stamped body structure
- Built-in rinse aid and detergent pump
- Drain pump and Caleffi pressure control valve included

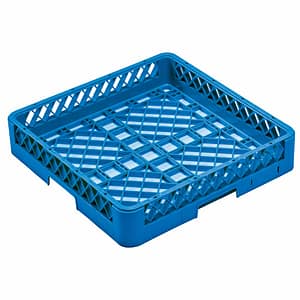

- Basket size: 2 x 500mm x 500mm racks supplied
Technical Specifications
- Tank Capacity: 20L (4kW element)
- Boiler Capacity: 10L (4kW boiler element)
- Wash Pump: 1 HP
- Water Pressure: 2–4 bar | Water Usage: 1.7L/cycle at 2 bar
- Electrical: 240V / 1PH / 15A
- Total Power: 3.6kW
- Dimensions: 630mm (W) x 750mm (D) x 1491mm (H)
- Weight: 130kg
- Warranty: 2 Years Parts / 1 Year Labour
Frequently Asked Questions (FAQs)
Who should choose the Adler DWA2001?
This model is perfect for kitchens without access to 3-phase power, such as small restaurants, cafés, and function venues that still require commercial-grade cleaning and high throughput.
How is the DWA2001 different from the DWA2000?
The DWA2001 offers identical build quality and wash performance to the DWA2000 but runs on a single-phase 240V system with a 4kW boiler, making it easier to install in standard power environments.
Does the DWA2001 require special plumbing?
No special plumbing is required beyond a cold water inlet with 2–4 bar pressure and proper drainage. The included pressure control valve and drain pump simplify installation.
Streamline your washing workflow with the Adler DWA2001 Pass Through Dishwasher – perfect for energy-conscious, space-limited, and budget-aware kitchens. View all commercial dishwashers.
