Airex AXR.FDCTSQ.09 Countertop Square Food Display – 160L, LED Lit
Updated:
Built for Australian cafés, bakeries and food service counters

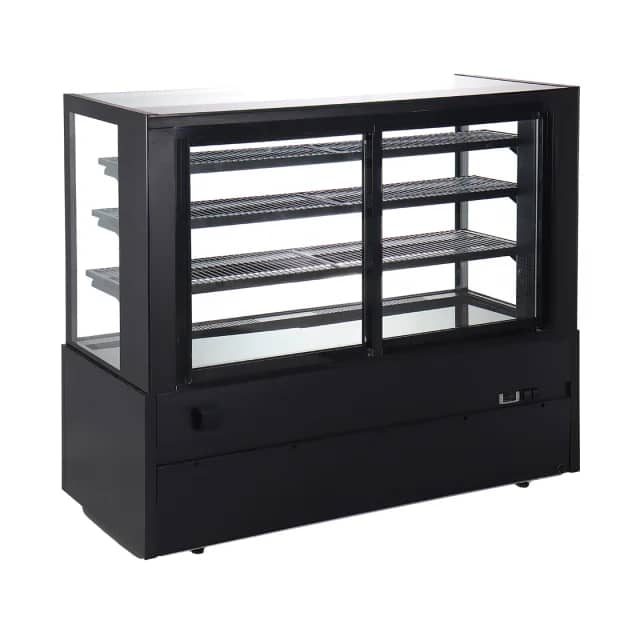

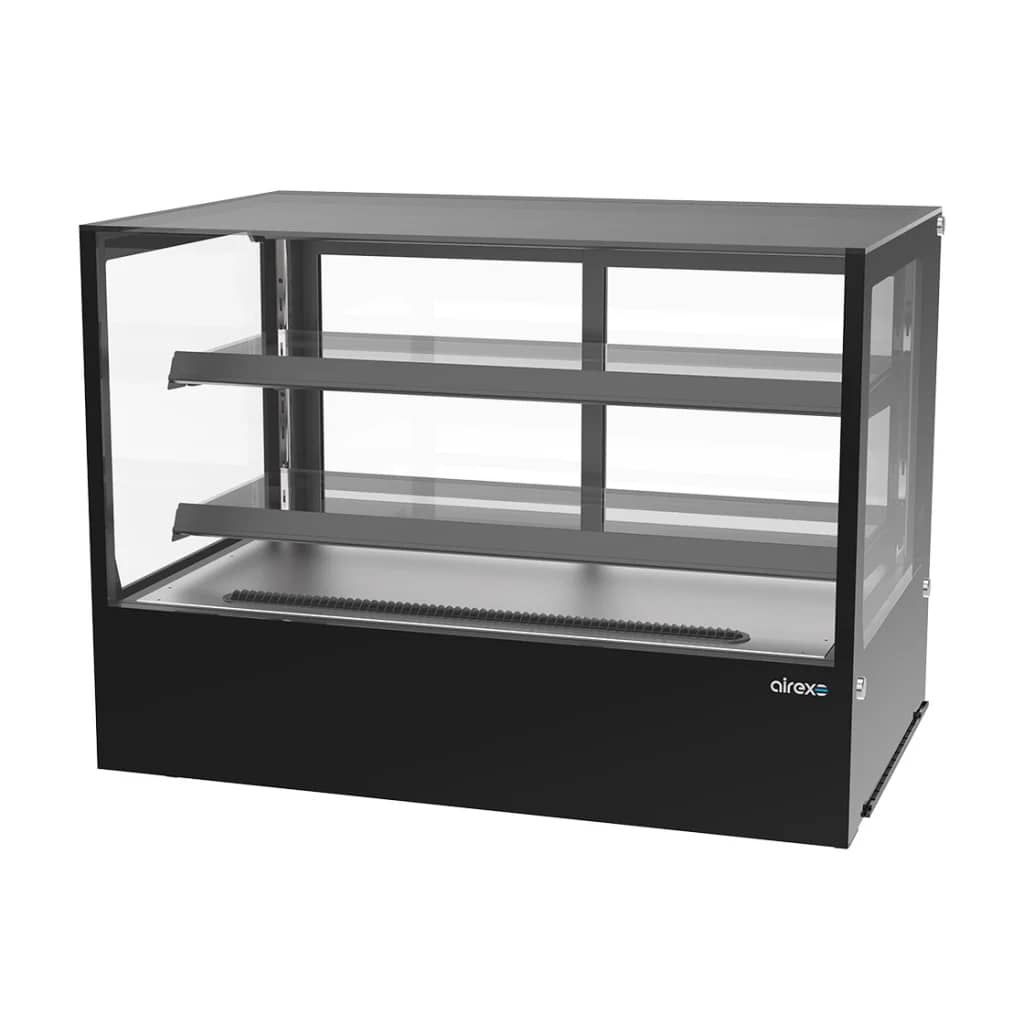

The Airex AXR.FDCTSQ.09 is a premium, commercial-grade refrigerated countertop display cabinet designed to showcase ready-to-serve cold foods while maximising visibility. It pairs fully double-glazed heated glass, energy-efficient LED shelf lighting and digital temperature control in a compact 885-mm wide footprint.
Key features & specifications
- Capacity: 160 L
- Temperature range: 2°C to 5°C
- Ambient rating: 32°C
- Power/Voltage: 0.23 kW, 230VAC / 50Hz, 10A plug & lead
- Dimensions (W×D×H): 885 × 565 × 676 mm
- Construction: Frameless double-glazed heated glass, 2 tiers, sliding rear doors, LED shelf lighting, protective coil coating
- Warranty: 24 months parts & labour
Compliance & safety (AU)
- Electrical: RCM.
- Energy: GEMS/MEPS (where applicable).
- Food safety: FSANZ-aligned cold storage; follow local council guidance.
Convenience & usage advice
- Easy loading: Use rear sliding doors to stock quickly without disrupting display
- Condensation control: Heated glass reduces fogging for consistently clear visibility
Ideal applications
- Cafés and coffee shops
- Bakeries and patisseries
- Convenience and deli counters
Frequently Asked Questions
1) How do I clean it daily without harming finishes?
Use a pH-neutral cleaner and microfibre cloth; avoid abrasives and chlorine; dry thoroughly.
2) What routine maintenance keeps performance stable?
Wipe seals weekly; clean glass and shelves daily; arrange products to allow air circulation.
3) What are the power requirements and typical energy use?
10A plug & lead; draws 0.23 kW; energy use varies with load and ambient temperature.
4) What about installation and Australian compliance?
RCM; provide 50mm ventilation clearance; site away from direct sun or heat; GEMS/MEPS compliant where applicable.
5) Are spare parts and accessories available?
Shelves, door seals and lighting are stocked. Quote model and serial for correct parts.
Specs source: official datasheet for Airex AXR.FDCTSQ.09.
