Counter Top Cold Display

1. High-Ambient FOH Conditions

Countertop locations sit in some of the harshest ambient conditions in the venue. Espresso machines, warming equipment, customer traffic and open layouts all raise the temperature around the cabinet. For this reason, commercial countertop cold displays should be rated for 32°C or 38°C ambient conditions. Units without tropical or sub-tropical rating often suffer temperature drift, condensation and reduced performance.

2. Small-Cavity Thermal Behaviour

Compact display cabinets contain far less internal air volume than full-size showcases. The reduced thermal mass makes them highly sensitive to heat ingress—each door opening or warm air sweep over the front glass causes faster temperature fluctuation. Strong evaporator response and efficient airflow are essential for maintaining stable chilled conditions during service.

3. Condensation & Fogging

The high ratio of glass area to internal volume makes countertop displays prone to fogging. Warm, humid air from customer flow, steam wands or air-conditioning vents can condense on the glass. Higher-spec units use heated glass, anti-fog coatings or double-glazed panels to maintain visibility throughout operation.

4. Fan-Assisted vs Static Cooling

Cooling system choice has amplified impact in small cabinets:

• Fan-assisted cooling: more uniform temperatures and faster recovery after door openings; ideal for packaged products and beverages.
• Static cooling: higher humidity and gentler airflow for pastries and delicate desserts, but stronger temperature gradients between shelves.

5. Temperature Stratification

Cold air settles at the bottom while warmer air accumulates near the upper shelves and glass. Because internal volume is limited, this stratification is more pronounced than in larger cabinets. Middle shelves usually provide the most stable holding conditions for appearance-sensitive products.

6. Lighting Heat Load & Colour Rendering

LED lighting improves presentation but introduces small heat inputs that are more noticeable in compact displays. Careful low-wattage placement helps reduce warming near the viewing area. Lighting tone also impacts perceived freshness:

• 3000–3500K: enhances warm tones for cakes and pastries.
• 4000–5000K: suits sandwiches, beverages and packaged foods.

A high CRI ensures true colour representation and avoids dull, washed-out appearance.

7. Refrigerant & Compressor Duty Cycle

Most modern countertop displays use R290 hydrocarbon refrigerant, providing strong performance and efficiency in warm FOH environments. Small compressors operate with higher duty cycles in these conditions, so adequate ventilation clearance and regular condenser cleaning are critical for reliable operation.

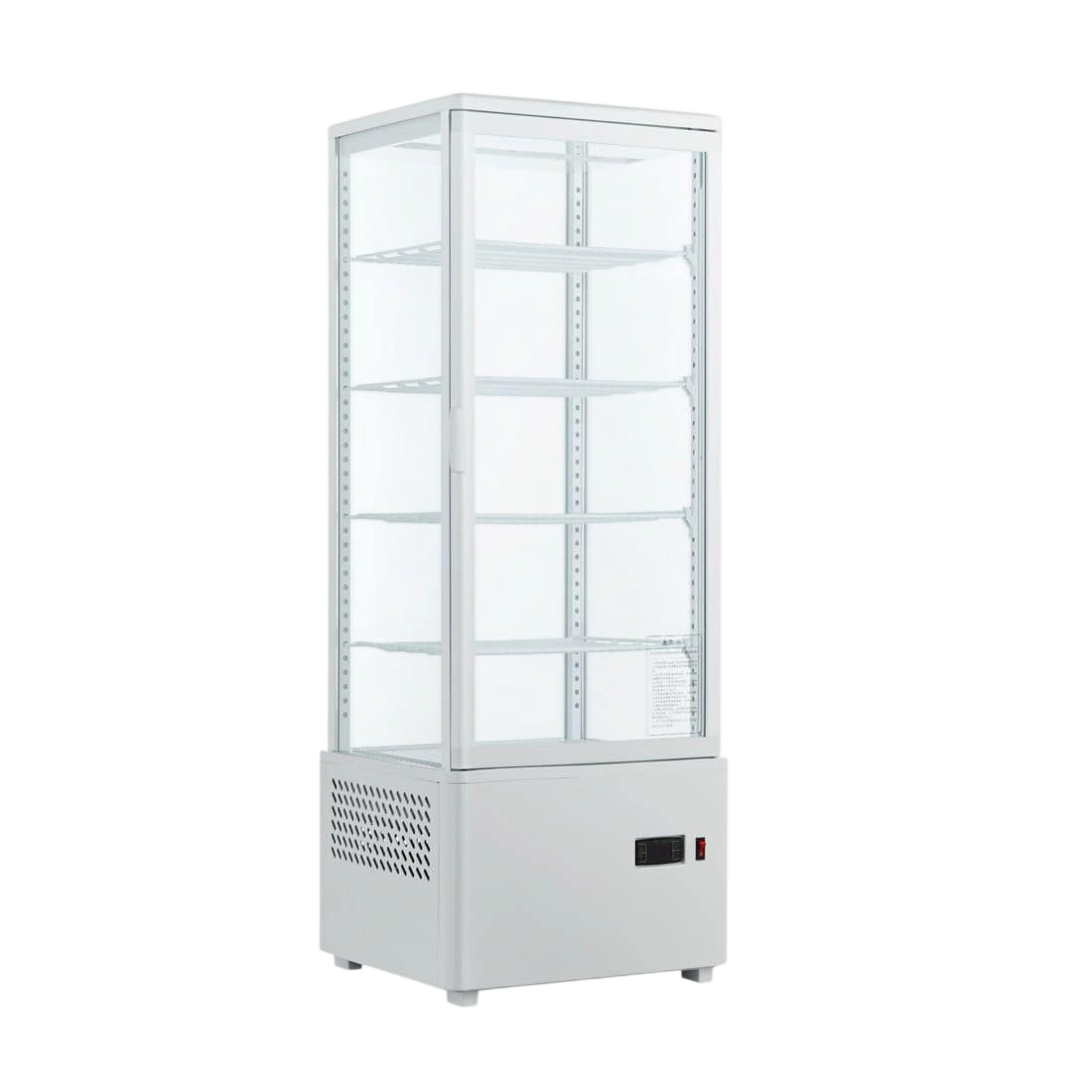

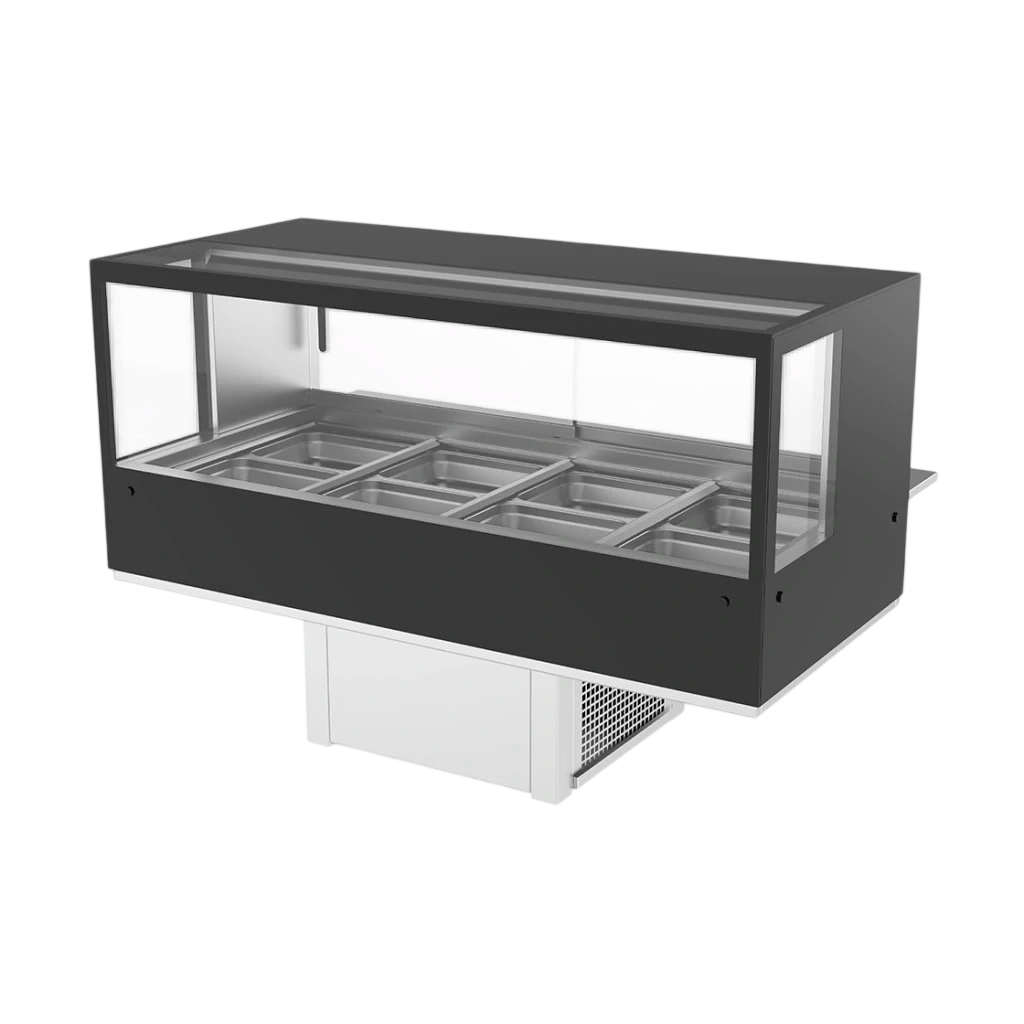

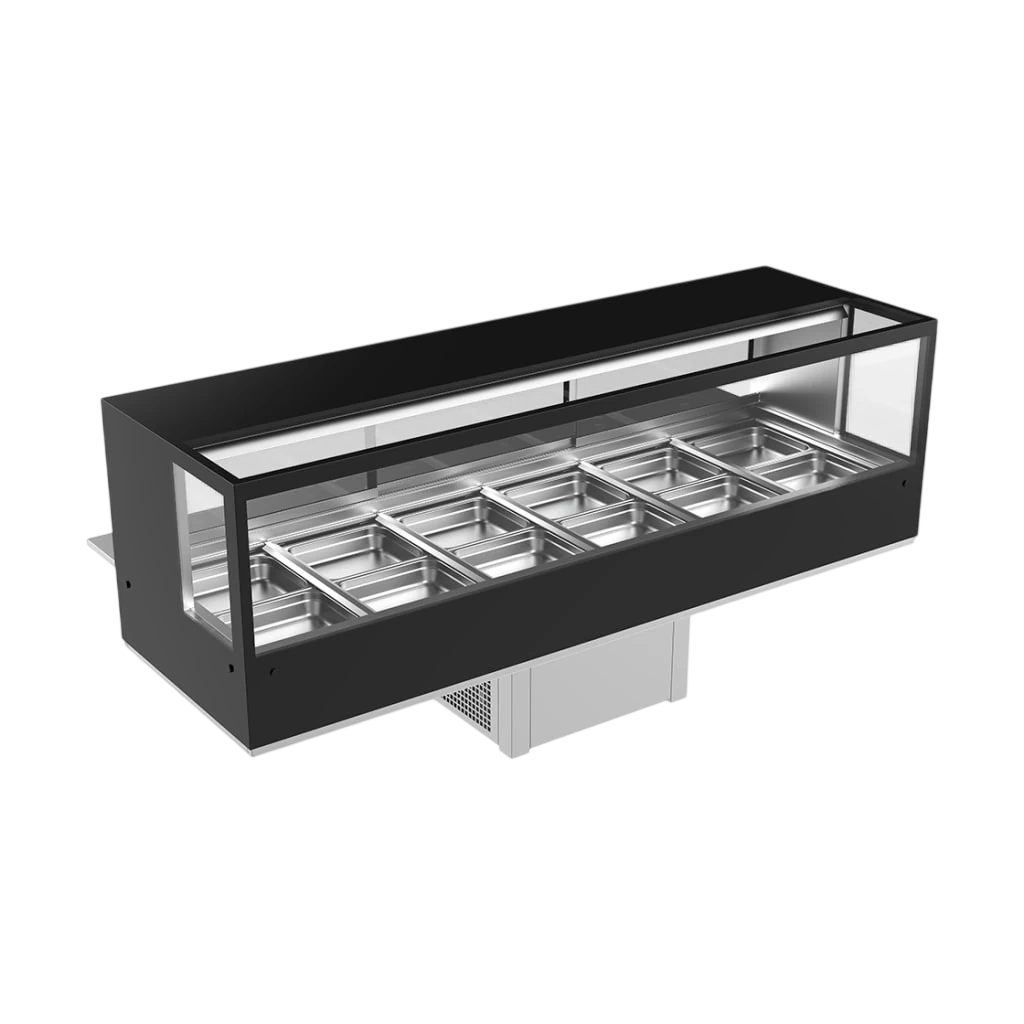

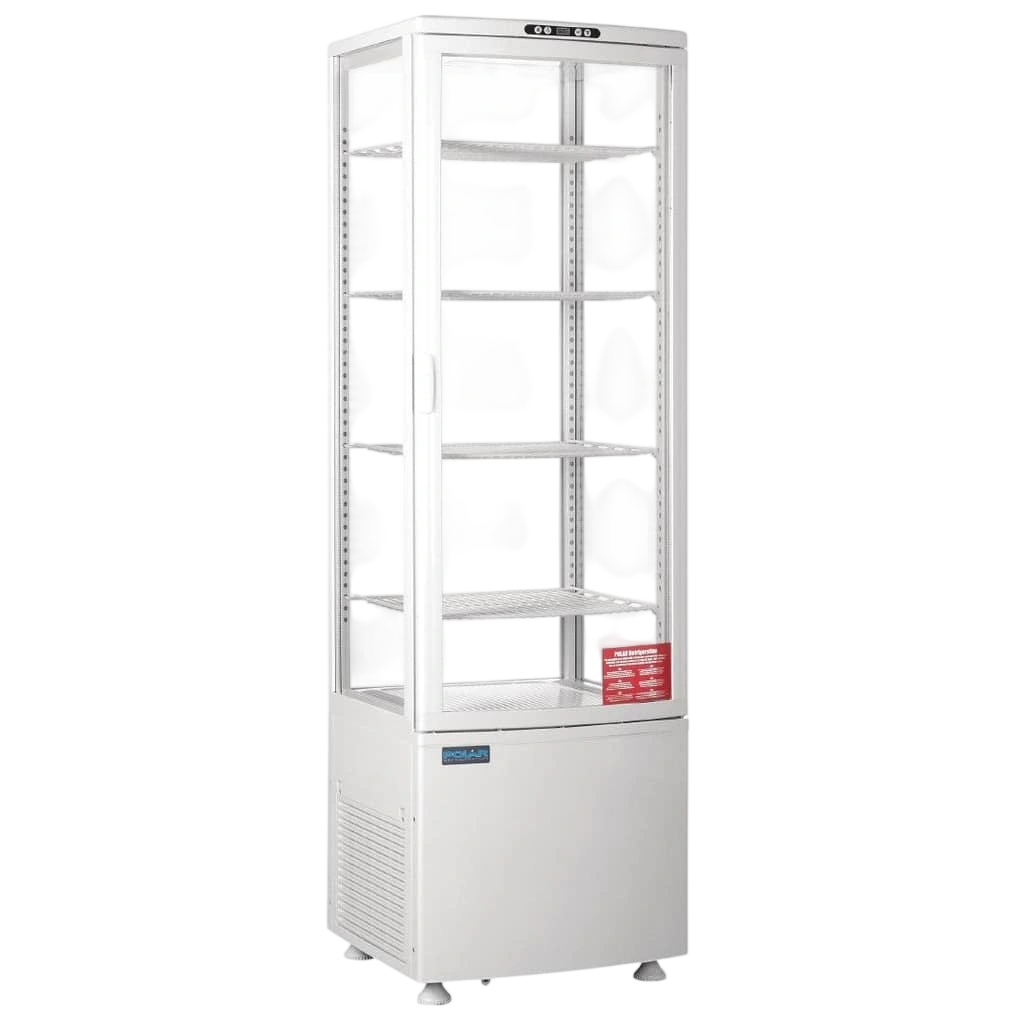

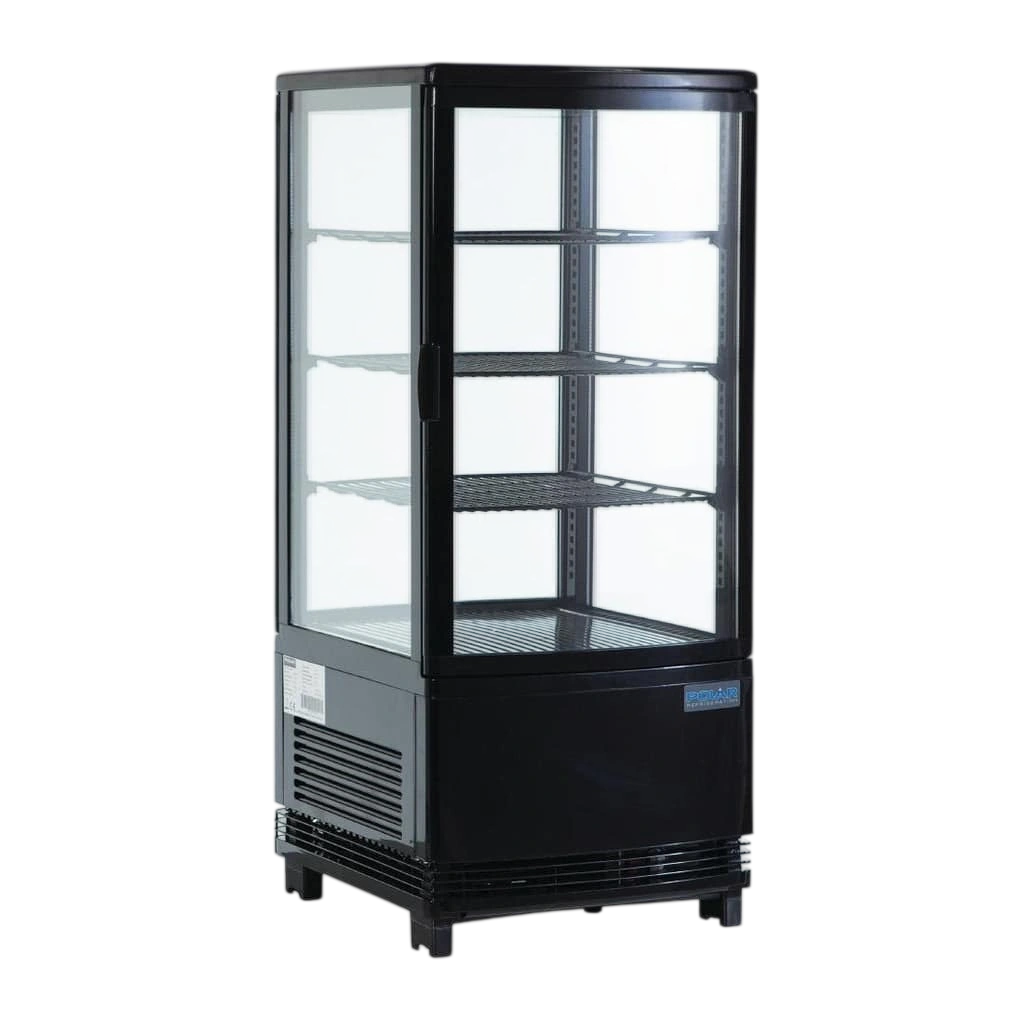

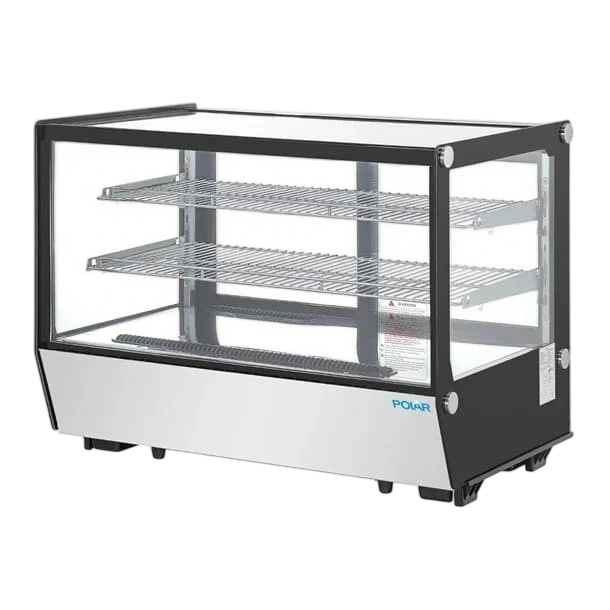

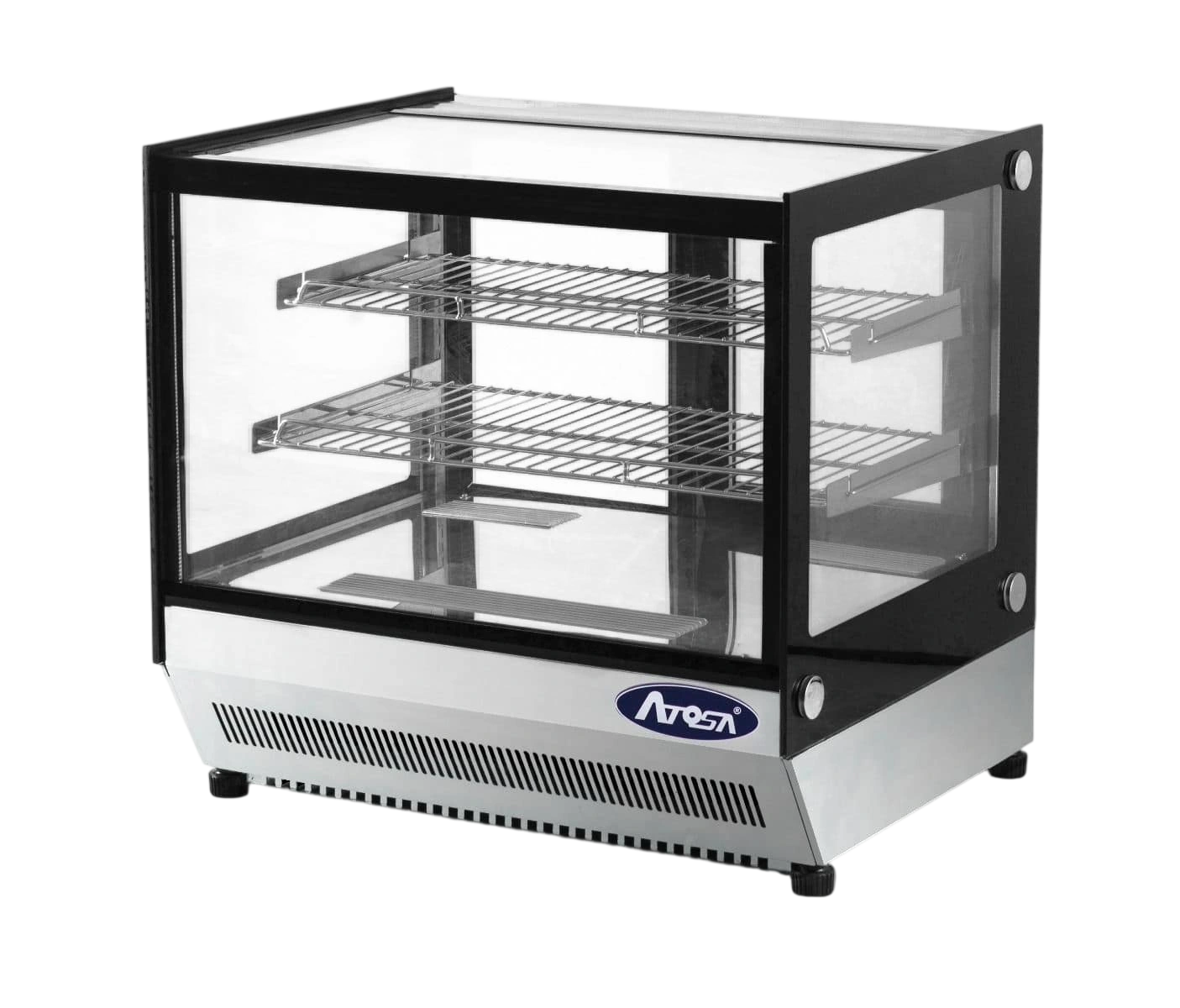

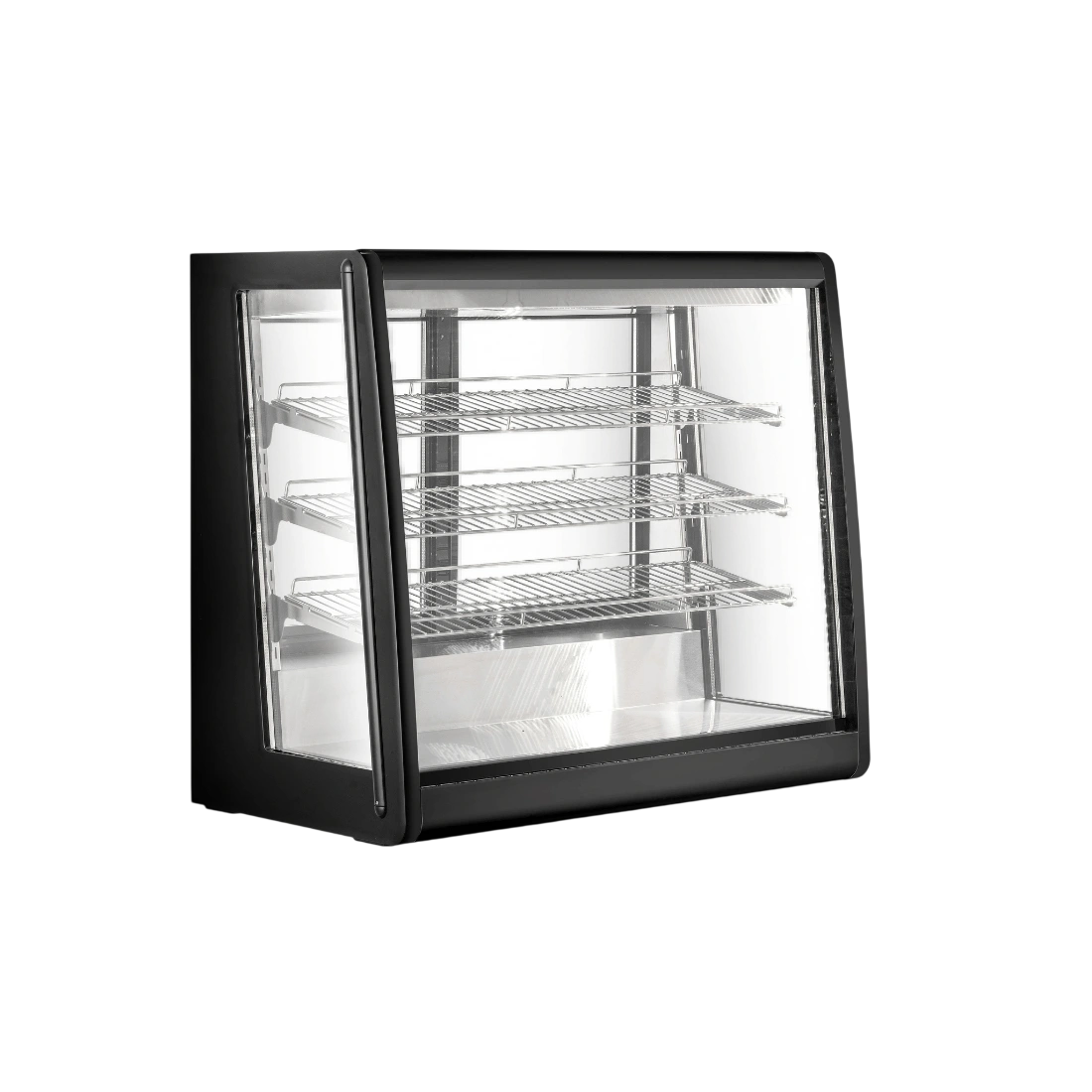

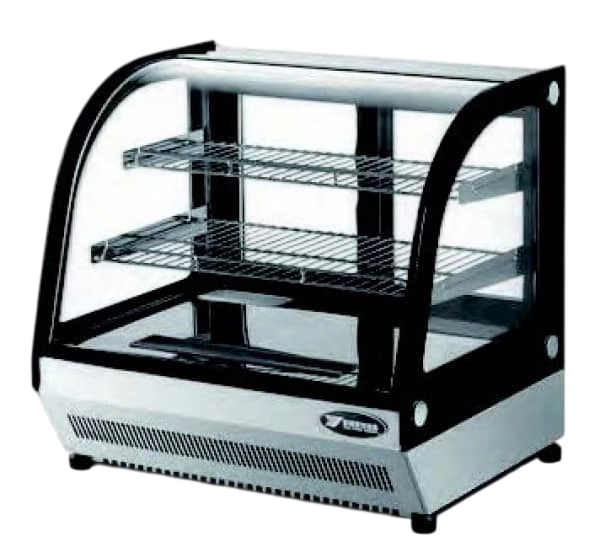

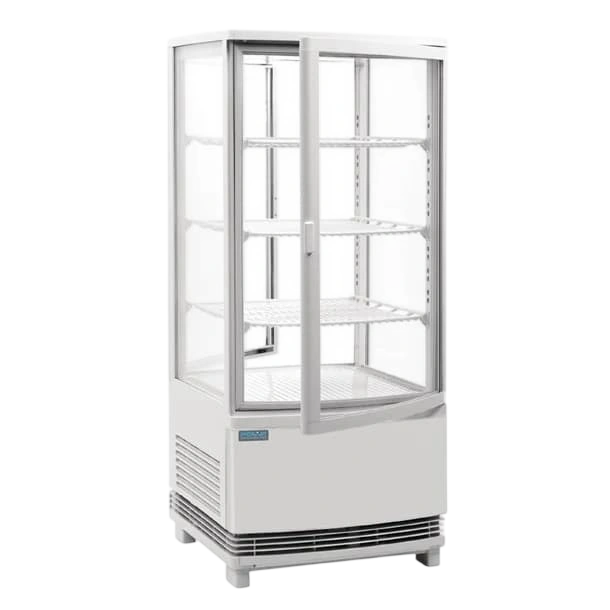

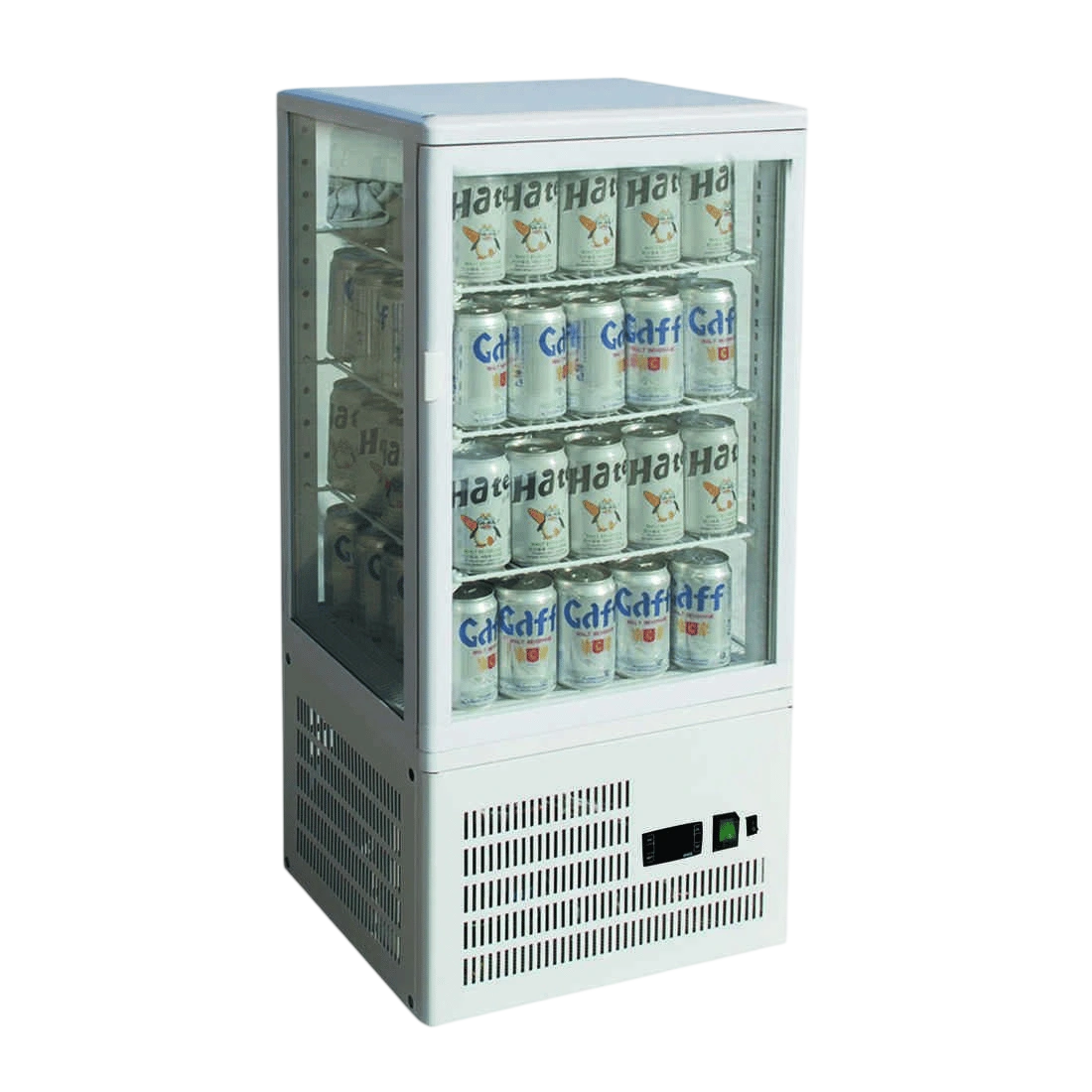

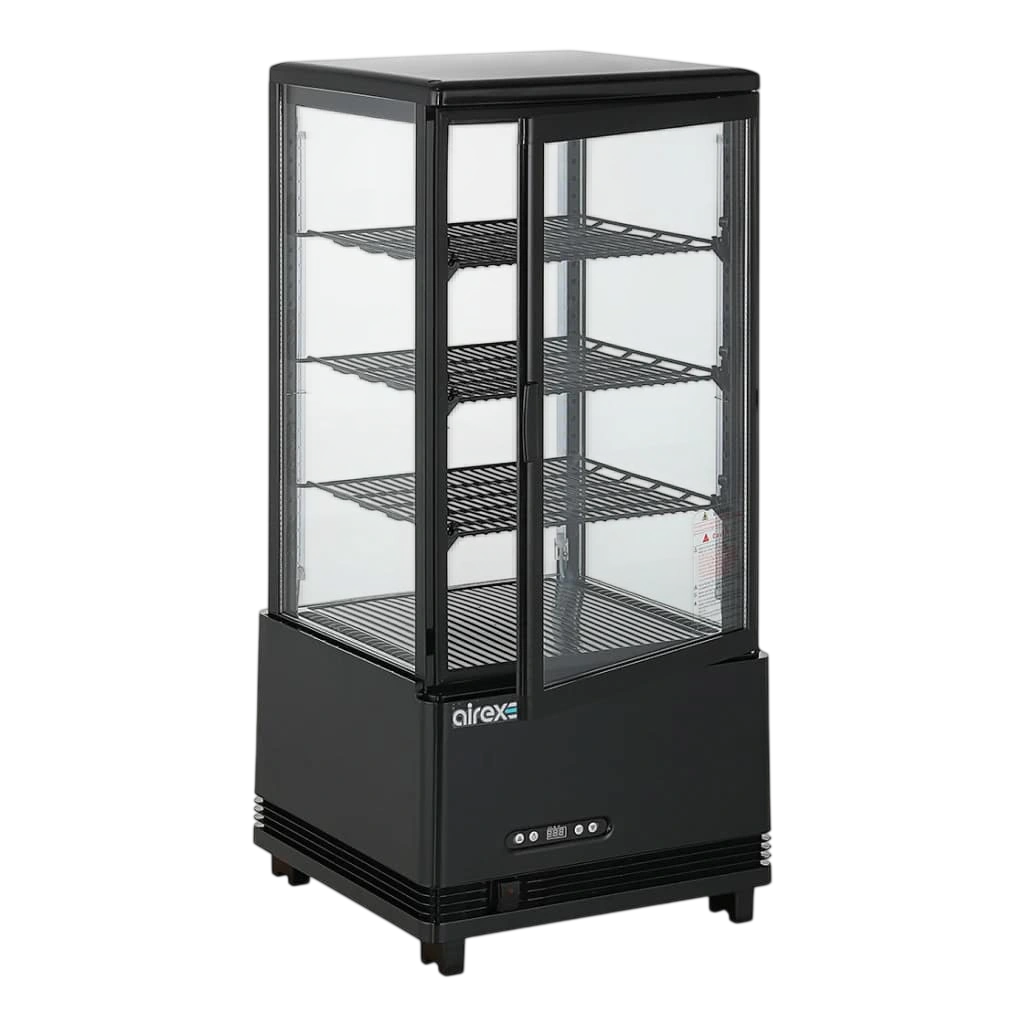

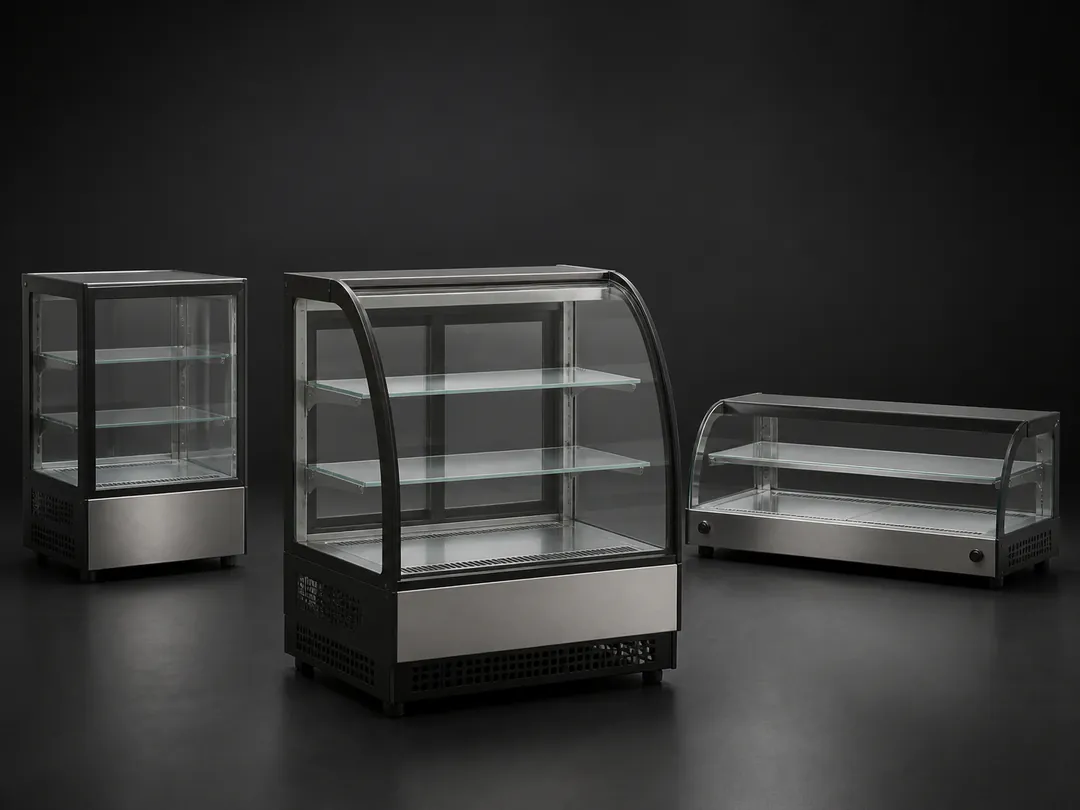

8. Vertical vs Horizontal Countertop Displays

Upright mini-displays maximise vertical visibility but may show greater temperature variation near the top. Horizontal displays generally achieve more stable stratification but offer less vertical capacity. The right geometry depends on counter layout and product mix.
