Anvil NDSV4720 4 Tier Cake Display Fridge – 190L, 600mm Wide
Updated:
Built for Australian cafés, bakeries and hospitality venues

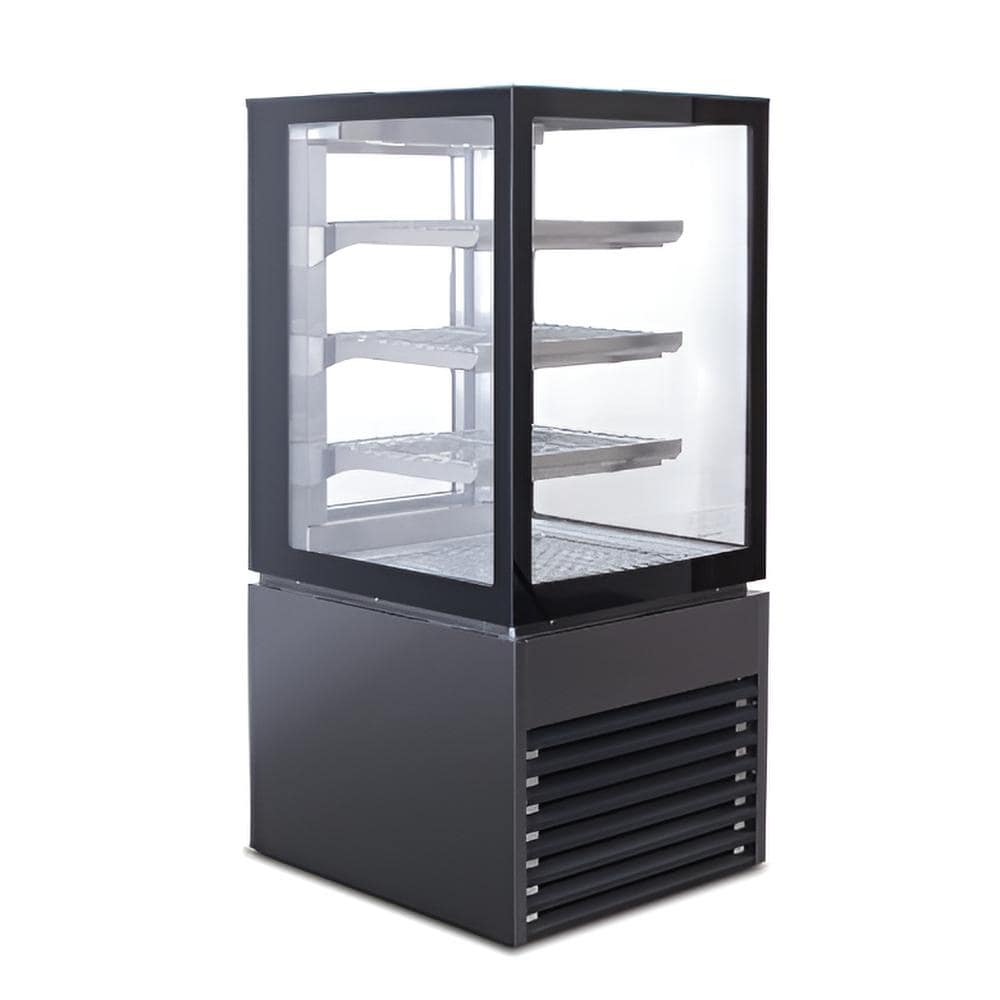

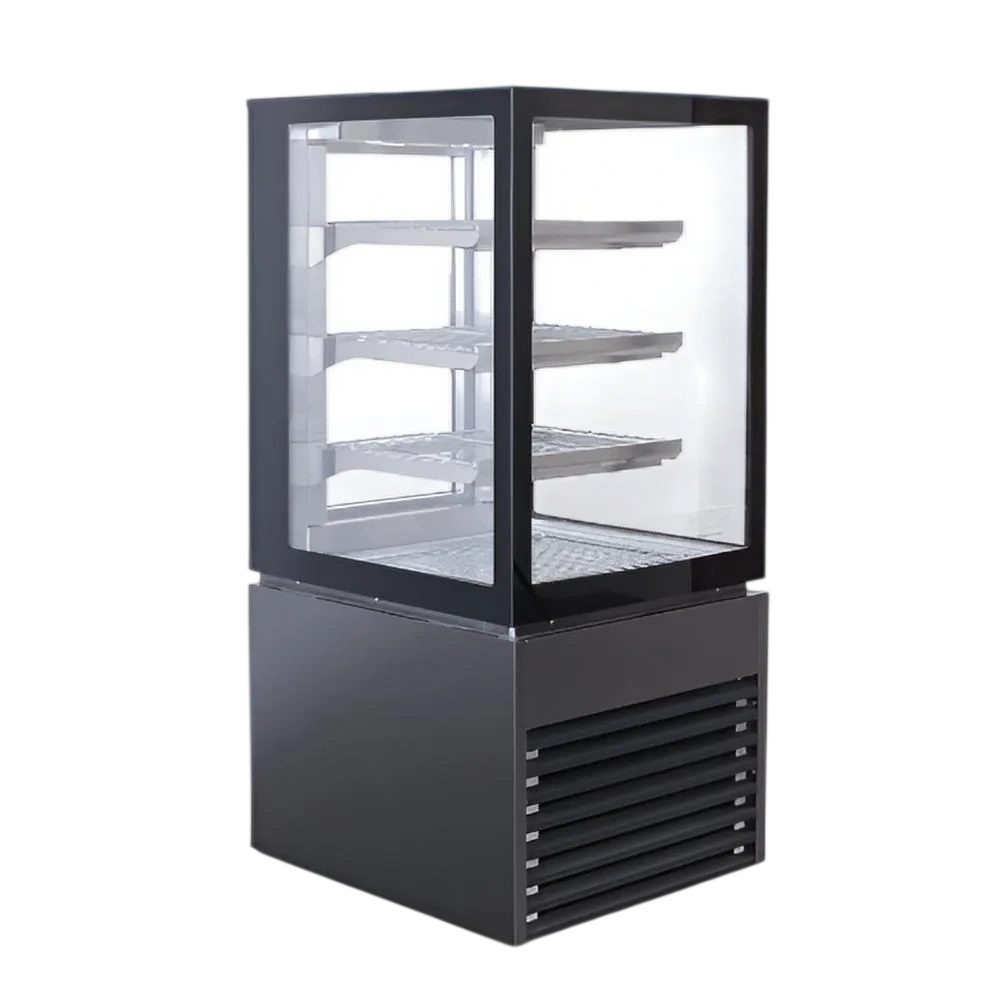

The Anvil NDSV4720 is a compact 4-tier square glass cake display fridge with a 190L capacity. Featuring warm/cool LED lighting modes, ITO heated tempered glass, and a ventilated cooling system, it ensures optimal presentation and freshness of cakes, pastries, and chilled desserts in space-limited environments.
Key features & specifications
- Capacity: 190L
- Temperature range: +2°C to +8°C
- Lighting: Warm (3000K) / Cool (6500K) LED modes

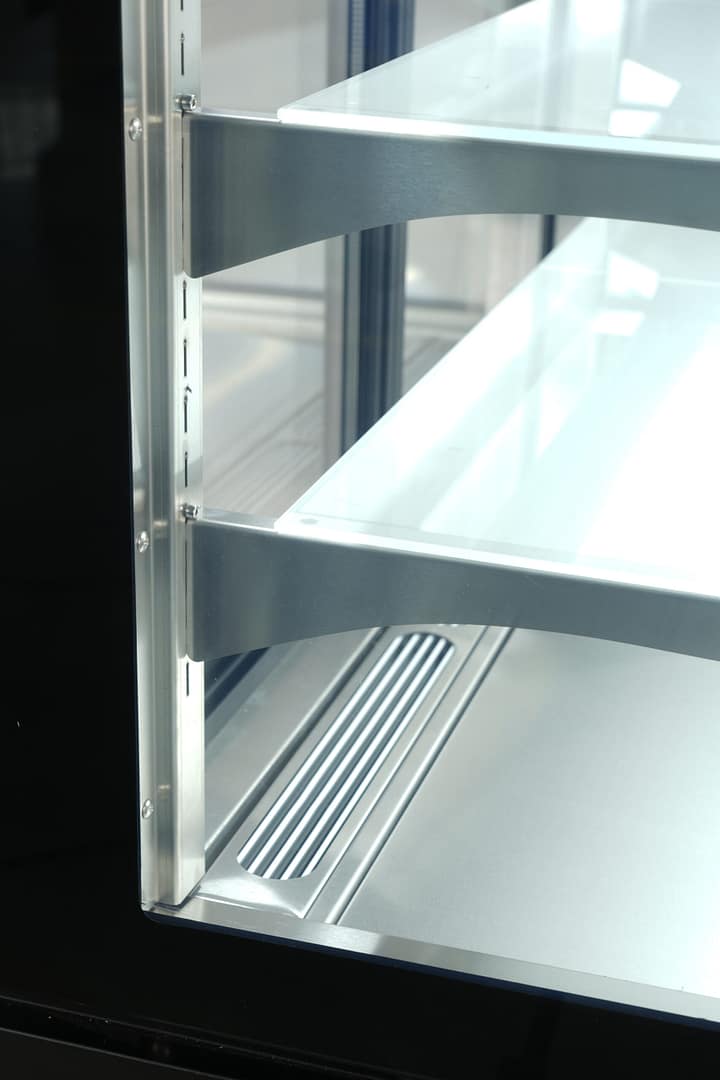

- Shelves: 3 frosted glass tiers + stainless base shelf (30kg each)
- Construction: Black brushed #304 stainless steel body
- Glass: ITO heated tempered glass (front, top, sides)
- Cooling: Ventilated system with auto defrost, R134a refrigerant

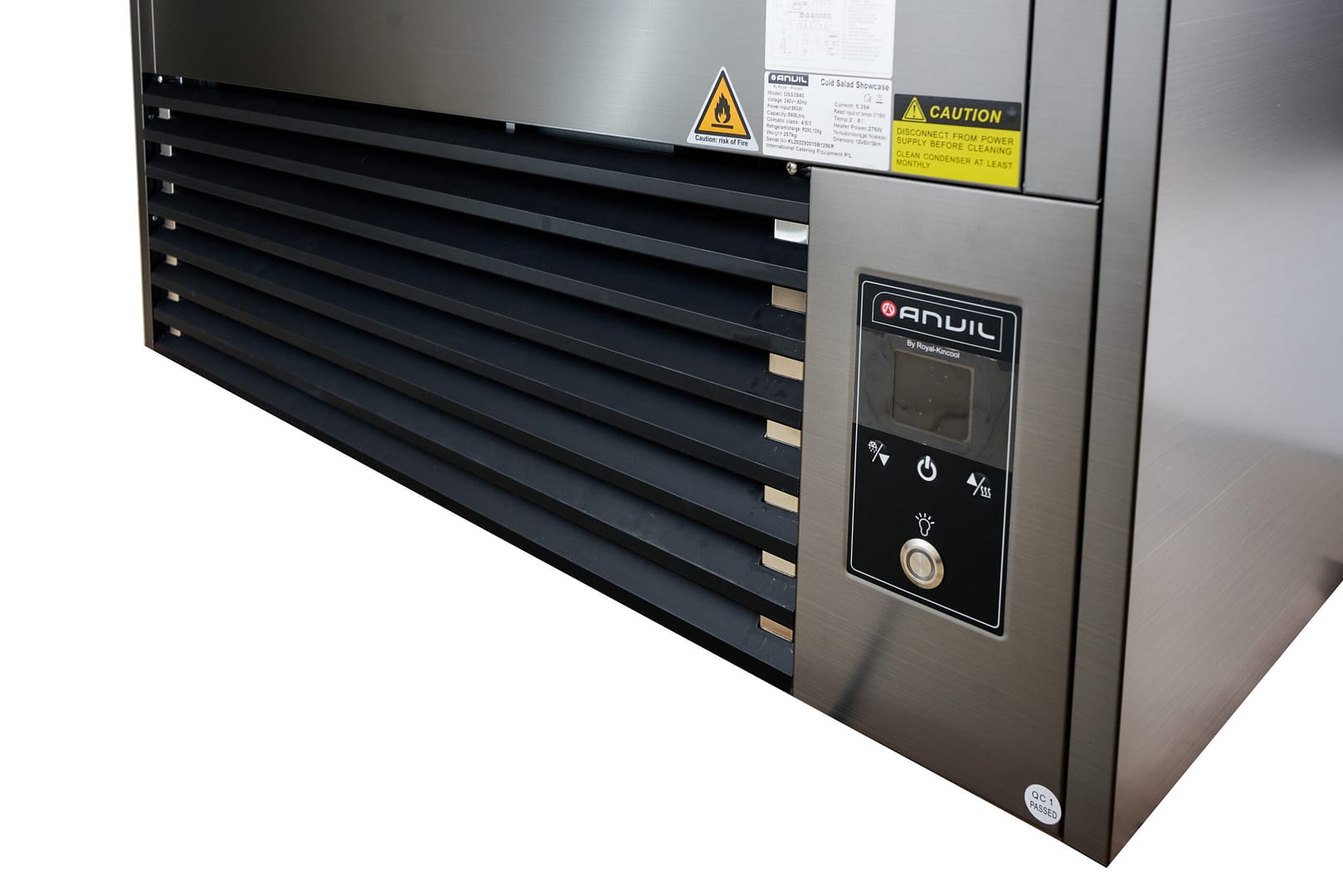

- Maintenance: Removable panels & condenser filter for easy cleaning
- Doors: Hinged rear door (special for 600mm width)
- Dimensions (W×D×H): 600 × 680 × 1350 mm
- Weight: 155kg
- Power: 0.67kW, 240V
- Ambient rating: 32°C at 82% RH
- Warranty: 2 years parts & labour (Double Gold Star Warranty)
Compliance & safety (AU)
- Electrical: 240V / RCM compliant
- Food safety: FSANZ aligned stainless steel and heated glass
- Energy: Uses R134a refrigerant
Convenience & usage advice
- Dual lighting modes: Highlight cakes with warm or cool LED to suit your display
- Compact design: 600mm width ideal for cafés with limited counter space
Ideal applications
- Cafés & patisseries
- Bakeries & dessert shops
- Hospitality & catering venues
Frequently Asked Questions
1) What makes the NDSV4720 different from larger models?
At 600mm wide, it is the most compact in the NDSV47 range, with rear & front vents and a hinged door due to size.
2) Can it be used as an ambient display?
Yes, by switching on the LED lights only, refrigeration can be disabled for ambient display.
3) Does it feature auto defrost?
Yes, it comes with ventilated cooling and auto defrost for consistent operation.
4) How easy is maintenance?
The panels and condenser filter are removable for convenient servicing.
5) What’s the shelf load capacity?
Each shelf supports up to 30kg evenly distributed.
Specs source: official datasheet and line drawing for Anvil NDSV4720:contentReference[oaicite:1]{index=1}.
