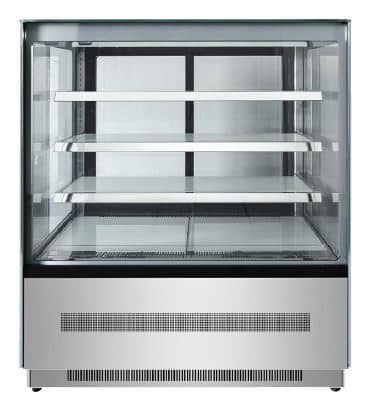

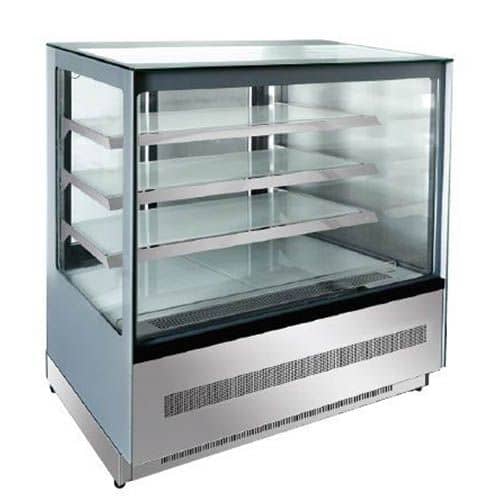

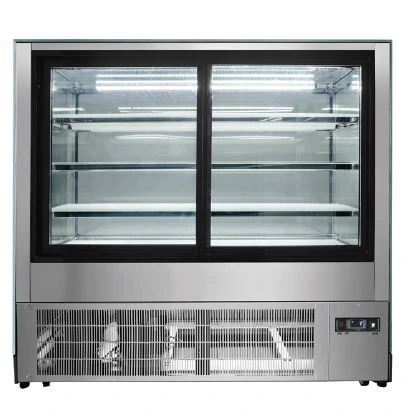

Atosa WDF177Z Cake Display – 1700 mm, Four Tier, 730 L

Updated:
14 Nov 2025

At KW Commercial Kitchen, the Atosa WDF177Z delivers a
large 730 L four-tier cake display with square heated glass,
LED illumination and 2°C–8°C temperature control—ideal for
restaurants, cafés, bakeries, clubs and bars needing a premium 1700 mm showcase
for cakes, pastries and chilled desserts.

Built for Australian hospitality environments

The WDF177Z combines SECOP refrigeration, heated anti-condensation
glass, Italian digital temperature control and sliding removable rear doors for
fast service access. Designed for 40°C ambient conditions, it suits demanding
front-of-house Australian display areas.

Key features & specifications

• Capacity: 730 L
• Temperature range: 2°C – 8°C
• Power / Voltage: approx. 1.20 kW refrigeration, 240 V single phase

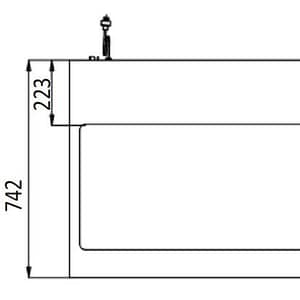

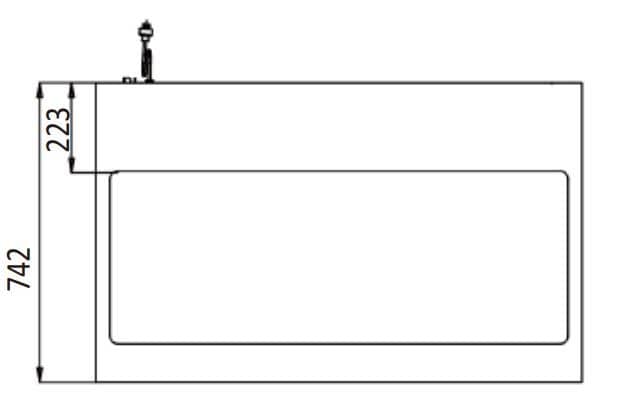

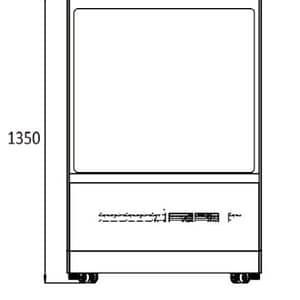

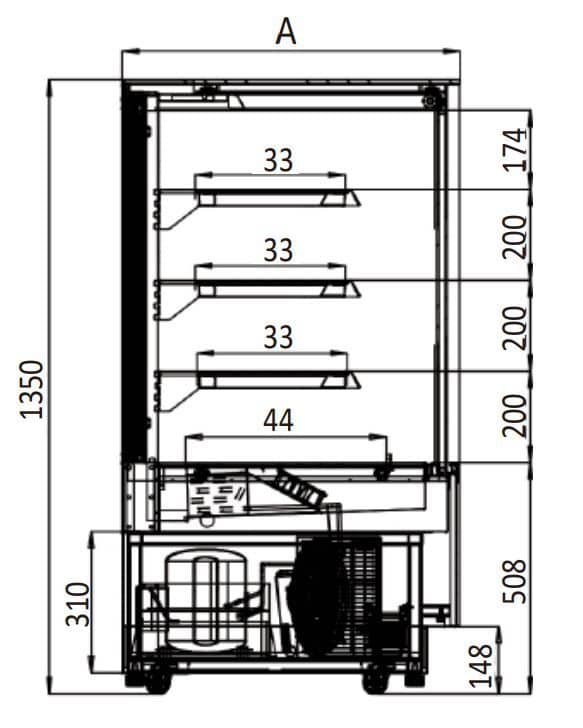

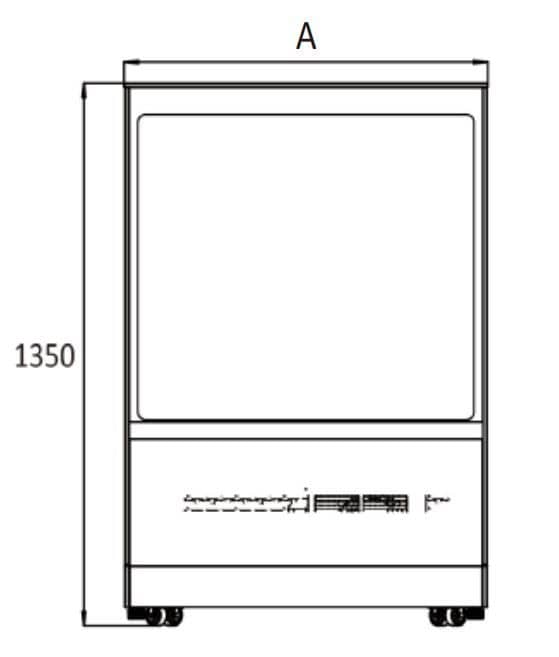

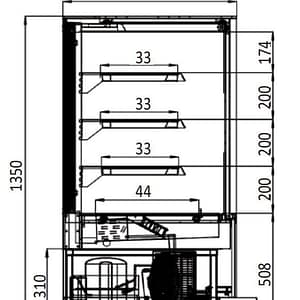

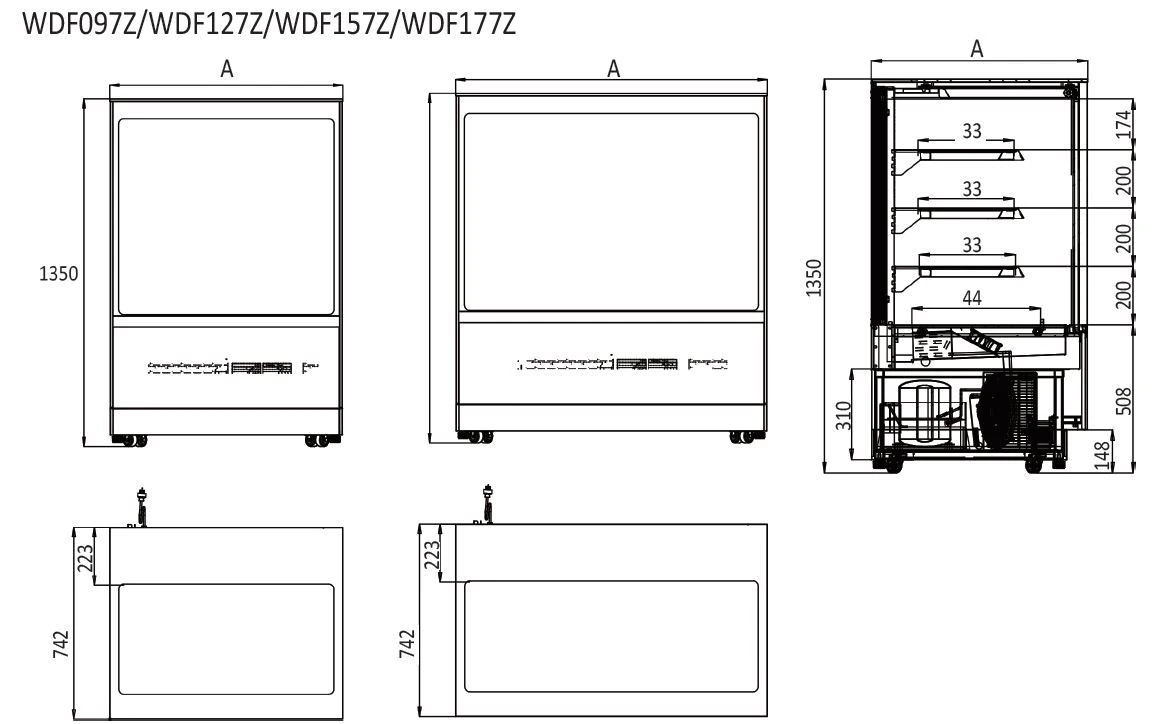

• Dimensions (W×D×H): 1700 × 750 × 1350 mm
• Weight: 353 kg (423 kg packaged)
• Construction: Square heated glass, 3 shelves (4 tiers incl. base),
  LED lighting, sliding removable back doors, castors
• Refrigeration: SECOP compressor, MEPS approved
• Best suited for: Restaurants, cafés, QSR, bakeries, pastry shops

Compliance & safety (AU)

• Electrical: RCM compliant; plug-in installation.
• Gas: N/A — electric refrigerated display.

Convenience & usage advice

• Condensation-free visibility: Heated square glass ensures clear views even in humid spaces.
• Fast restocking: Rear sliding doors and castors improve workflow and mobility.

Ideal applications

• Bakeries & patisseries
• Cafés & restaurant dessert displays
• Clubs, bars & quick service restaurants

At a glance

• 730 L capacity; 1700 mm width
• Heated square glass; LED lighting
• SECOP compressor; MEPS approved
• 2+2 year warranty (parts & labour + compressor)

Frequently Asked Questions

1) How do I clean it daily without harming finishes?

Use pH-neutral cleaners on glass and stainless surfaces. Avoid abrasive pads.
Dry all areas to maintain heated-glass clarity.

2) What routine maintenance keeps performance stable?

Weekly: clean shelves, door runners and internal glass.
Monthly: dust condenser vents and confirm rear airflow is unobstructed.

3) What are the power requirements and typical energy use?

240 V single phase. Approx. 1.20 kW refrigeration load (estimated from comparable MEPS-rated displays).
Daily energy use varies by ambient (rated for 40°C).

4) What about installation and Australian compliance?

MEPS approved, RCM electrical compliance. Provide adequate ventilation at the rear and avoid heat sources.

5) Are spare parts and accessories available?

Yes — shelves, LED modules, controllers, fans and glass assemblies are available.
Provide WDF177Z when requesting parts.
