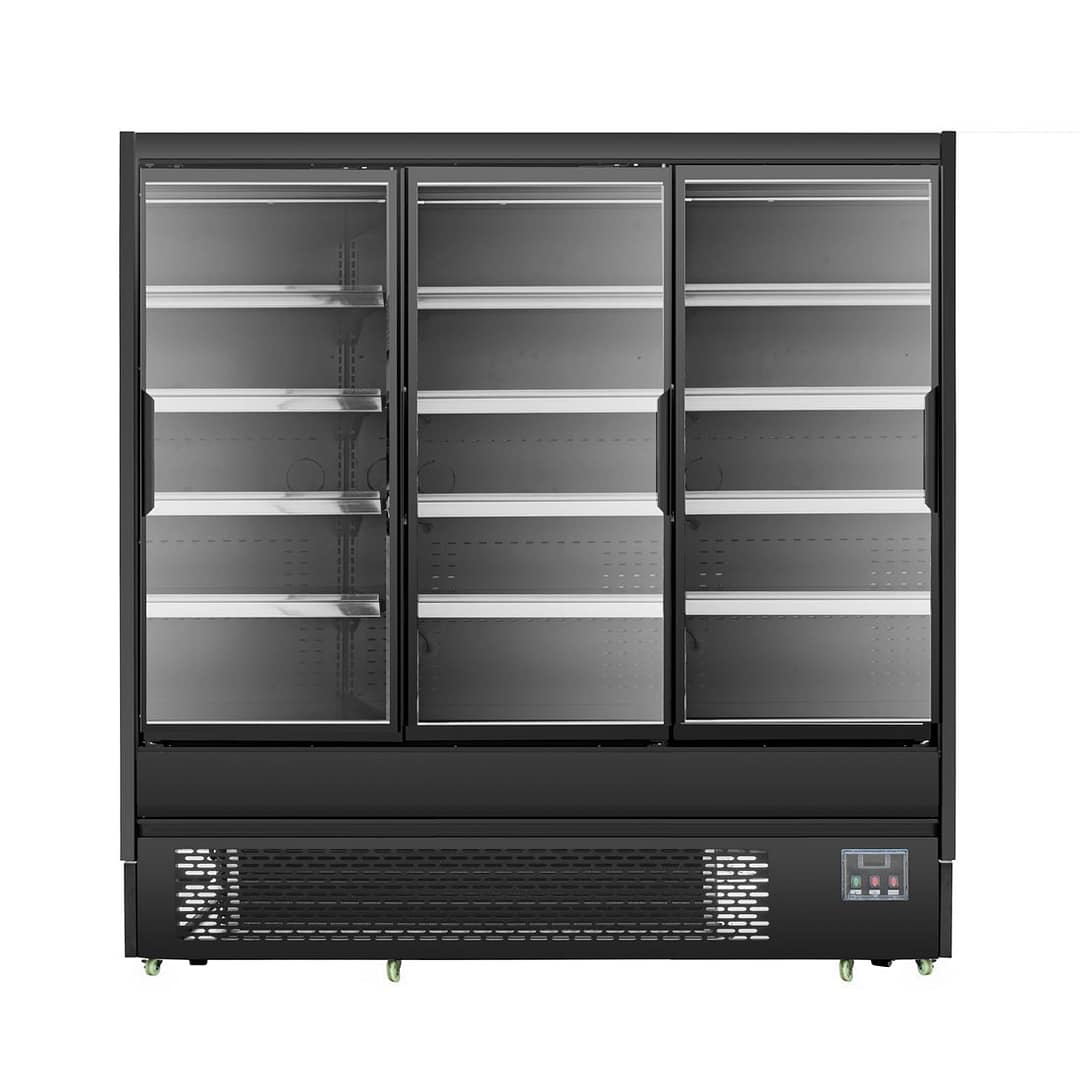

Bonvue OD-2080P 4 Shelves Open Chiller with Tempered Glass Doors

The Bonvue OD-2080P is a four-shelf refrigerated display for supermarket food presentation. Adjustable shelves, LED lighting and digital temperature control support a +2 to +5°C display.

For supermarket and retail food displays needing four adjustable shelves with lighting at each level. Assess it against the 25°C ambient and 65% relative humidity conditions. Choose another cabinet if the available access, electrical supply or display environment does not suit.

Measure the access route and display location against the 1935 × 787 × 2030 mm cabinet dimensions. The packed dimensions are 2075 × 920 × 2155 mm, so check whether the cabinet must be unpacked before passing through the intended entrance.

Match the shelf arrangement to the products being displayed and check that the room suits the 25°C ambient and 65% relative humidity conditions.

Plan for the 240 V, 2386 W supply and 10 A connection. Compare the electrical rating with the intended operating pattern and site utilities, and follow operating instructions and site procedures for commissioning, cleaning, maintenance and service access.

• Electrical supply. The cabinet requires 240 V, with rated power of 2386 W and a 10 A connection rating.
• Ambient conditions. The operating ambient conditions are 25°C and 65% relative humidity.
• Condensate handling. The cabinet uses hot-pipe-assisted water-drain evaporation.

For body dimensions and weight, see Key Specifications above.
