FED-X XSS7C13S2V Two Door Sandwich Counter – 282L
Updated:
Built for Australian restaurants, cafés & sandwich bars

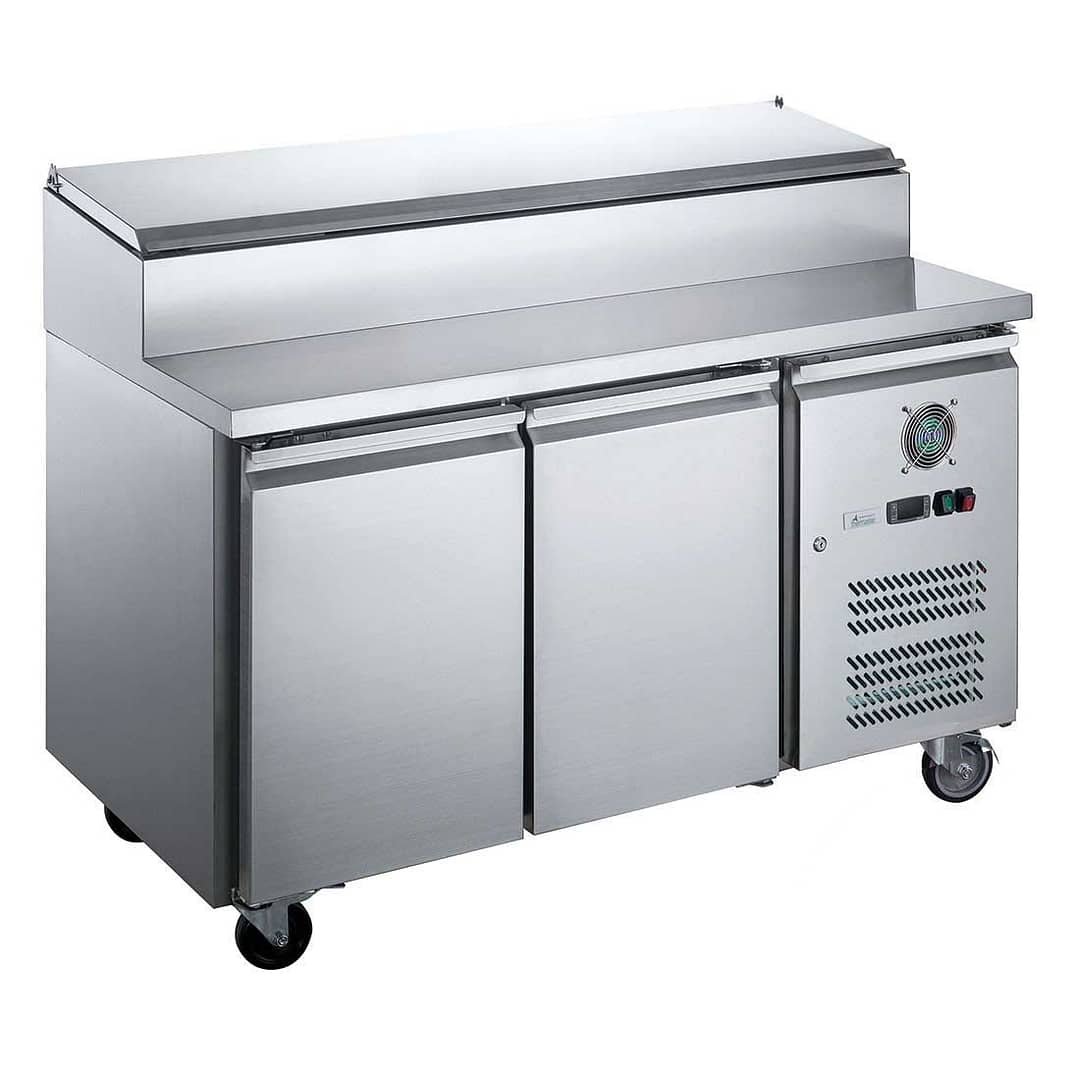

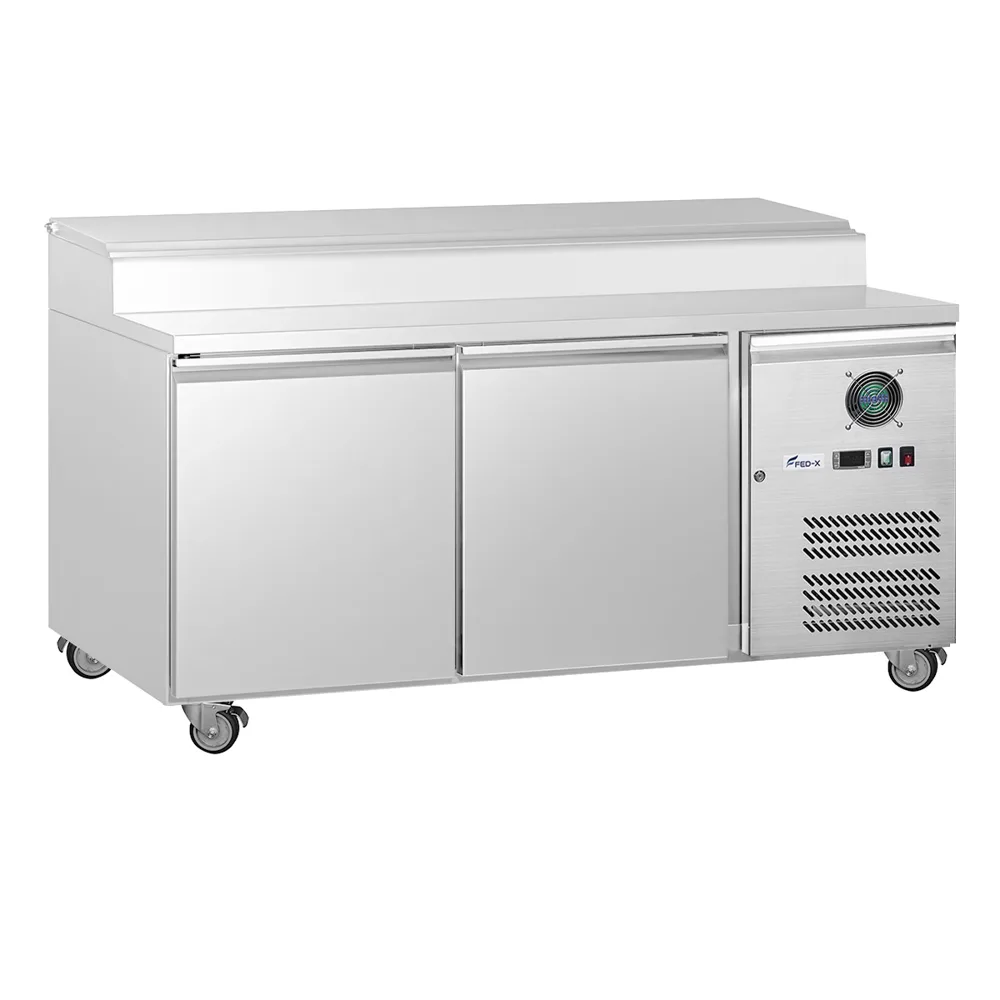

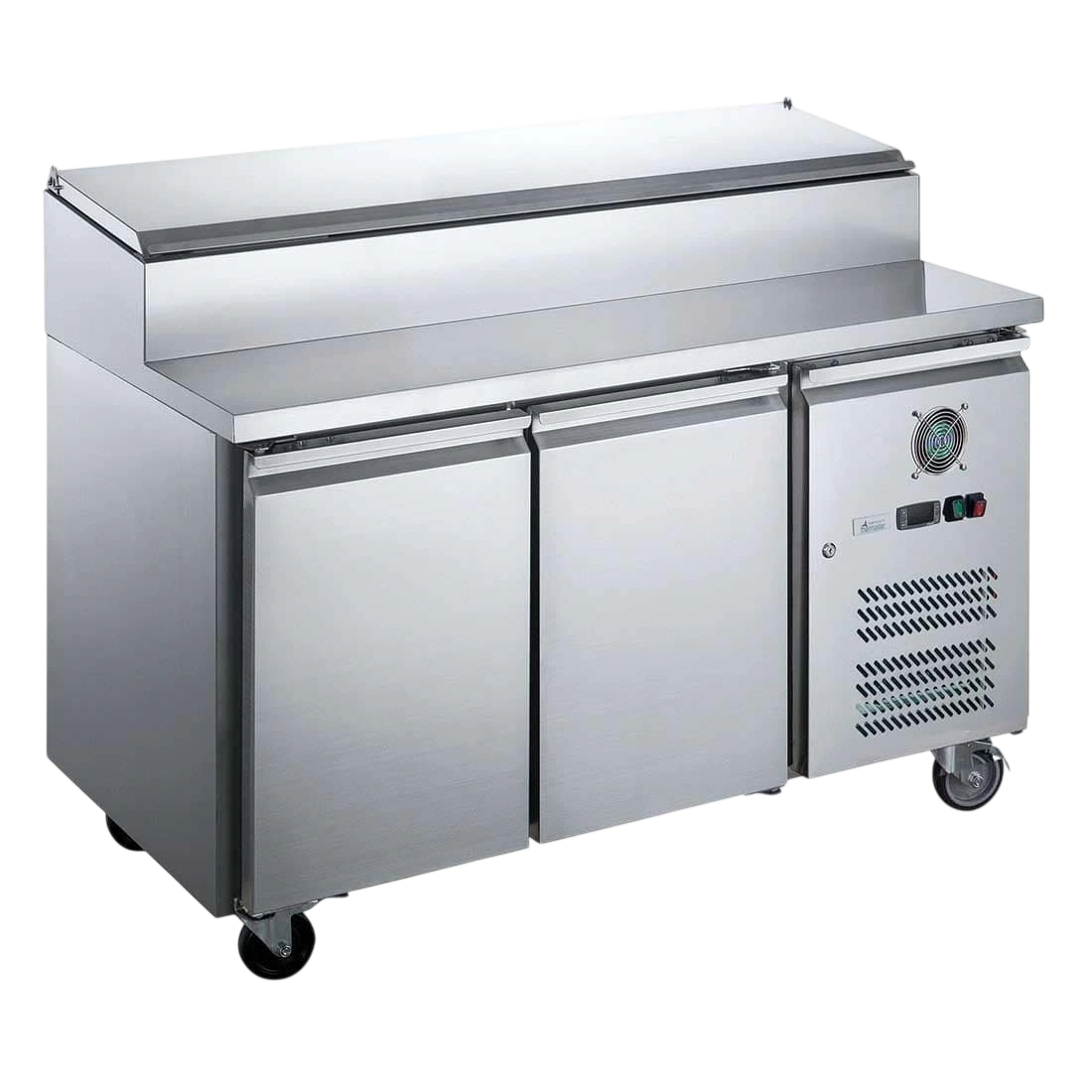

The FED-X XSS7C13S2V is a two-door stainless steel sandwich counter with 282L of refrigerated storage, fan-forced cooling, and GN pan compatibility. It’s powered by a Cubigel compressor and Dixell digital controller, ensuring reliable temperature control in hot, high-demand kitchen environments.
Key features & specifications
- Capacity: 282L
- Temperature range: +2°C to +8°C
- Ambient rating: Up to 43°C
- Power/Voltage: 320W, 240V / 50Hz / 10A
- Dimensions (Internal): 799 × 580 × 564 mm

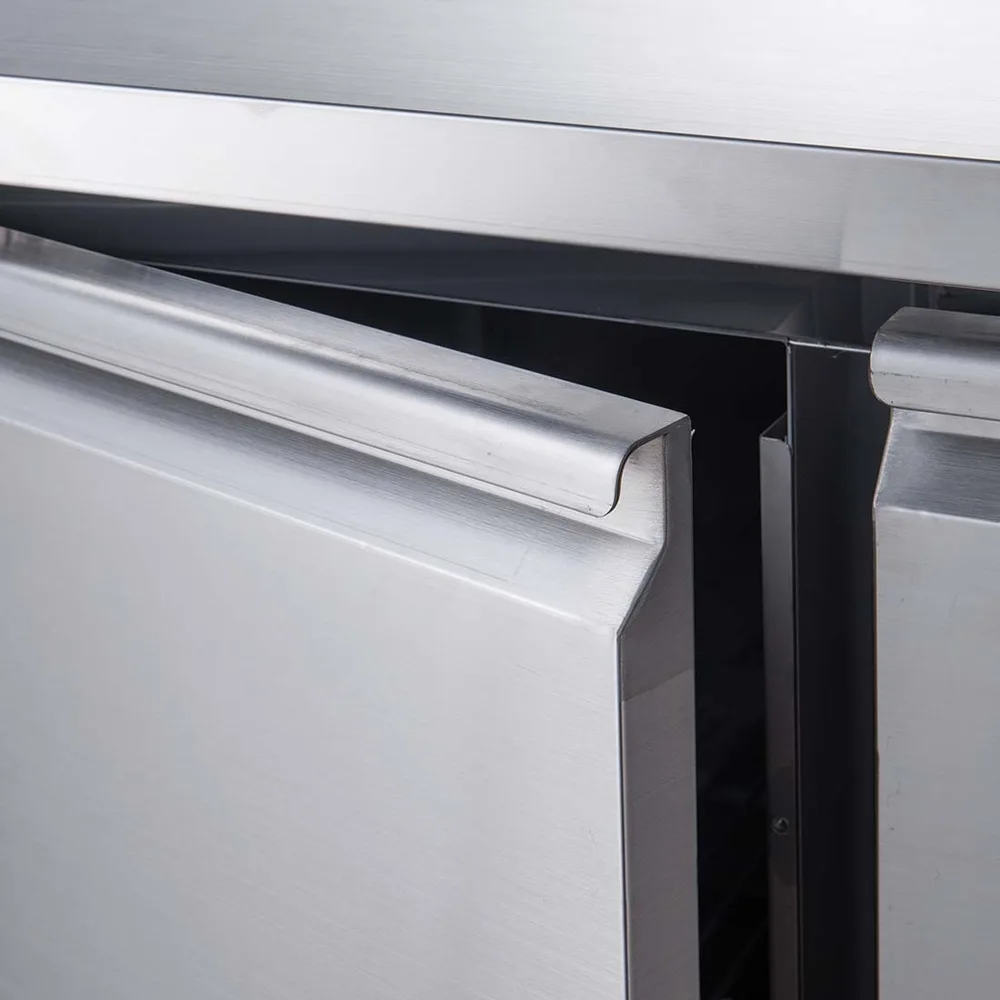

- Construction: Stainless steel inside & out, rounded corners, 60mm insulation, self-closing doors with magnetic seals
- Cooling: Fan-forced with Cubigel compressor and Ebm-papst fans

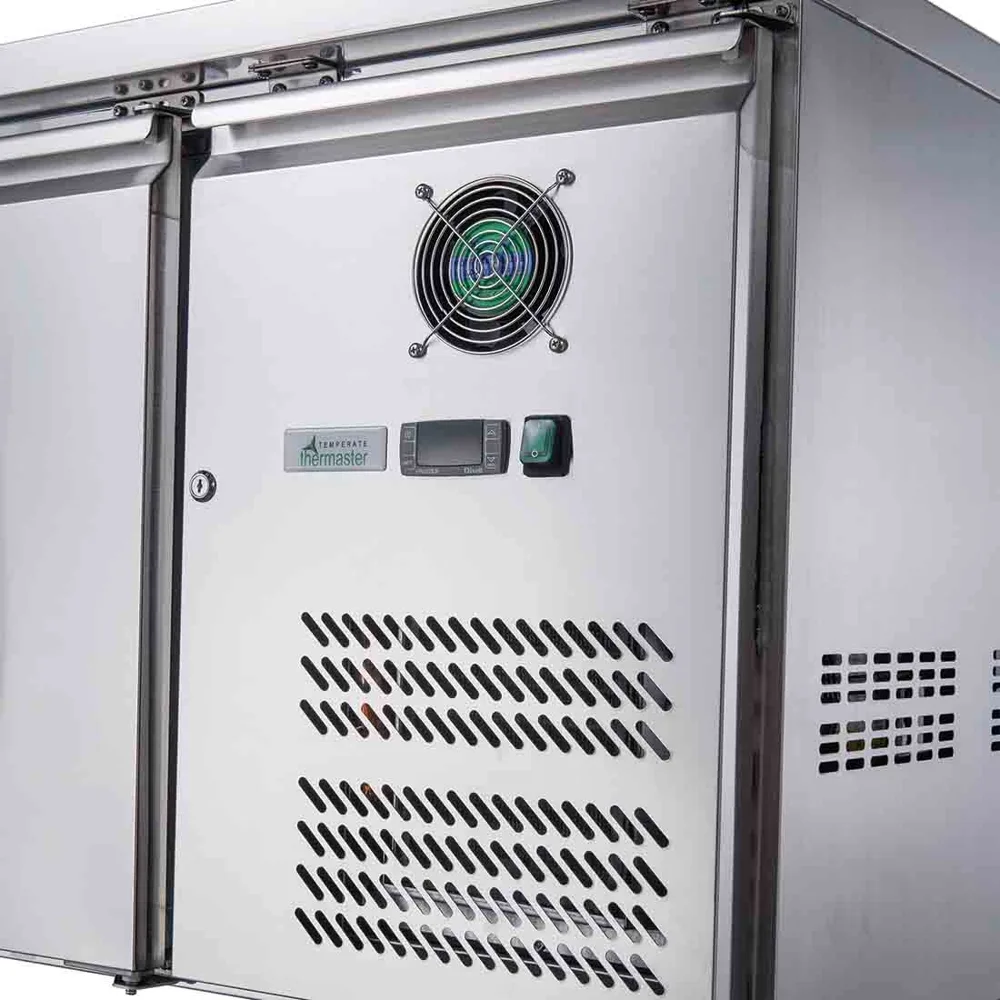

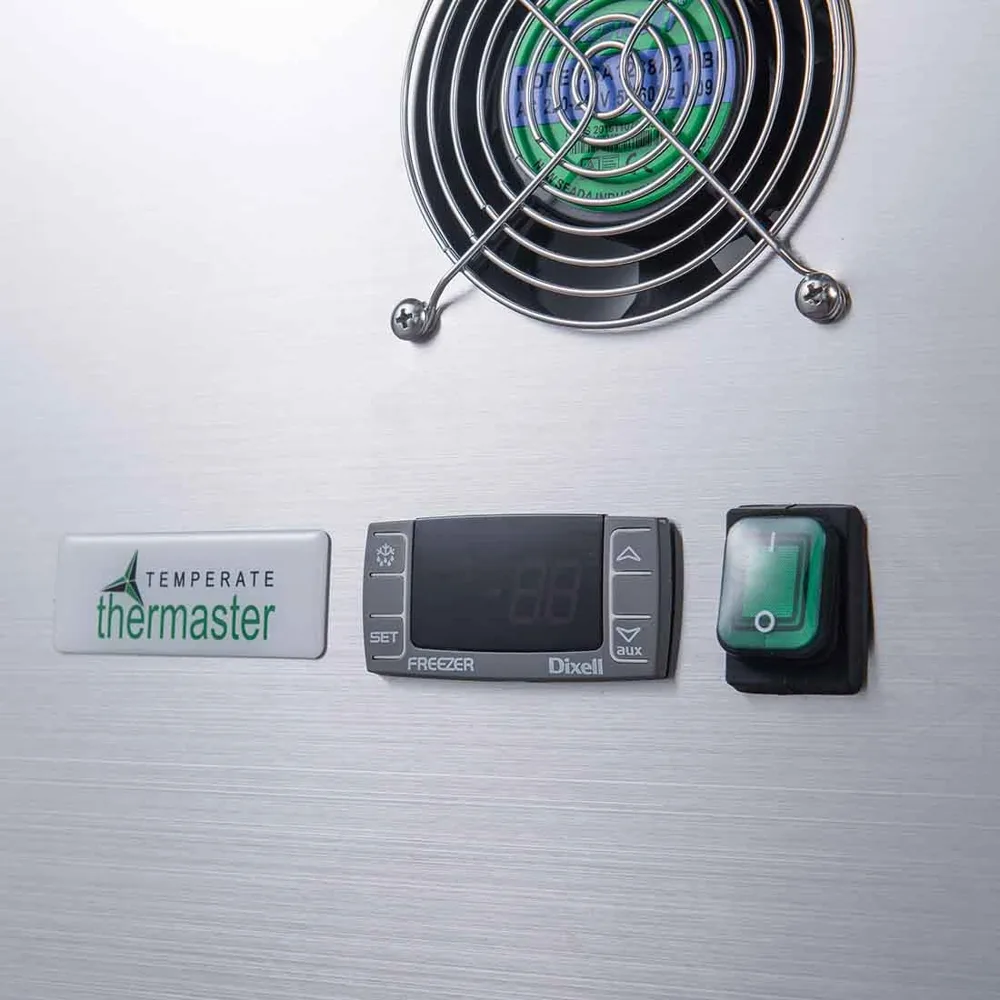

- Controller: Dixell digital
- Refrigerant: R290 (eco-friendly)

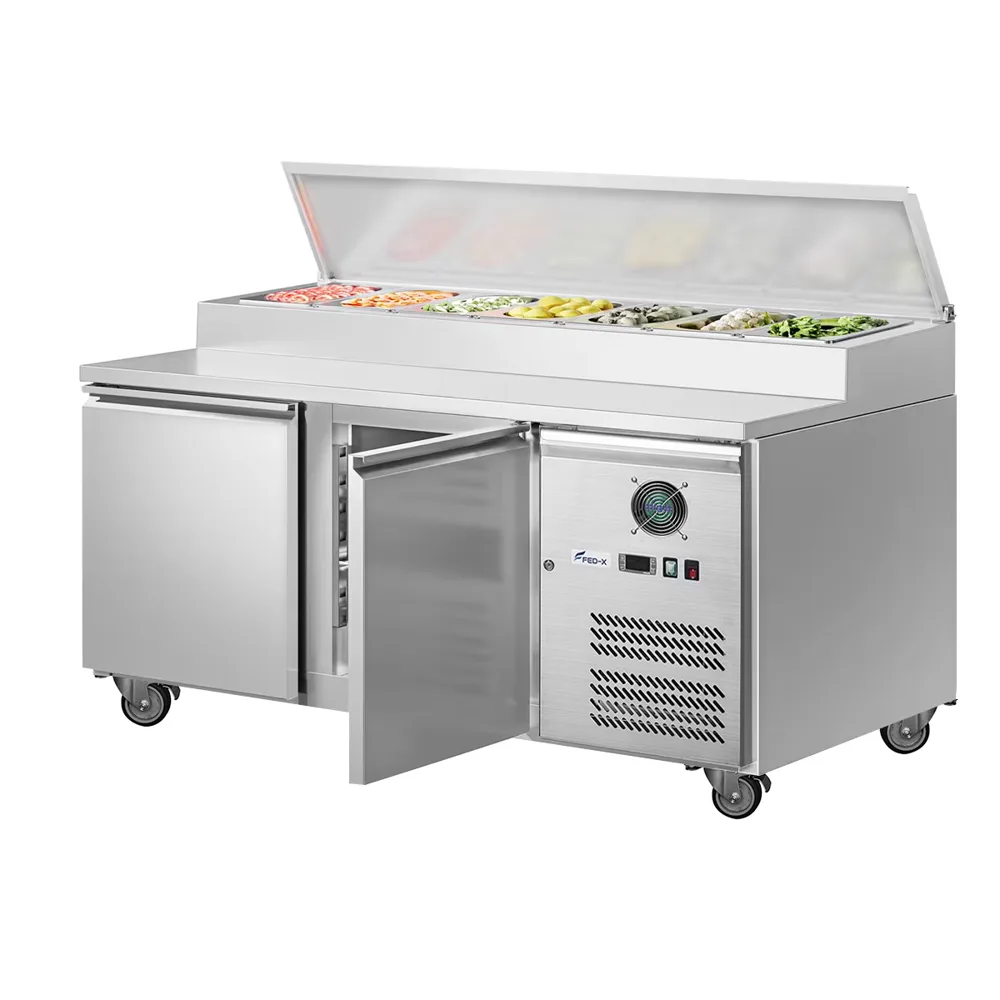

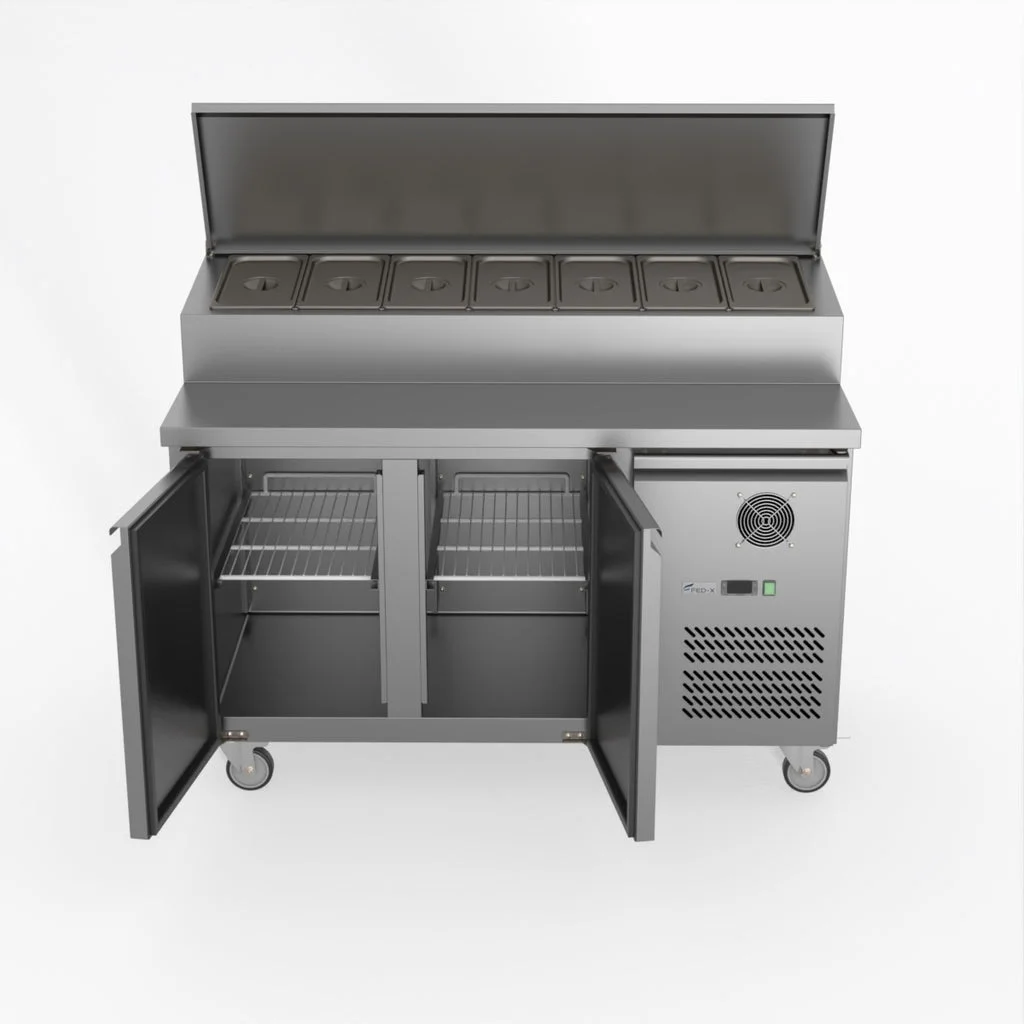

- Pans: Fits 7 × 1/3 GN pans (up to 150mm deep) and GN1/1 compatible

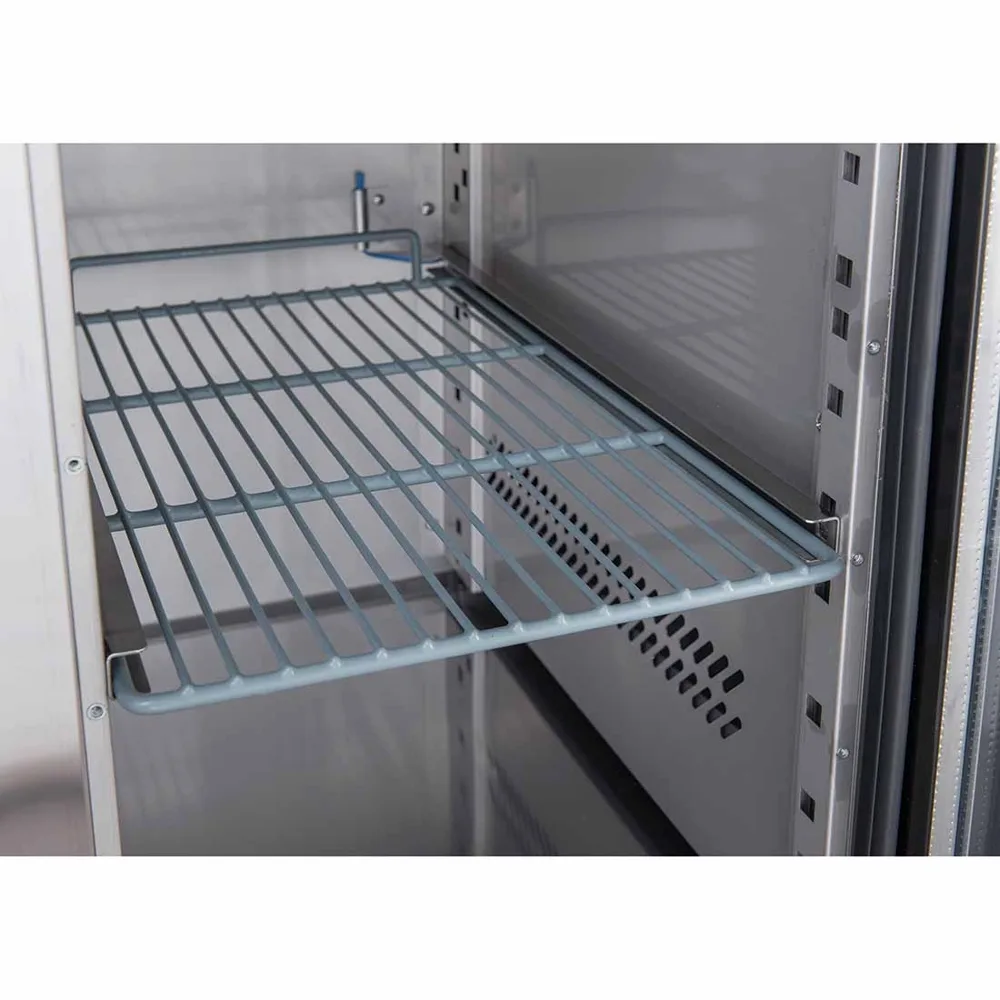

- Shelving: 1 shelf per door, 40kg loading each

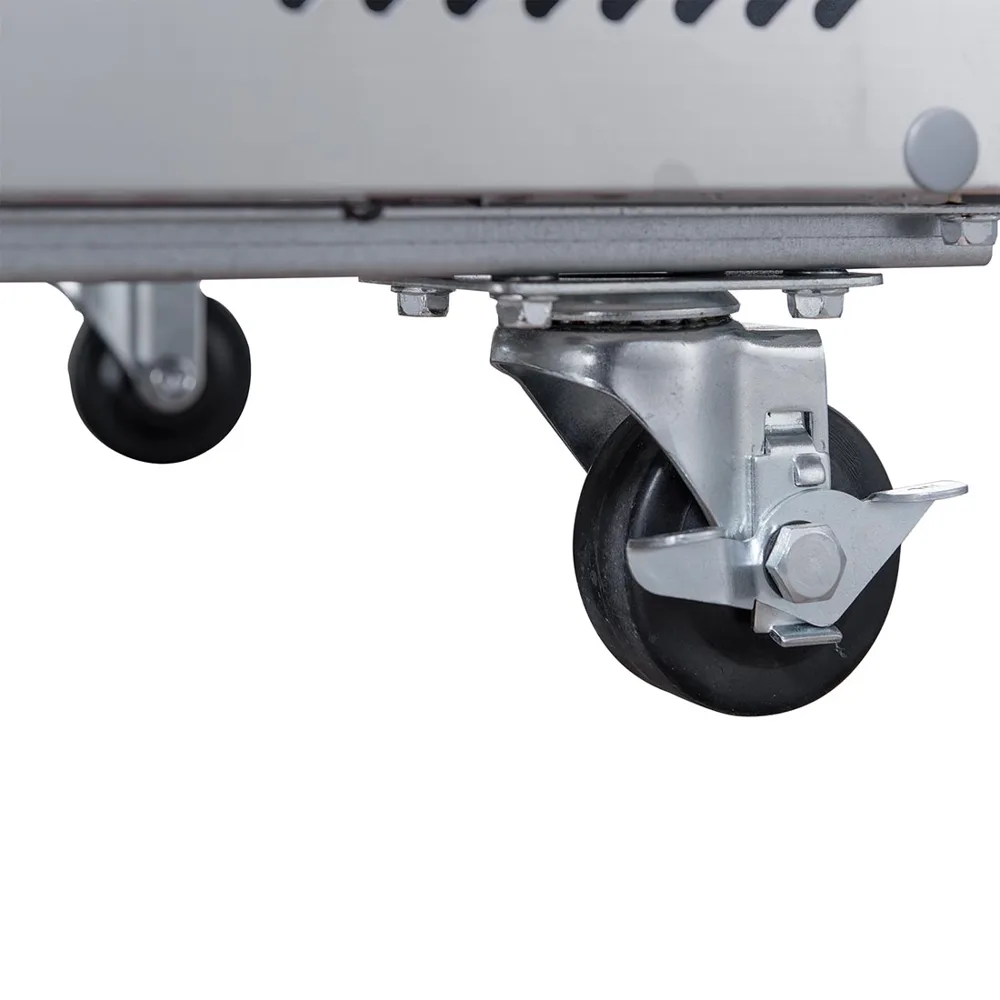

- Extras: Optional 2 or 3 drawer units available instead of doors; heavy-duty castors with brakes
- Warranty: 2 years parts & labour + 2 years parts only (with registration)
Compliance & safety (AU)
- Electrical: RCM compliant.
- Energy: GEMS/MEPS aligned for refrigerated storage.
- Food safety: FSANZ temperature-compliant; holds chilled ingredients at safe levels.
Convenience & usage advice
- Service-ready: GN pan compatibility allows fast ingredient access during peak times.
- Easy cleaning: Stainless interior, rounded corners and removable seals improve hygiene.
Ideal applications
- Sandwich shops & cafés
- Restaurant prep kitchens
- Commercial catering environments

Frequently Asked Questions
1) How do I clean it daily without harming finishes?
Use mild detergent and a microfibre cloth for stainless surfaces. Avoid abrasives and ensure seals are cleaned and dried.
2) What routine maintenance keeps performance stable?
Check seals weekly, clean condenser coils monthly, and defrost if ice buildup occurs. Keep ventilation areas clear.
3) What are the power requirements and typical energy use?
Requires 240V / 10A plug. Rated at 320W; energy use varies with load and ambient conditions.
4) What about installation and Australian compliance?
RCM compliant, GEMS aligned, FSANZ safe. Position away from heat sources with sufficient airflow clearance.
5) Are spare parts and accessories available?
Door seals, castors, drawers and controllers are available. Quote model XSS7C13S2V for parts ordering.
Specs source: official FED-X XSS7C13S2V datasheet.
