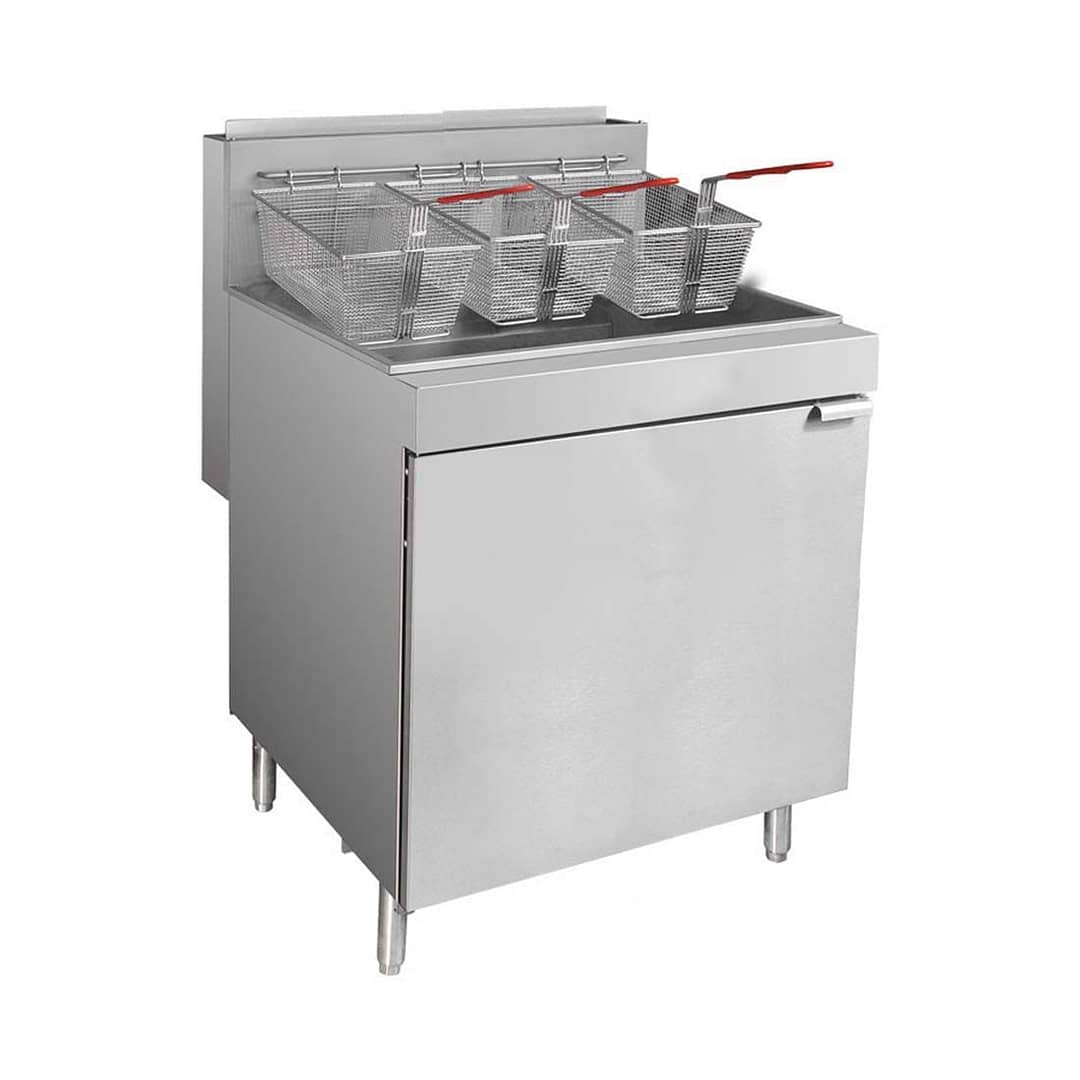

Frymax RC500E is a single-vat commercial gas tube fryer configured for natural gas. It combines a 37 L recommended oil capacity with five burners and a verified total input of 150 MJ/h.

Verified specifications

External dimensions	534 × 759 × 1195 mm.
Net weight	78 kg.
Oil capacity	37 L.
Tank capacity	44 L.
Fuel	Natural Gas.
Total input	150 MJ/h.
Burners	Five.
Rated production	43 kg/h.
Temperature range	120–200°C.

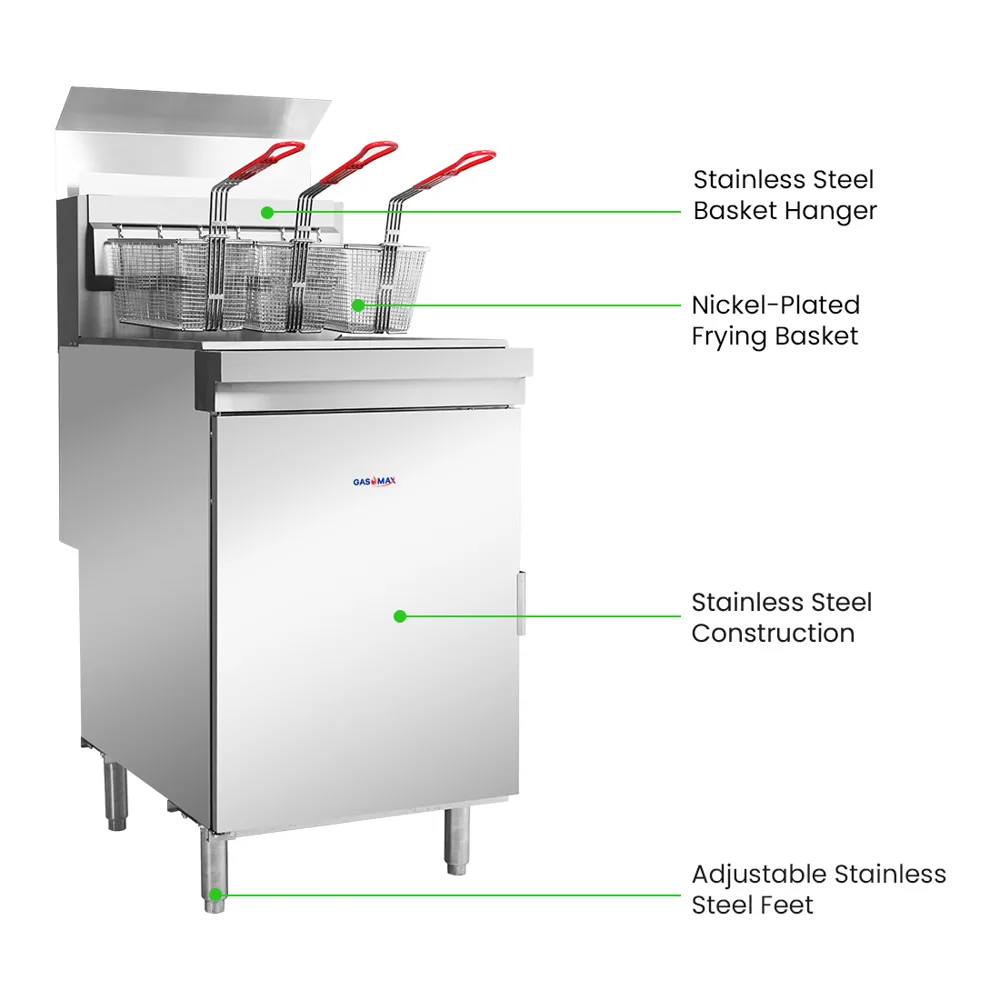

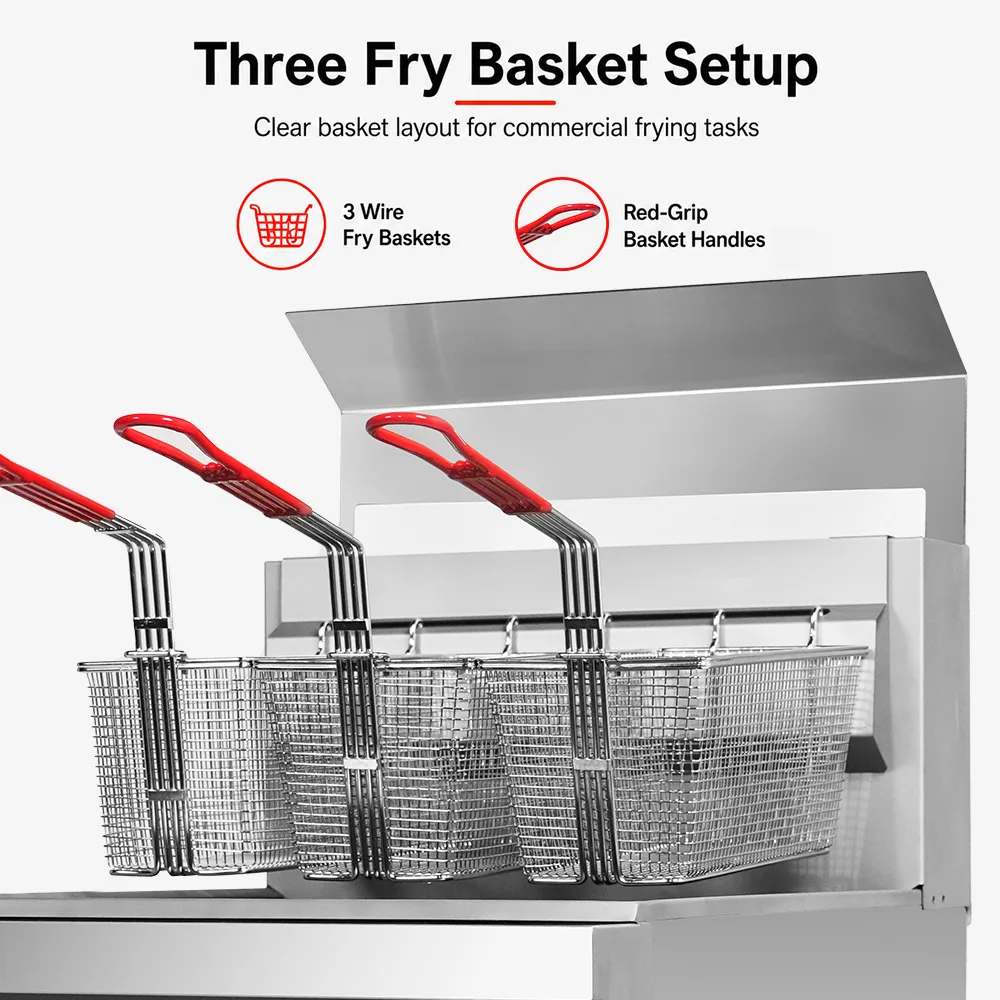

The stainless-steel front, door, tank and trim support routine commercial cleaning. Three baskets and a stainless-steel lid are supplied, while the removable basket hanger provides access around the fry tank.

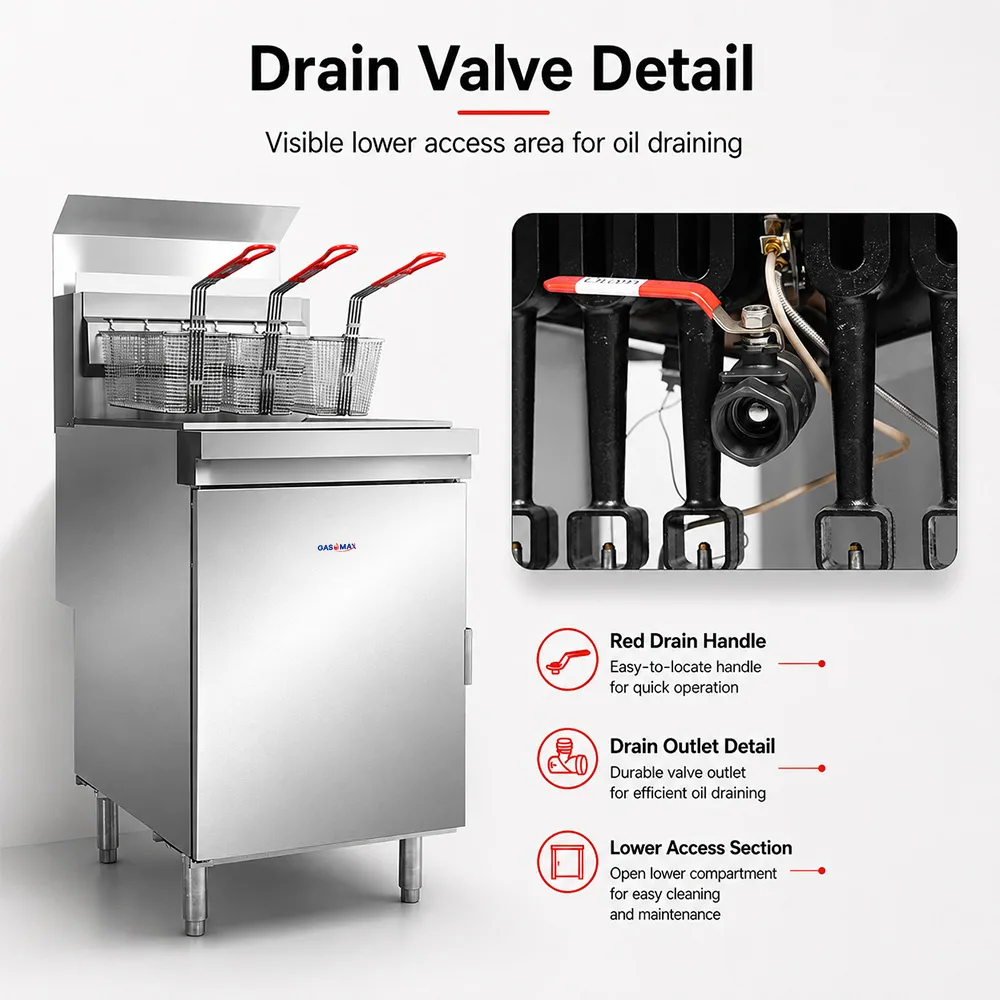

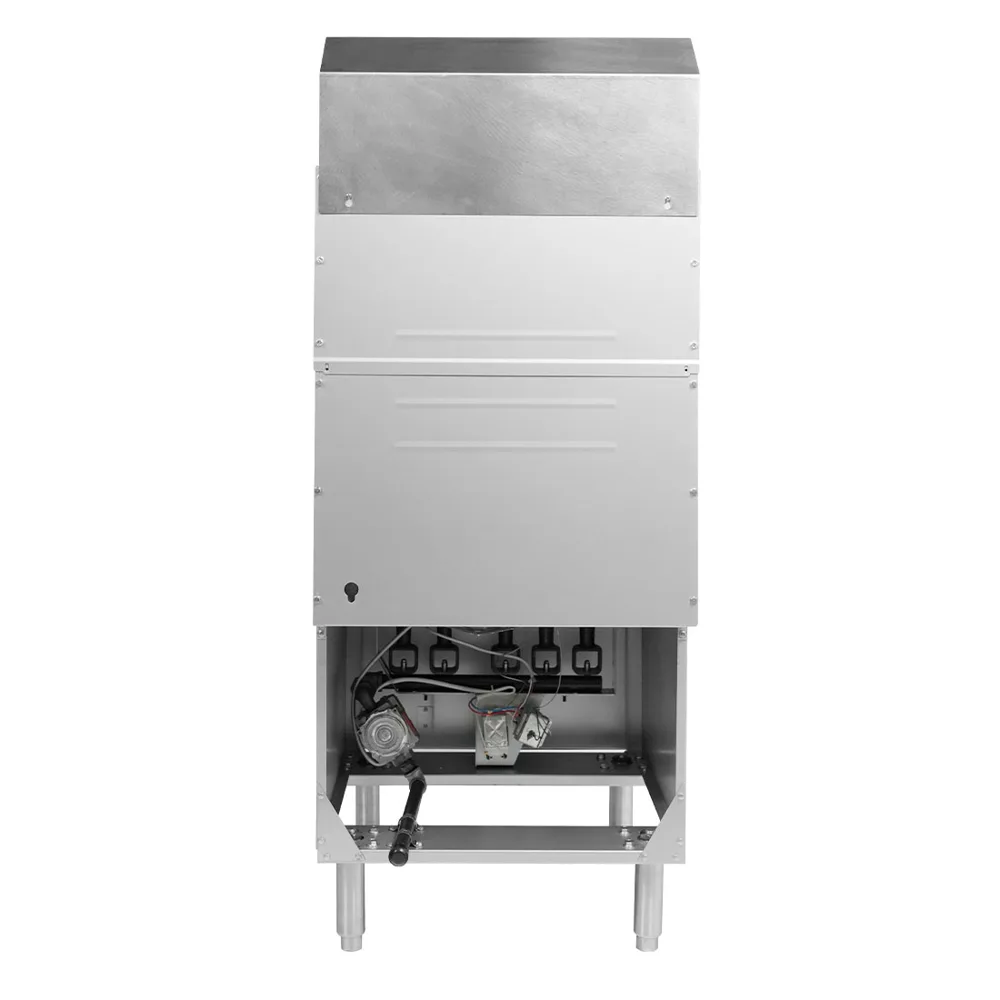

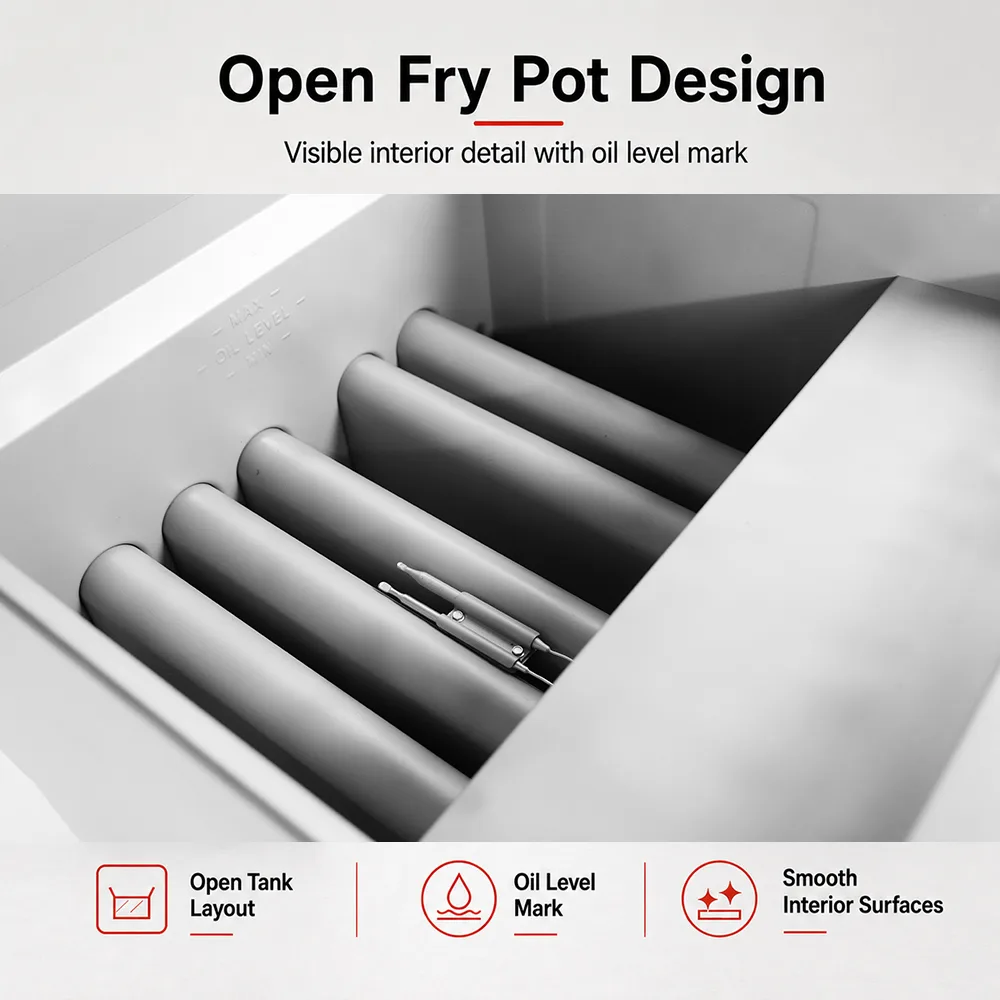

Food particles settle below the burner tubes in the cold zone. A 32 mm full-port drain valve supports oil draining, and the front-access arrangement allows authorised servicing of components.

Millivolt mechanical controls, a standby pilot, flame-failure protection, adjustable legs and a built-in flue deflector form part of the verified configuration. The gas inlet is one-half inch.

Allow oil to cool and follow the operating instructions before draining or cleaning. Keep the drain path, cold zone and basket hanger free from accumulated residue.

Gas equipment must be installed and commissioned by an authorised technician. Confirm fuel type, regulator, gas capacity, ventilation, extraction and required clearances before connection.
