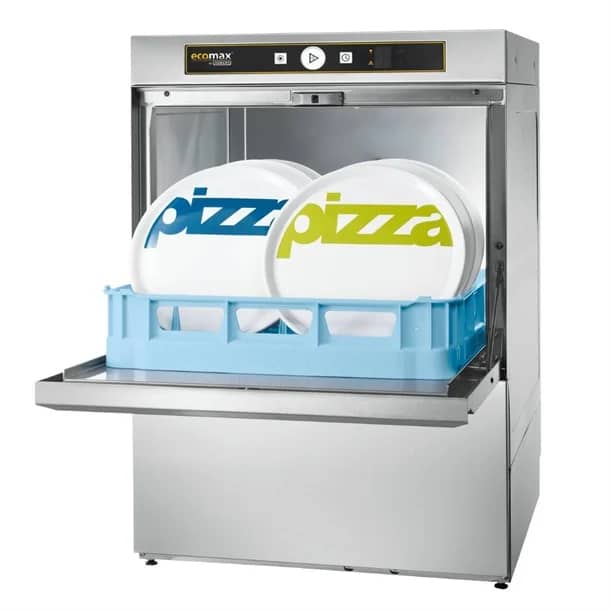

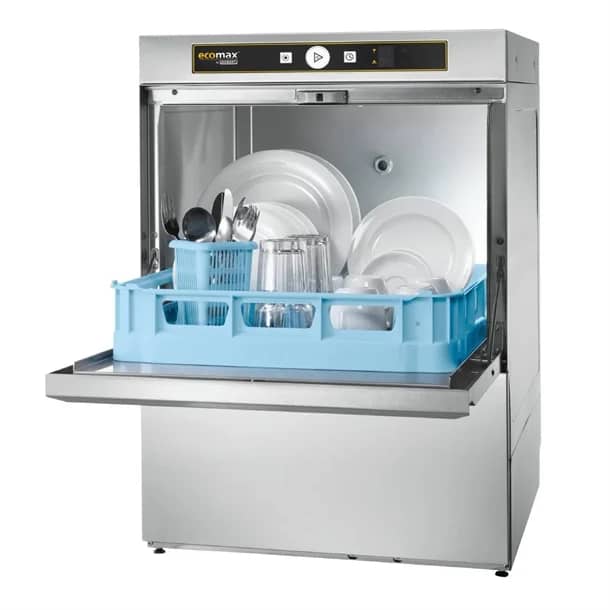

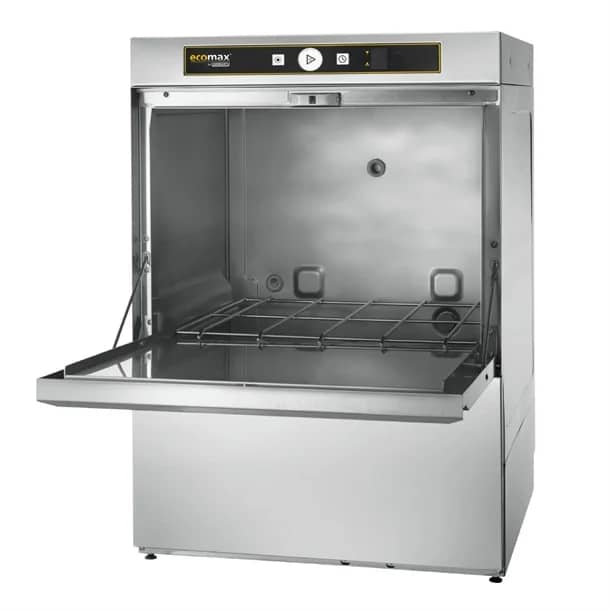

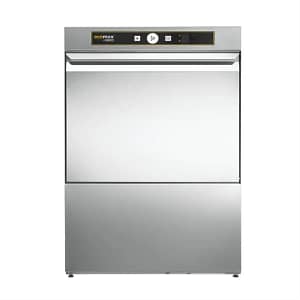

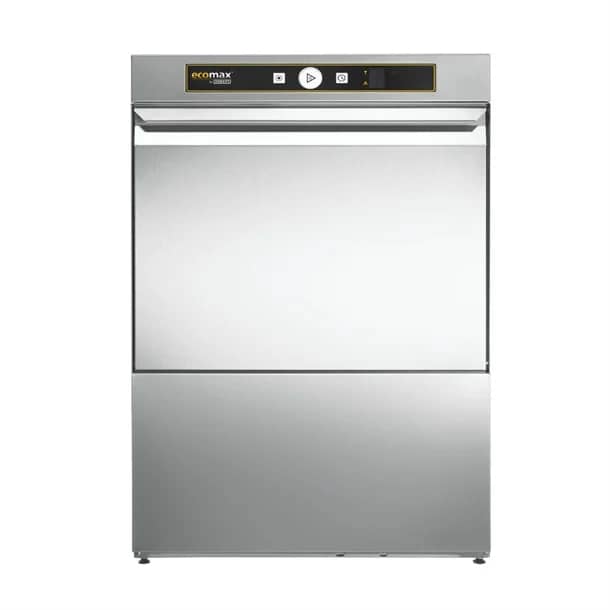

Hobart ECOMAX 504-C Undercounter Dishwasher

The Hobart ECOMAX 504-C is a high-output undercounter dishwasher designed to handle plates, cutlery, and glassware with efficiency and precision. Built in Germany for long-lasting commercial performance, the 504-C delivers outstanding cleaning results using only 2 litres of rinse water per cycle, helping businesses cut water and energy costs without compromising on hygiene.

With a usable chamber height of 360mm, this machine accommodates larger items and high-stacking baskets. Its powerful rinse pump guarantees consistent rinse pressure — even in low or fluctuating water pressure conditions — and is compatible with Hobart RO-S reverse osmosis systems for improved water quality and finish. A colour-coded single-button interface and digital temperature readouts make operation simple for any staff member.

Key Features:

• High Volume Output: Up to 60 racks, 1,080 plates or 2,160 glasses per hour:contentReference[oaicite:0]{index=0}
• Space-Efficient Design: Compact 820mm installation height fits under most counters
• 3 Wash Cycles + Hygiene Program: 60, 120, 180 seconds and descaling cycle
• Low Water Consumption: Uses just 2.0L per rinse cycle to reduce running costs
• Double Skin Door & Cabinet: Minimises noise and heat loss

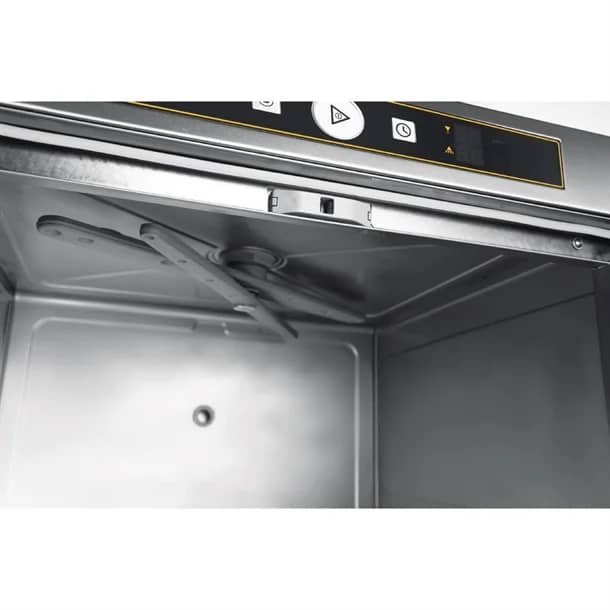

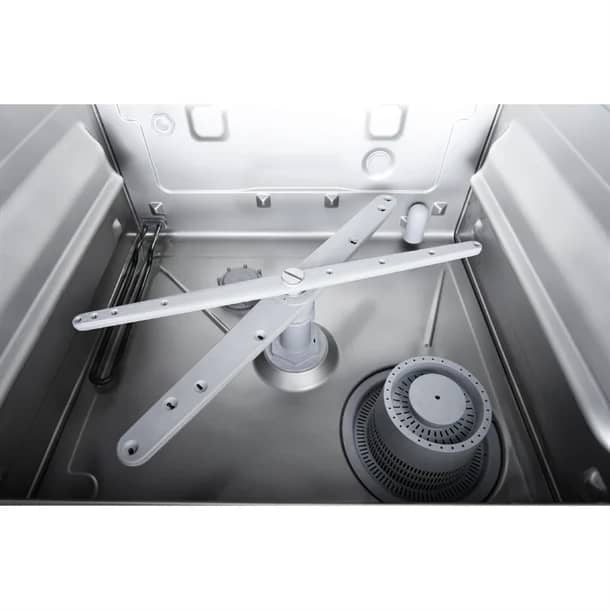

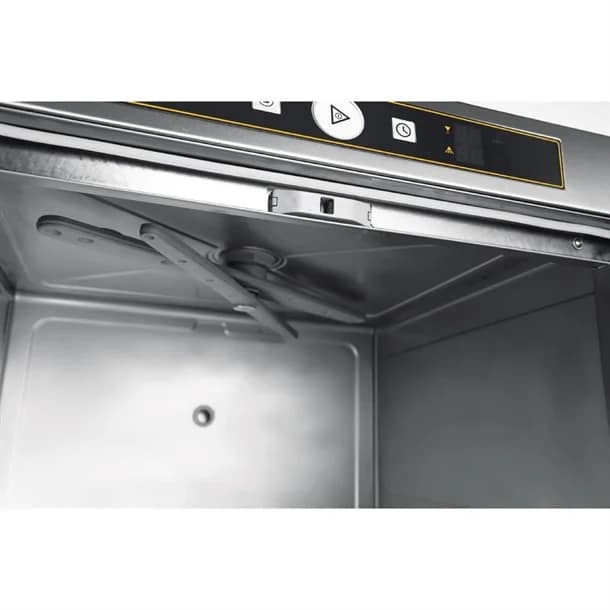

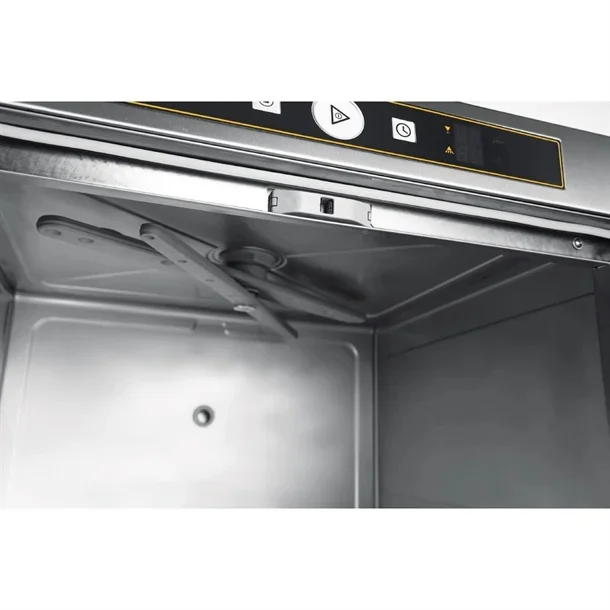

• Rotating Wash Arms: Full-coverage top and bottom rinse performance
• USB Port: Allows fast service diagnostics by technicians
• Included Accessories: Fill & drain hoses, detergent & rinse aid pumps, plate rack, cutlery basket

Specifications:

• Model: Hobart ECOMAX 504-C
• Power Supply: 240V / 50Hz / Single Phase / 15A
• Total Load: 2.2kW | Booster: 1.8kW | Tank: 1.8kW
• Wash Pump: 0.34kW (180L/min)
• Rinse Water Usage: 2.0L per rack
• Tank Capacity: 25L
• Rack Size: 500 × 500mm
• Loading Height: 360mm
• Noise Level: 62.5 dB(A)
• Dimensions: 604mm (D) × 576mm (W) × 820mm (H) + 40mm adjustable feet
• Weight: 55kg net / 69kg gross
• Watermark Approved: Yes

Applications:

• Clubs, bistros, cafés, and QSR venues
• Hotels and wine bars
• Institutional foodservice and hospitality kitchens

Why Choose Hobart ECOMAX at KW Commercial Kitchen?

Hobart continues to lead the way in commercial dishwashing technology. The ECOMAX 504-C delivers quiet operation, efficient water use, and German-built reliability. Backed by KW Commercial Kitchen’s expert support and nationwide service network, it’s a dishwasher that pays for itself in savings and consistency.

Frequently Asked Questions

Does this dishwasher support reverse osmosis water systems?

Yes. The ECOMAX 504-C includes a rinse pressure pump and is fully compatible with Hobart RO-S reverse osmosis units

Can I wash tall glassware or trays?

Yes — the 360mm loading height allows for large plates, tall glasses, and medium trays to fit easily in standard 500x500mm baskets.

Is it ready to install upon delivery?

Yes — it includes all essential hoses, chemical pumps, plug & lead, and accessories needed for quick setup by a licensed technician.
