Open chilled merchandising with four adjustable shelves

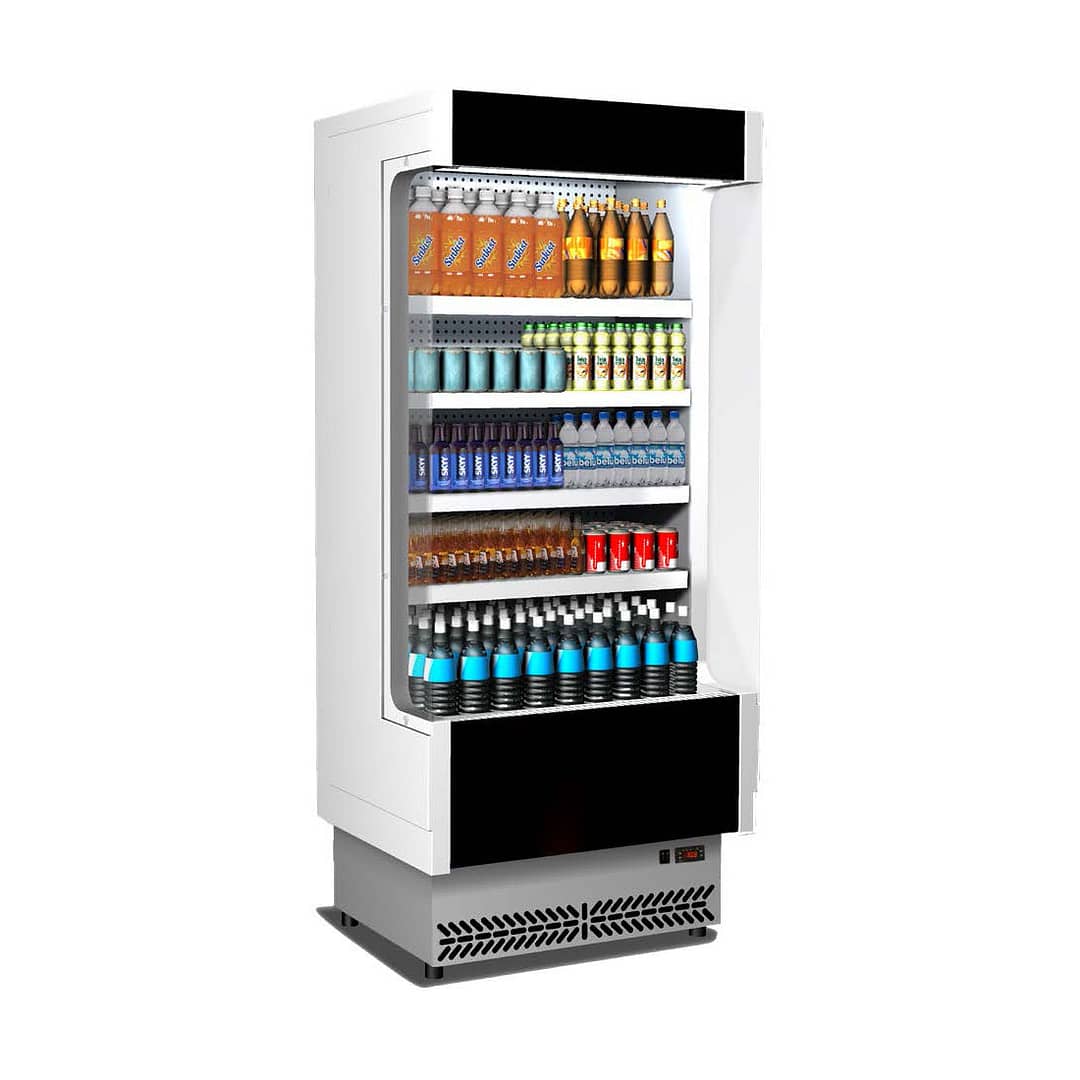

The Tecnodom TDVC60-CA-100 is an open chiller with four height-adjustable shelves and a 0–2°C operating range. Ventilated cooling, electronic control and a manual night blind support a chilled retail display.

For retail chilled merchandising where customers need open-front access. Confirm room conditions, product loading and the shelf layout before choosing the display position.

Who it suits

Open-front chilled retail displays.
Merchandising with adjustable shelf heights and an upper light.

Choose something else if

A layout that requires supplied shelf risers or lighting at every shelf.

Features in daily use

Four adjustable display shelves. White-painted steel shelves can be adjusted in height. They are supplied without shelf risers or shelf lighting, so plan product presentation around that arrangement.
Ventilated cooling and defrost. Ventilated cooling works with an electronic control panel and electric defrost. The operating temperature range is 0–2°C.
Night blind and upper lighting. A manually operated, auto-rolling night blind covers the display out of service. Pink neon lighting is located in the upper interior rather than at each shelf.

How to choose

Match the planned room to Climate Class 4: 30°C ambient at 60% RH.

Check pack heights against the adjustable shelves.

Compare the TDVC60-CA-187 when planning another model in the same display family.

Strengths

Adjustable shelves support different pack heights.
Electric defrost and a night blind are included.

Limits

Shelves have no individual lights or risers.
The open display must suit the specified ambient conditions.

Compare with

Tecnodom TDVC60-CA-187 Open Chiller with 4 Shelves: TDVC60-CA-187 is another four-shelf model in the same open-chiller family.
Bonnet Neve CURL 3 GREEN 093 Semi-Vertical Open Display: The CURL 3 GREEN 093 provides a semi-vertical open-display format for a different merchandising layout.

Installation and setup

Power and location. Provide 240 V, 10 A power for the 1220 W cabinet. Confirm ventilation and installation requirements for the retail location.
Display organisation. Keep the cooling air path clear when loading shelves. Plan routine cleaning and access to the manual night blind.

TDVC60-CA-100 technical details

Body	Colorbond
Net Weight (Kg)	140 kg
Packing Width (mm)	1230 mm
Packing Depth (mm)	700 mm
Packing Height (mm)	2150 mm
Power	240V, 1220W/10A
Temperature range	0–2°C
Ambient / climate	Climate Class 4; 30°C / 60% RH
Shelves	4 height-adjustable white-painted steel shelves; no shelf lights or risers
Control	Electronic control panel
Defrost	Electric
Upper lighting	Pink neon
Night blind	Manual, auto-rolling
Cooling	Ventilated

For body dimensions, see Key Specifications above.

SKU	TDVC60-CA-100
Brand	Tecnodom
Category	Commercial Fridges and Commercial Freezers
Weight	140 kg

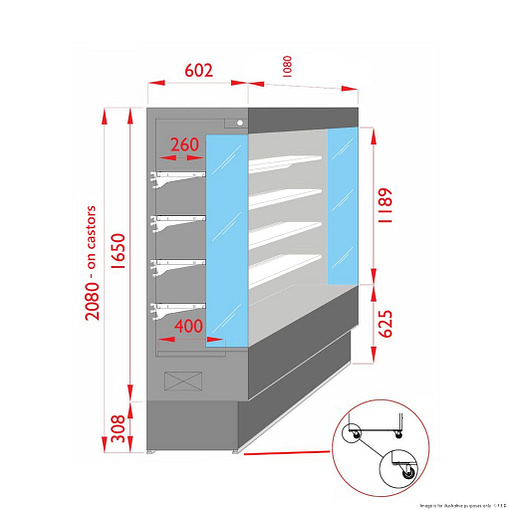

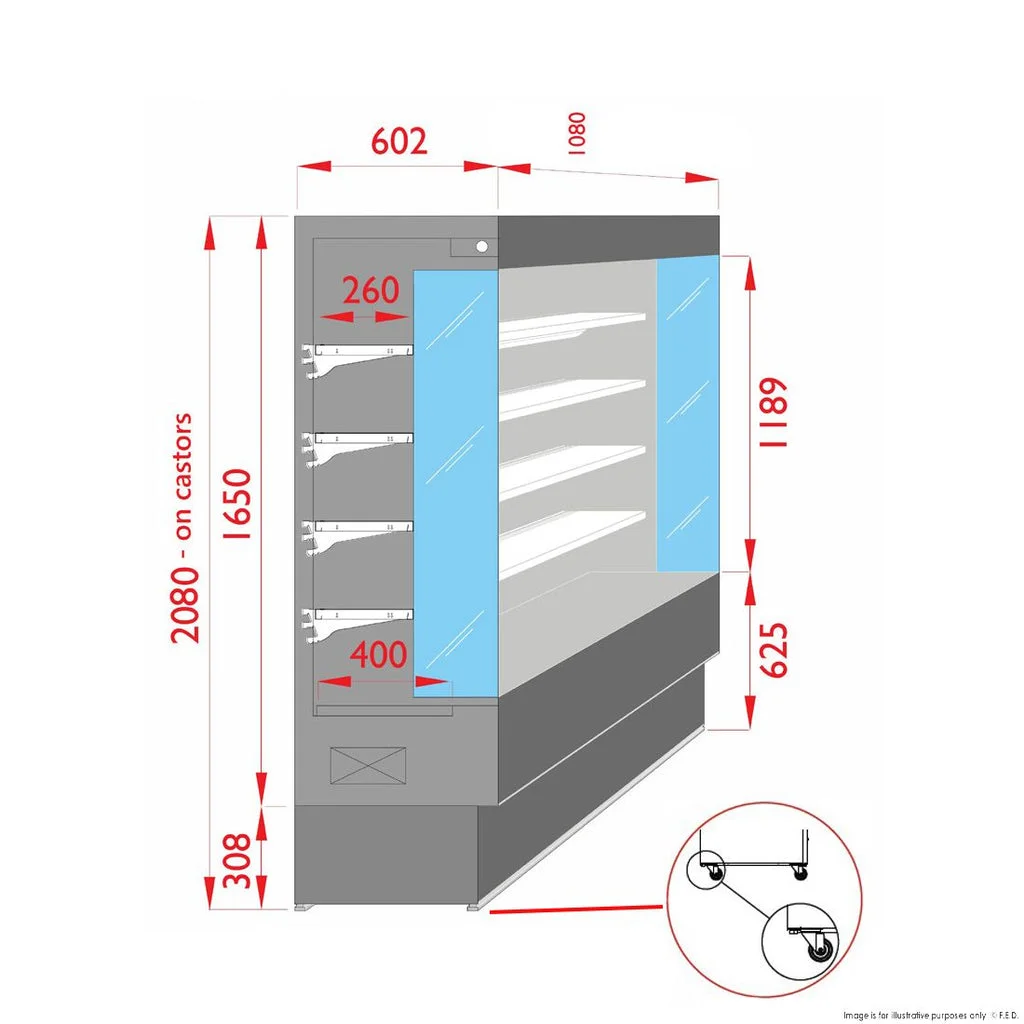

Dimensions (W×D×H)	1080 × 602 × 2080 mm
Stock Status	In Stock
Voltage	240 V
Phase	Single Phase
Power	1.22 kW
Operating Temperature	0 °C to 2 °C
