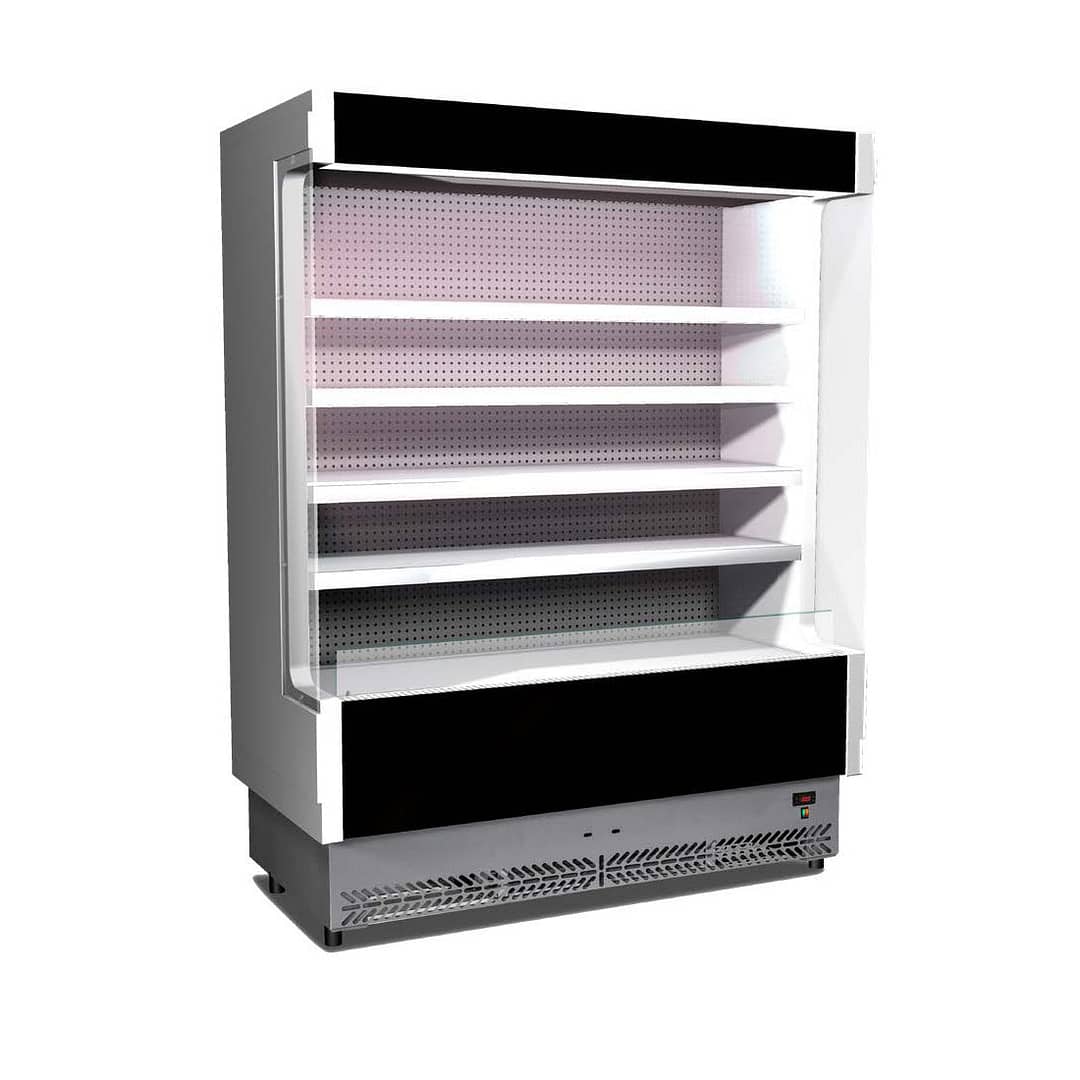

Tecnodom TDVC80-CA-187 Open Chiller with 4 Shelves

• Frozen-product display: choose a display freezer suited to the required product temperature.
• Sites planning to use only one 10 A outlet: select a display with a matching connection, or have an electrician assess the two supplies required for this model.
• Displays needing lighting at every shelf or shelf risers: choose a configuration with those features; these four shelves are unlit and supplied without shelf risers.

Choose this model when a 3.8 m² open chilled display and four adjustable shelves match the range you want customers to browse. Check the shelf arrangement against the height and presentation of the products; the shelves have neither individual lighting nor shelf risers.

For installation, use the dimensions in Key Specifications above and allow for the delivery route as well as the final display position. The cabinet weighs 280 kg net; plan suitable handling before it arrives. Each side wall is 40 mm thick, and the cabinet dimensions include the side walls.

Plan both electrical connections before ordering. This model is specified at 240 V and 4070 W and comes with two plugs, one 15 A and one 10 A. Have an electrician confirm that the site provides two suitable electrical supplies.

If another four-shelf format may suit, compare the TDVC80-CA-150 at 2721 W or the TDVC60-CA-100 at 1220 W with this model's 4070 W rating. Choose around the display layout and site requirements; rated power alone is not a running-cost calculation.

• Open-front access and a 3.8 m² display surface for chilled retail merchandising.
• Four height-adjustable shelves to arrange the display around the product range.
• Integrated condensing unit with automatic water evaporation.
• Upper internal lighting and a manually operated, self-rolling night blind.

• Needs provision for two plugs: one 15 A and one 10 A.
• The 280 kg net cabinet needs a planned delivery and positioning method.
• The four shelves have no individual lighting and no shelf risers.
• Site selection needs to account for the Climate Class 4 ambient rating of 30°C at 60% relative humidity.

• Tecnodom TDVC80-CA-150 Open Chiller with 4 Shelves: The Tecnodom TDVC80-CA-150 is another four-shelf open chiller, rated at 2721 W compared with 4070 W for the TDVC80-CA-187.
• Tecnodom TDVC60-CA-100 Open Chiller with 4 Shelves: The Tecnodom TDVC60-CA-100 also has four shelves in an open chiller format, with a 1220 W rating compared with this model's 4070 W.

• Plan access and handling. Check the dimensions in Key Specifications above against doorways, the delivery route and the final position. Arrange handling suited to the 280 kg net weight; the packed dimensions are listed below for delivery planning.
• Confirm both electrical supplies. The cabinet is specified at 240 V, 4070 W, with one 15 A plug and one 10 A plug. Have an electrician confirm that two suitable electrical supplies are available at the intended location.
• Check the display environment. Match the site to the Climate Class 4 rating of 30°C at 60% relative humidity. Keep the ventilated display's airflow paths clear when arranging products.
• Set up the retail display. Adjust the four shelf heights to suit the product arrangement and use the electronic control panel for routine operation. Include the night blind, cleaning and refrigeration maintenance in the store's operating procedures.

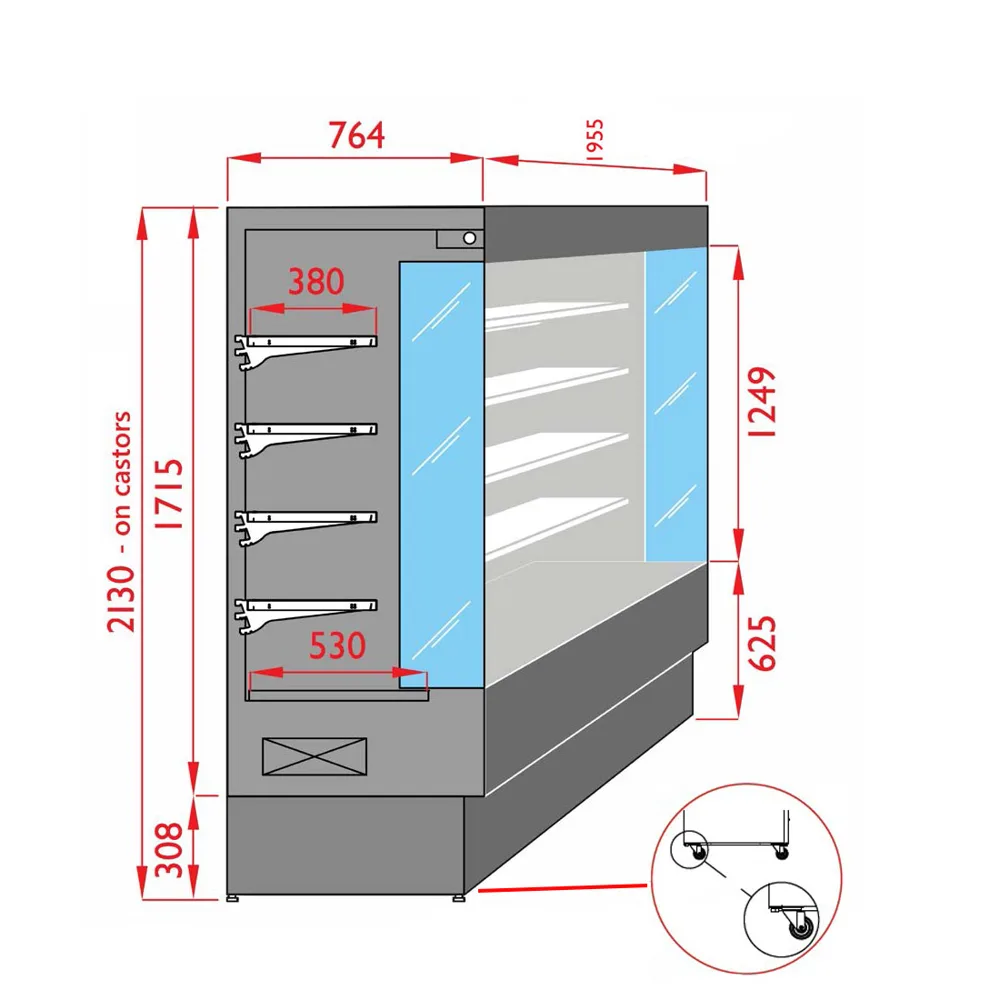

For body dimensions, see Key Specifications above.
