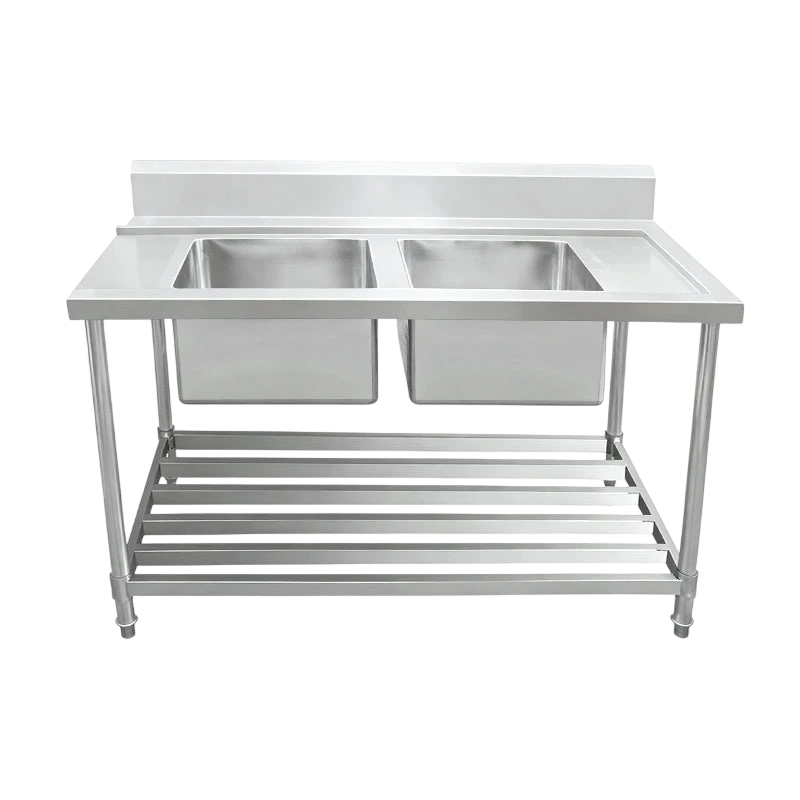

Kitchen Knock 622363 Double-Sink Dishwasher Inlet Bench – Left, 700mm, ASDD-1570L

• Exact Kitchen Knock SKU: 622363.
• Supplier model: ASDD-1570L.
• Inlet and sink position: Left.
• Supplier-listed depth: 700mm.
• Supplier-listed sink size: 450 × 450 × 300mm.
• 150mm splashback stated by supplier.
• 1.2mm SUS304 stainless steel top.
• 28mm diameter tube legs.

The supplier lists a 1.2mm SUS304 stainless steel top, 1.0mm SUS201 stainless steel components and a 150mm splashback. The stated sink size is 450 × 450 × 300mm. A 50kg capacity is also stated; interpret it with the bench correctly assembled, evenly supported and used within the supplier’s instructions.

The supplier describes a 0.8mm SUS201 solid pipe undershelf with 28mm diameter tube legs. Confirm all supplied components and assembly requirements against the current instructions before installation.

The inlet and sink are on the left for this exact variant. Orientation affects the dishwasher interface and rack path, so do not substitute a left- and right-hand model without checking the installation plan.

Confirm SKU 622363, model ASDD-1570L, left-hand orientation and 700mm depth. Obtain and check the overall width, dishwasher opening height, rack path, bowl arrangement, tap and waste positions, access route and service clearances. Model digits remain identifiers unless an authoritative source labels their physical meaning.

On delivery, verify the SKU, model label, orientation and supplied components before assembly. Inspect the top, splashback, sink, legs and fittings for transit damage. Installation and connections should follow the equipment instructions and applicable site requirements.
