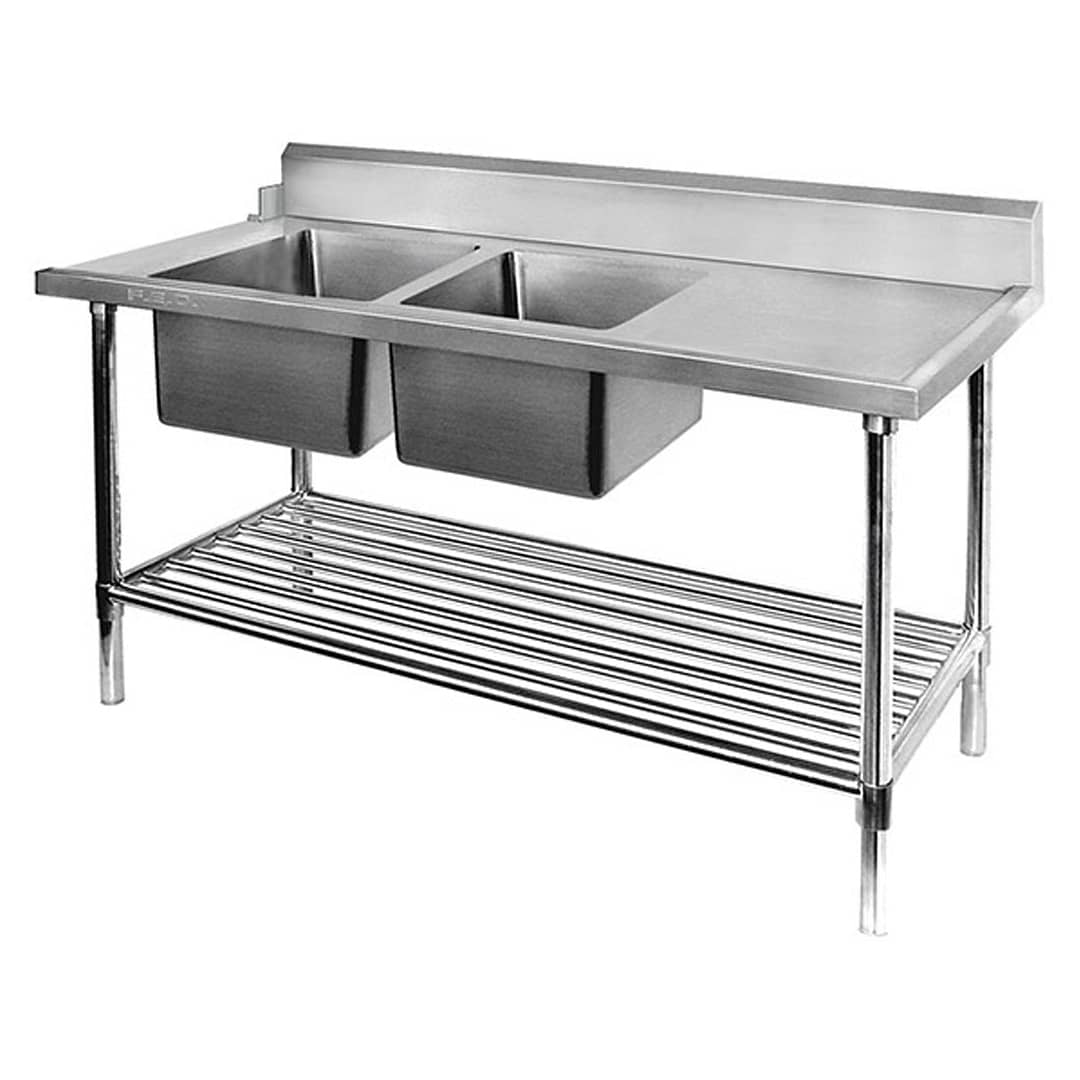

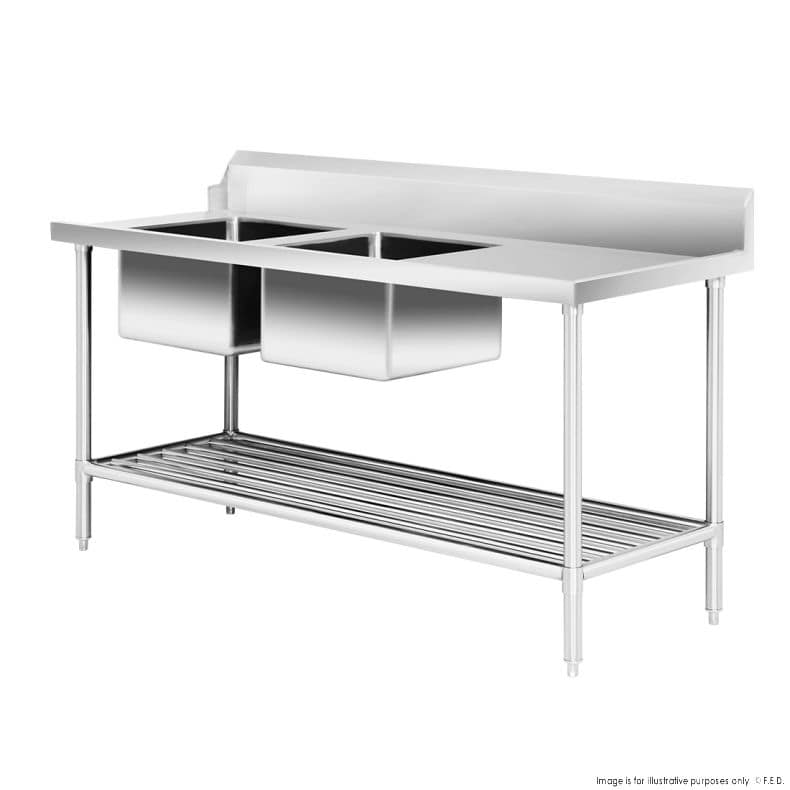

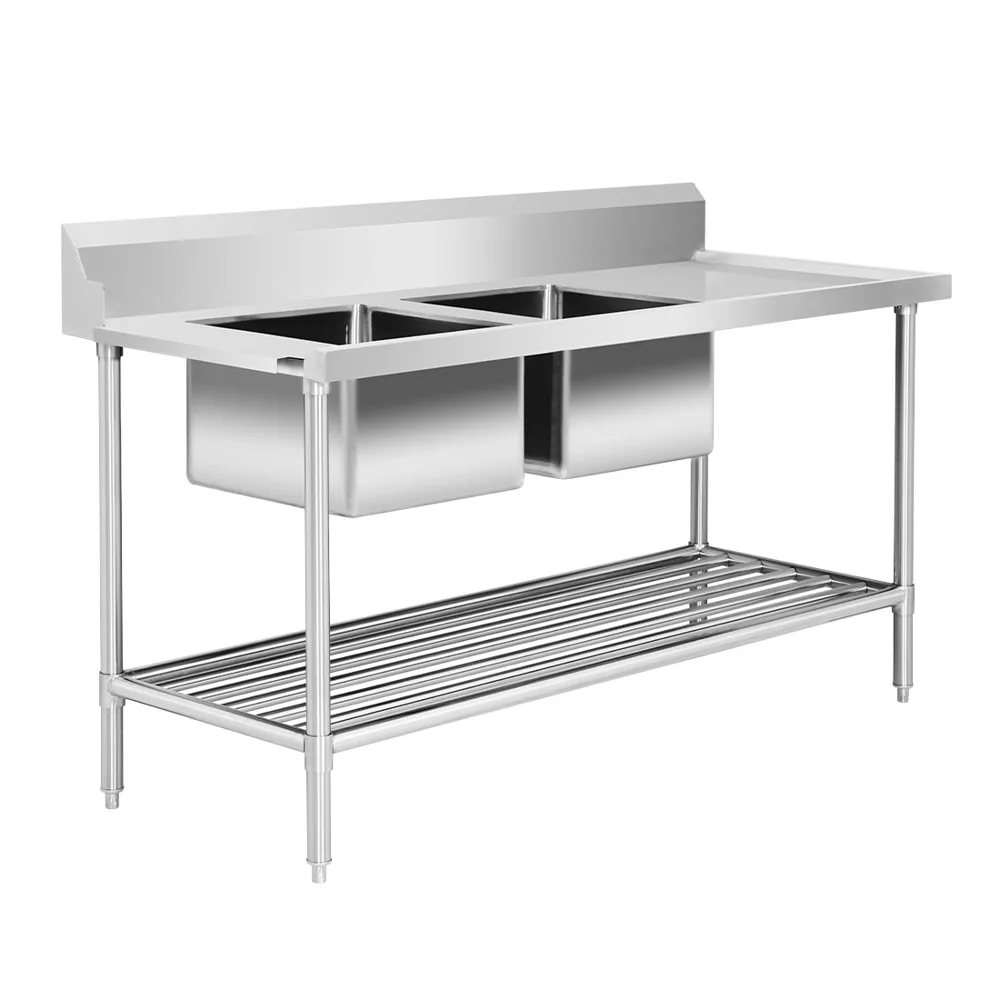

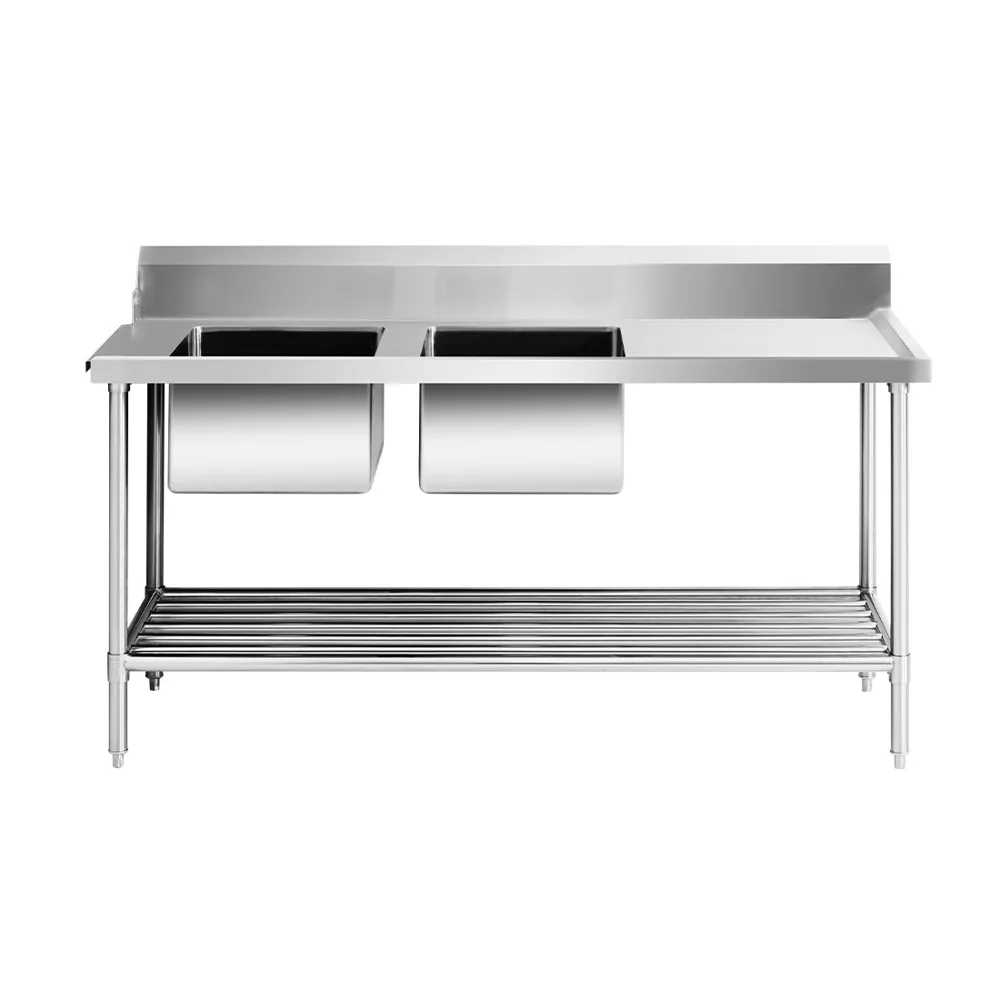

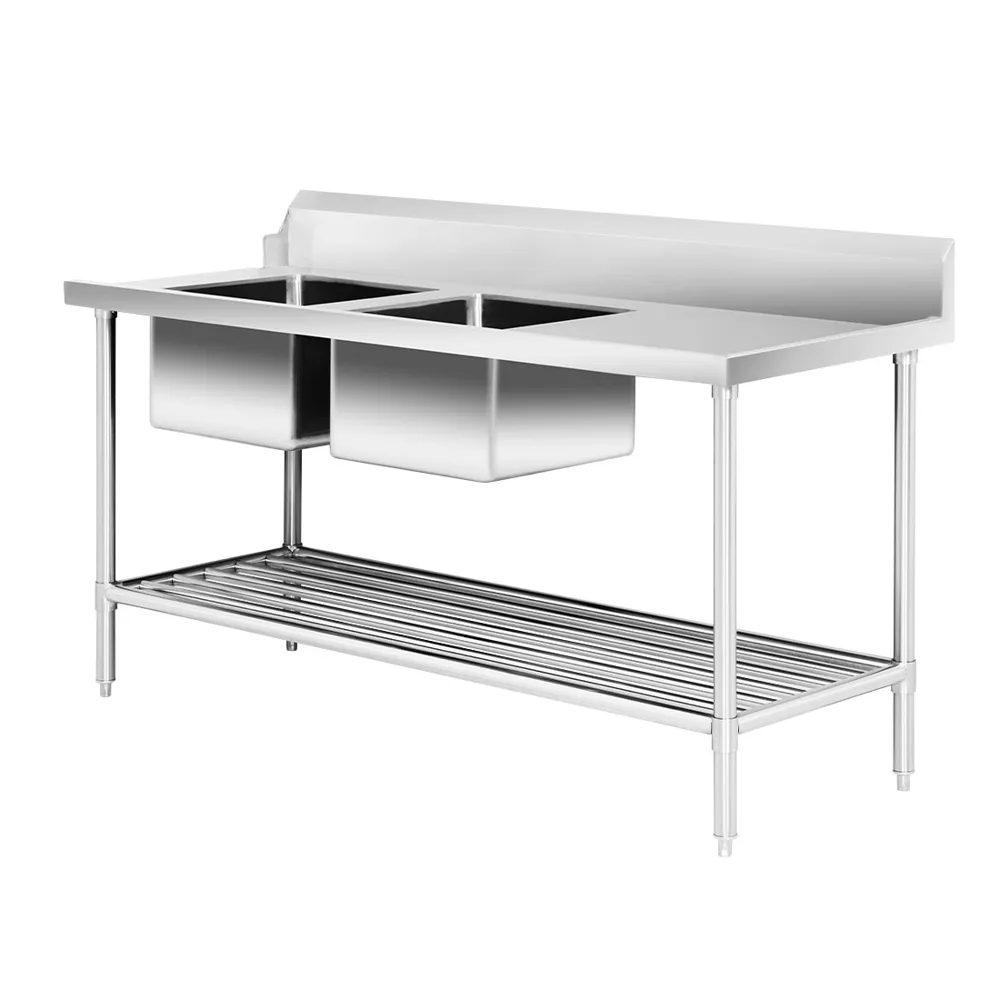

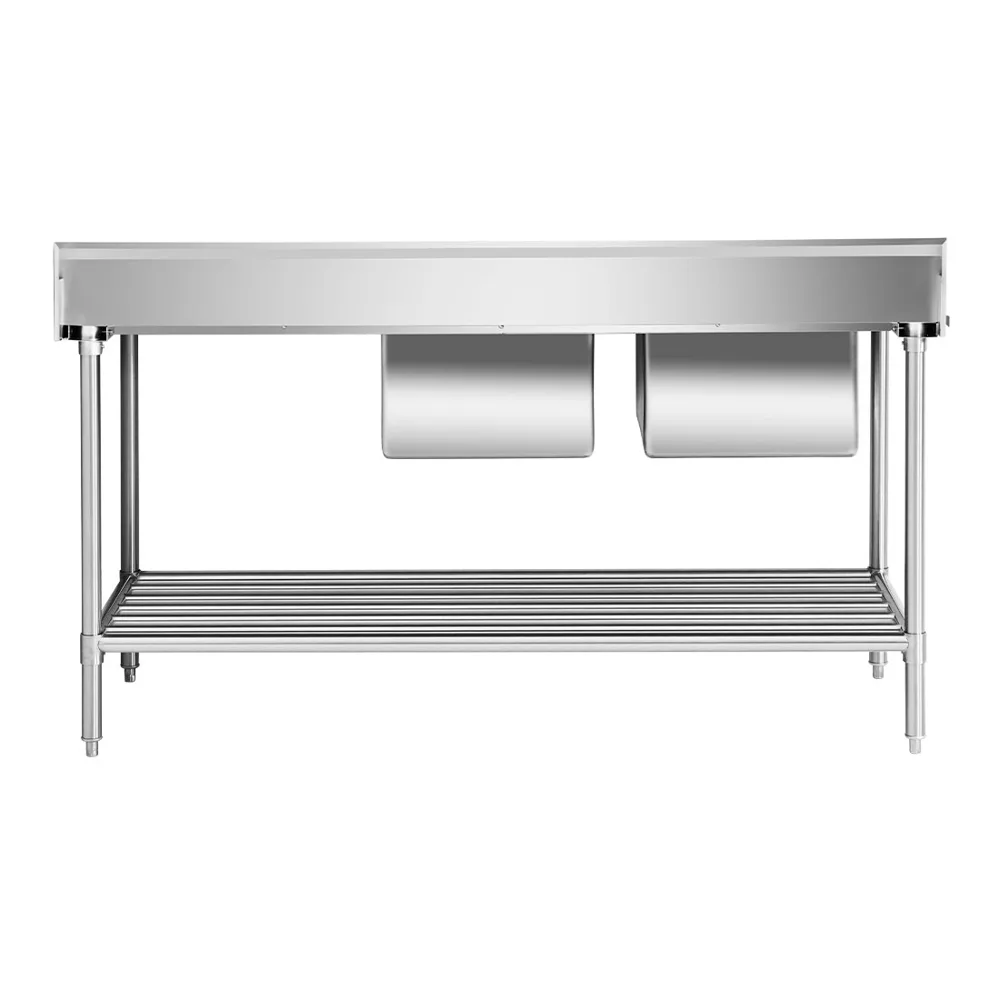

Modular Systems DSBD7-1800L/A Left Inlet Double Sink Dishwasher Bench

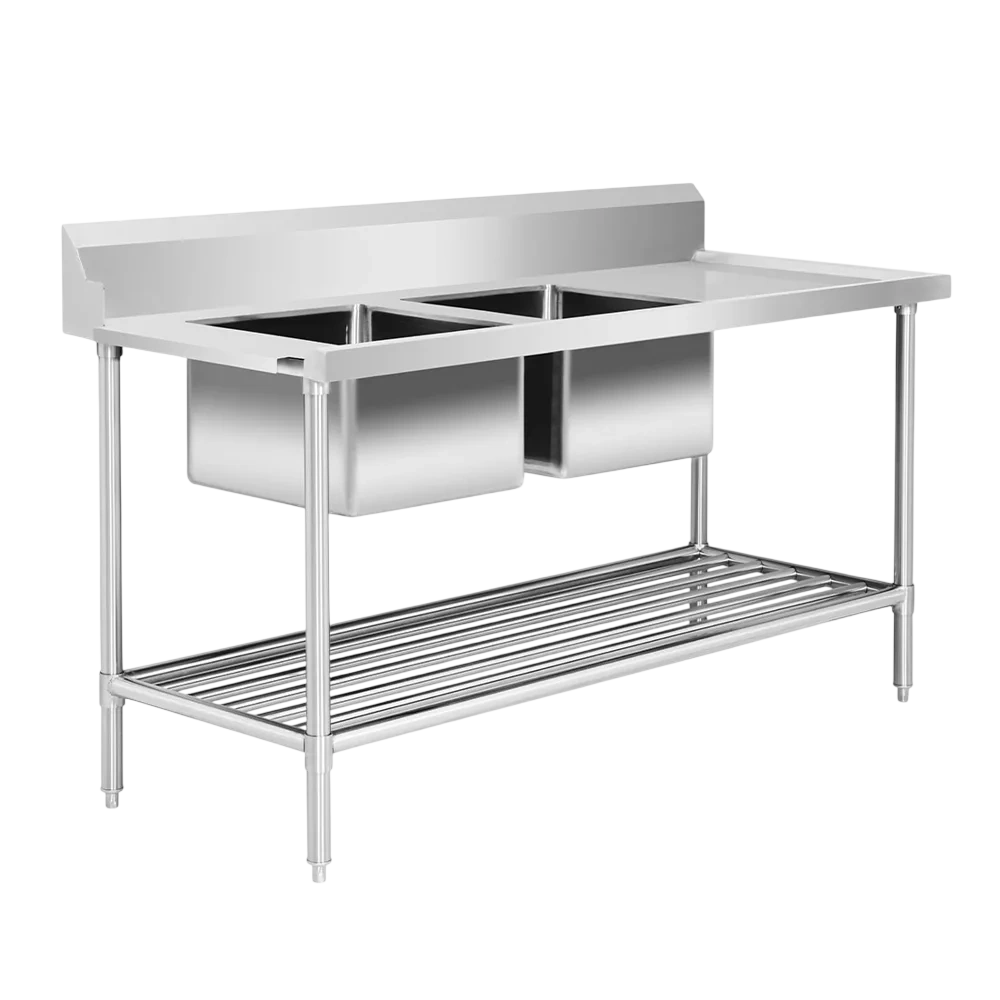

The DSBD7-1800L/A is a left-inlet dishwasher bench with two welded, polished sink bowls and a 150mm splashback. It suits wash-up layouts with the sinks and dishwasher inlet on the left when you face the bench.

For wash-up areas that need two sink bowls at the dishwasher inlet. The left-hand arrangement gives you a specific layout to match to the machine position and the route used to bring items to the dishwasher. Compare the bowl size with the items you wash before choosing the bench.

• Wash-up layouts with the sinks and dishwasher inlet on the left when facing the bench.
• Operators who need two sink bowls rather than a single-bowl inlet bench.
• Fit-outs that can accommodate a flat-packed bench requiring assembly on site.

• A layout needing the dishwasher inlet on the right: compare a right-inlet bench such as the single-sink SSBD7-1800R/A.
• A wash-up station needing only one sink: compare the left-inlet SSBD7-1800L/A.
• Items that need more space than the 450 × 450 × 300mm bowls provide: choose a bench with a bowl size suited to those items.

Start with the inlet position. Choose this left-hand model when the sinks and dishwasher inlet need to sit on your left as you face the bench; choose a right-inlet layout for the opposite arrangement.

Choose two bowls when your wash-up layout calls for two separate sink spaces. Compare the 450 × 450 × 300mm bowl size with the pots, trays or other items you handle, and have the installer match the drain openings to the waste fittings.

Check the dimensions in Key Specifications above against the final position and delivery route. Include the splashback and allow -5mm to +10mm dimensional tolerances when planning the installation. Have the installer check the finished working height and the junction with the dishwasher.

Allow space to assemble the flat-packed bench using the supplied instructions and tools. Choose the support configuration before finalising the bench height and water and waste connections.

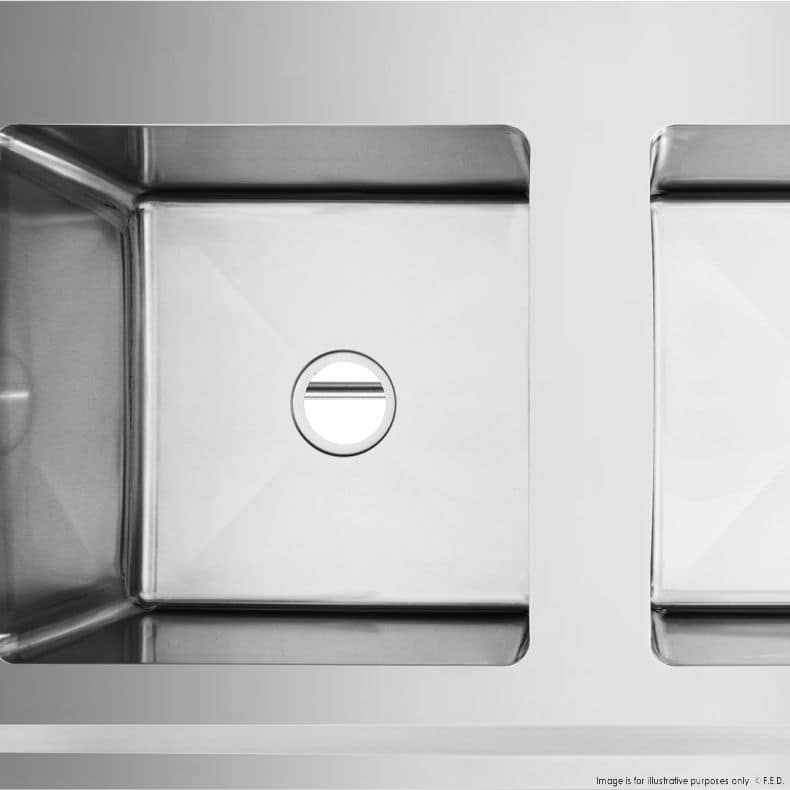

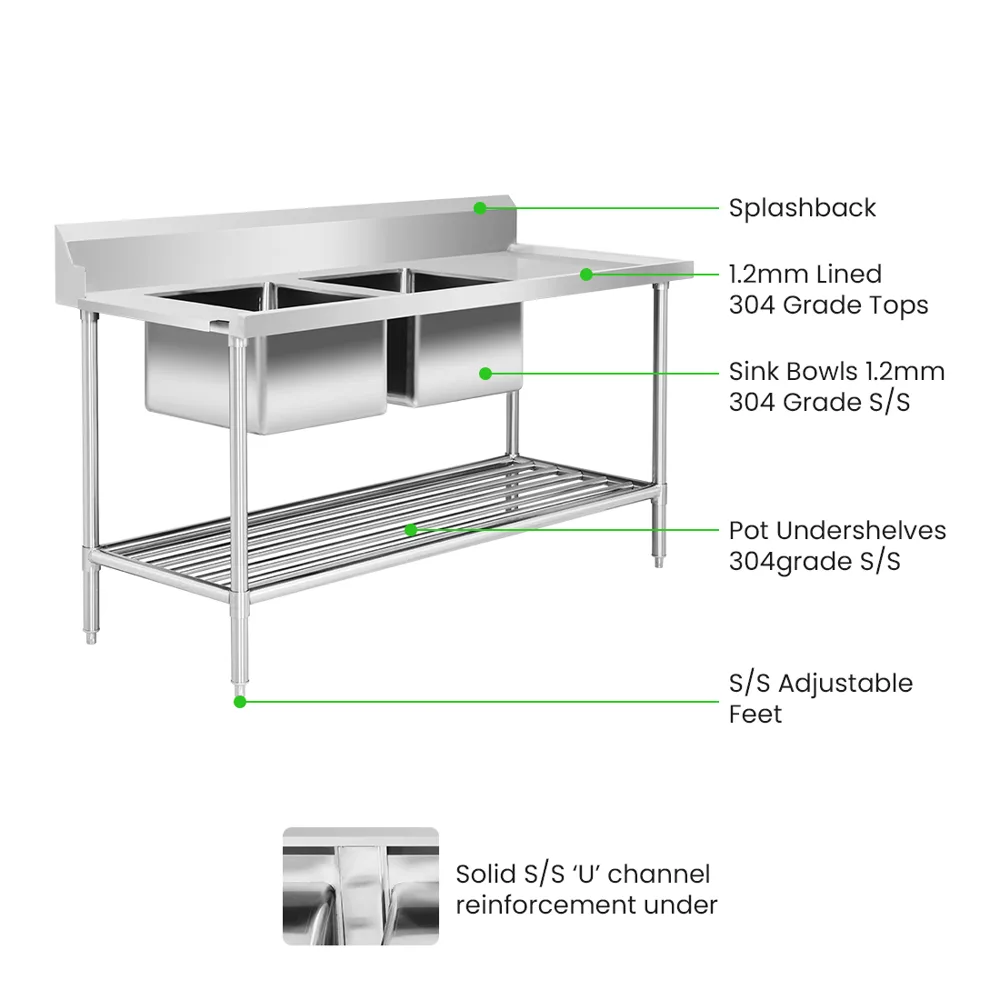

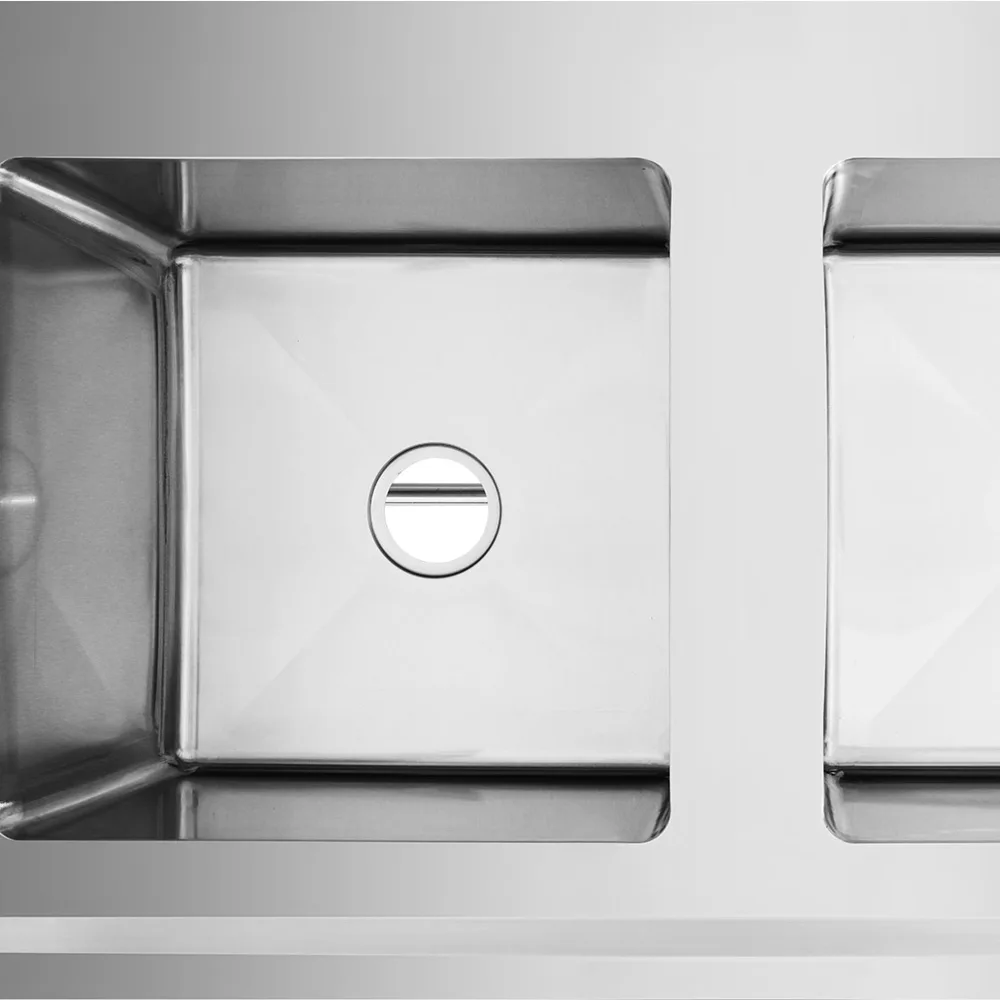

• Two fully welded bowls, polished inside and out.
• SUS304 (18/8) stainless steel benchtop with a wet edge and U-channel reinforcement.
• A bevelled, enclosed splashback with stainless steel backing.

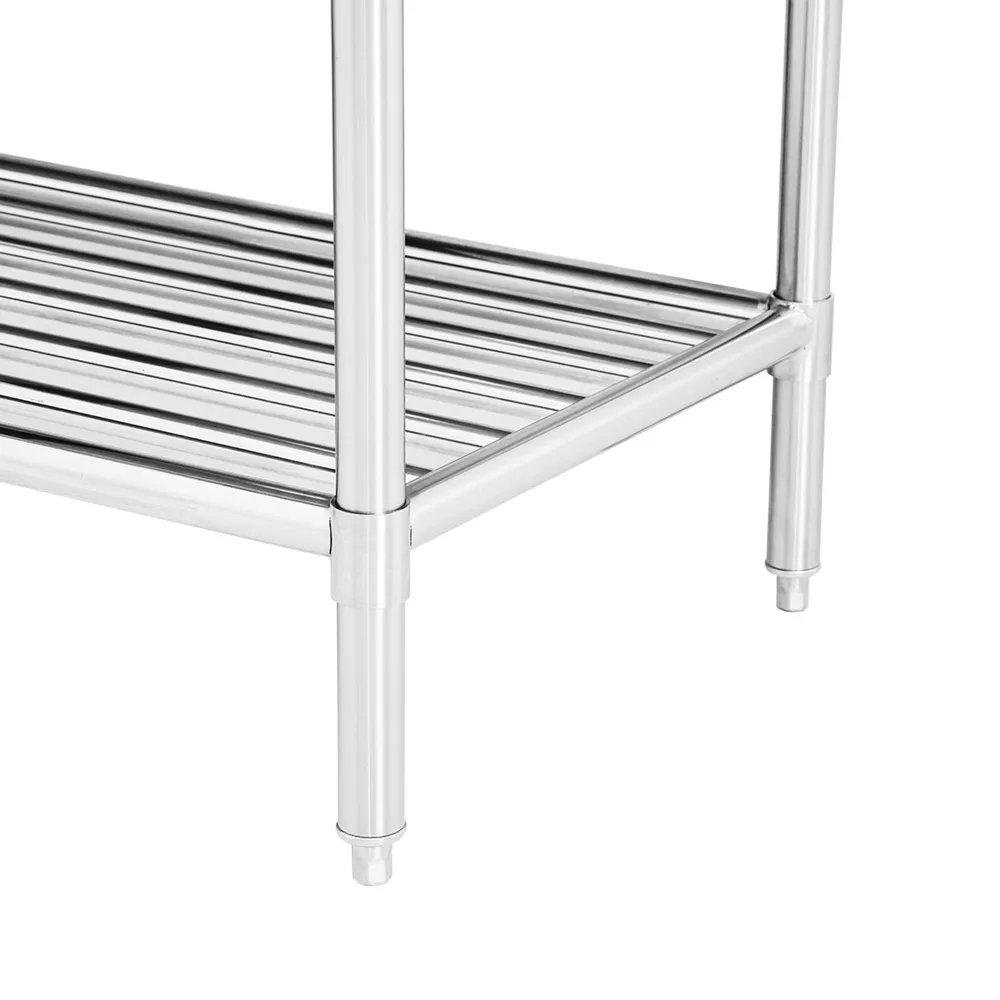

• Four legs with adjustable disc feet, plus instructions and tools for assembly.

• The left-hand inlet arrangement must suit the dishwasher position.
• The bench arrives flat-packed and requires assembly.
• Bowl size, finished height and the bench-to-dishwasher junction need to suit the intended wash-up station.

• Modular Systems SSBD7-1800L/A Left Inlet Single Sink Dishwasher Bench: SSBD7-1800L/A has a left-inlet single-sink layout, compared with the two sinks in this DSBD7-1800L/A.
• Modular Systems SSBD7-1800R/A Right Inlet Single Sink Dishwasher Bench: SSBD7-1800R/A is a right-inlet single-sink option, while this model has a left-hand inlet and two sinks.

• Check the handing and machine junction. Stand facing the proposed bench position to check that the sinks and dishwasher inlet belong on the left. Have the installer check the machine junction, working height and water and waste connection positions.
• Plan access and assembly. Measure the access route and final position against the dimensions in Key Specifications above, including splashback clearance and the -5mm to +10mm dimensional tolerance. Arrange handling and assembly space for the 45.45kg flat-packed bench.
• Assemble and level. Follow the supplied assembly instructions and use the included tools. Adjust the disc feet to level the bench, and confirm the support configuration and finished height before completing the installation.

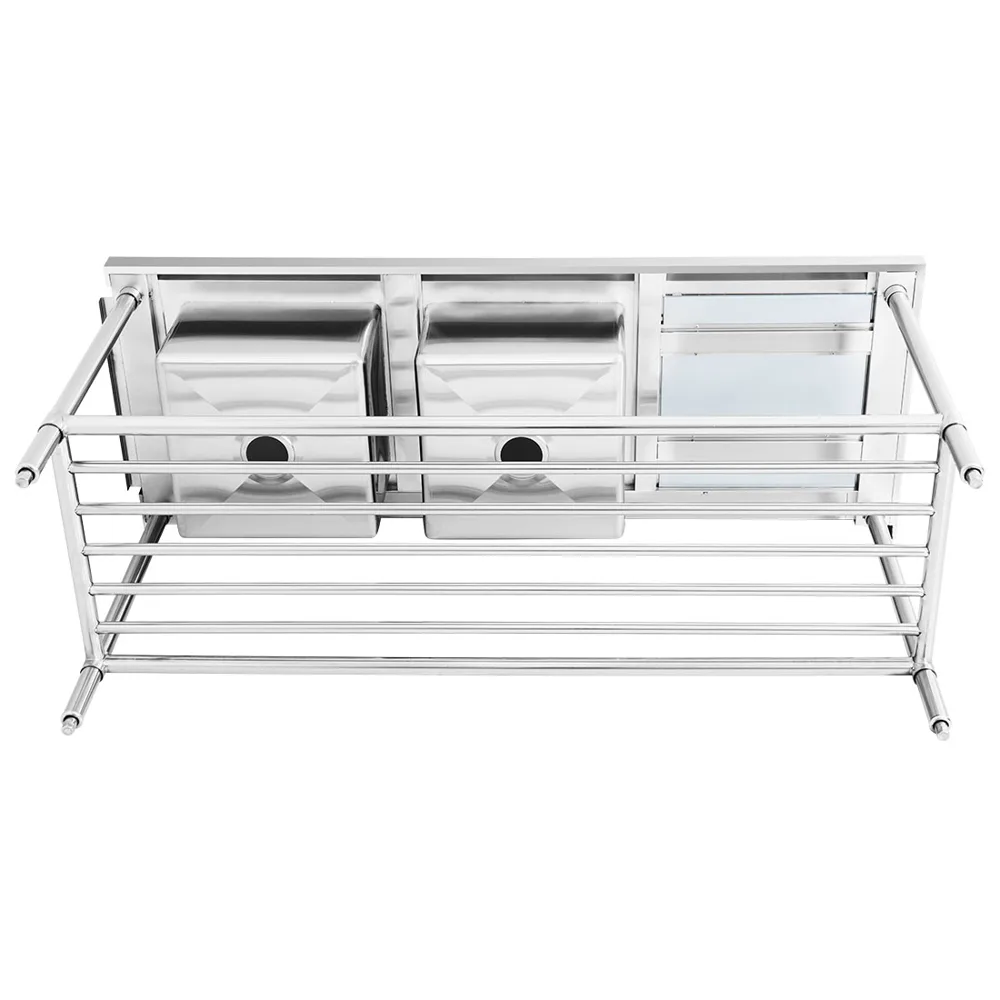

• Match the drains and allow cleaning access. Have the installer check the 90mm bowl drain openings against the proposed waste fittings and pipe route. Leave access for routine cleaning around the bowls, wet edge and splashback.

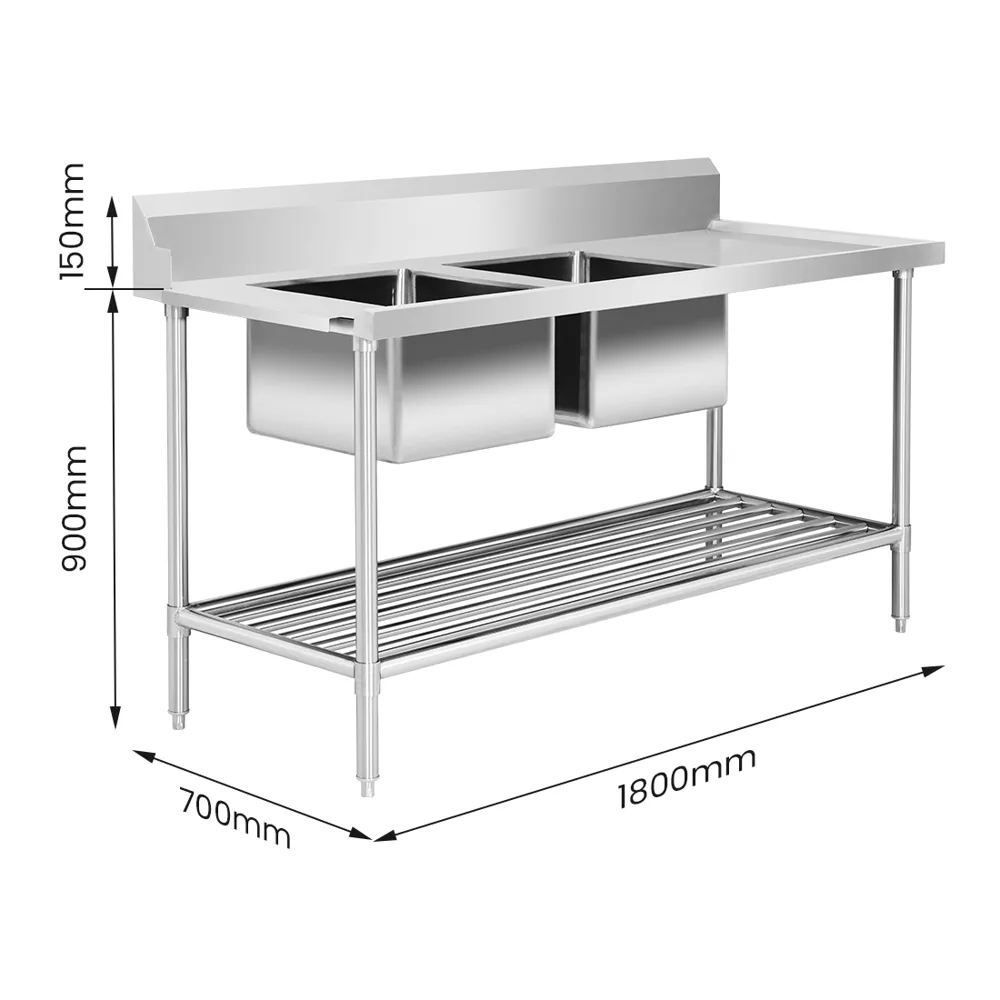

For body dimensions, see Key Specifications above.
