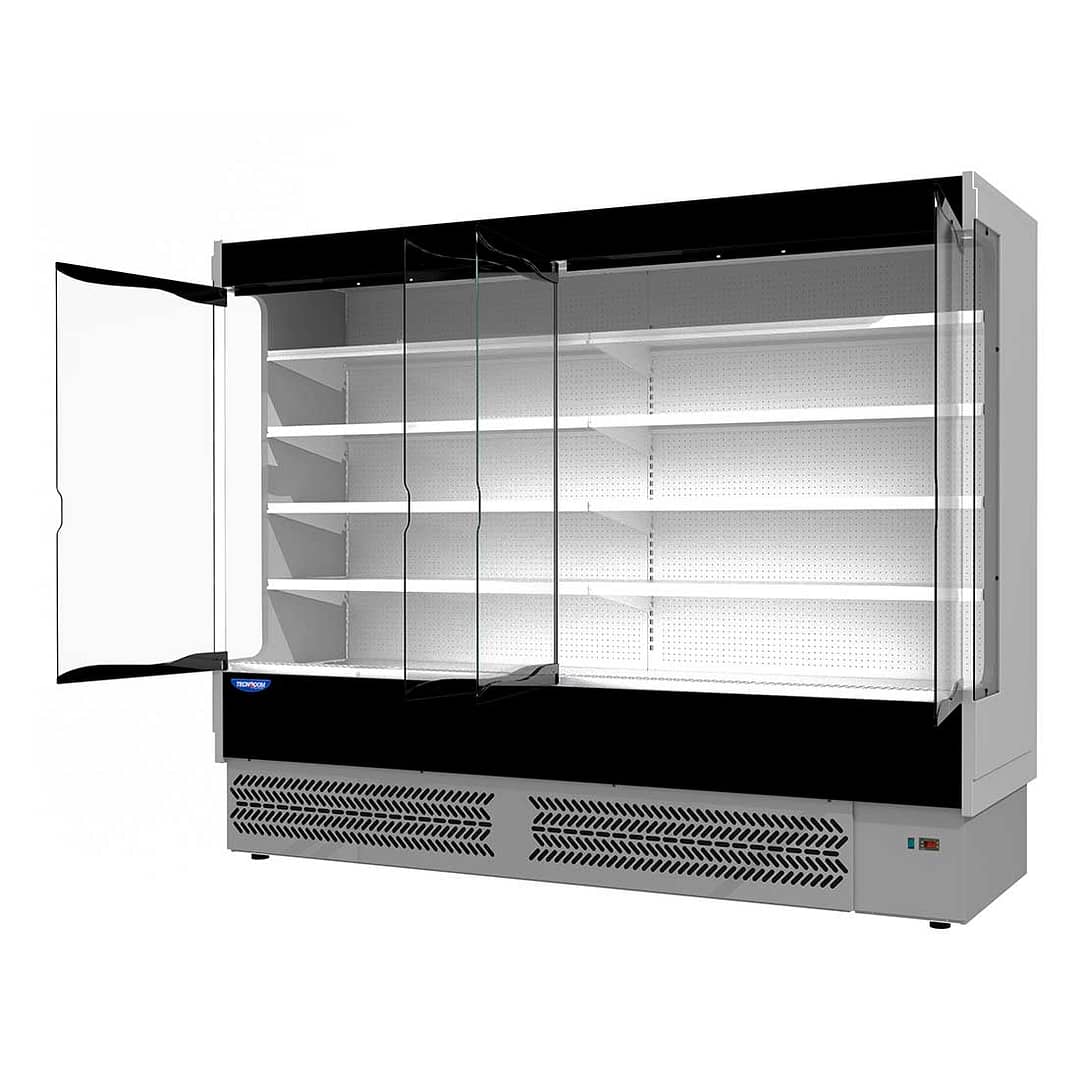

Tecnodom TDVB80-CA-250 Vulcano Supermarket 4 Door Open Display

Tecnodom TDVB80-CA-250 is a four-glass-door supermarket display with ventilated cooling and a built-in condensing unit. Plan the main electrical feed, separate evaporation circuit and tundish drainage before installation.

For a chilled retail display line using hinged glass doors and multilevel product presentation. Check both the room conditions and installation services before allocating the cabinet’s position.

• Chilled retail displays using hinged glass doors.
• Installations providing both electrical circuits and tundish drainage.

• Choose a freezer for products requiring frozen display.
• Choose an open-front display only when that access format suits the retail plan.

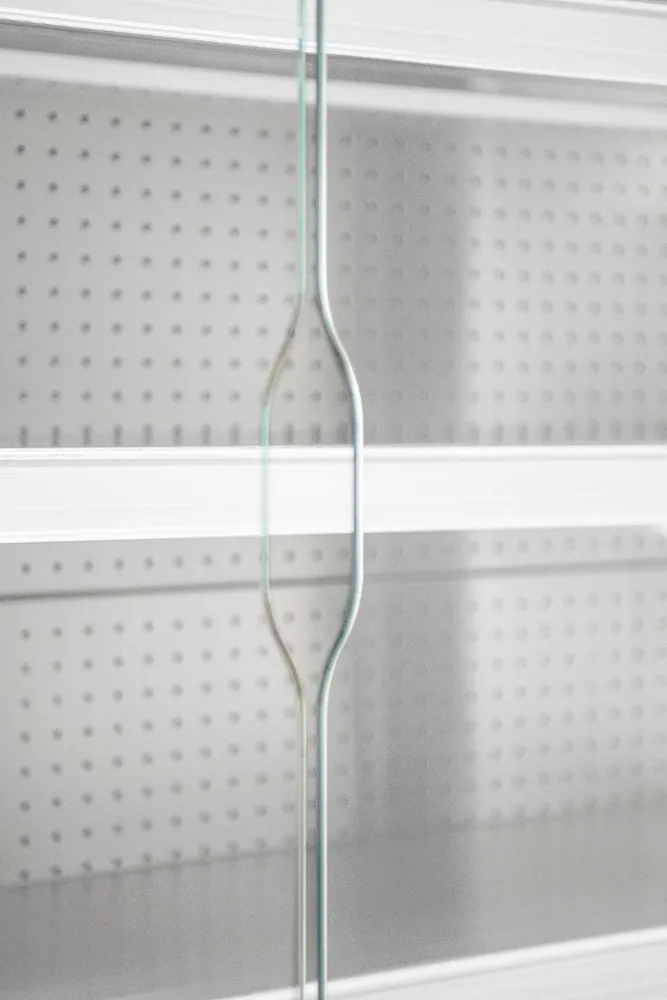

Choose a hinged-door chilled display when staff or customers need access through doors rather than an open-front cabinet. Check the shelf depth and display area against the products.

Confirm both electrical connections and the required tundish drain before ordering. Treat the auxiliary evaporation circuit as a separate installation requirement.

Compare the actual room conditions with the 30°C, 55% relative humidity rating. Check the cabinet depth and doorway clearances against the dimensional drawing before arranging installation.

Ask KW about closer product views or a model-specific video showing the glazed-door access and display arrangement before choosing.

• Four-door display with LED lighting and ventilated cooling.
• Built-in condensing unit and a defined multilevel display area.

• Requires a main 20 A connection plus a separate 10 A evaporation circuit.
• Needs tundish drainage and room conditions within the stated rating.

• Tecnodom TDVB80-CA-187 Vulcano Supermarket 3 Door Open Display: TDVB80-CA-187 is a three-door Vulcano model, rather than the four-door TDVB80-CA-250 layout.
• Bromic 3335647-NR SVM2500SD-NR Semi Vertical Multideck – 885L, Sliding Doors: 3335647-NR uses a semi-vertical display with sliding doors; compare that access arrangement with this hinged-door cabinet.

• Electrical services. Arrange the main 20 A feed and the separate 10 A circuit for the 1000 W evaporation element. Have the site services checked before connection.
• Drainage and placement. Check the cabinet depth and doorway route against the dimensional drawing. Provide the required tundish drain and maintain access to the condensing unit and service areas.
• Display operation. Set up the shelves for the product range, allow the cabinet to reach its operating temperature and keep the glazed doors closed between access.

For body dimensions, see Key Specifications above.
