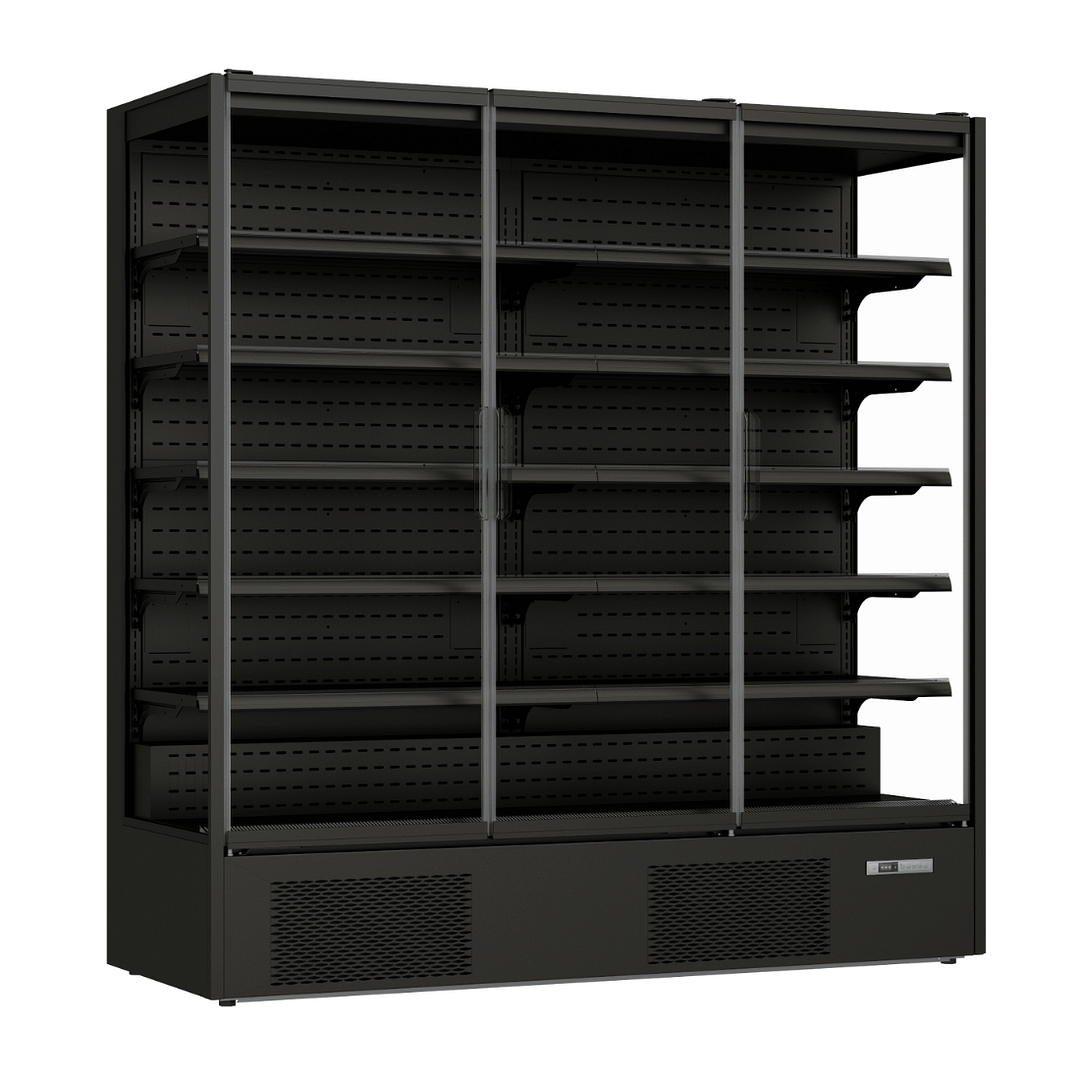

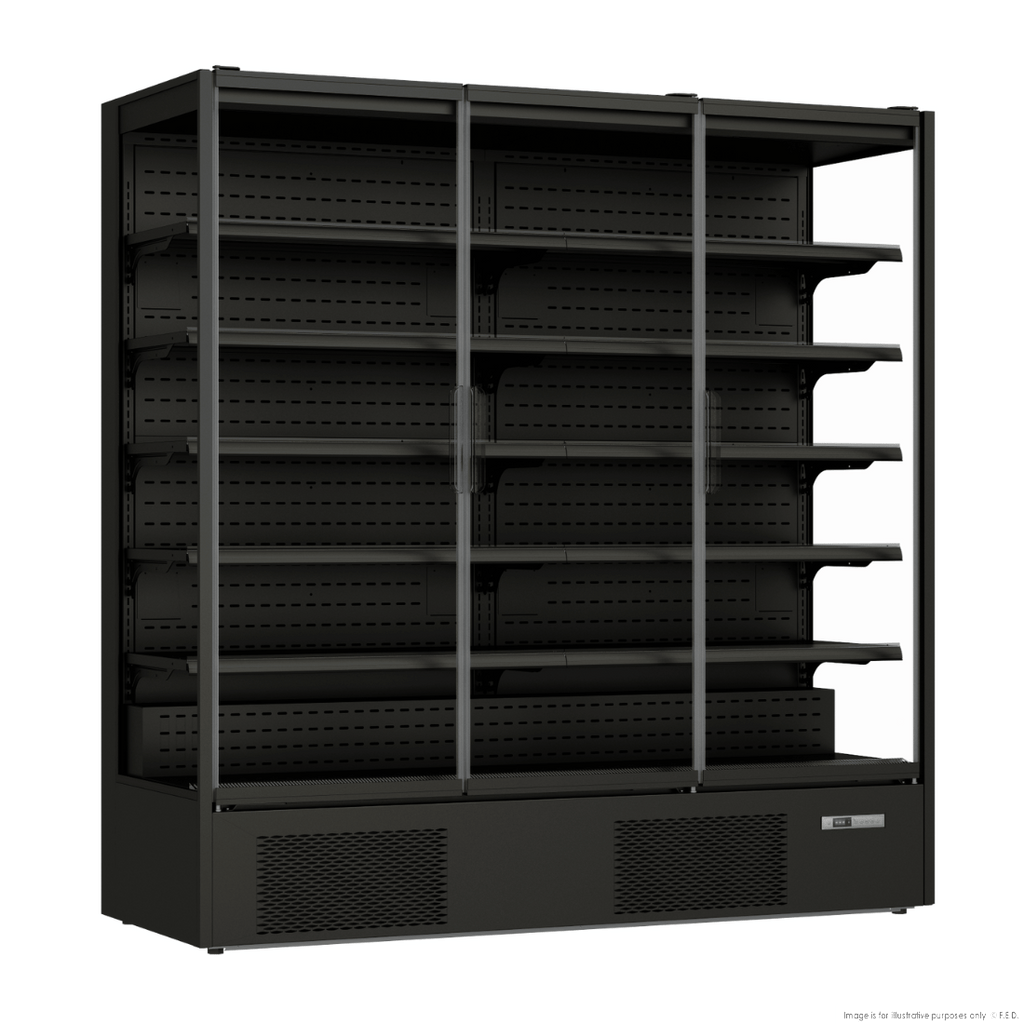

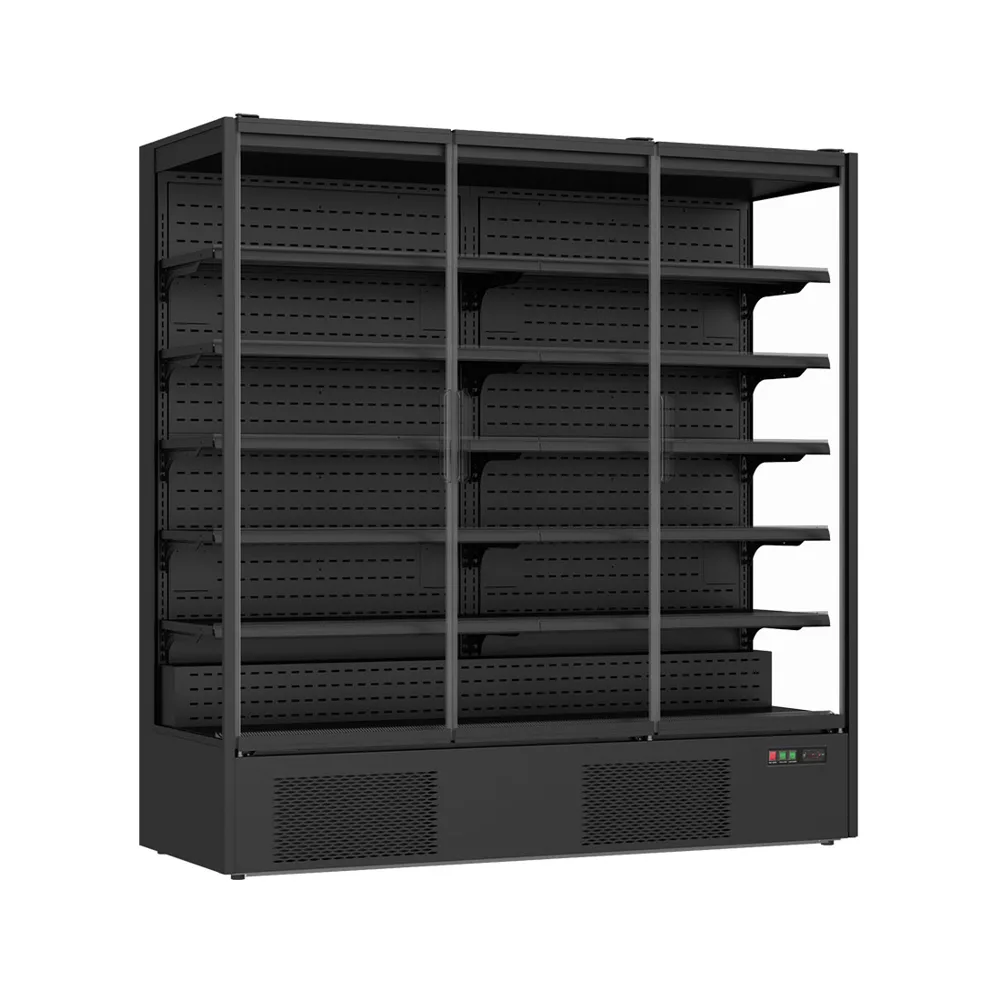

Thermaster DC-187B Panorama 3-Door Retail Fridge – Frameless Glass, LED, R290
Updated:
At KW Commercial Kitchen, the Thermaster DC-187B is a panoramic retail display fridge delivering frameless 3-door visibility, LED lighting on all shelves, and R290 + EC-fan efficiency in a 1875-mm cabinet—ideal for supermarkets, grocers and convenience stores.
Built for Australian retail merchandising
The DC-187B combines low-E frameless doors, transparent endwalls and fan-forced cooling to keep products at −1 °C to +5 °C with strong shelf impact. A pull-out condensing unit speeds service, while angled 450-mm shelves (0°, 7°, 14°) maximise facing and basket size.
Key features & specifications
- Display volume: Gross 2585 L / Net 1529 L
- Temperature range: −1 °C to +5 °C

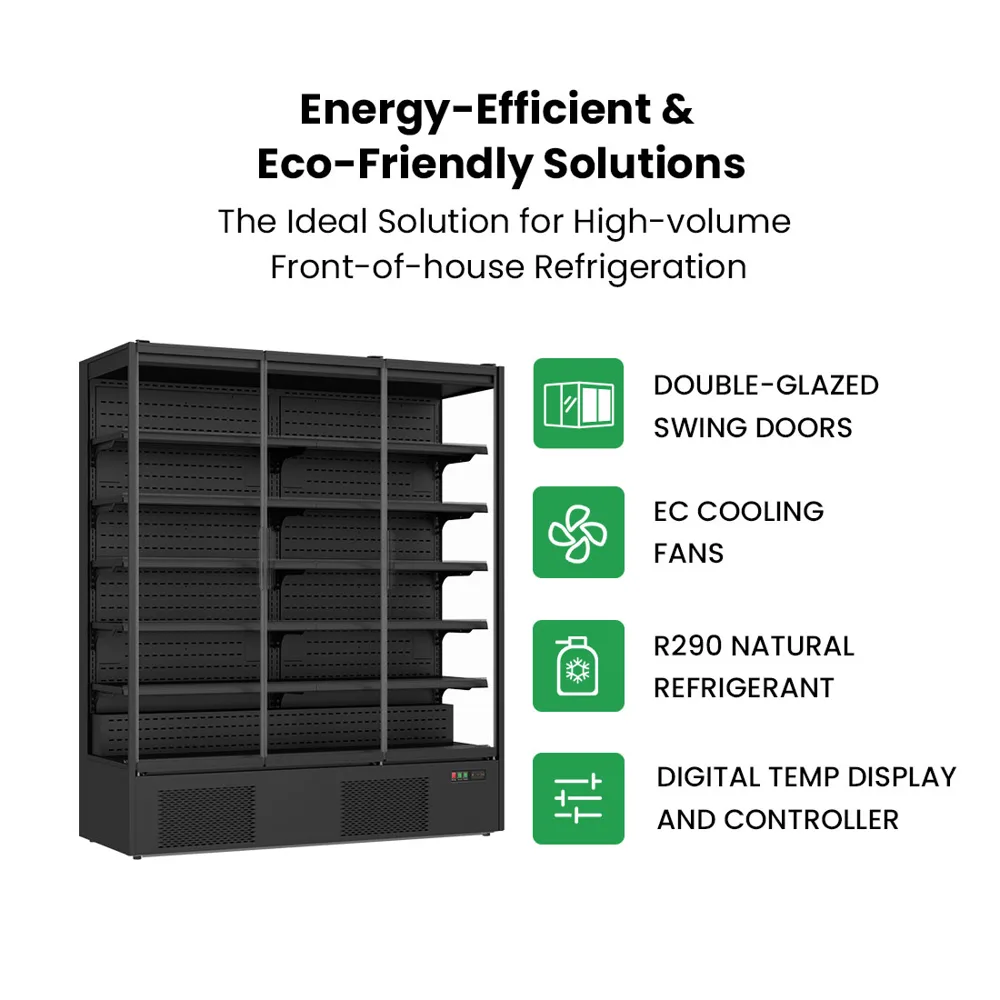

- Energy: R290 natural refrigerant; EC fans; anti-reflex/low-E glazing

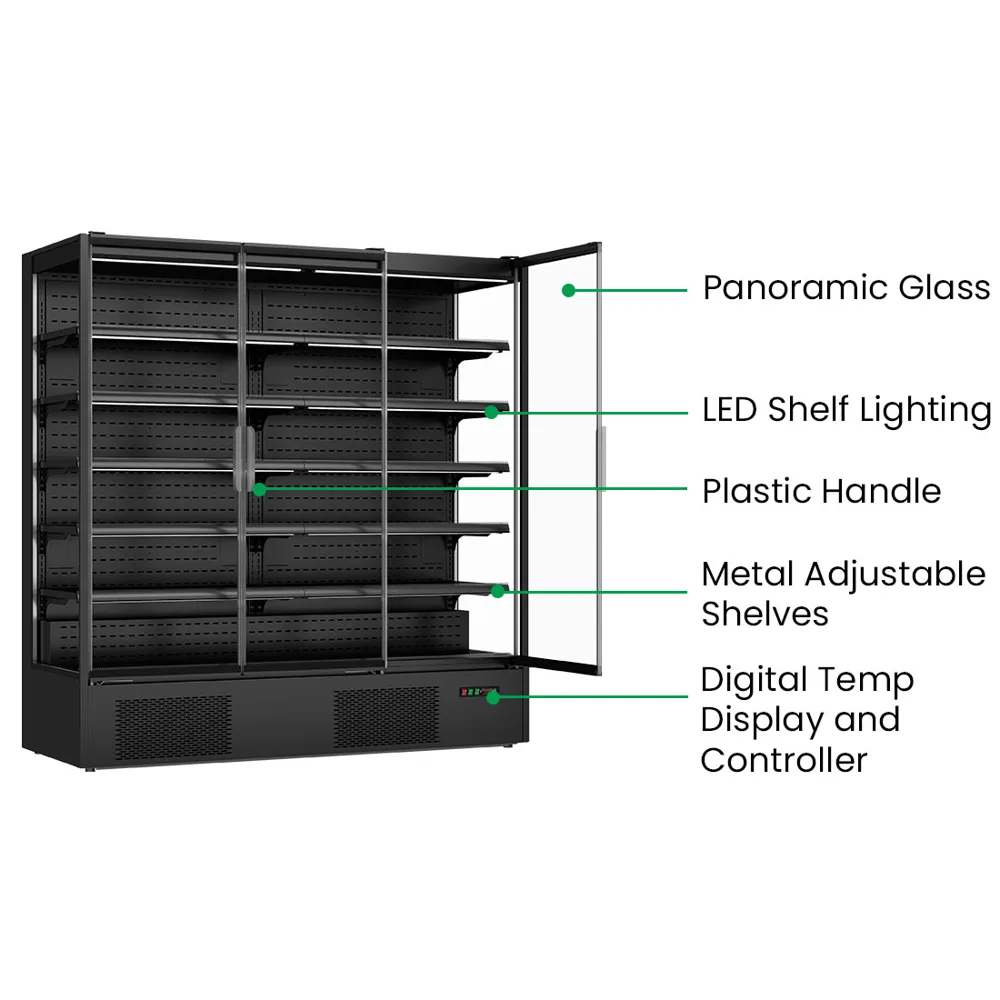

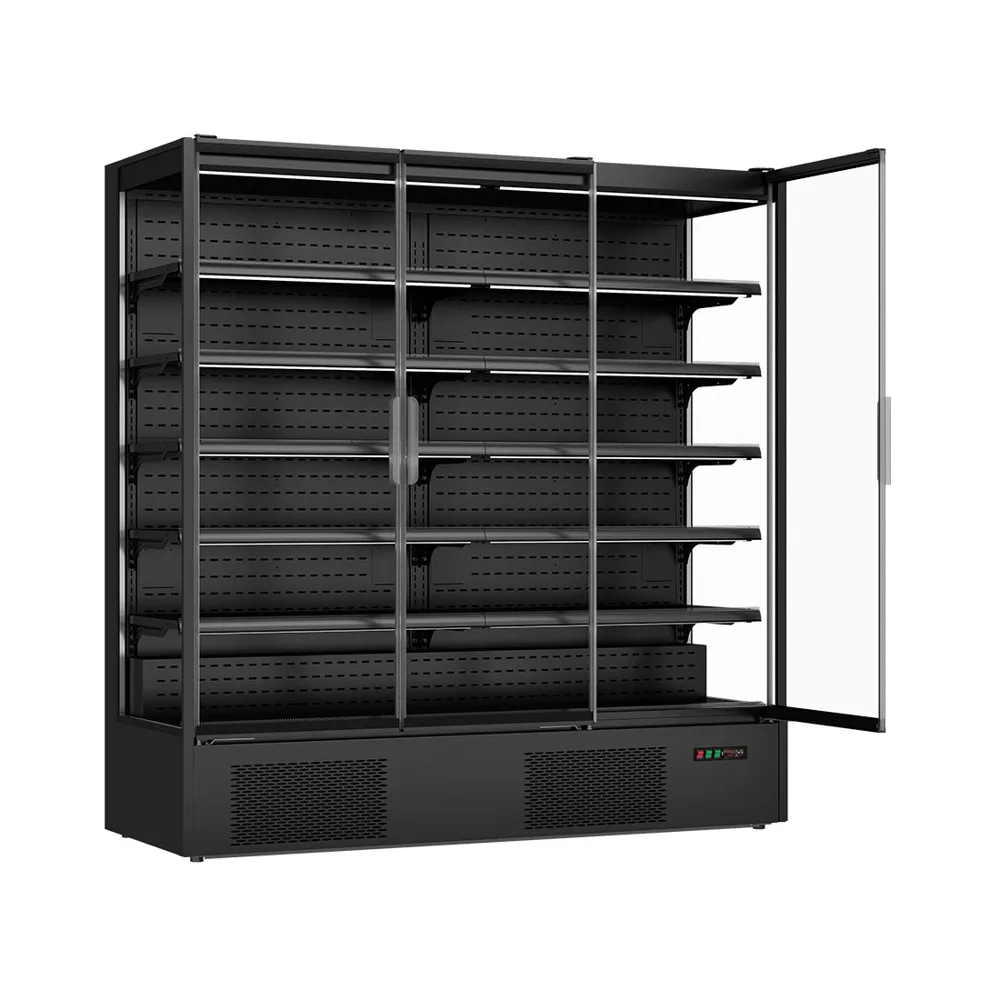

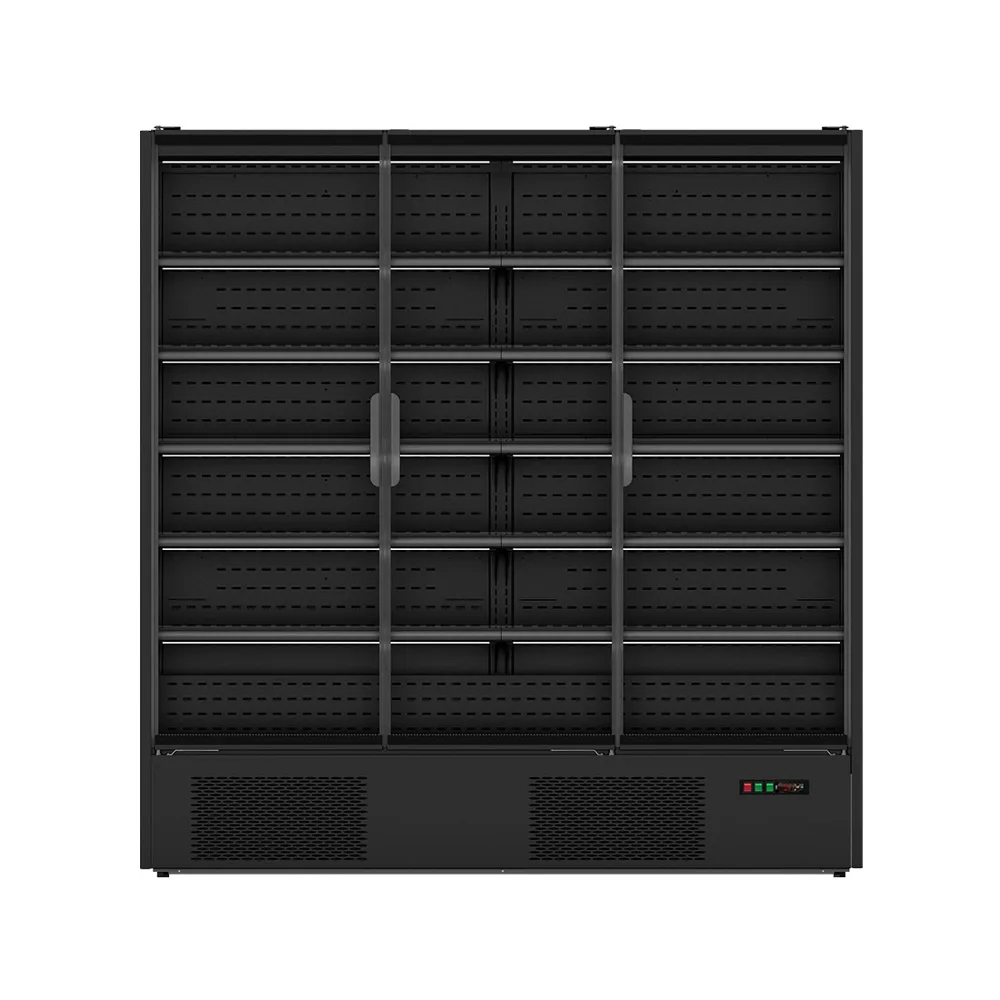

- Doors: 3 frameless hinged glass doors; transparent endwalls
- Lighting: LED illumination on all 5 shelves
- Shelving: 450 mm deep; tilt selectable 0° / 7° / 14°; price-tag holders
- Cooling & control: Fan-forced system; digital display; pull-out condensing unit
- Construction: Colorbond body; stainless steel interior base; adjustable legs
- Display area: ~3.84 m²
- Dimensions (W×D×H): 1875 × 740 × 2010 mm
- Electrical: 240 V / 10 A / 0.98 kW
- Weight: 380 kg
- Warranty: 2 years parts & labour + 2 years parts only (registration within 14 days)
Compliance & safety (AU)
- Electrical: RCM compliant 240 V appliance.
- Food safety: FSANZ-aligned chilled holding (0–5 °C) for packaged foods and beverages.
- Environmental: Hydrocarbon R290 with high efficiency; install per GEMS/E3 guidance.
Convenience & usage advice
- Merchandising: Use 7–14° shelf tilt for impulse drinks and dairy; keep top shelf at 0° for taller packs.
- Serviceability: Clean condenser quarterly; slide out condensing unit for fast maintenance.
Ideal applications

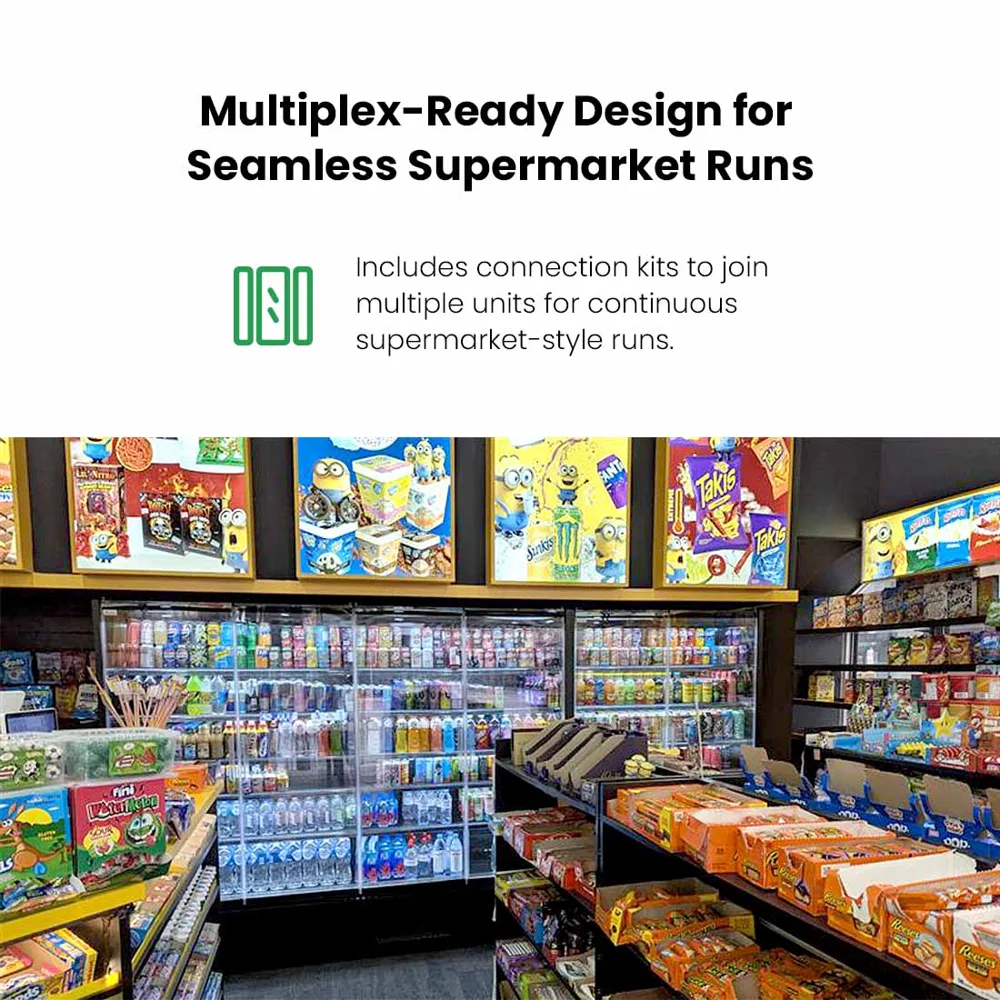

- Supermarkets & independent grocers
- Convenience stores & delis

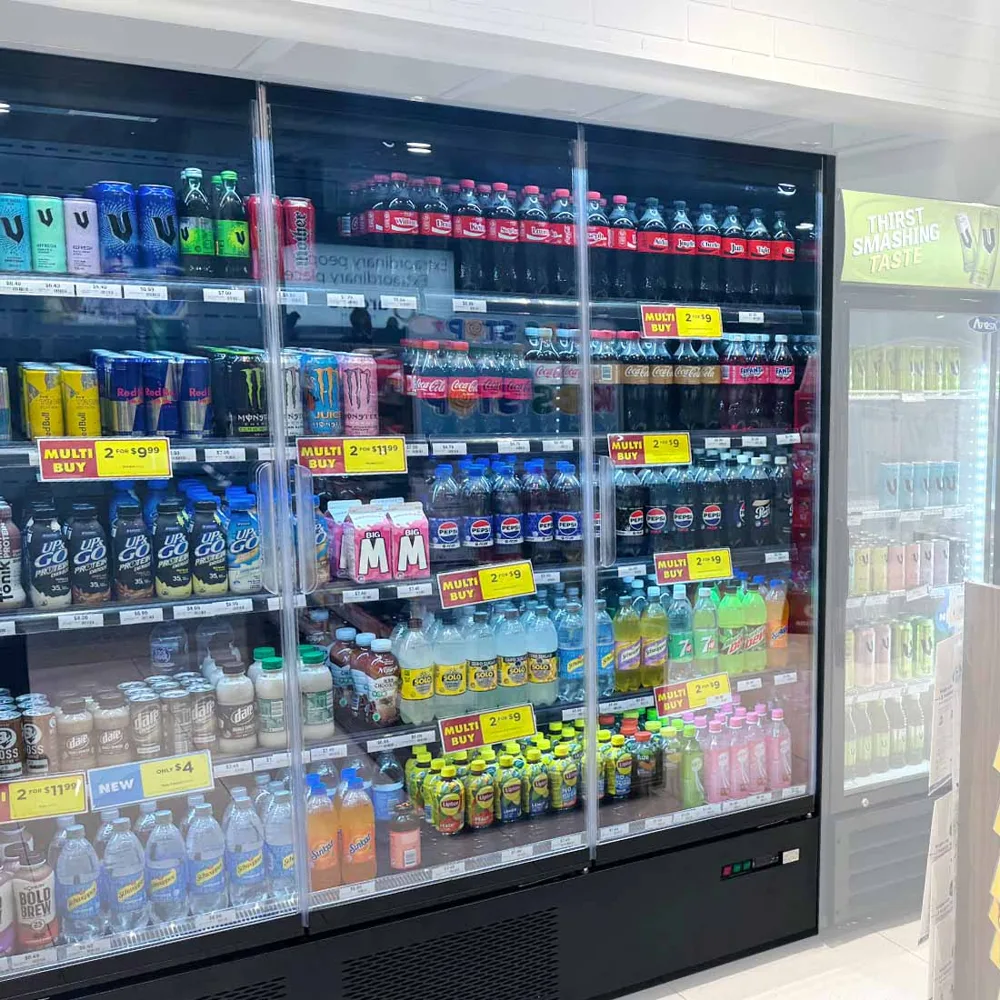

- Retail beverage and grab-and-go sections
At a glance
- 1875 × 740 × 2010 mm | Net 1529 L (Gross 2585 L)
- −1 °C to +5 °C | R290 refrigerant | EC fans
- Frameless low-E doors + clear endwalls | LED on 5 shelves
- 2 + 2 year warranty (registration required)
Frequently Asked Questions
1) How is installation handled?
Place on a level floor, allow rear/side ventilation, connect to 240 V / 10 A, verify temp set-point −1 °C to +5 °C. A licensed technician is recommended for commissioning.
2) What products suit this cabinet?
Dairy, beverages, RTE meals, produce, floral displays—anything requiring stable chilled presentation.
3) What maintenance keeps performance stable?
Monthly: vacuum condenser and clean door gaskets. Quarterly: check shelf LEDs and seals; bi-annual professional service.
4) What are the power requirements and typical running cost?
Operates at 0.98 kW on 240 V. Use the mini calculator below for an indicative cost based on your tariff.
5) Are parts available?
Yes—shelves, door seals, LED drivers and EC fans are supported locally. Quote model DC-187B.
